Eurorack case
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Audio
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

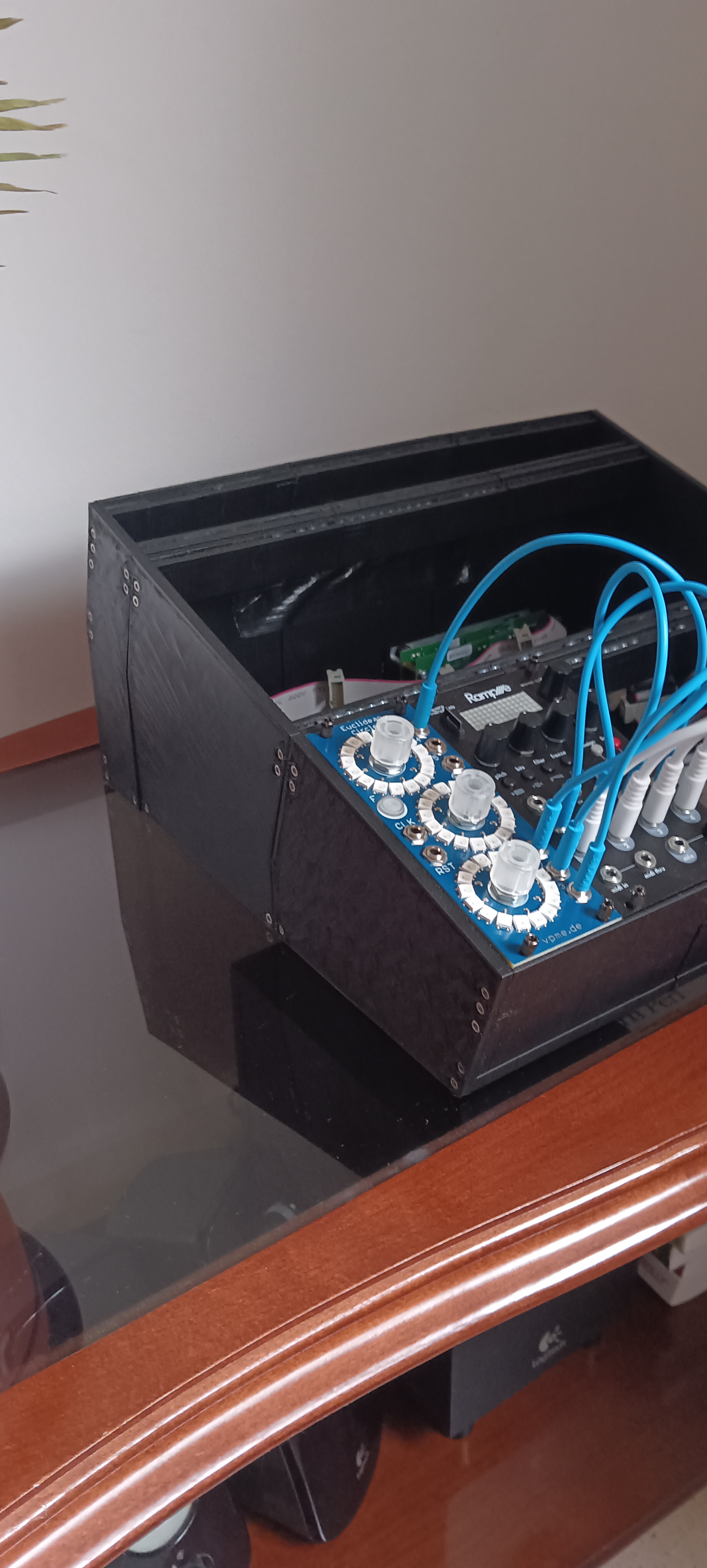

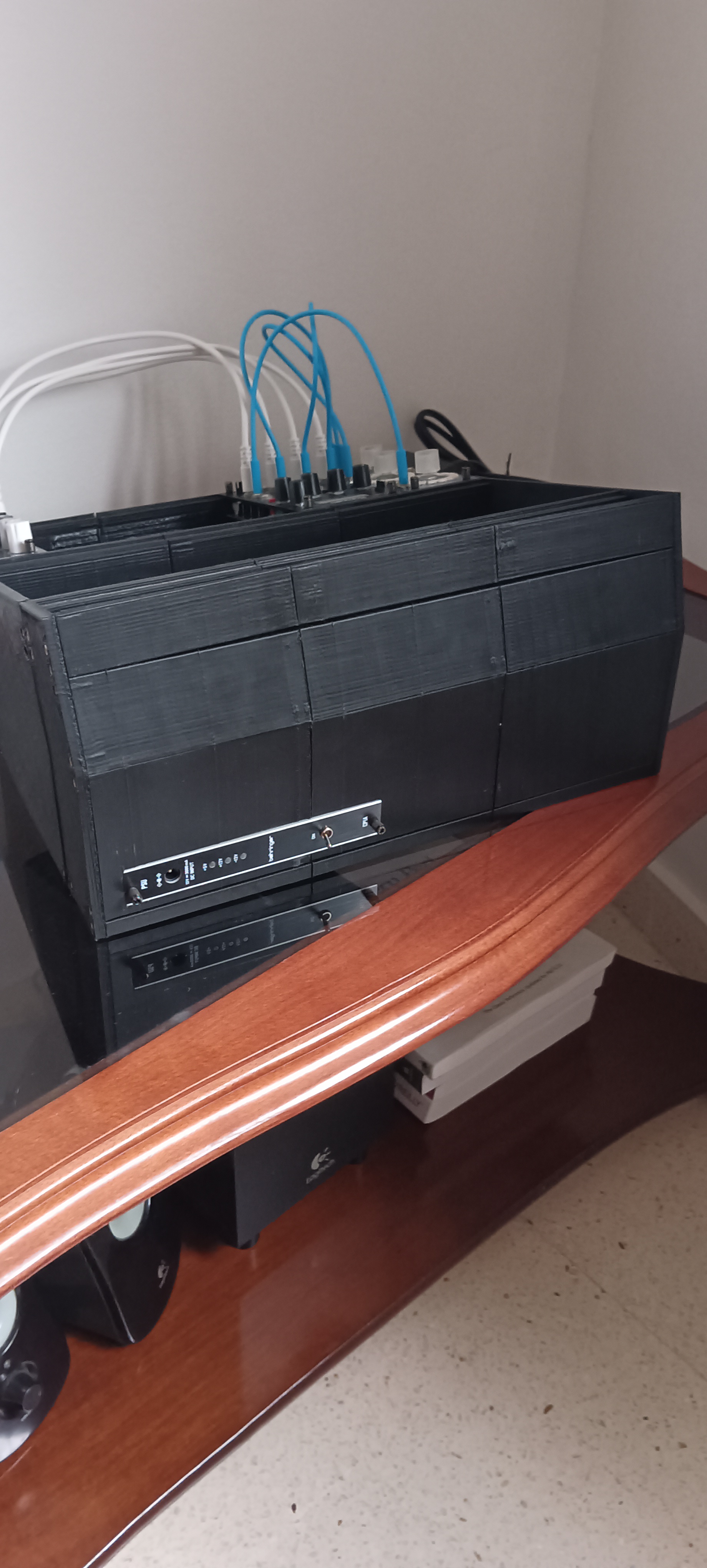

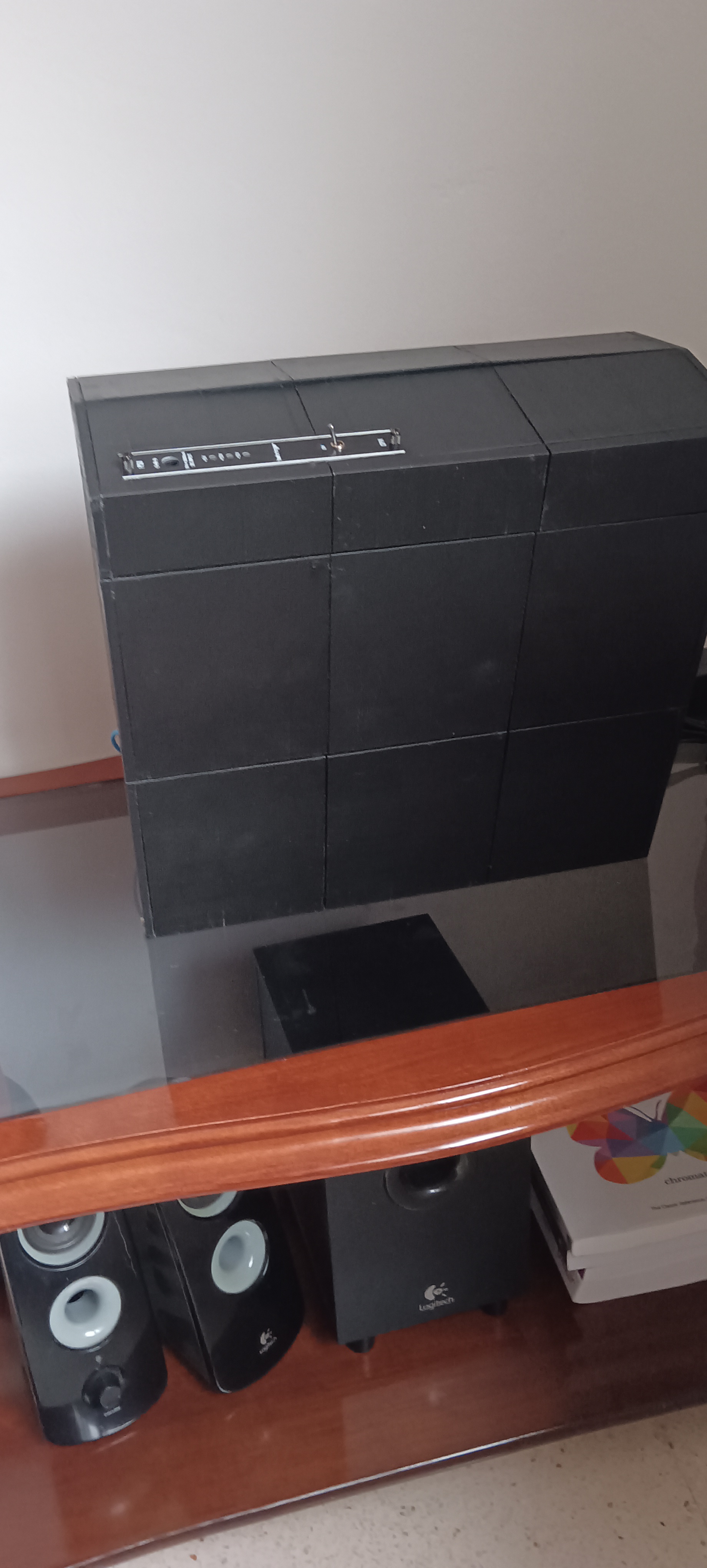

This is a modular, printable, Eurorack case and rails system. Includes 20HP and 4HP case parts and rails to create the usuals commercial lengths. Includes simple and double rails.
The holes are for 3M*4*4.6 brass heat inserts nuts.
Accepts M3 square nuts in the rails to ensure a reliable use.
Print one star, one end, and all the middle sections you need to reach the commercial length of your desire.
You can attach it to a case or any other place you need through M3 screws and the brass heat inserts.
PRINTER SETTINGS
- 60m/s speed for the outer wall (there's many sharp corners and it's best to avoid bulging corners).
- No support: Plate it vertically with the side plate side facing the printer's plate).
- 10% hex infill.
- 0,4 nozzle and 0,2 layer heigh.
