Gridfinity bookend inspired by the Lihit Lab Firm Book End

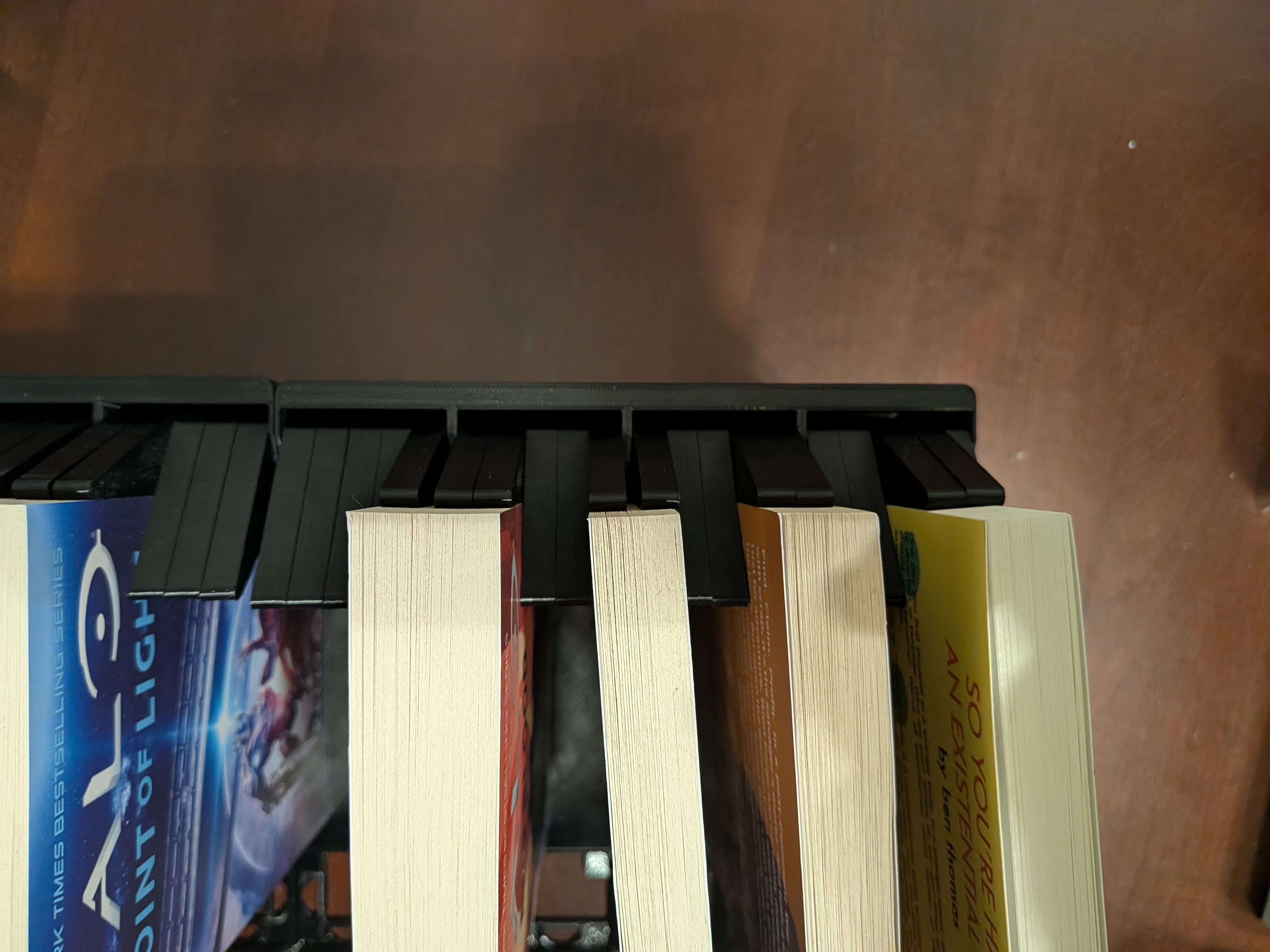

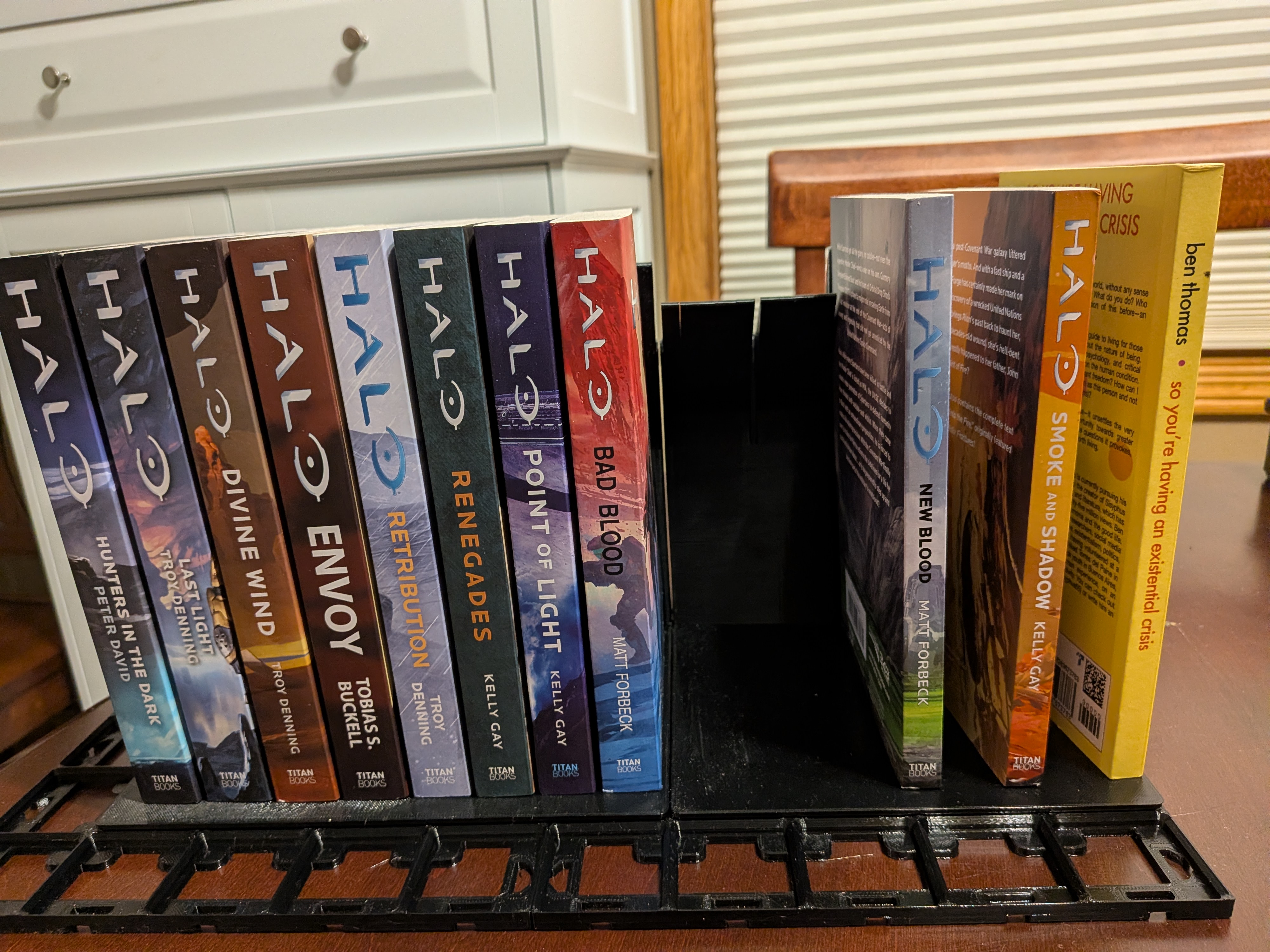

This design helps hold books upright without falling over or tipping into the void left by a removed book
Variations, Height and Depth, can be generated quite easily if the size is a bit off for your application. Just ask
Assembly
parts Needed:
1 stand
1 shaft based on the stands Gridfiity width
(Ex: Stand_3x4 → shaft_3_Wide)
5 Arms per Gridfinity width
(Ex: Stand_3x4 needs 5 * 3 = 15 Arms)
The Shaft should fit snug in the stand while lacing on the Arms 5 at a time
If the arms get stuck or snag
Debur the the corners of the shaft
Debur the printer seam inside the hole (Arm V2_1 should remove this process 3/15/26)
Debur the edge of the hole (Chamfer was added, shouldn't need to do this)
Notes
The stand files labeled with 1x4 and 2x4 are included for completeness and may not function adequately standalone. Using a longer shaft to bridge between a 1 or 2x4 to a 3 or 4x4 may work but i have not personally printed and tested these.
Attributions
Gridfinity designed by Zack Freedman (Thanks!)
