Speedloader BB 4.5mm

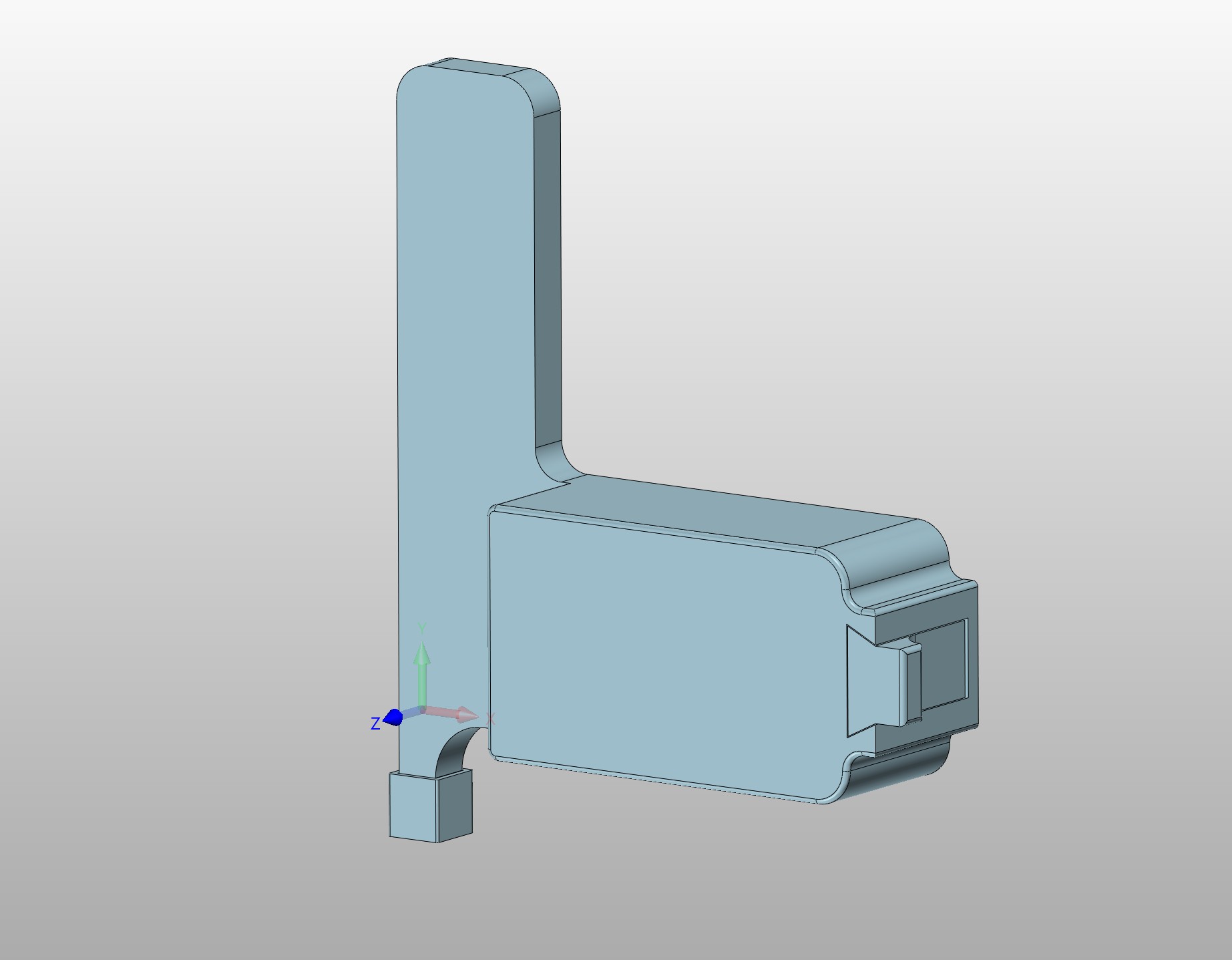

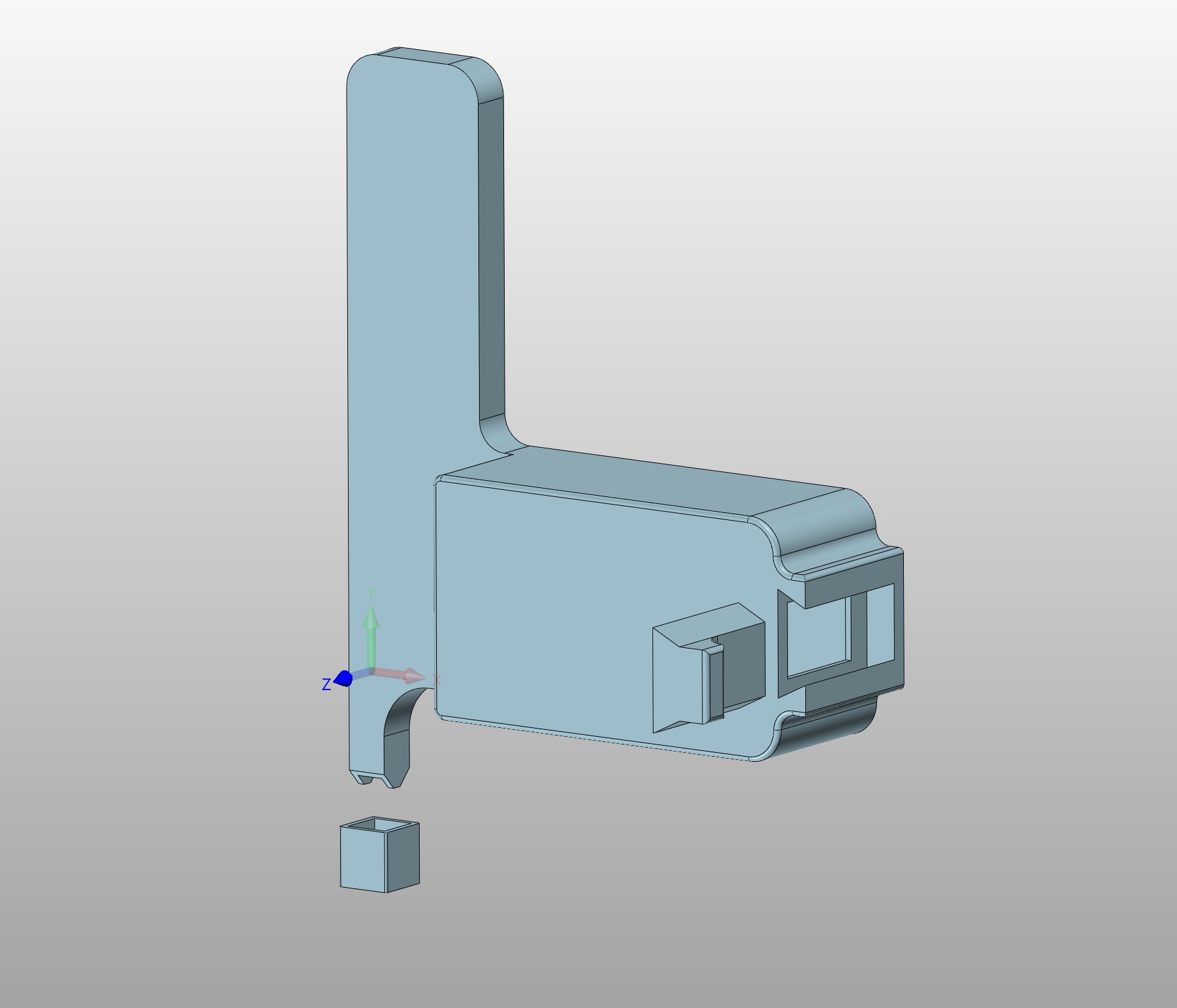

This is my own design of the speed loader for 4.5mm steel balls. This is very good , handy tool without any spring or any movement parts. The full capacity is 967 BBs. What you need is just open it and load few hundreds BBs then close it and shake, afterwards each loading portion will be 30 BBs. Just hold it and match the end with the loading whole in any pistol magazine and gently move it 45 deg and all 30 BBs will gravitationally load the magazine. Then just shake it more and the next portion will be ready. Have fun and Good Luck! PS. It works perfect with all my Umarex and KWC pistols.

Print Settings

• Printer brand:

Prusa

• Printer:

I3 MK3S

• Rafts:

No

• Supports:

No

• Resolution:

0.2mm

• Infill:

100%

• Filament material:

PLA

• Filament brand:

Any

• Filament color:

Transparent

• Notes:

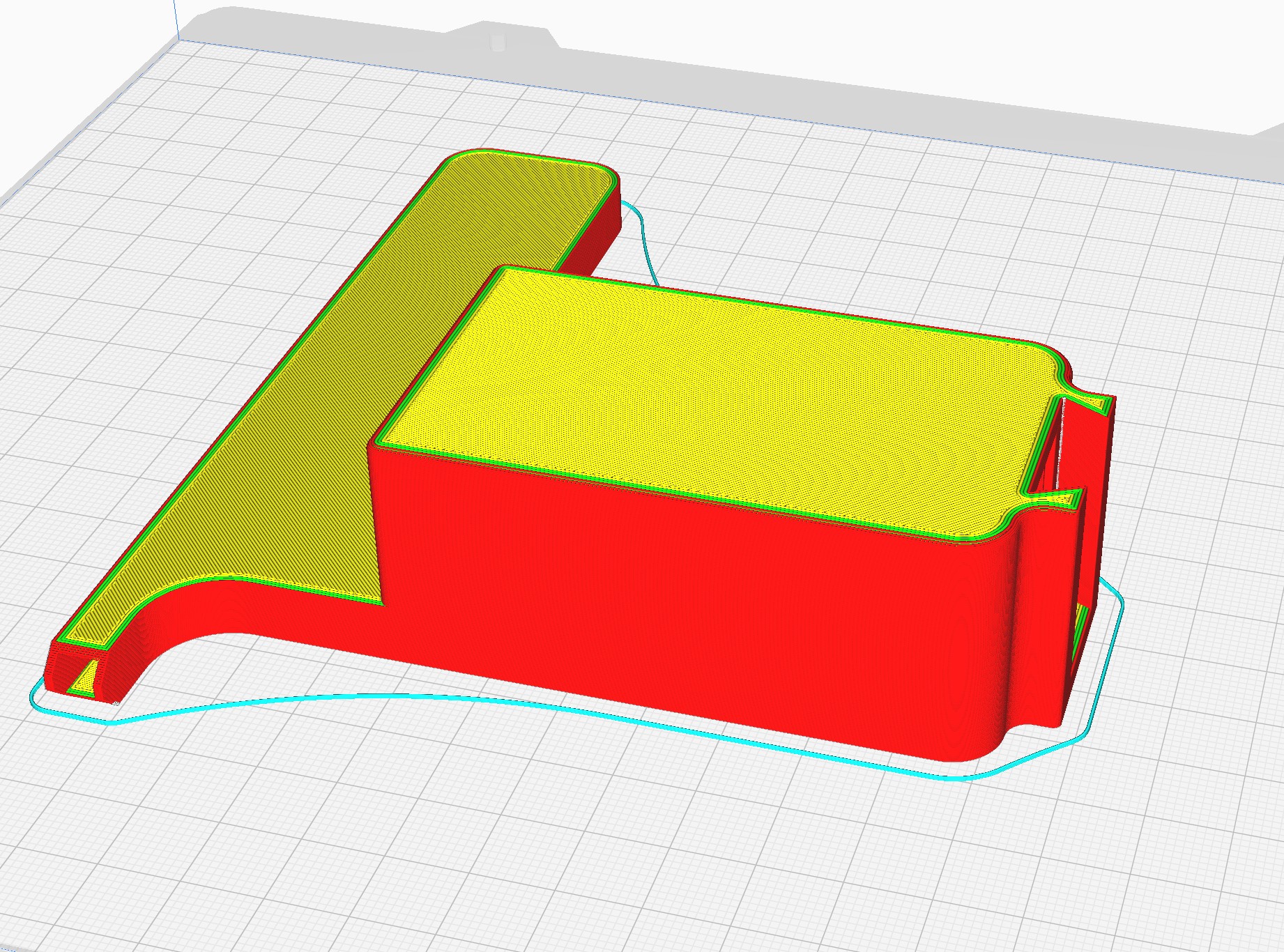

Please print it from transparent PLA or PETG to see the BBs inside. Do not use supports. Just Print as it is. Please use Bridging in Cura and 3 walls only. Resolution 0.2 and with path 0.4mm. This model is optimized to this parameters. I am attaching all STL files and ready gcode for Cura and PLA Prusa printer for main part with proper settings.

If you like use it for 6mm BBs just scale it by 120%.
