A simple case remix, that uses the multiconnect system to mount to a multiboard, and potentially other board systems as well.
This should fit the common MAX7219 8x32 arrays that are cheap to get on aliexpress. For example https://www.aliexpress.com/item/1005009517965382.html

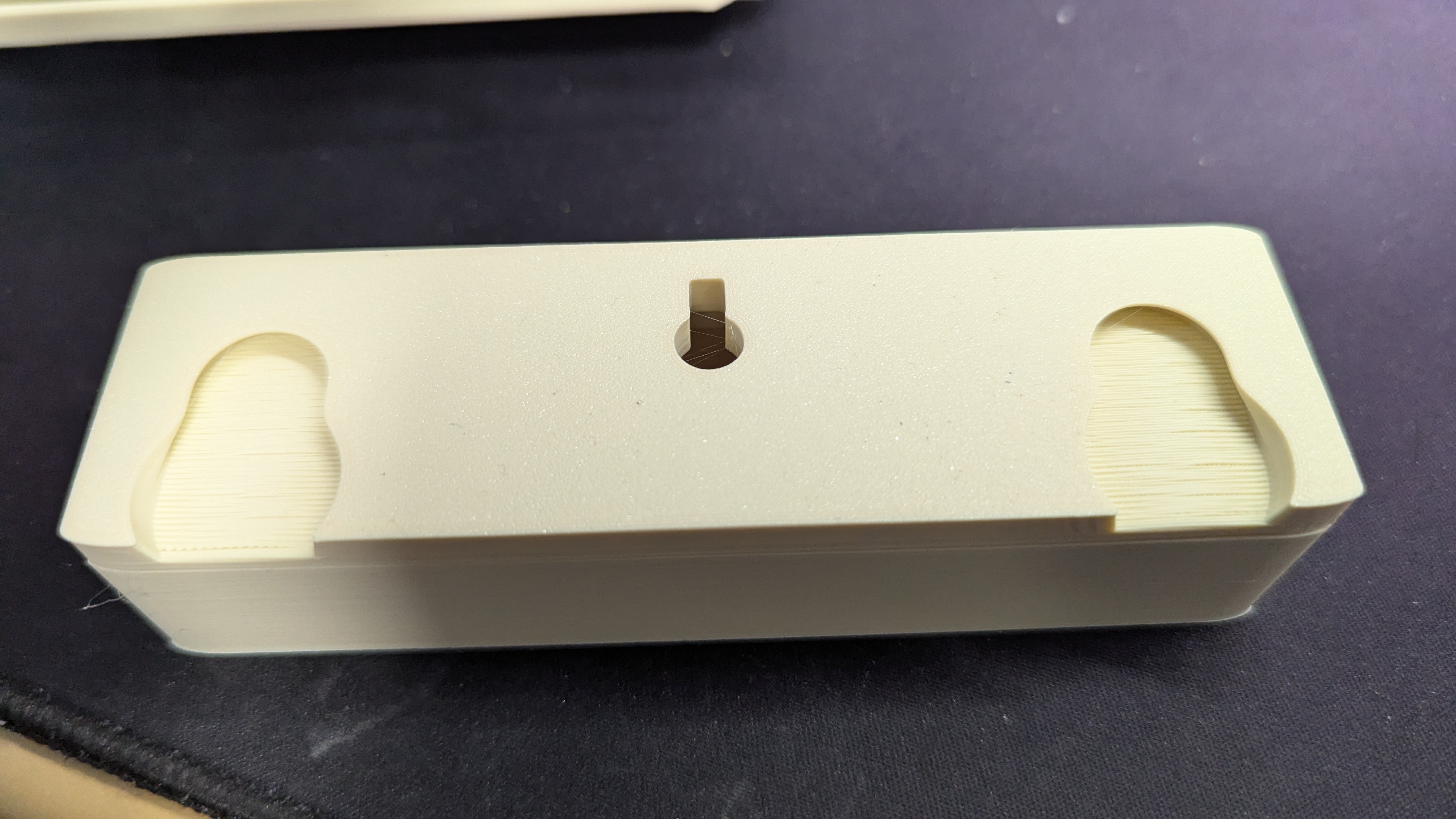

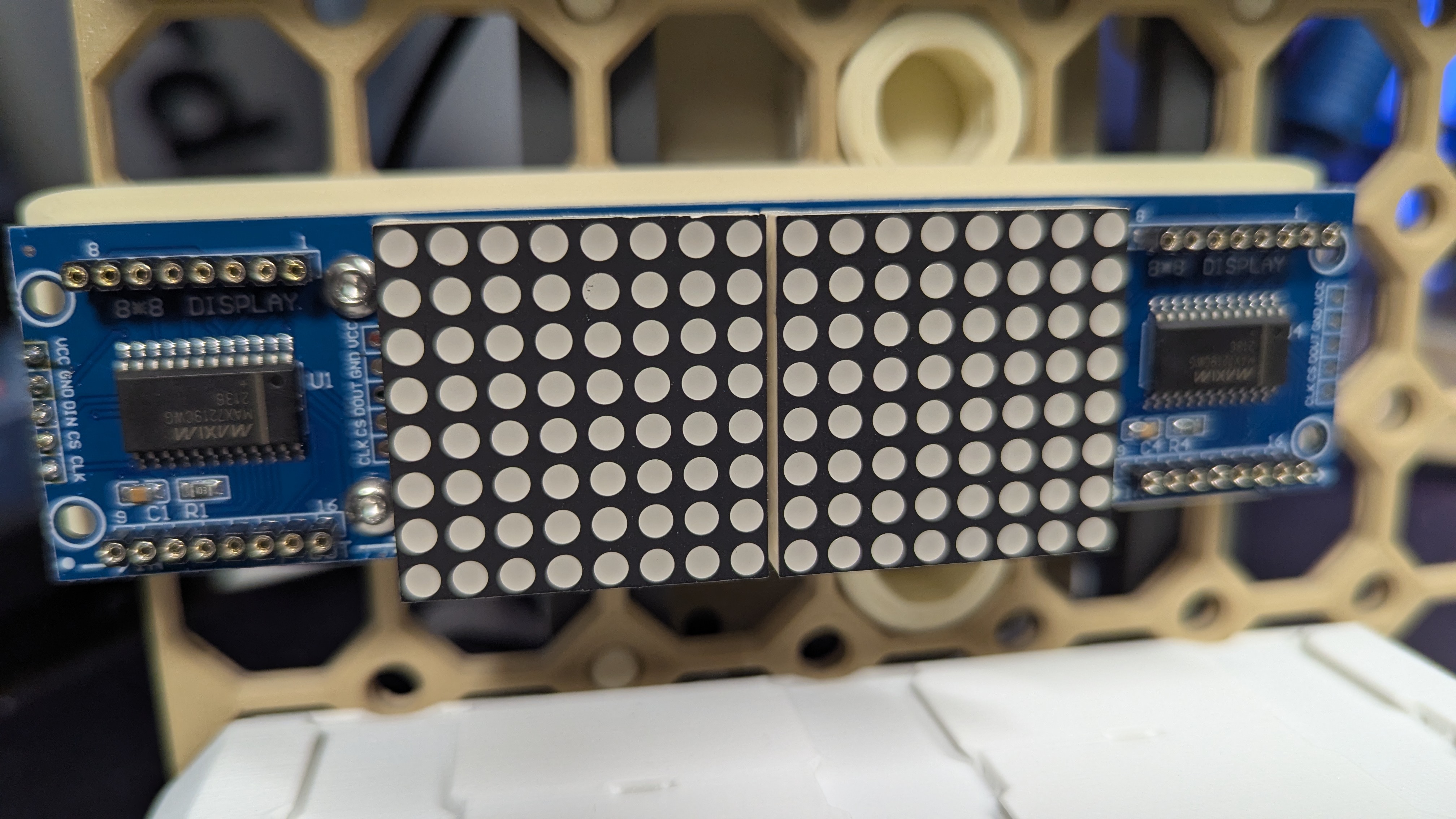

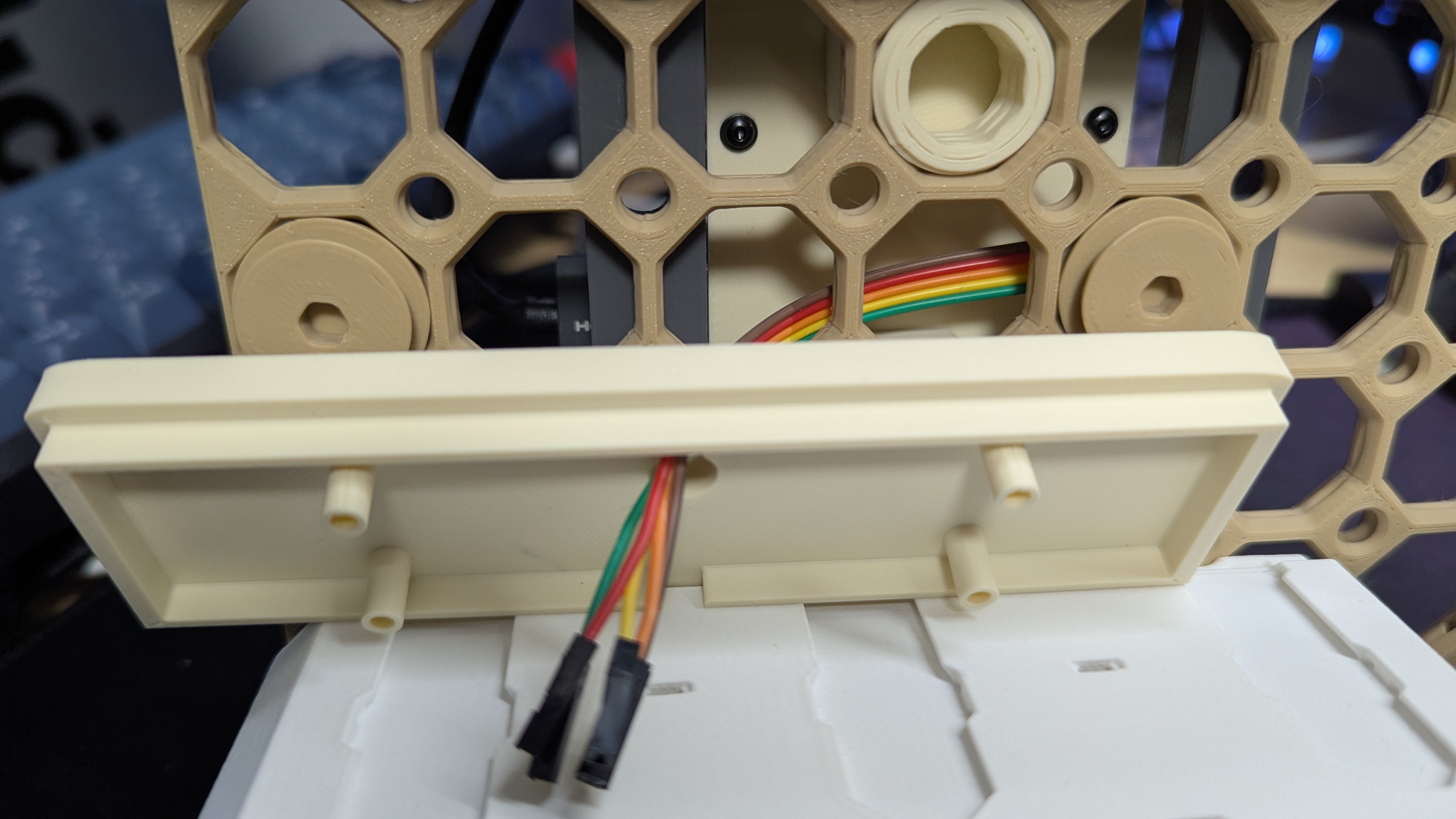

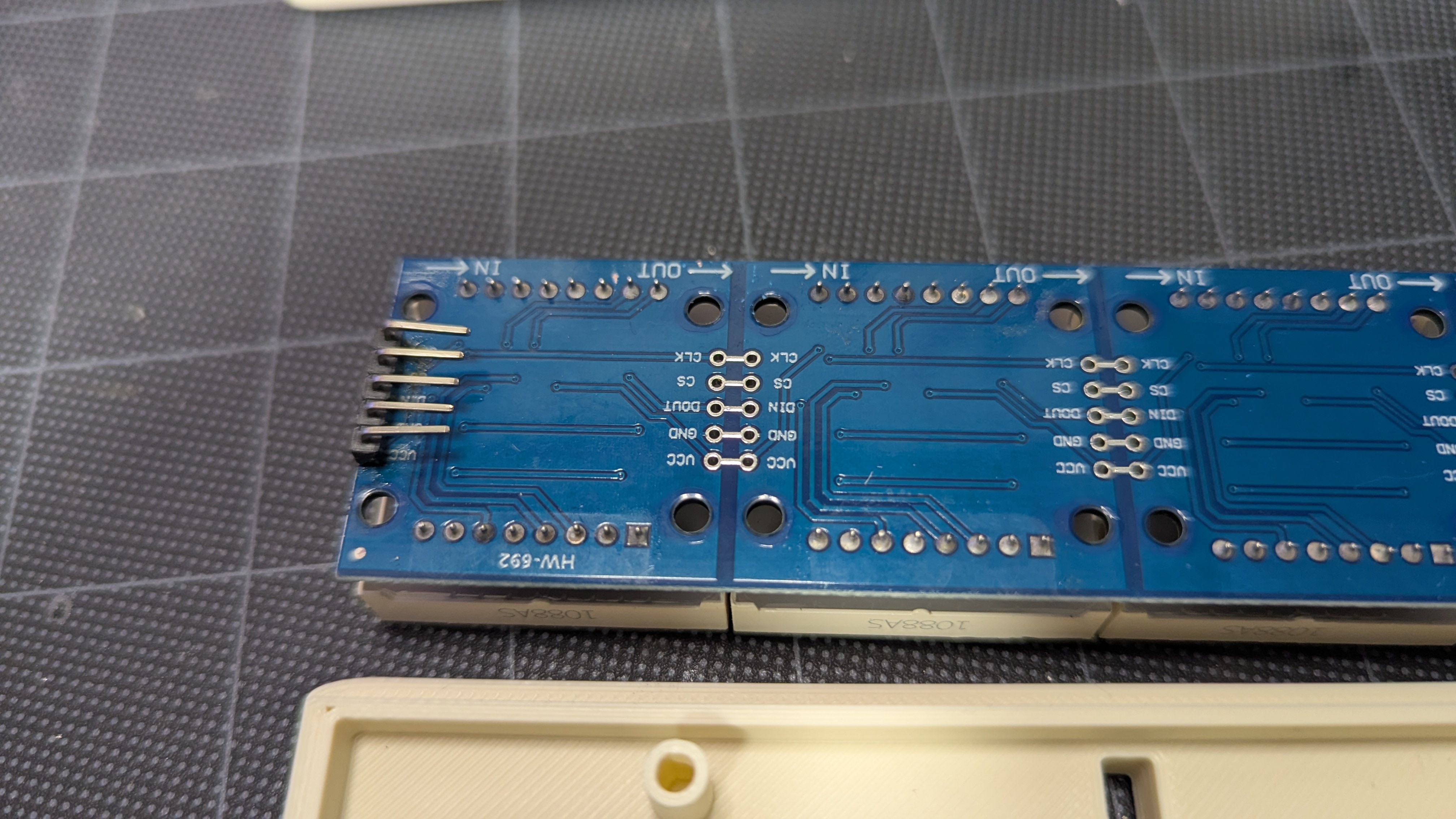

Note in the pictures, the connector pins have to be reoriented otherwise it won't fit into the case. Remove the first and last led segments to be able to screw the board to the back.
Uses 4 x M3 6mm bolts.
The matrix is visible through the front, as it's only a couple of layers thick. If you want it brighter, try a transparent filament for the front piece, or a lighter color.

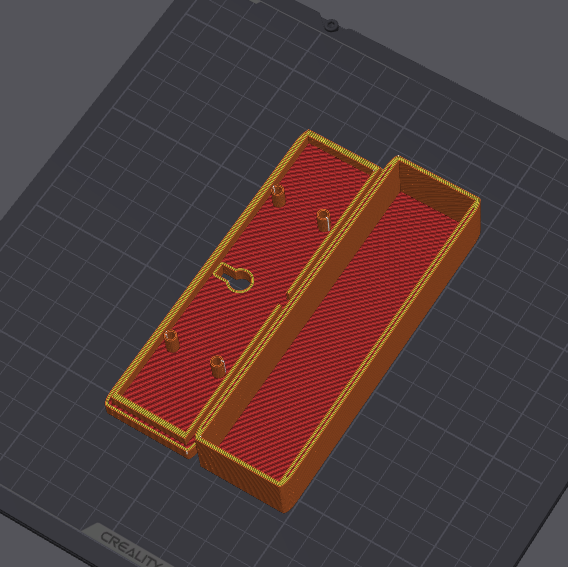

Print as shown, 3 walls, 15% infill.
