Front Panel for Type-C Extension
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution

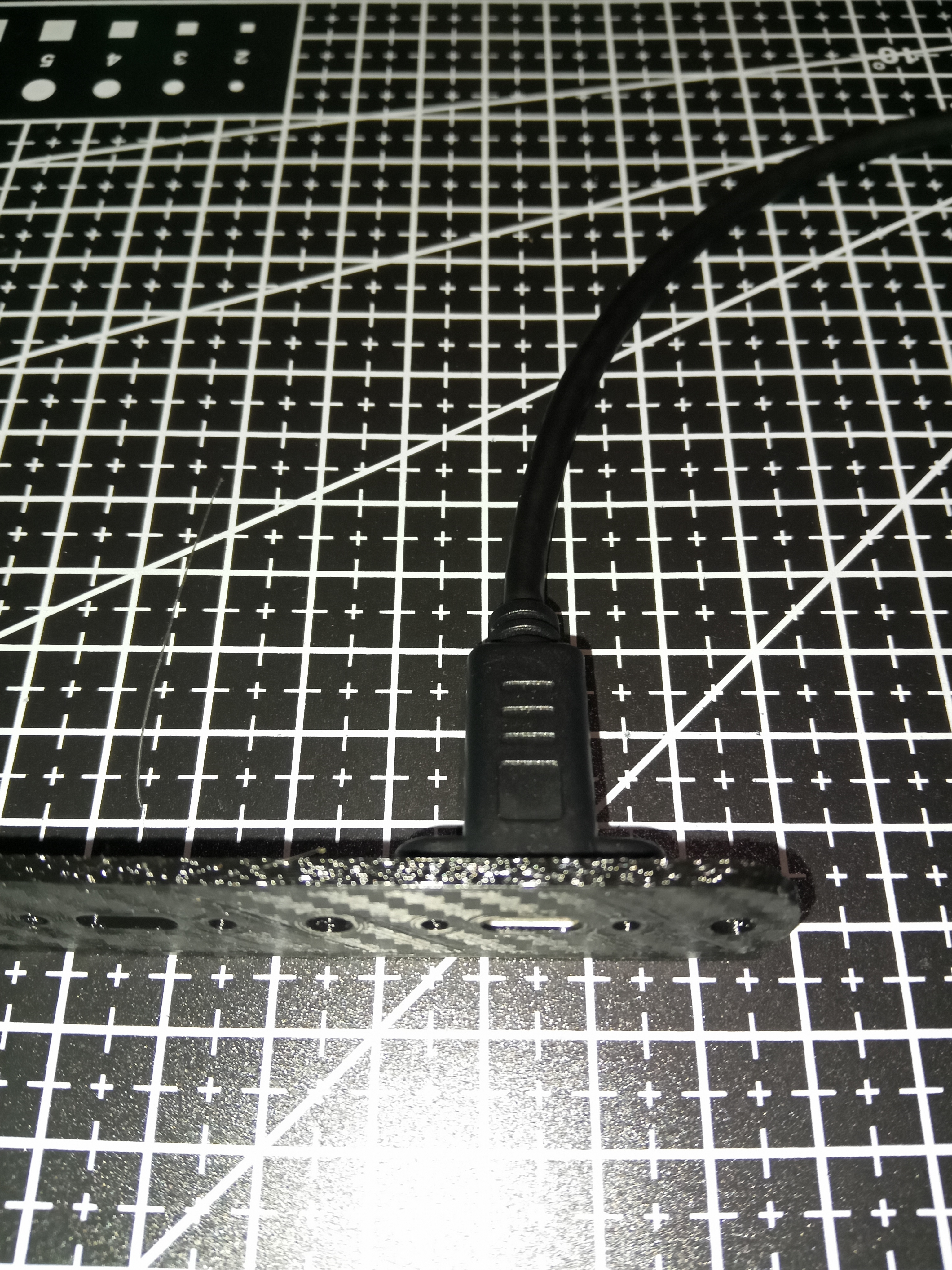

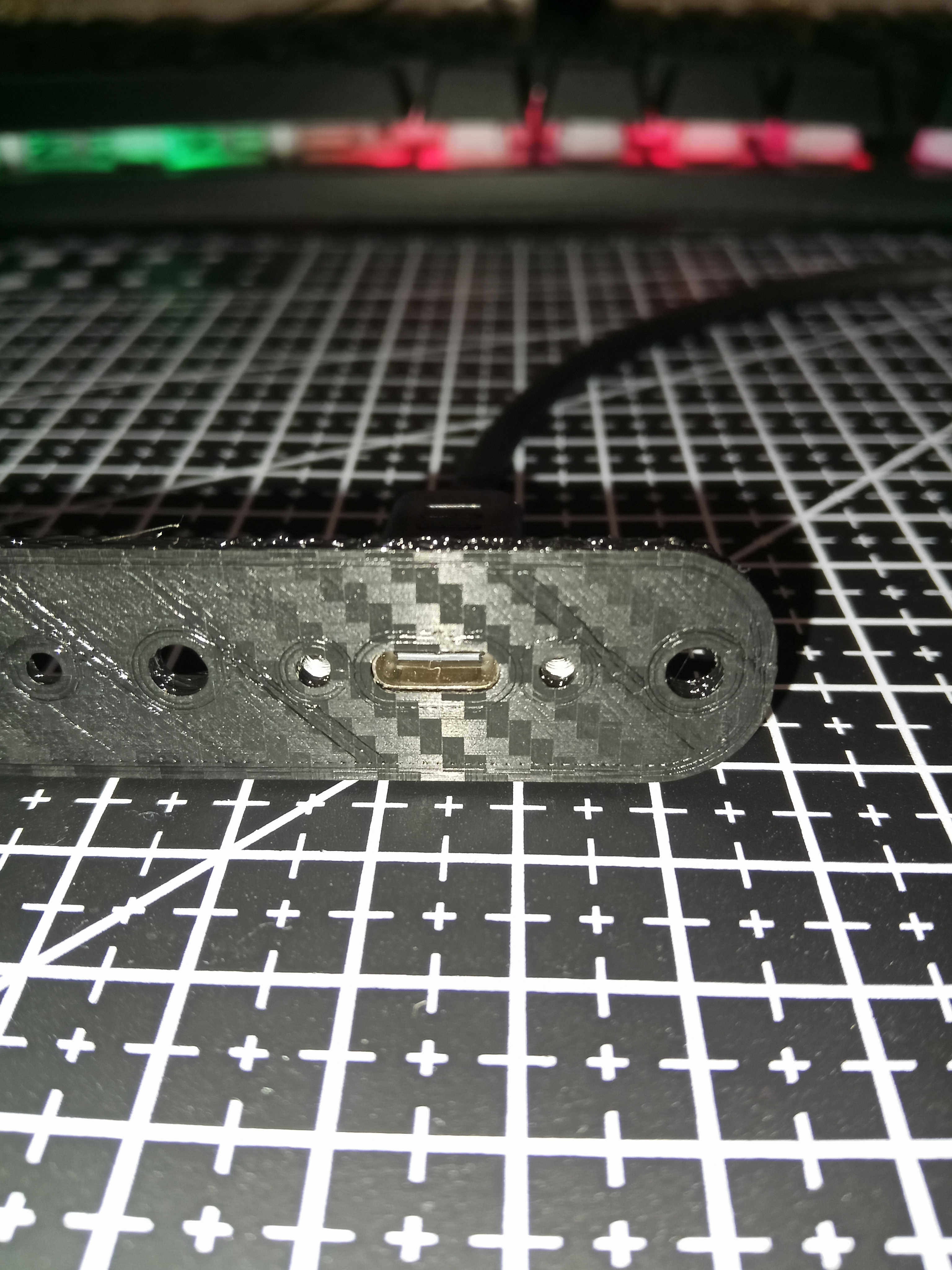

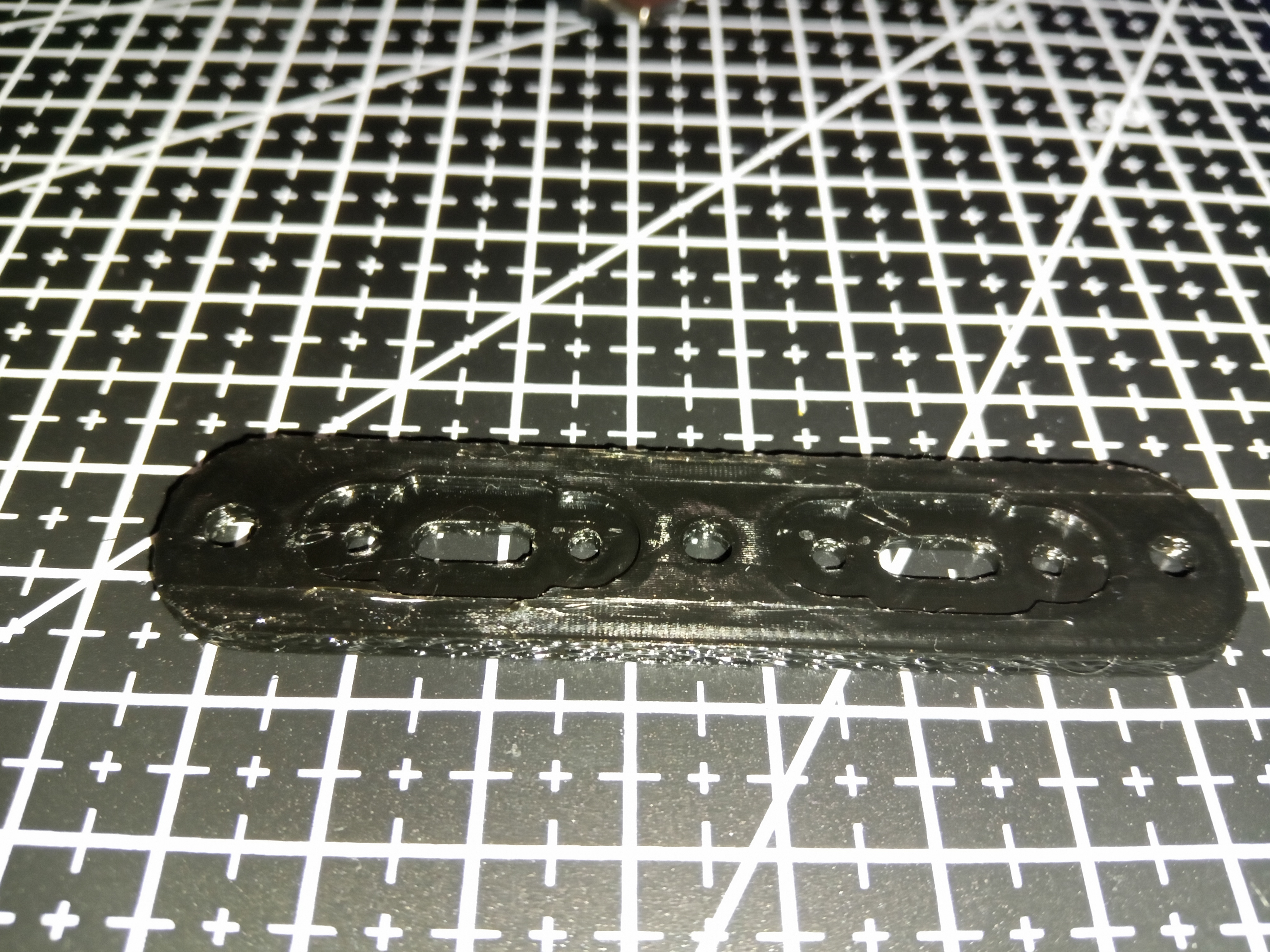

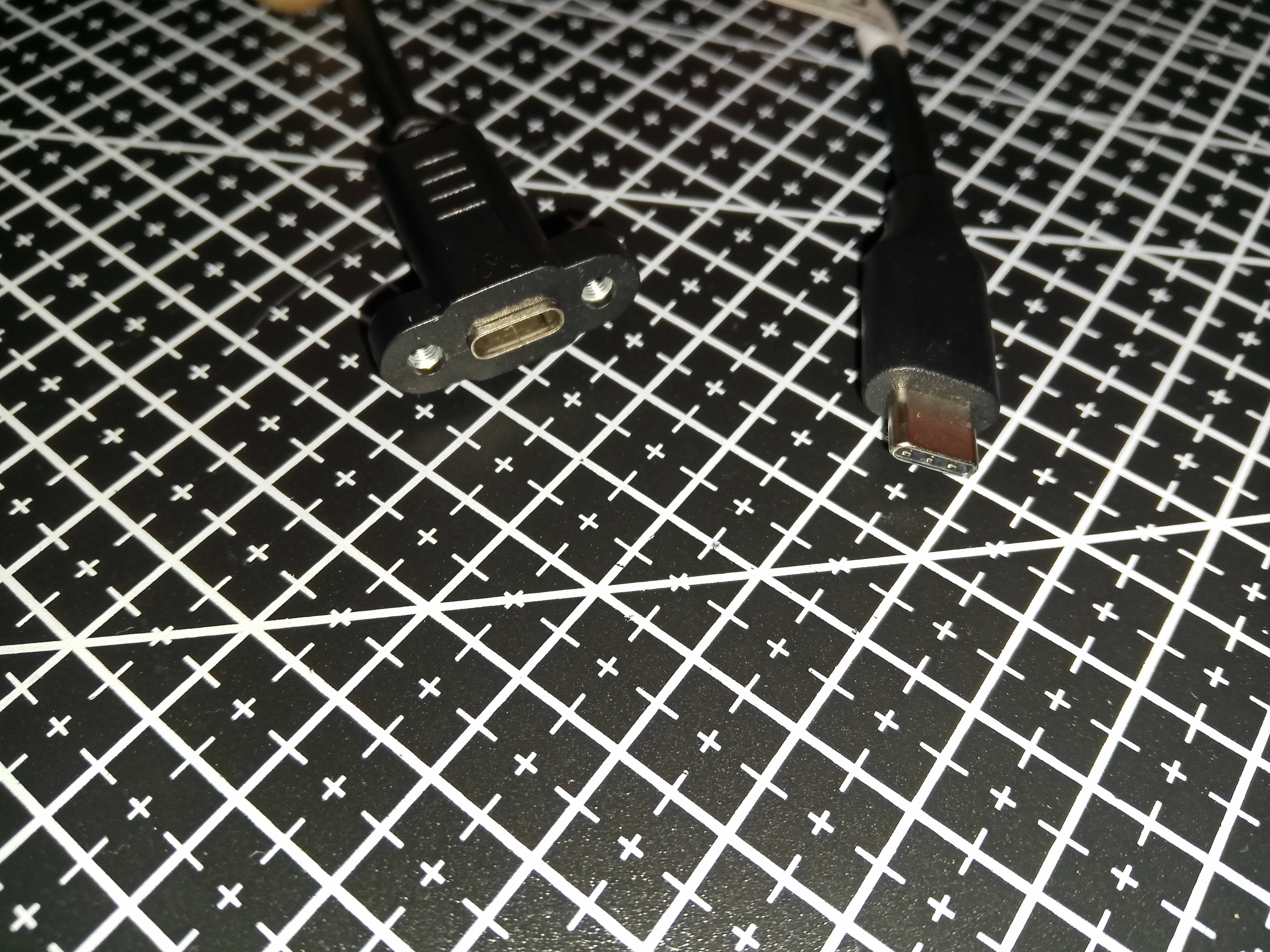

This front panel is designed for clean and secure mounting of a Type-C extension cable in an enclosure or device housing. The Type-C extension is fixed to the panel using its original (stock) screws, ensuring precise alignment of the connector and eliminating any play. The panel itself is mounted to the enclosure using M4 bolts, providing a rigid and vibration-resistant installation.
The model is optimized for 3D printing in PETG plastic, offering a good balance of mechanical strength, heat resistance, and durability in demanding environments. The geometry is suitable for reliable printing, with sufficient wall thickness around the mounting points and a smooth front surface for a neat appearance.
This part is well suited for electronics projects, DIY enclosures, automotive applications, and industrial equipment where a panel-mounted Type-C extension with a professional finish is required.
