Base with drawers for FlashForge AD5X Printer
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- Creative Commons — Attribution — Noncommercial

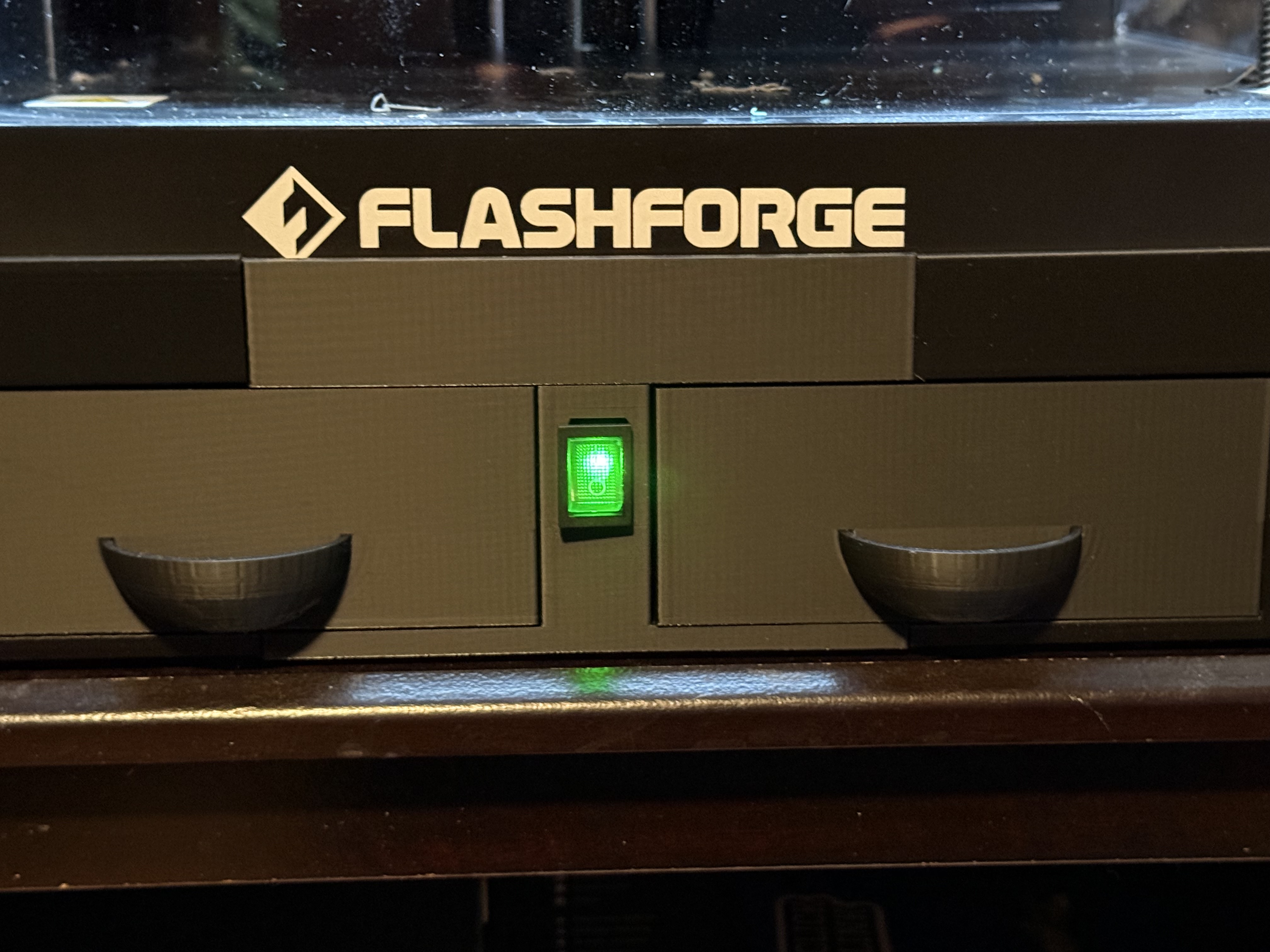

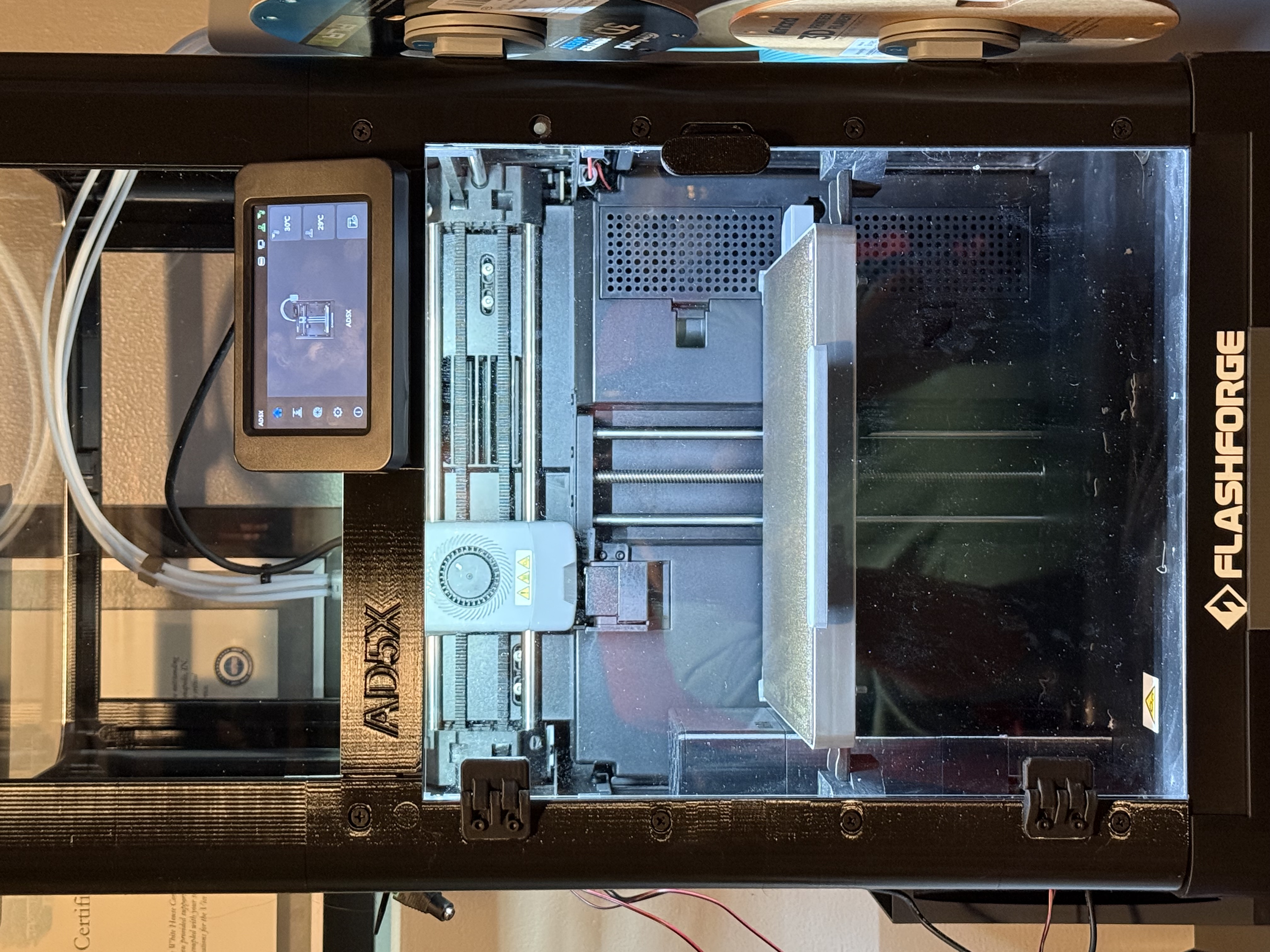

I wanted a base for my AD5X that would route the power switch to the front of the printer and add storage for tools. I wanted a lip around the corners of the printer to help ensure the printer did not wobble off, but I wanted to retain access to the lift points on the front, the connections on the bac and the FlashForge logo on the front. This checks all of those boxes for me.
The file has the base plit into six pieces using dovetails to connect the three front pieces as well as the three back pieces. The assembled front and back halves have alignment pins to help, but you will want CA glue to permanently join them.
I used 3 walls for the main body pieces and 10% gyroid infill with a .28 layer height. I printed it all in PLA.
For the electrical hookups, I used:
https://www.amazon.com/dp/B07QS9QLB1
https://www.amazon.com/dp/B092VQNKN7
https://www.amazon.com/dp/B01N2T2N1W
A terminal set for spade connectors and 14 gauge wire.
