Renegade Stick

Renerage Stick

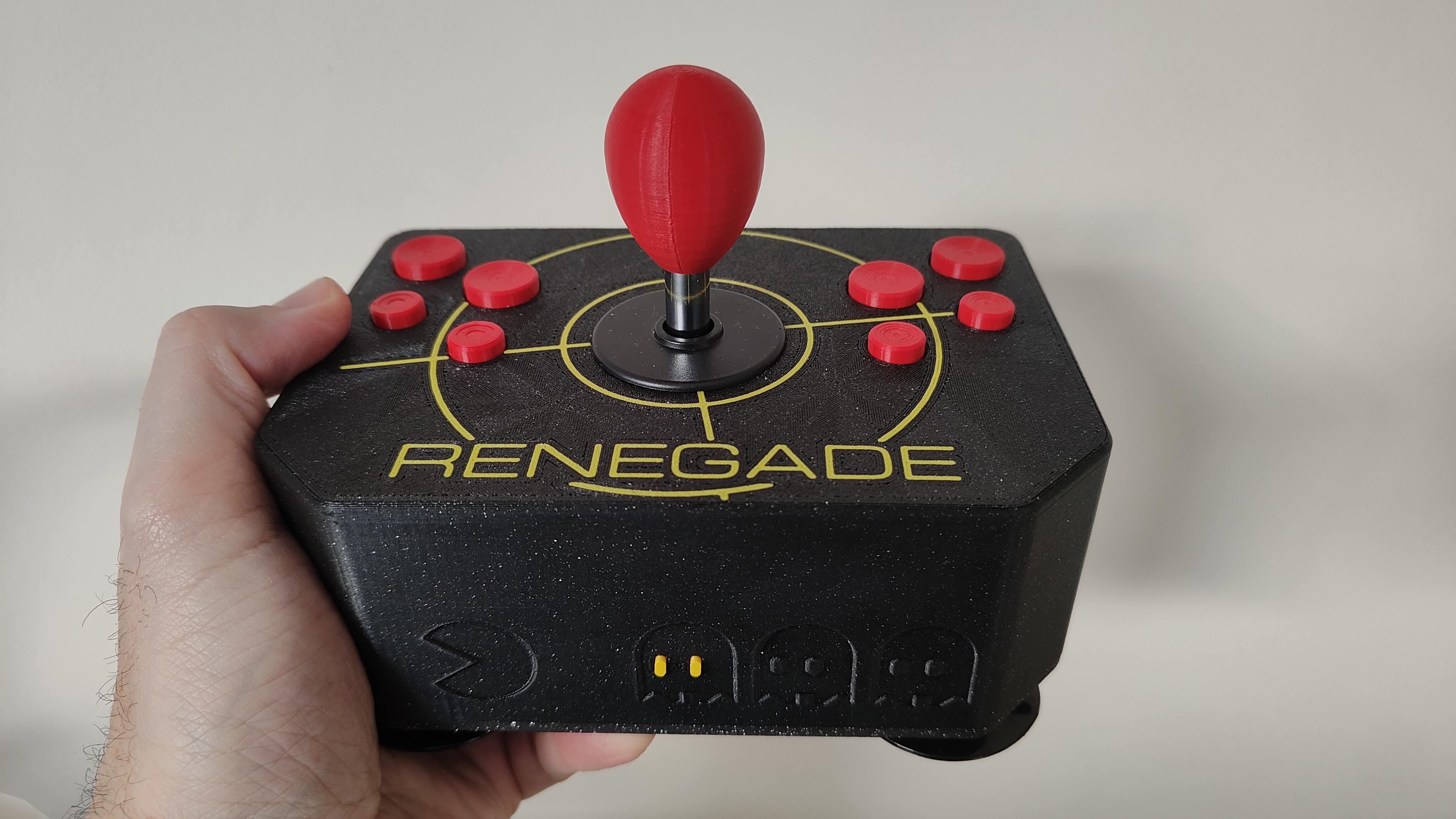

A DIY arcade-style, retro, wireless Bluetooth joystick.

Your next DIY project ?

Hereby you can find all the 3D printable files, Bill of Materials and assembly instructions to build yourself a Renegade Stick.

Follow up on the Renegade Stick Github for sourcing materials, wiring and flashing the code

• Update April/2026 : Now 2 box versions available supporting 2 of the most popular sticks (Seimitsu LS-32 or Zippy Clones and Sanwa JLF-TP or clones). Two bottom parts to choose from supporting two different types of LiPo Batteries 2500mAh and 2000mAh. Model Library Downloads Updated !

• Update Jan/2026 : New 4 button on each side version ! Model Library Downloads Updated !

Who is this project for ?

Retro game enthusiasts, gamers, makers, tinkerers

Where can I use it ?

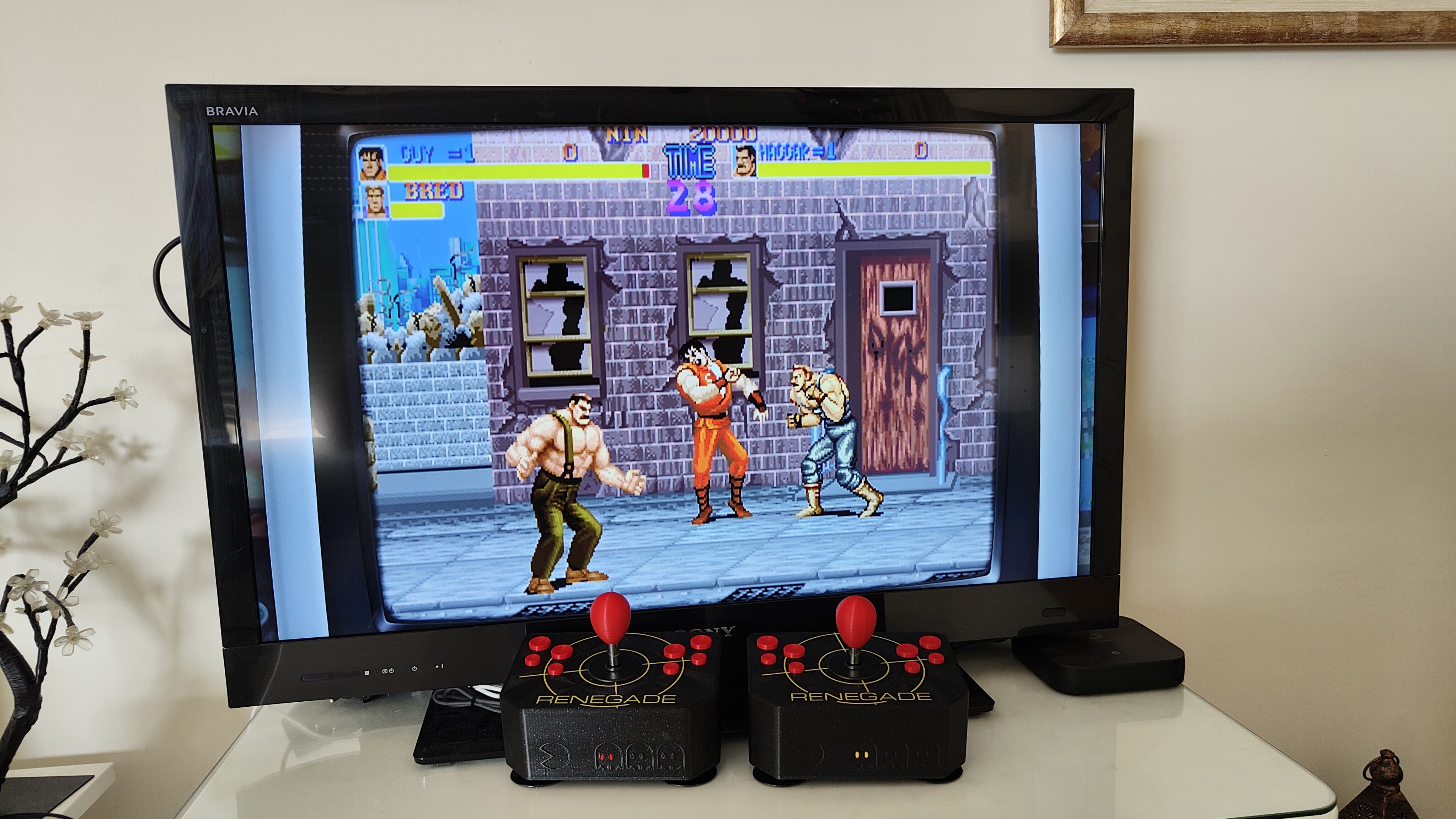

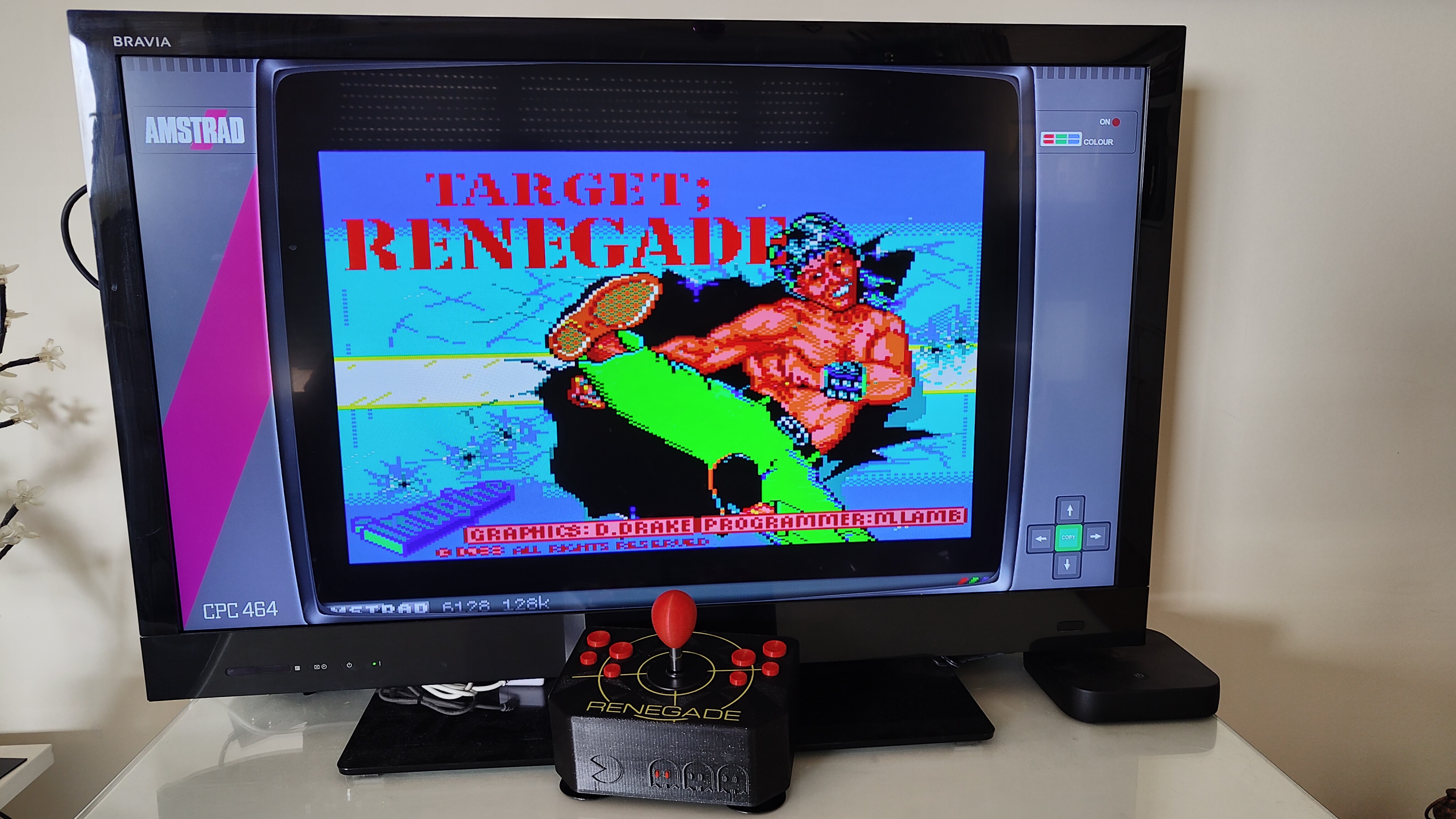

Wherever Bluetooth HID support is available. Retro emulators such as RetroPie, Recalbox etc, Mobile Phones, PCs, Steam box, modern Game Consoles like PlayStation etc

Where can I get it ?

This is not sold as a whole, you have to 3D print the parts, source a few electronic components and fasteners and build it yourself.

What do I need to build it ?

1. Own or have access to a 3D printer

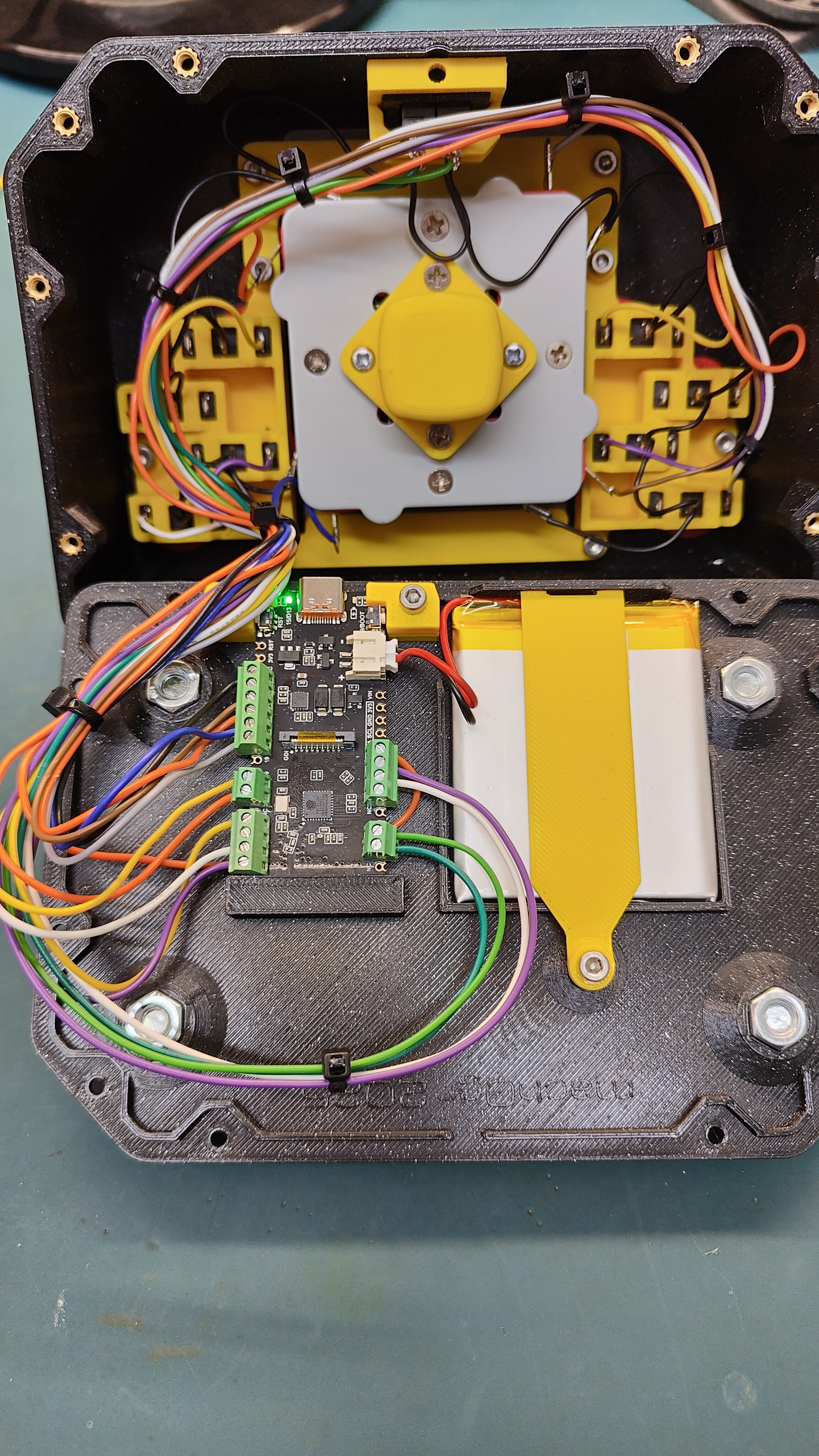

2. Source or purchase some of the required parts like an ESP32 board, a Li-Po battery, microswitches, hook-up wires, screws etc

3. Basic soldering (for hooking up wires)

4. A PC from where you can flash or compile the code for the board

5. Love building things, patience Read on for instructions

Specifications

• Dual-axis joystick 10 buttons

• Bluetooth HID gamepad device

• Rechargeable Battery

• Auto Power-off (5 minutes inactivity)

• Switchable mode (DPAD - Axis)

• Pairing/Mode indication (Green LED)

• Battery Charging (Red LED)

• Active battery state reporting (FireBeetle2 ESP32-C6 board only) Serial Number reporting (so more than one device can get paired on one host)

• Ambidextrous design (Hand side swap Key mapping) - Use the side you prefer

  Read on for instructions

Disclaimer

All 3D-printed hardware part files are licensed under Open Community License (OCL) and are available on printables.com
The software code is licensed under the GPL-3.0 License
Part of the code is based on the ESP32-BLE-Gamepad library by lemmingDev distributed under the MIT license
The above project is based on the ESP32 chip and specifically a Firebeetle Board from DFRobot This project is solely for instructional and entertainment purposes.
The item as a complete unit or the 3D-printed parts it consists of are not sold and may not be sold without written permission from author.
Please be careful, especially with Li-Po batteries—they can be dangerous if mishandled. Take your time and stay safe!

Print Instructions

I have provided separate files should you want to print in multimaterial

I also provide project (3mf) files for PrusaCoreOne but you can change the profiles to your printer settings

I would generally recommend PLA, it is straighforward and you won't need something tougher

I would print with 25% infill and 0.2 layer height. In some parts I'd add height range modifier above a certain height to slice at 0.1 and give nicer finish around top curvatures.

If unsure which file to choose from, just message me and I'd be happy to help you !
