RaspberryPi Vertically Mount

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Licencja
GNU General Public License v3.0

When space gets tight, parts need to be repositioned.

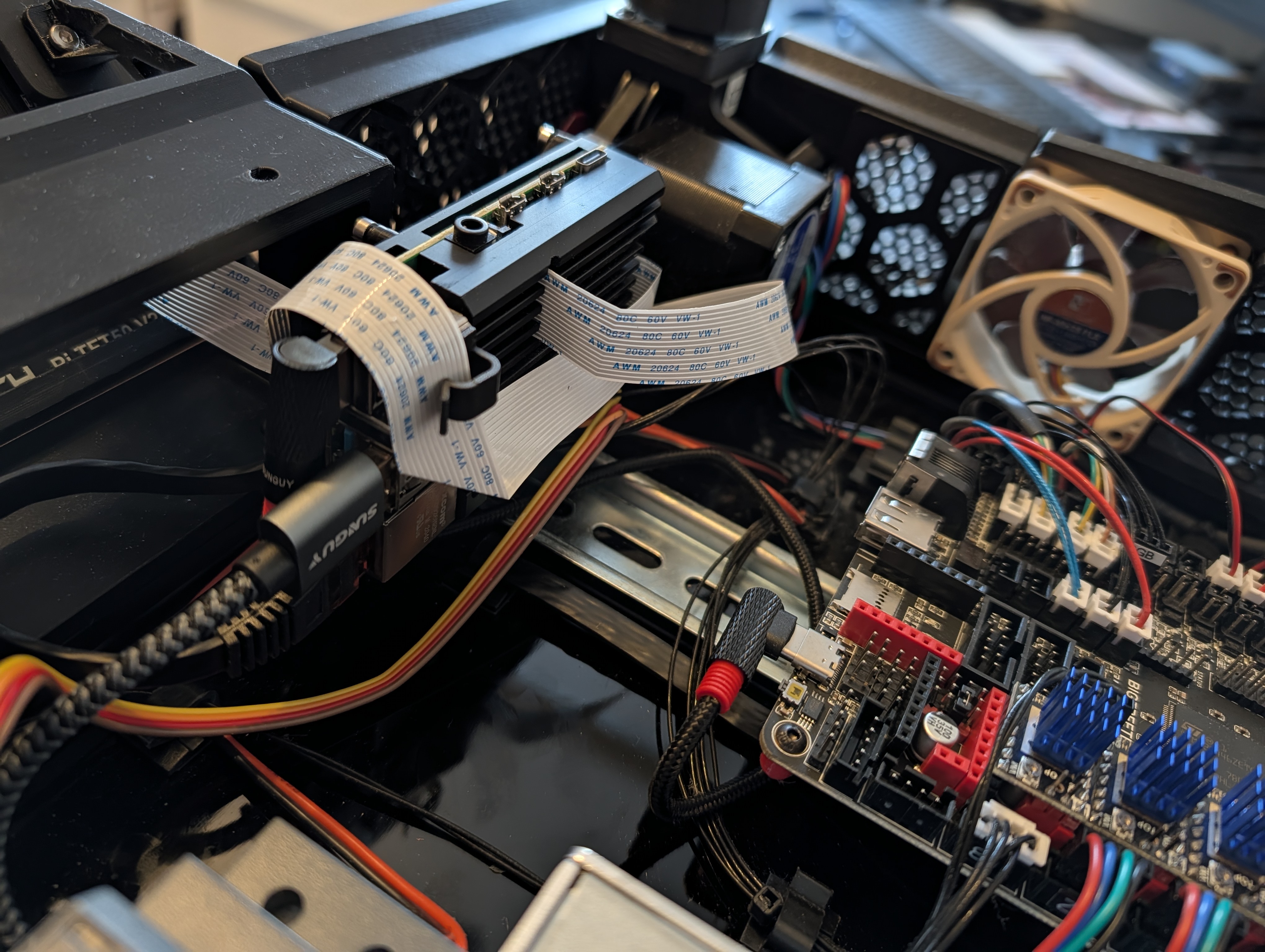

I'm upgrading my little Voron 2.4-250 from a 24V Octopus setup to a 55V Kraken setup. The larger components make the electronics compartment very cramped, and I have to reposition some parts. One of them is the Raspberry Pi. I now have to mount it vertically to save some space...

I'm using these old but small clips from the 2.4r1:

https://github.com/VoronDesign/Voron-2/blob/V2.4r1/STLs/VORON2.4/Electronics_Compartment/DIN_Brackets/rs25_psu_bracket_clip.stl

... and 2 M3x10 screws for the Clip

Happy printing :)
