Cartographer V3 Shield mod here
Bambu Lab print profile

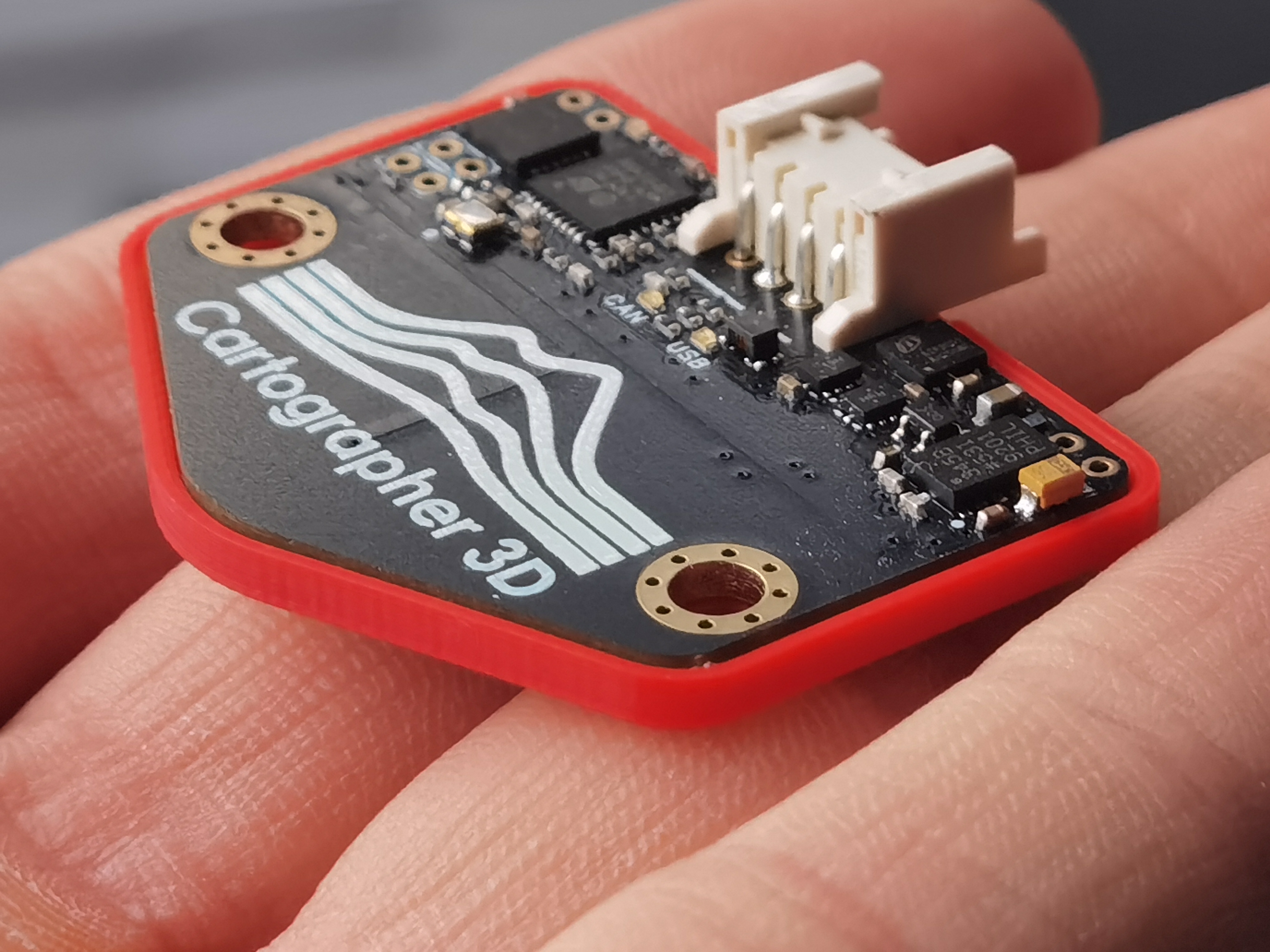

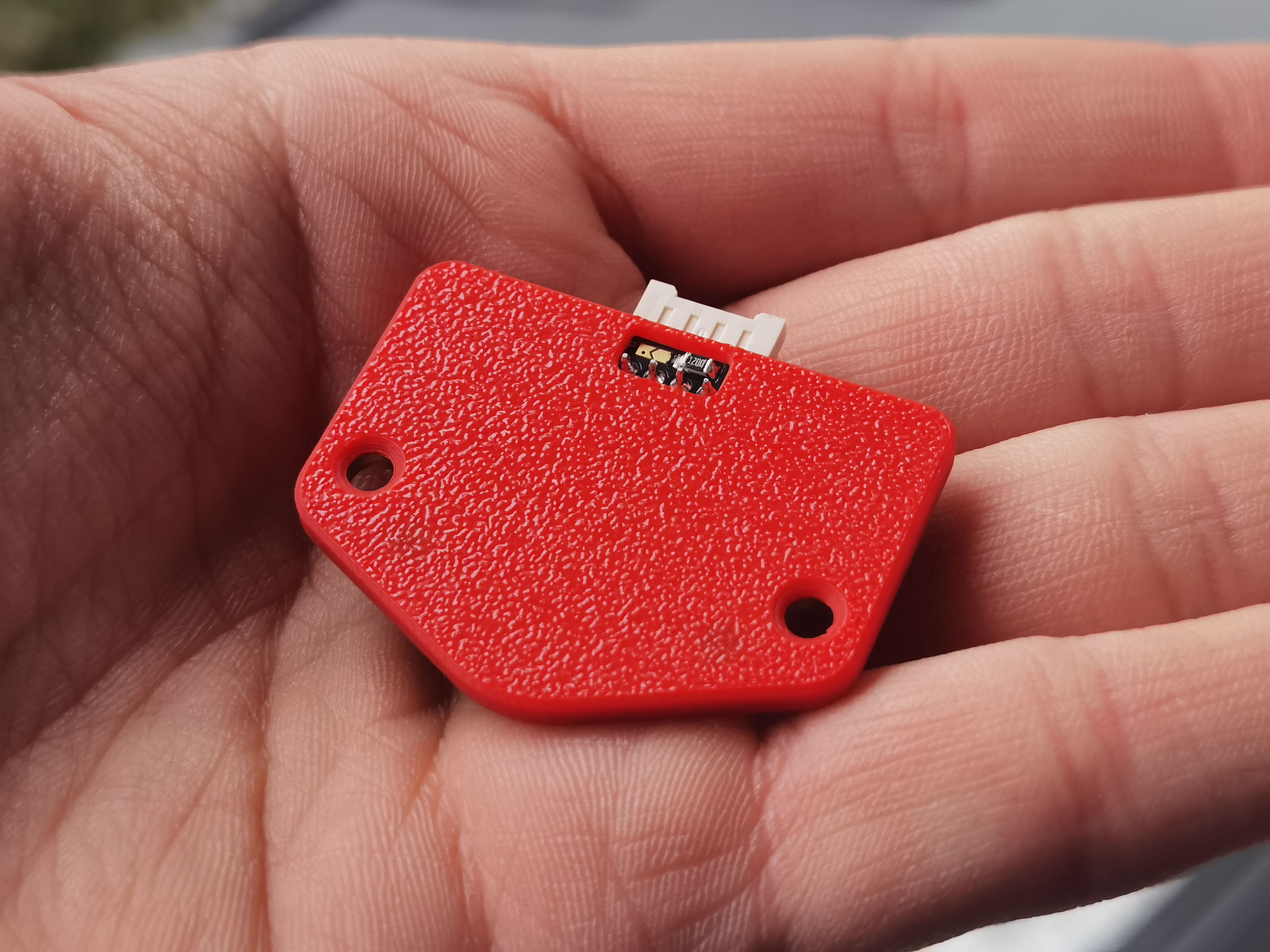

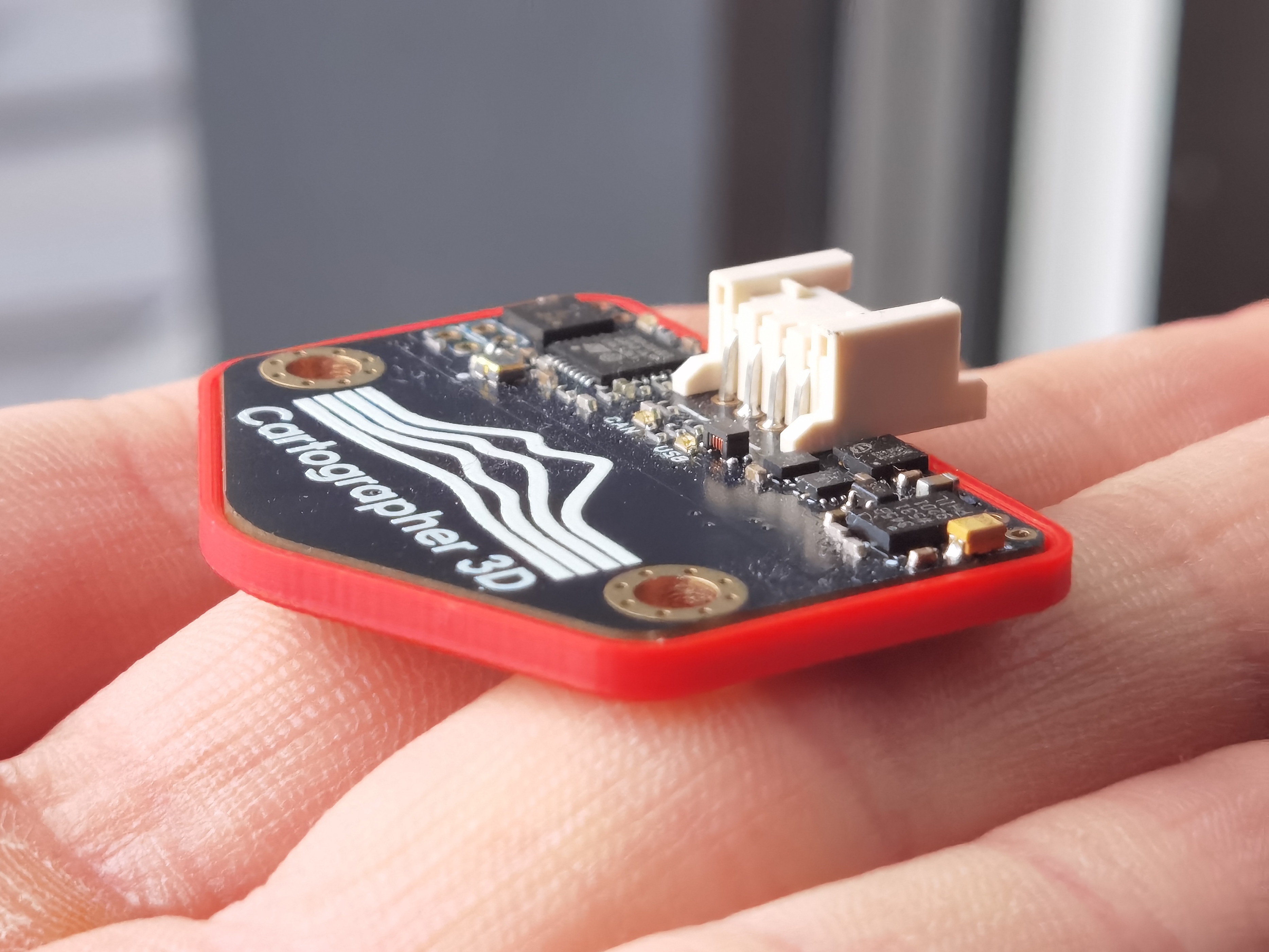

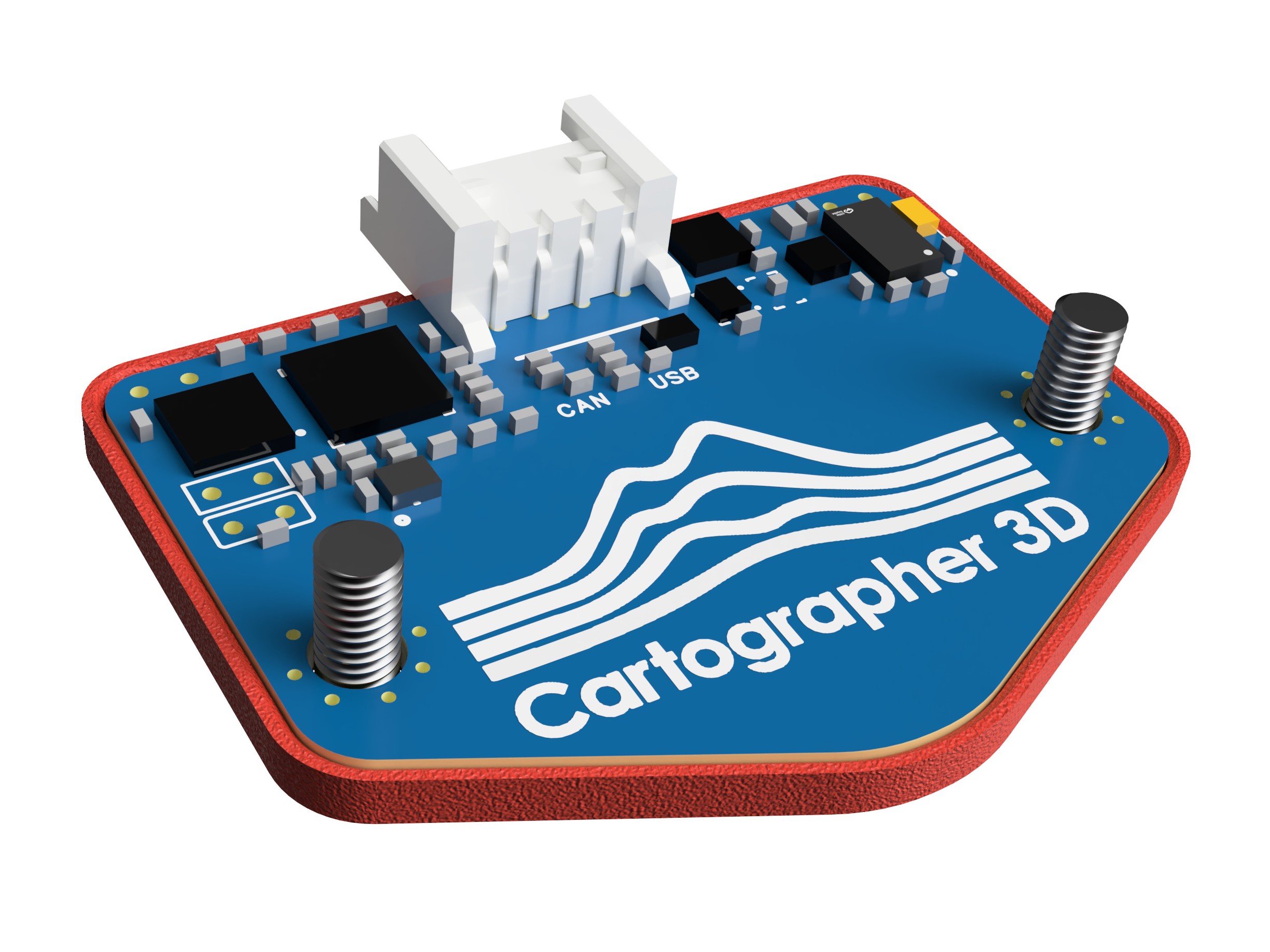

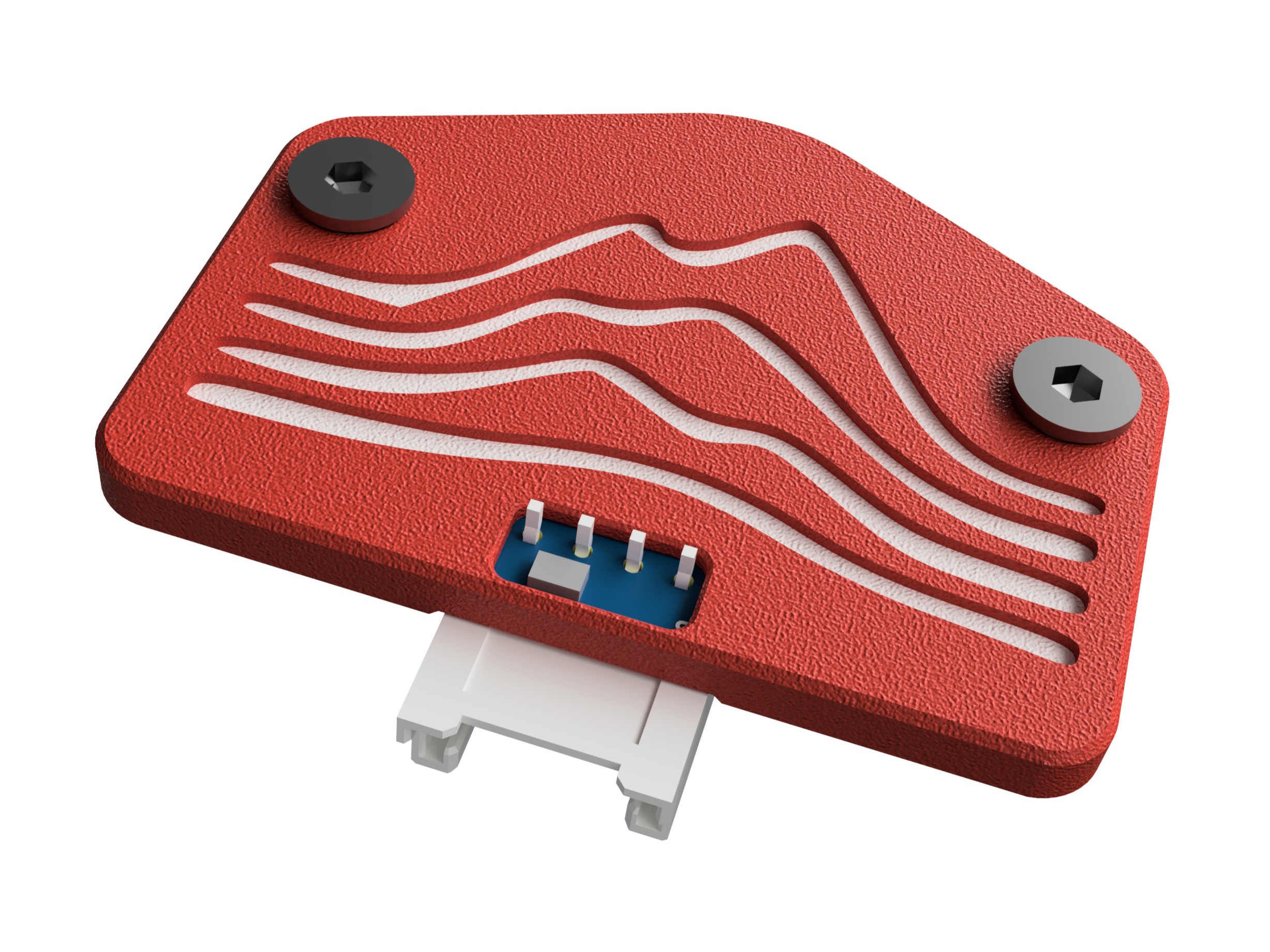

Cartographer V4 Shield
Cartographer has a capacitor and a thermistor on the bottom and because of that every little hit can make them fall out
If the thermistor is gone its fine, the probe can work without the thermistor, but if resistor is gone, the probe just shuts down
Dont ask me why I know that…
So I designed this super thin shield, to prevent this issue. It has to be thin, because Cartographer works only at little space bettwen bed and coil

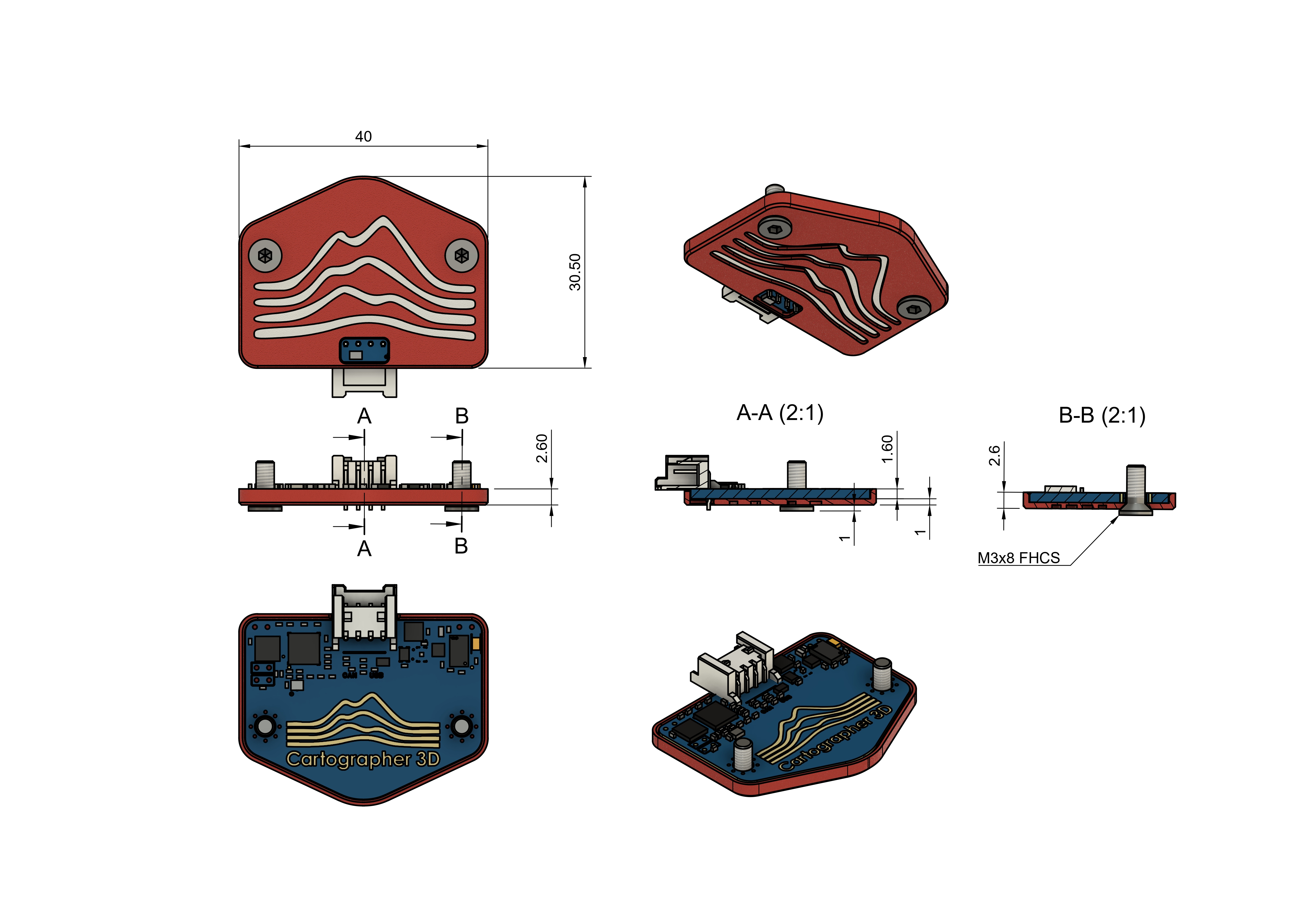

Cartographer V4 Shield Drawing
Be sure your filament is dryed and the printer profiles and printer itself is good calibrated
The print have to be printed accurate
Ready print Profiles for Bambu Printers on MakerWorld, link Below:
