This is only for AIRSOFT AR and will not fit on a real firearm!
The barrel nut (36mm outer diameter) is made to fit on receivers with the thread 31x1.5mm and this is custom made for this handguard, standard for airsoft
Total length: 204mm with backplate included

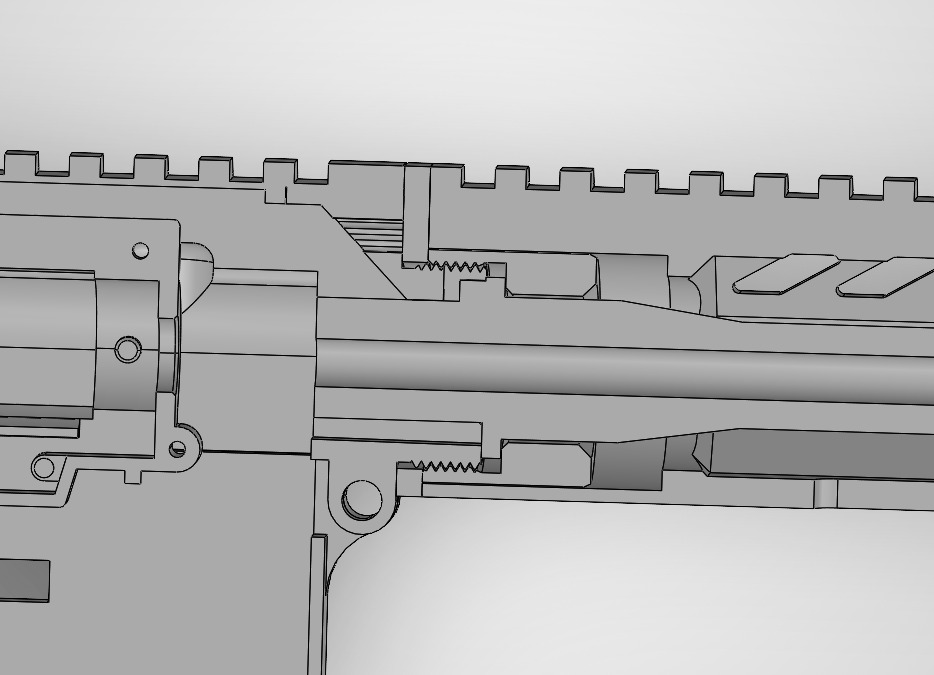

NOTE! Barrel nut might need shimming for it to clamp down the outer barrel and the backplate, visual example available!

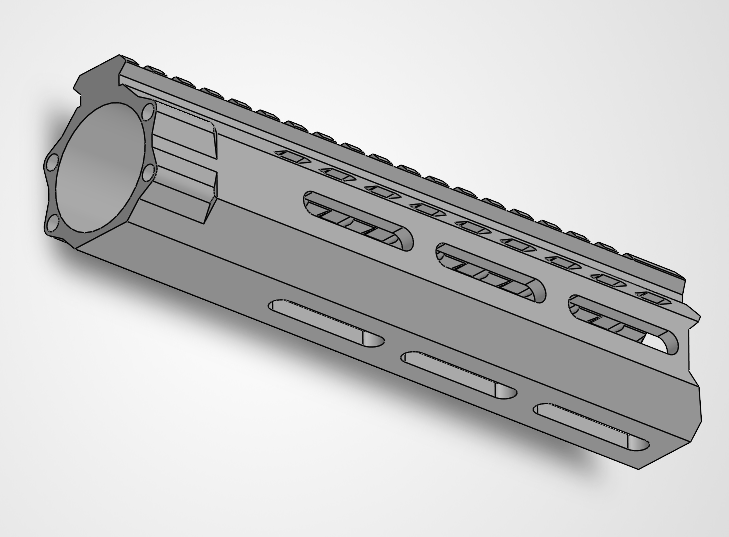

2 versions of the backplates are available, one with the rail and one without
One of the handguards has a larger inner diameter for it to fit easier around the barrel nut

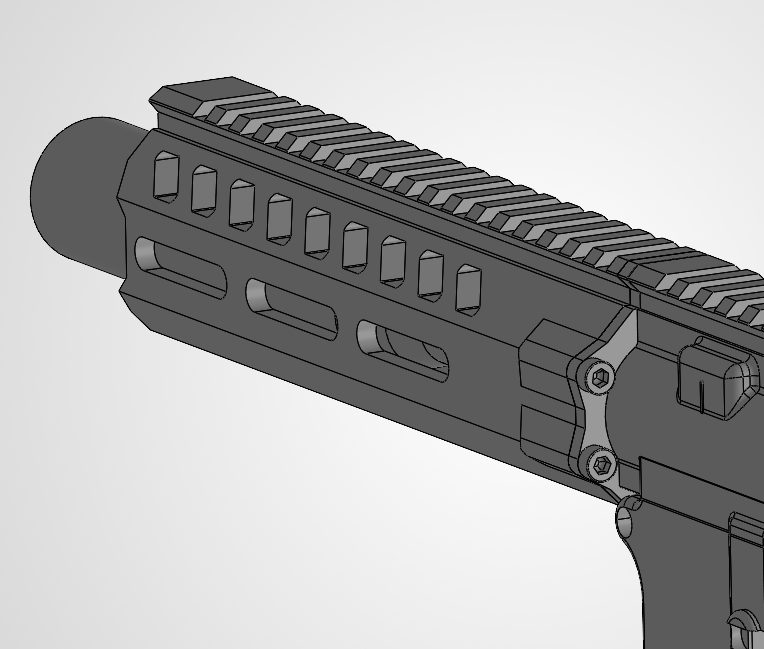

M-LOK slots for accessories
Hardware:
4x M4x16 with hex head
4x M4 inserts
Please comment if there is any problems!!!

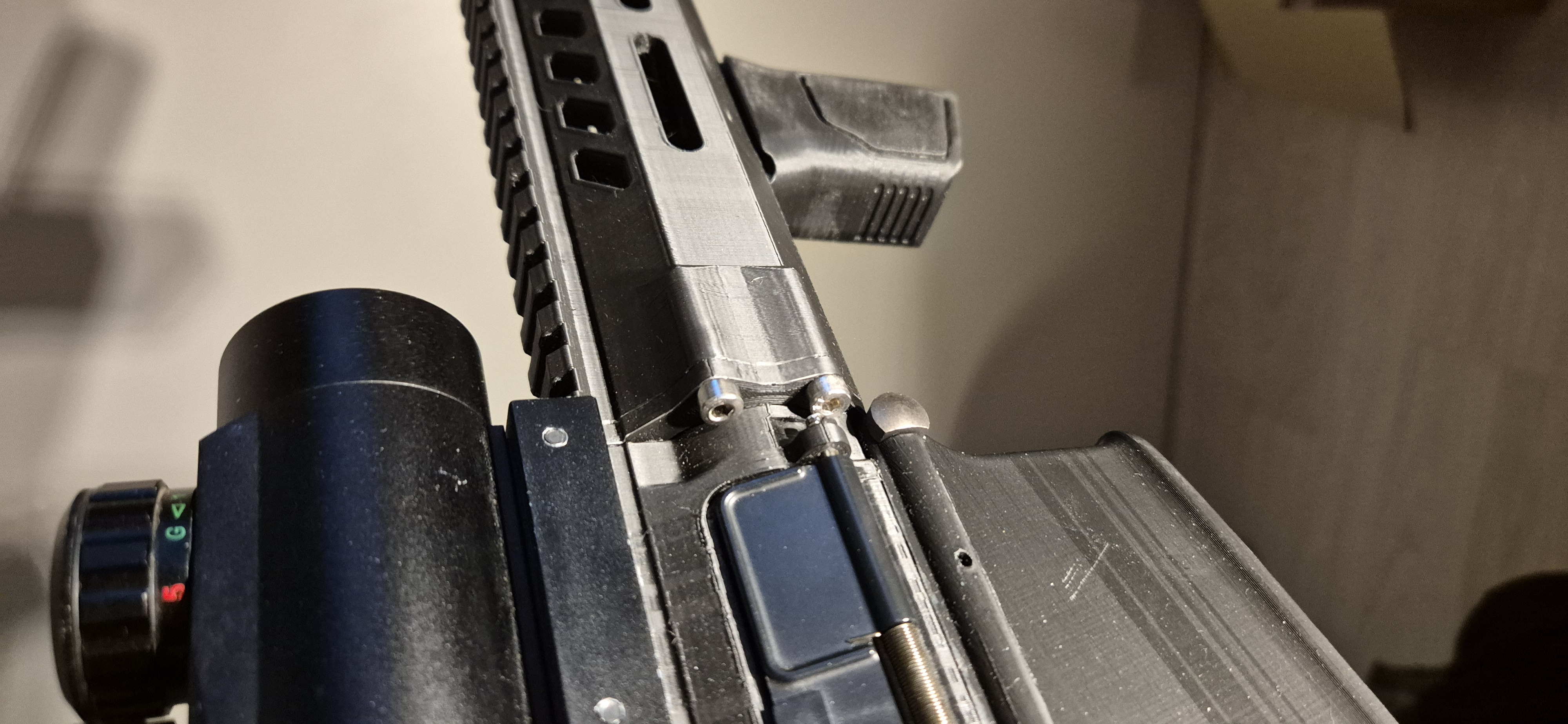

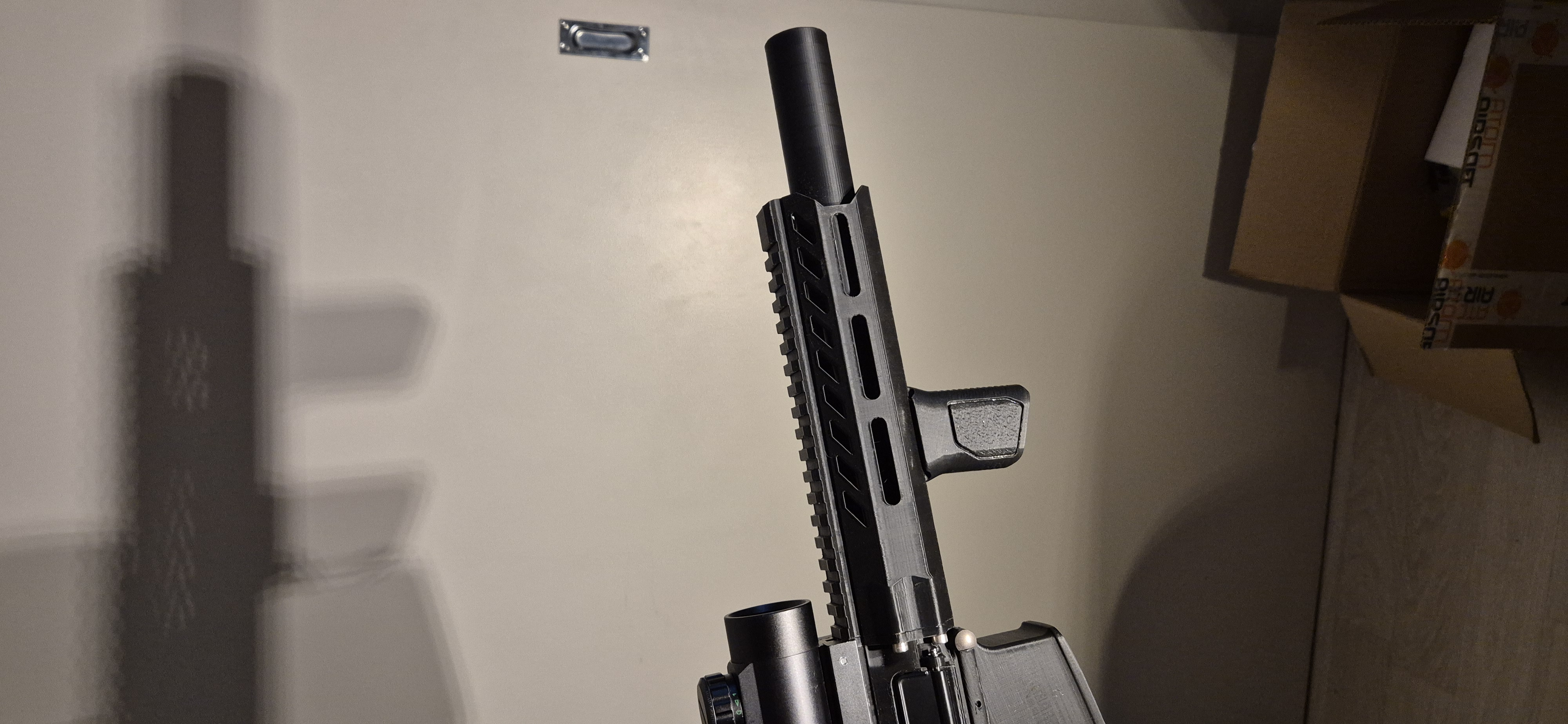

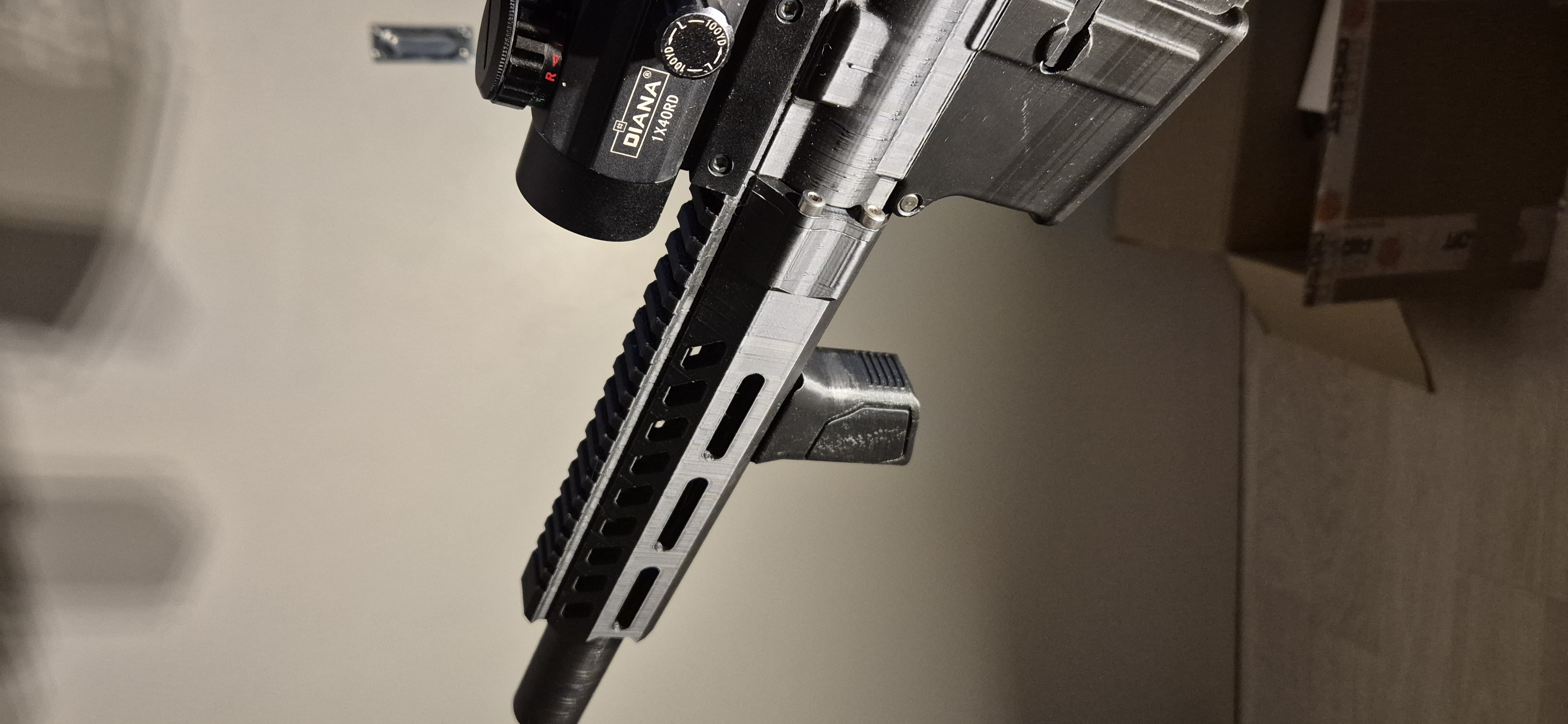

The receiver I used for testing in the pictures are from Grabcad:
https://grabcad.com/library/airsoft-standard-receiver-of-ar-15-ver2box-1
