Under-Desk Storage Tray

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Organizers
Licencja
Creative Commons — Public Domain
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

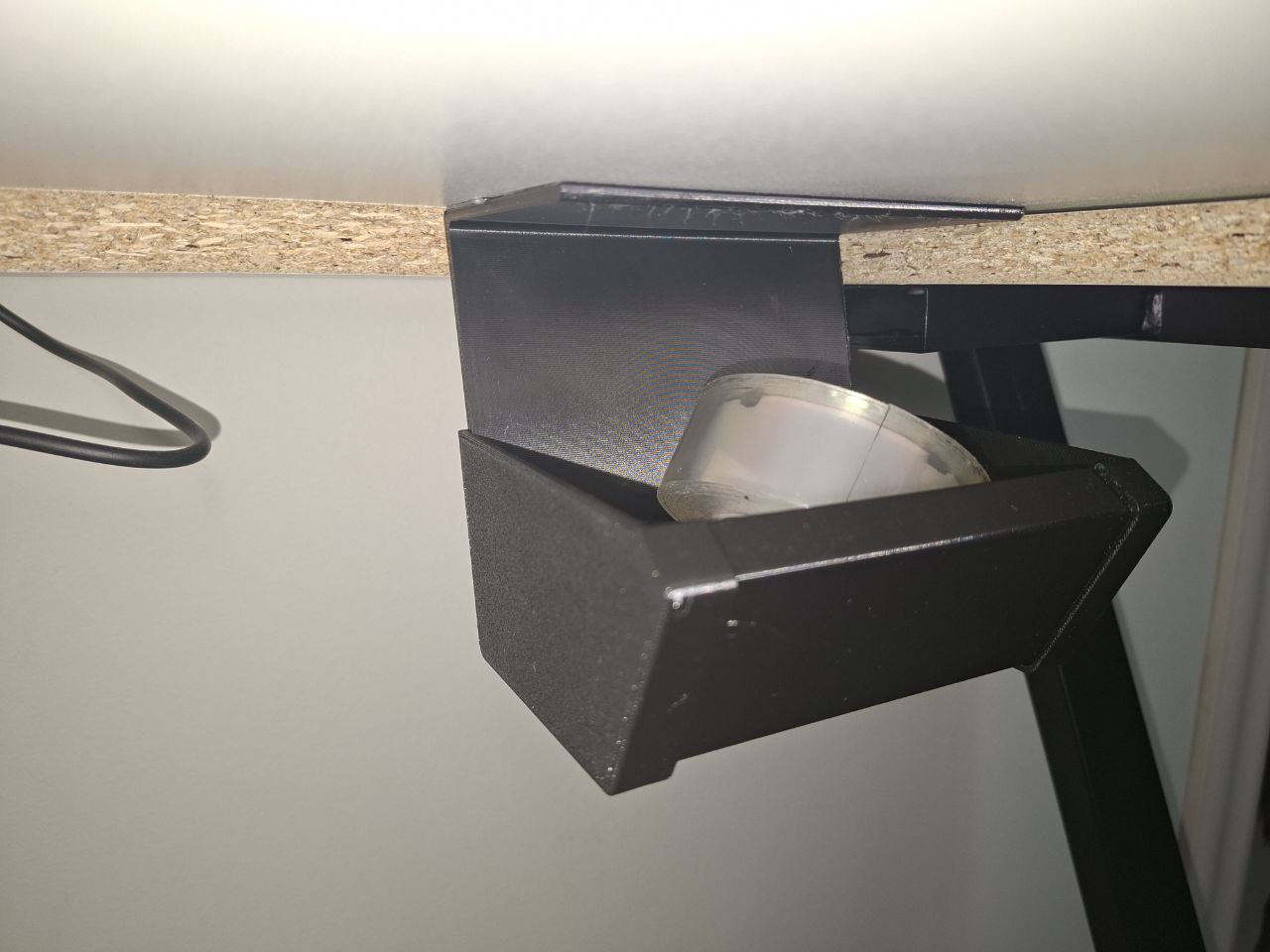

A simple, static under-desk tray for quick access to your essentials. It hangs fixed under the tabletop, providing an open compartment for things like tape, SD cards, or cables. The design uses a clever snap-fit assembly: the two top mounting brackets snap onto the bin's side spheres, creating a rigid structure without glue or screws.

shelf_120 - 120 mm shelf length

shelf_180 - 180 mm shelf length

Key Features:

  • Fixed Design: The tray stays stationary, offering immediate "grab-and-go" access.

  • Snap-Fit Assembly: Mounting brackets securely click onto the main body.

  • No Drilling: Designed for double-sided gel tape (nano tape).

  • Open Access: No drawers to pull or lids to open — everything is always visible.

  • Print Friendly: No supports required.

Assembly & Installation

  1. Assembly: Snap the two mounting brackets onto the spherical bumps on the sides of the tray until they click firmly into place. The structure should be rigid.

  2. Mounting:

    • Clean the surface under your desk.

    • Apply double-sided tape to the top of the brackets.

    • Press the assembled tray firmly against the desk.

Print Instructions

  • Material: PLA or PETG.

  • Nozzle: 0.4 mm

  • Layer Height: 0.2 mm

  • Infill: 15-20%

  • Supports: NO.

  • Orientation:

    • Tray: Print standing up.

    • Brackets: Print on their side (flat).

Tagi

shelforganizerdeskorganizer
