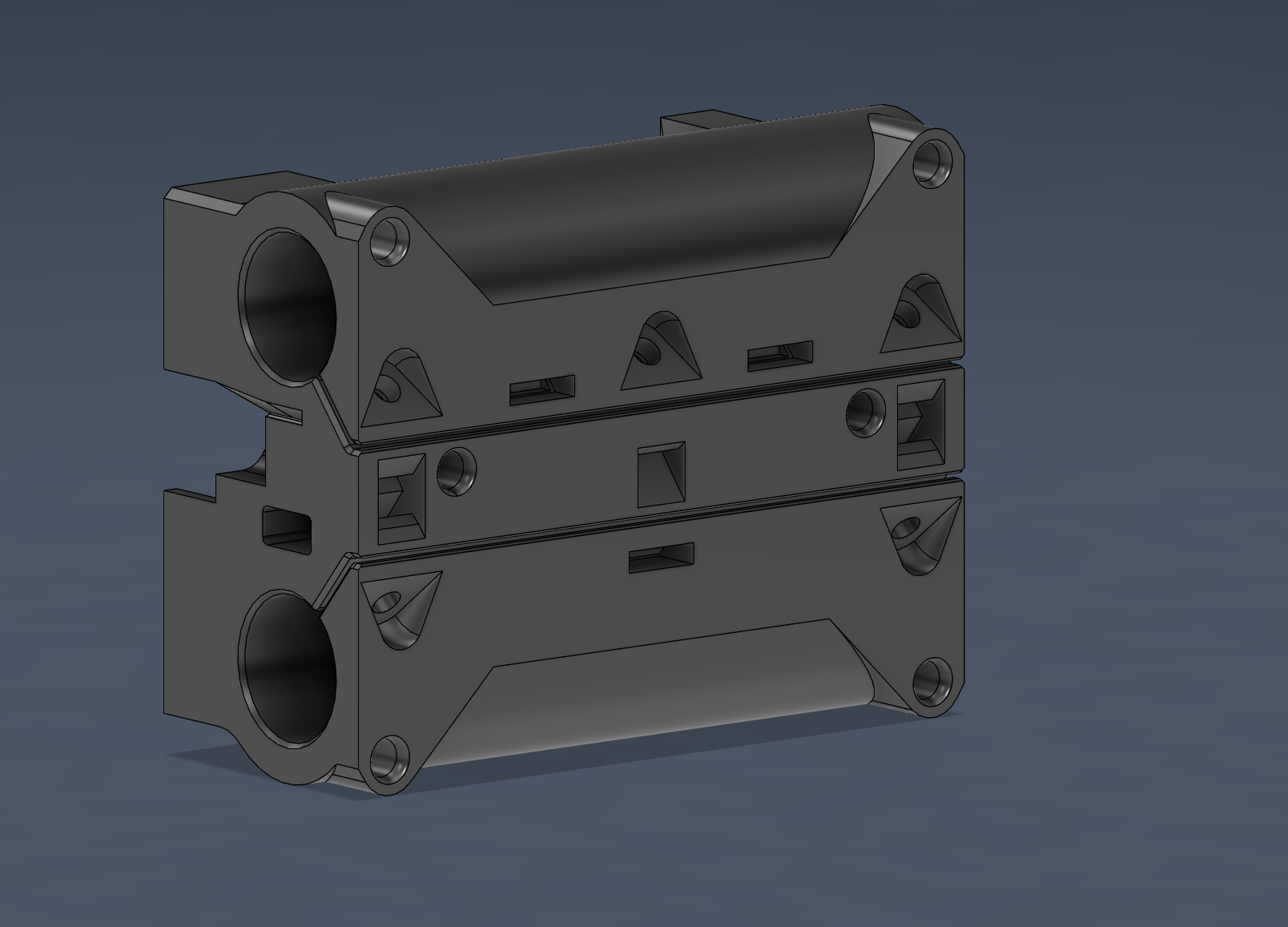

SV06 monoblock

I was wanting to replace the X carriage mount on my SV06. I liked the monoblock that SilencedFrost had created and wanted to adopt it for the LM8UUs used on the SV06.

I mostly stayed true to the original, I fully recreated this rather than edited the original geometry so there are slight variations but should work the same. This is as of yet mostly untested, I have printed a version in PLA. LM8UUs fit perfect, square or normal nuts work for the nut channel to lock in the bearings, but if you want to use accessories on the back you will need to use button head or thin head M3 bolts so they don't protrude.

 I have not put this on the stock rail, but it does slide smooth on a couple of extra rods I had  installed in a Z assemblies I am working on and had printed. I will try to update this when I print in GF ASA.

Next step if I find time will be to adapt the board holder to use a EBB42 as I am already using one mounted on my Z extrusion due to some broken connectors on my stock board, and freeing up a port for independent Z motors. I also want to try making a universal mount to use a different toolhead if this (and new Z carriages) does not fix the flex I see on the stock block.0
