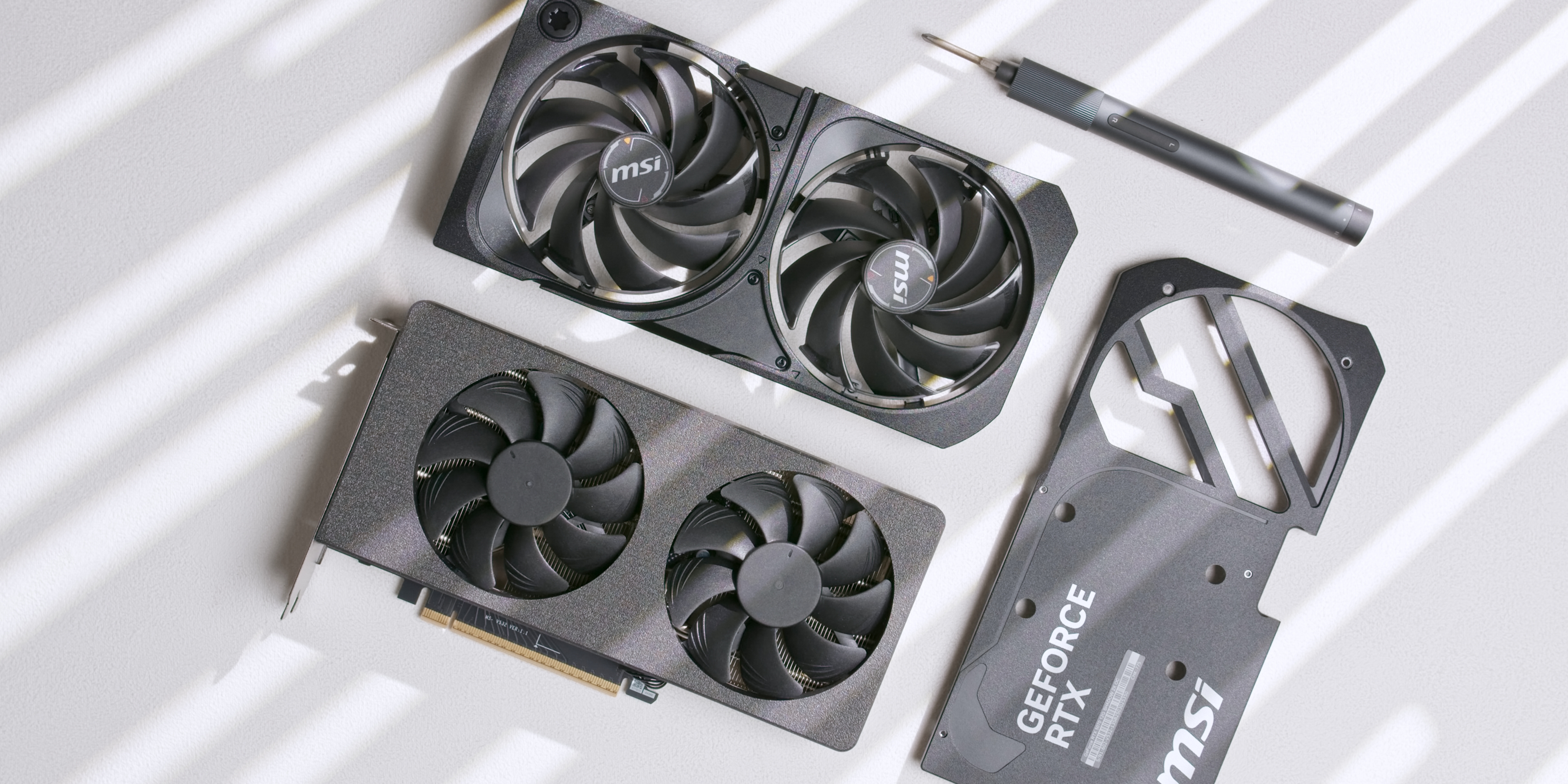

msi 5070 2X Shadow / Ventus Custom Shroud
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Computers
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
As seen on YouTube.
Features
Tool-less installation
Zero-gap. Maximum static pressure
2 slot GPU height
No supports needed
Installation Guide
For a complete step by step guide, visit EIGA/WORKS.
Compatible Fans
The custom shroud is compatible with the Noctua NF A9x14 (two are needed).
Other 92mm fans may fit but not guaranteed.
Recommendations
I suggest buying a mini 4pin adapter cable like this one (AliExpress).
This will allow you to hook up the fans directly to the GPU fan header, otherwise you'd need to hook up the two fans directly to your motherboard and set up custom fan curves with FanControl.
Remixing
A .STEP file is provided for easy remixing.
Changelog
Added a high compatibility version with modified fan corner radii that should increase compatibility with other 92mm fans.
