Magsafe Popsocket with Multitool V2

Print Settings:

• Layer height: 0.05mm

• Nozzle: 0.2mm

• Walls: 4

• Top and bottom layers: 4

• Infill: 10%

• Material: PLA

• Supports: snug, rectilinear

• Brim: optional(depends on printer and filament), I used an inner and outer brim with 12mm width

Extra materials:

• Magnets: Here are the magnets I used;https://www.amazon.ca/dp/B08Q7XWB85?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

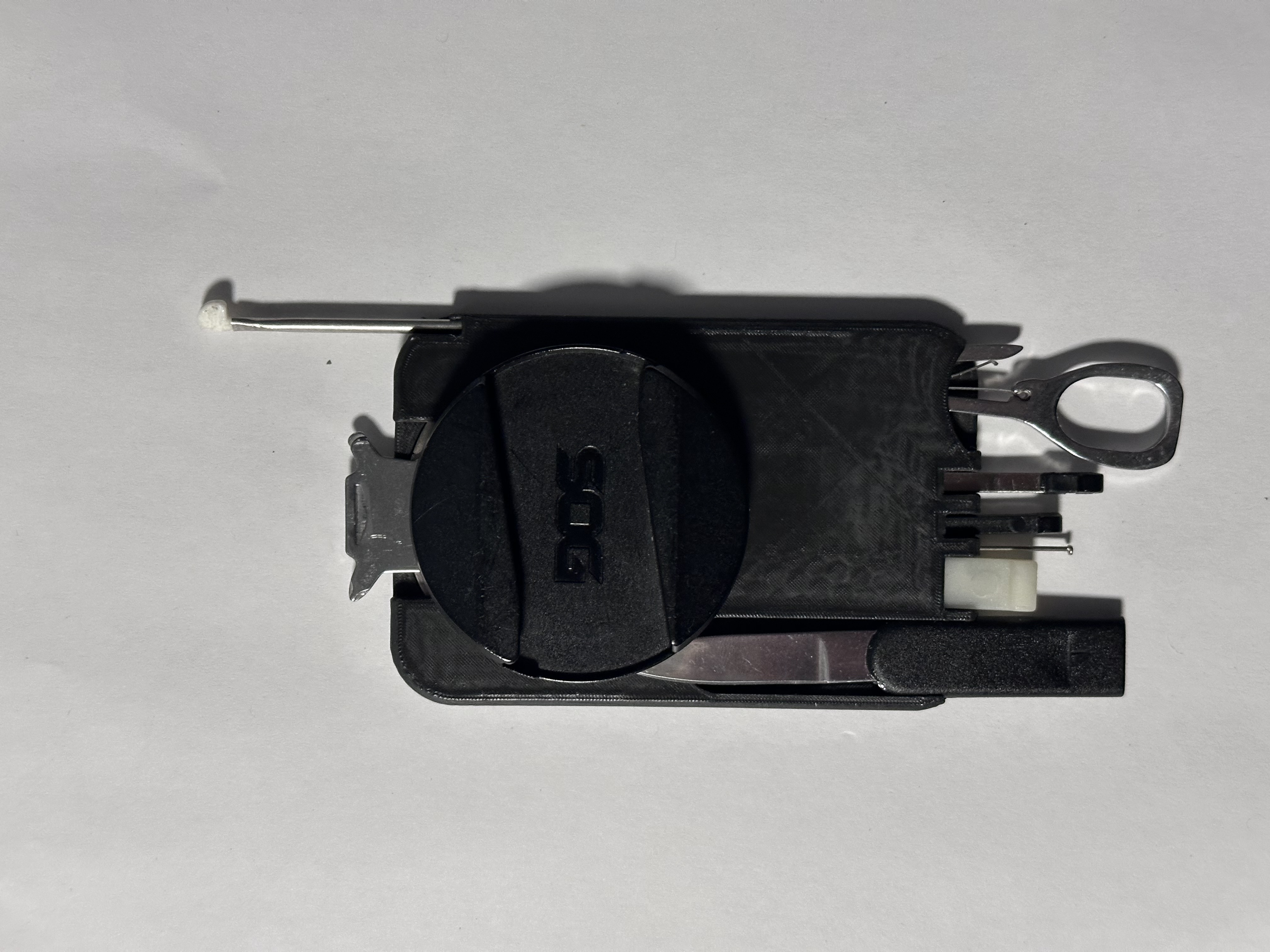

• Multitool: I used the tools from this Swisscard Lite knockoff(if you have the actual thing, it should work too, idk tho). The new slots I added allow you to carry the implements from the normal Swisscard. https://www.amazon.ca/dp/B0FBGBWHK8?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Printing instructions:

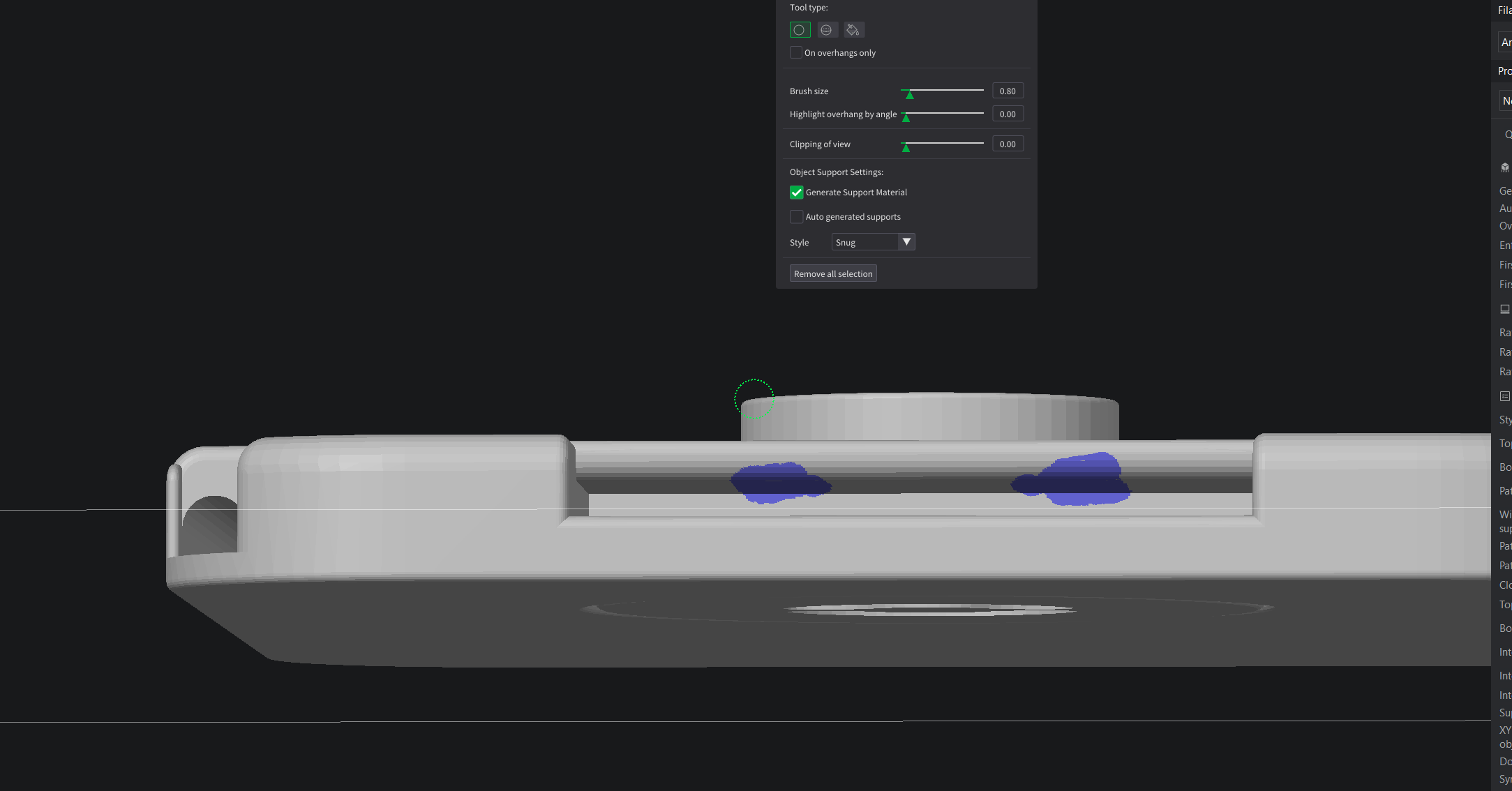

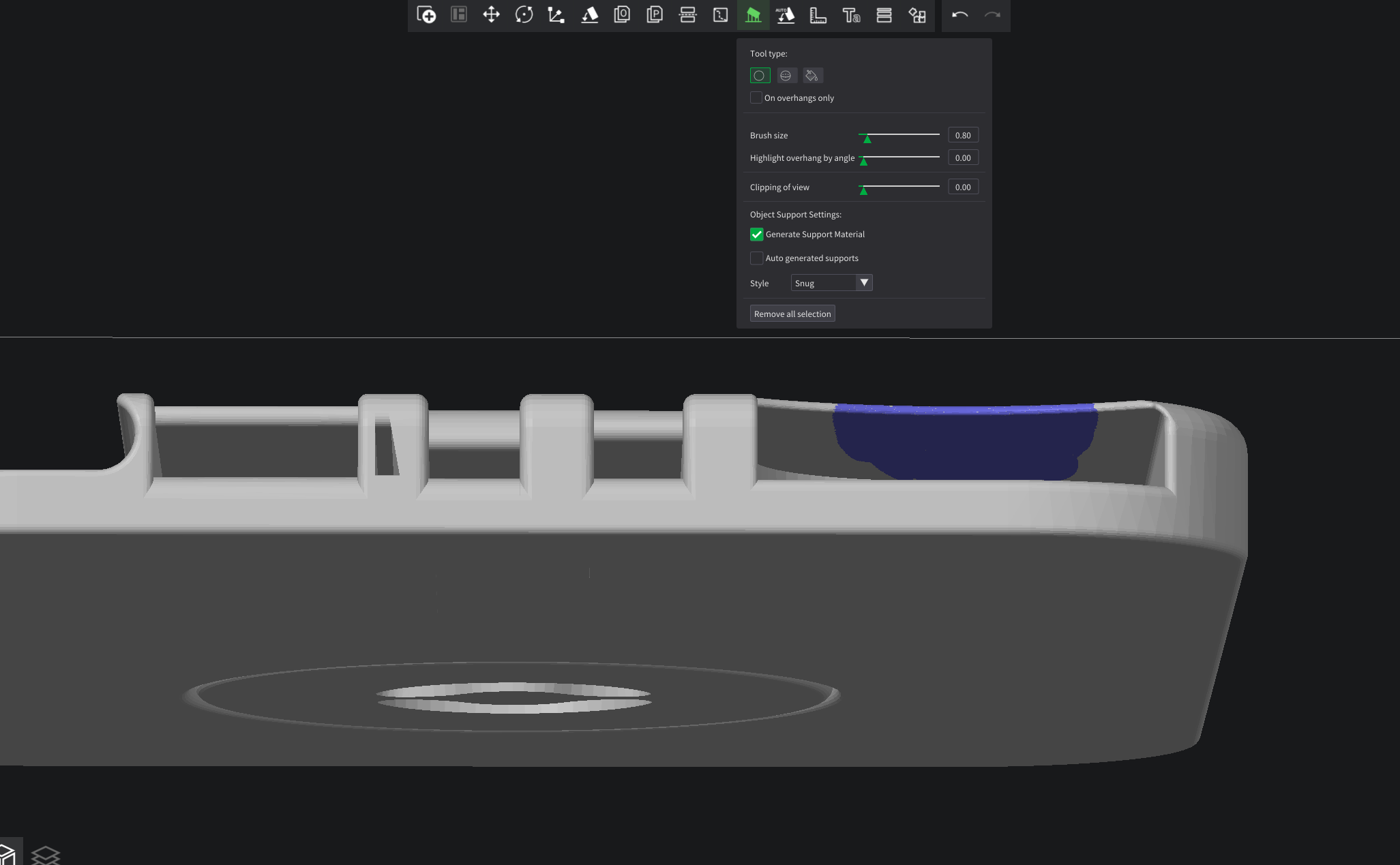

• Supports: You will need to paint on supports(can be seen in the images above, highlighted in blue, they should look like the last image)

• NOTE: Make sure supports run parallel to the walls of the slots so they're easier to remove(trust me, they're impossible to remove if you don't do this)

• Magnets: You will need to add a print pause at about 0.75mm. If you have other magnets that are a similar size, I've added a step file so you can edit the size of the magnet cavity.

• NOTE: Make sure the poles are in the correct direction, or else it won't stick to your phone.

• Popsocket Mount: Print extra as they will break over time.

Feel free to comment if you have questions. Otherwise Enjoy!
