Dozents of UNC Acorn Dome Nuts with Precise Threads
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Mechanical Parts
- Licencja
- Creative Commons — Attribution — Share Alike

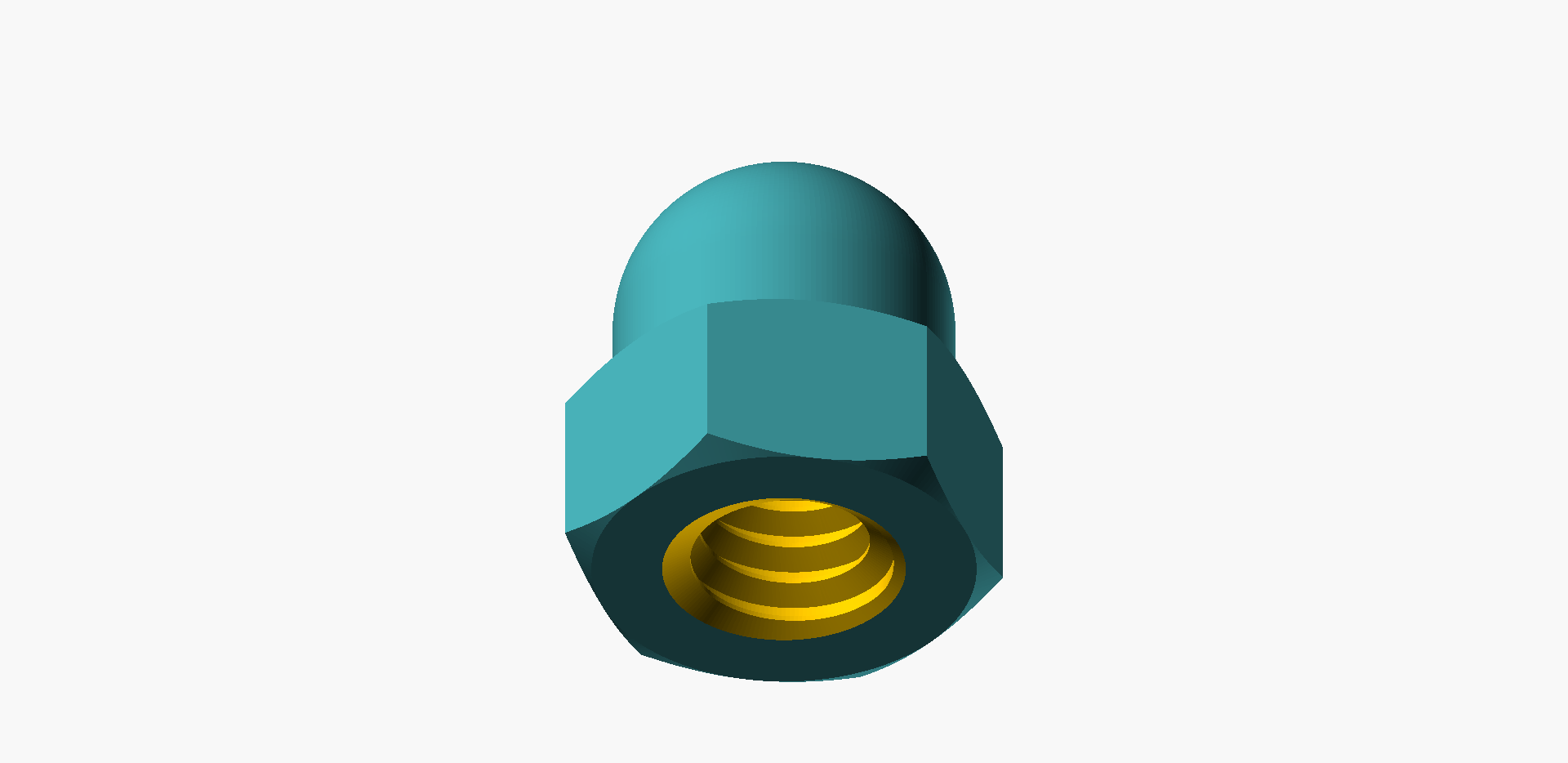

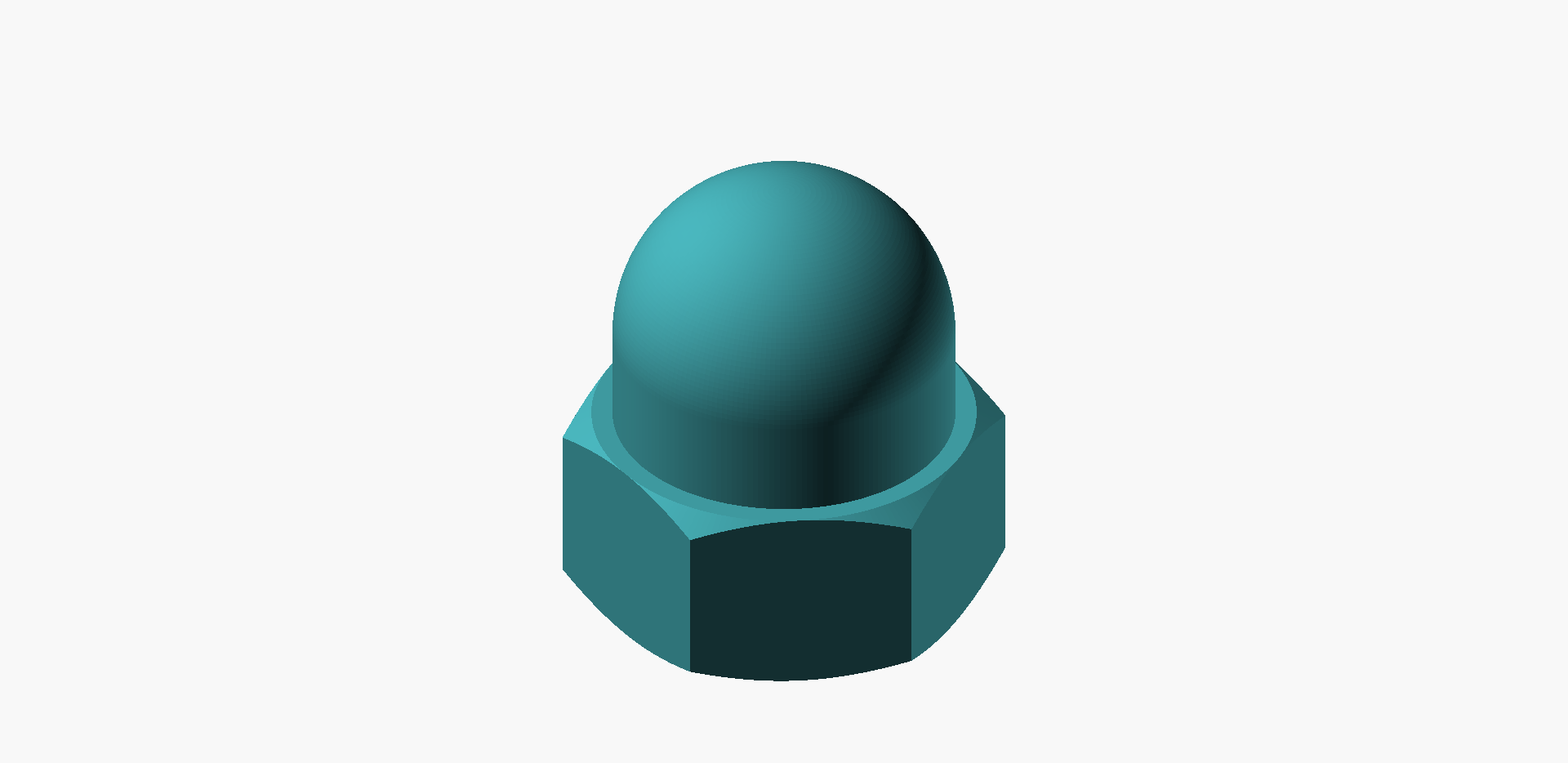

Unc Acorn Dome Nut
These acorn dome nuts provide a decorative finish while securing threaded connections. Ideal for visible applications where aesthetics matter, such as furniture assembly, decorative hardware, and consumer products. These nuts are inspired by the UNC standard (ASME B18.2.2) with UNC thread type and Not specified nut type.
Threads conform to Class 2A/2B fit per ASME B1.1. Thread pitch tolerance: ±0.001mm per thread. Print with a maximum layer height of 0.15 mm. This will improve accuracy and stability a lot. Use enough perimeters and infill. No supports required.
Available sizes: #0, #1, #2, #3, #4, #5, #6, #8, #10, #12, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 3/4, 2.
Compatible screws are e.g. Compatible screws: UNC Hex Screw Bolts with Precise Threads.
