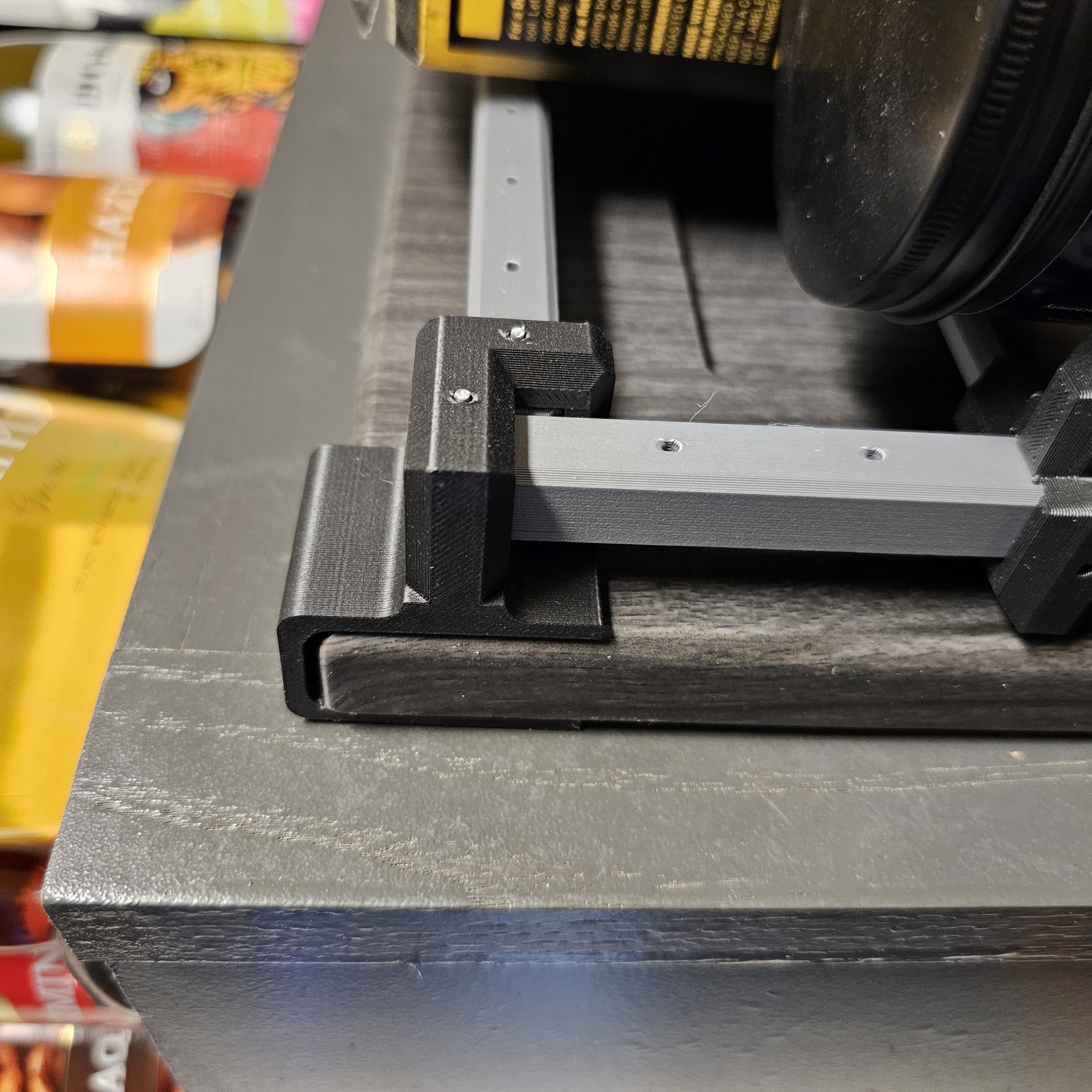

Customizable shelving rack that hangs on a standard 3/4" cabinet door. Extra storage for small apartments and kitchens.
- Ocena
- 0 / 5
- Polubienia
- 10
- Pobrania
- 21
- Wydruki
- 0
- Wyświetlenia
- 412
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Kitchen
- Licencja
- Creative Commons — Attribution

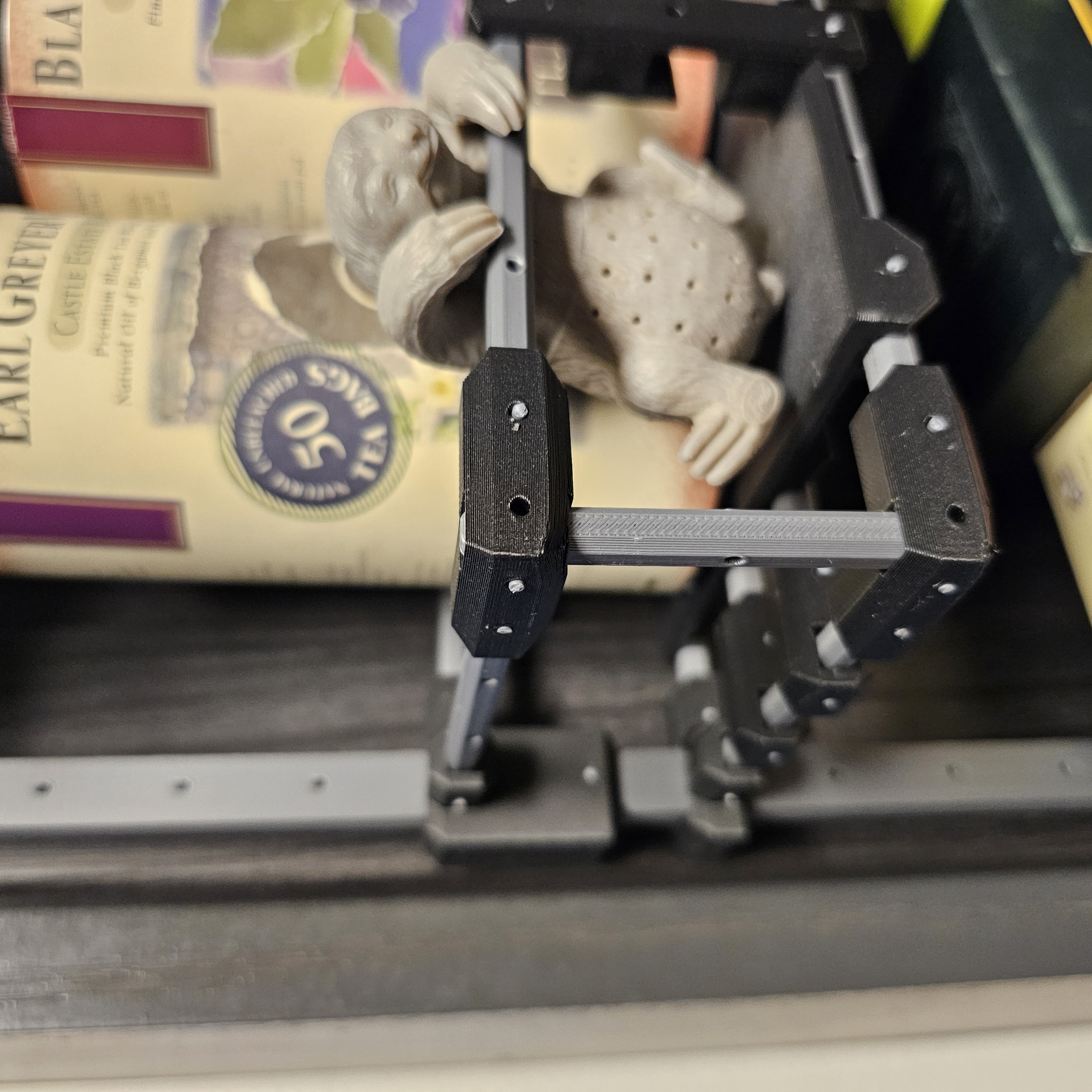

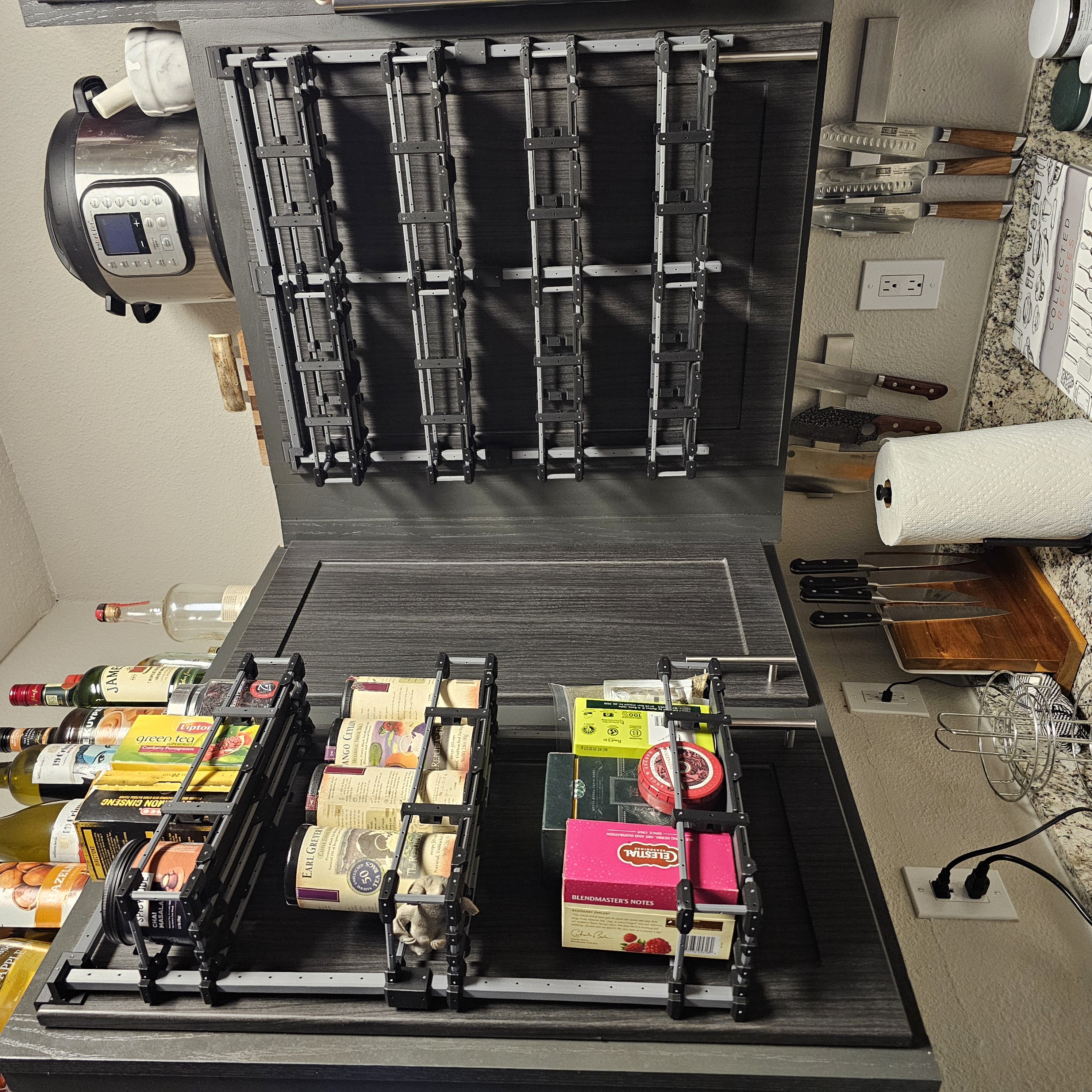

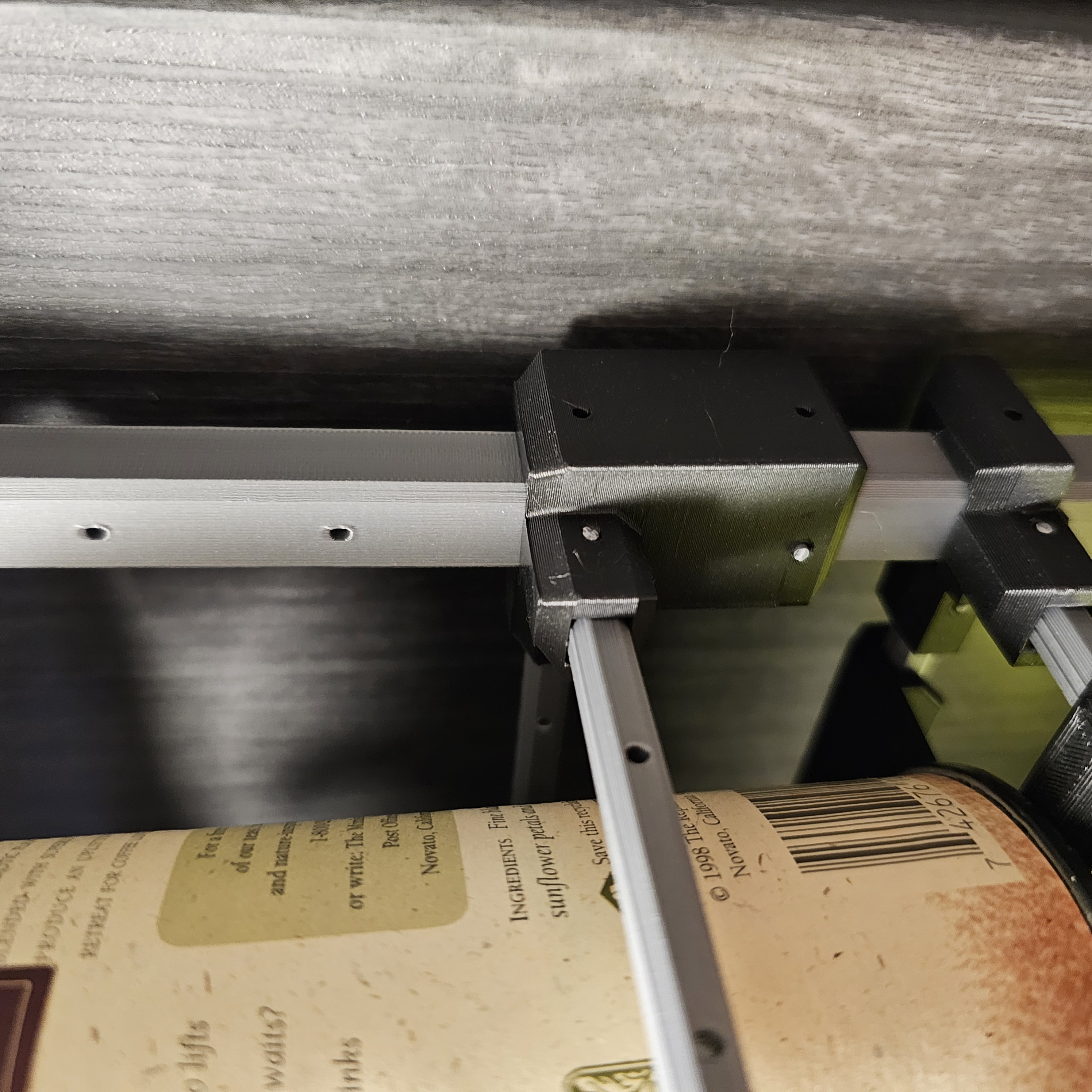

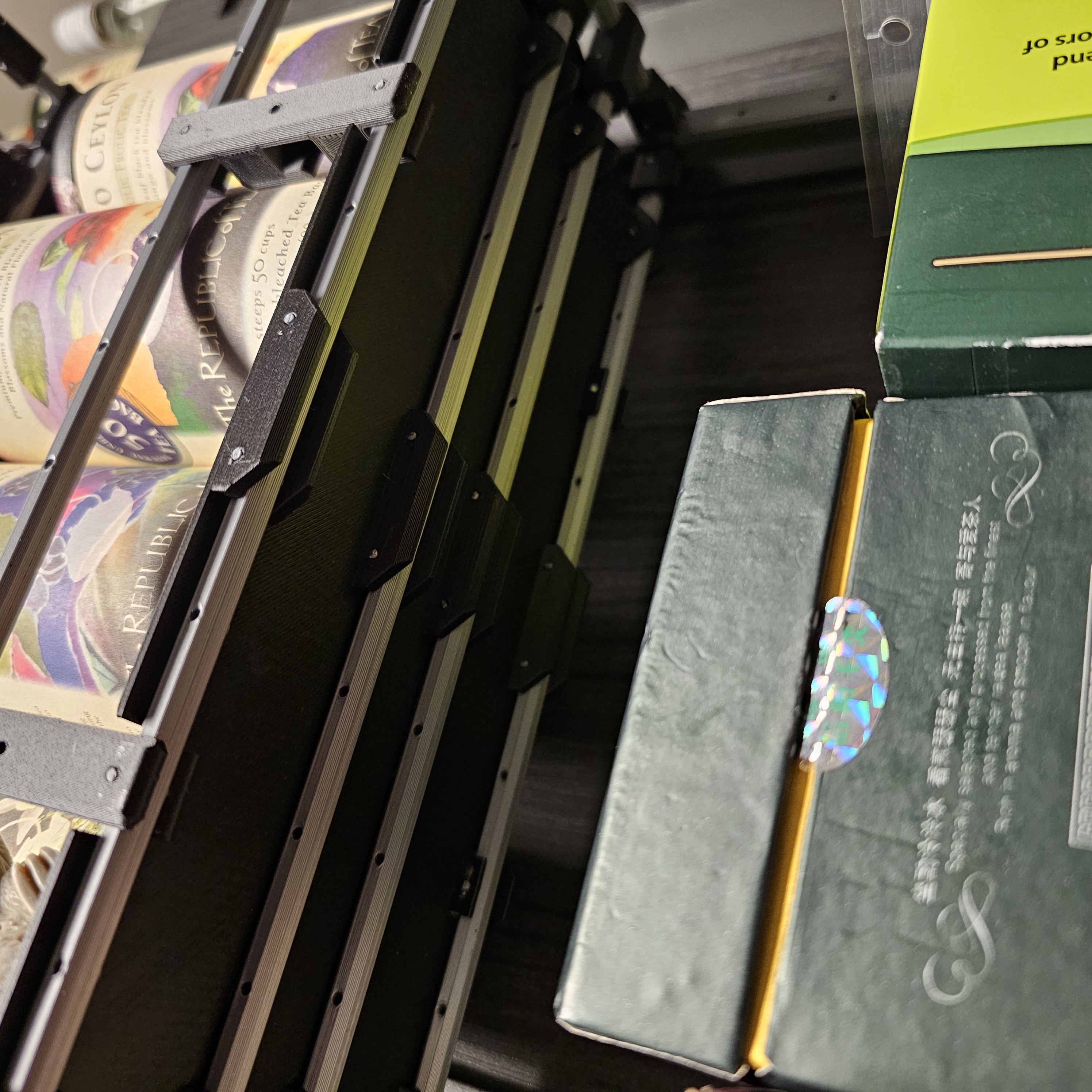

We all know the frustration of small kitchens and bathrooms where storage space is often at a premium. This completely modular shelf rack system expands your storage capabilities at your cabinet doors. These shelving racks can be as wide, long, and deep as you need them to be. Fully printable and assembled with filament as rivets.
Because of this design's modular nature, it can even be printed on smaller printers like the A1 Mini.
With 80 different parts to choose from, every build situation and layout should be covered. New parts may be added if the need arises in the future.
I have tried to test every possible configuration in a mock-up environment, but I'm just one guy. If you encounter a situation that doesn't work, let me know so that I may fix or solve it!
Printing
Material: PLA
Layer Height: 0.2mm
Wall Generation: Arachne
Walls: 3
Infill: 25% Gyroid

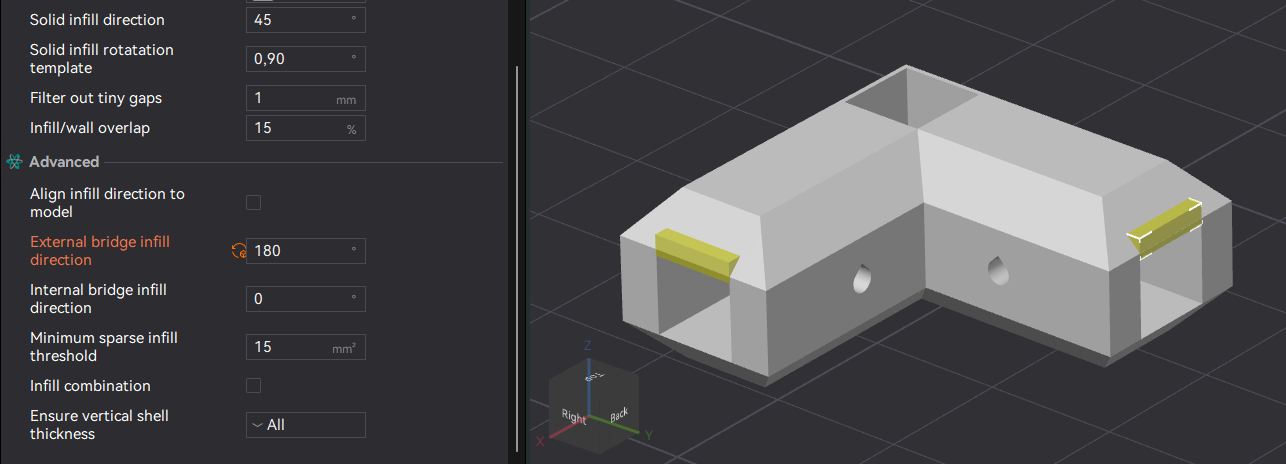

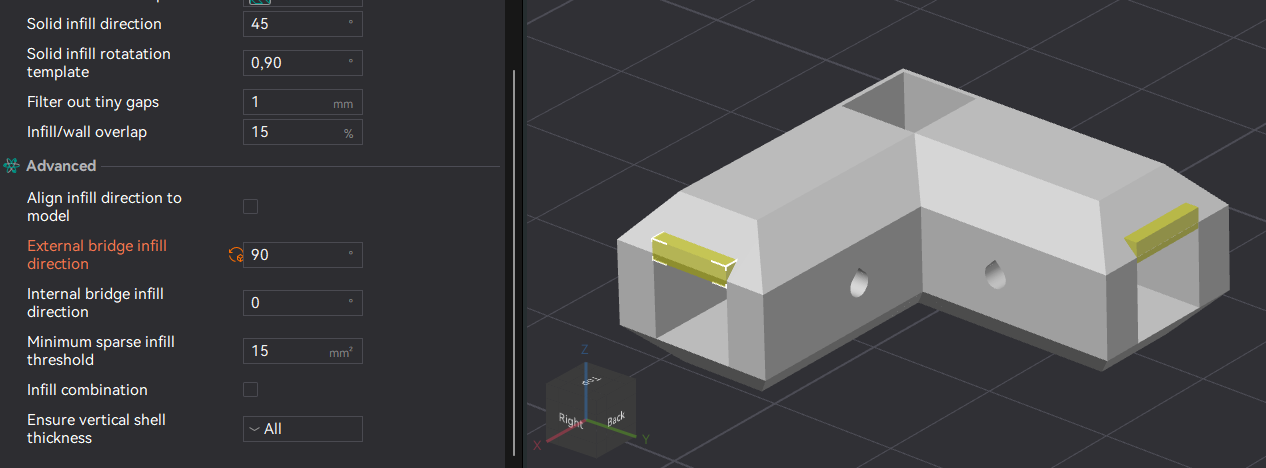

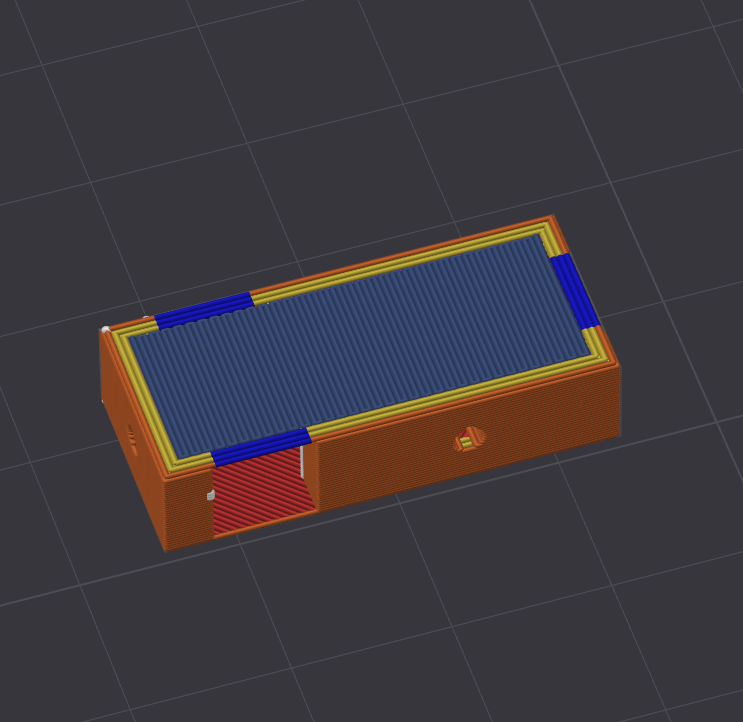

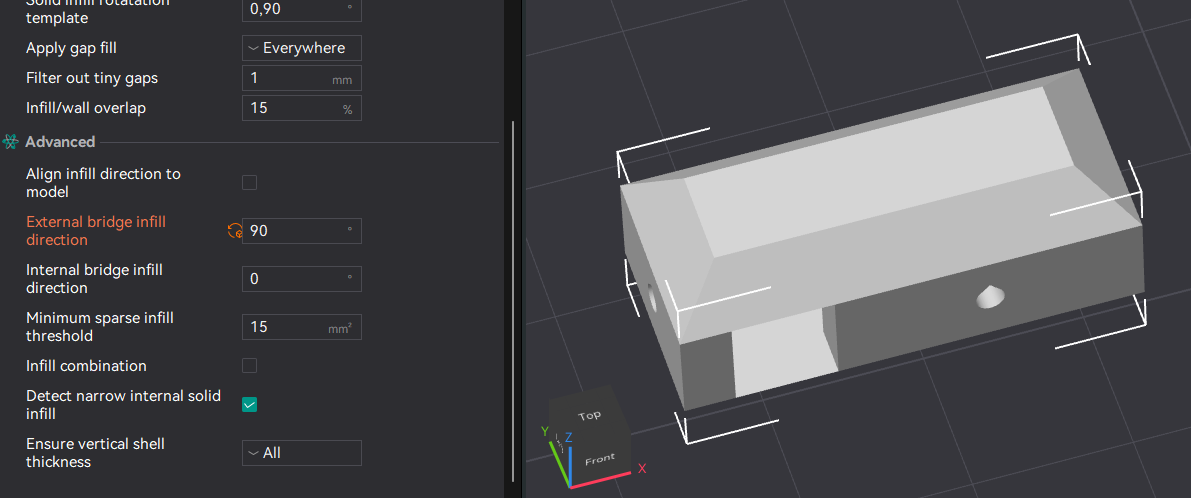

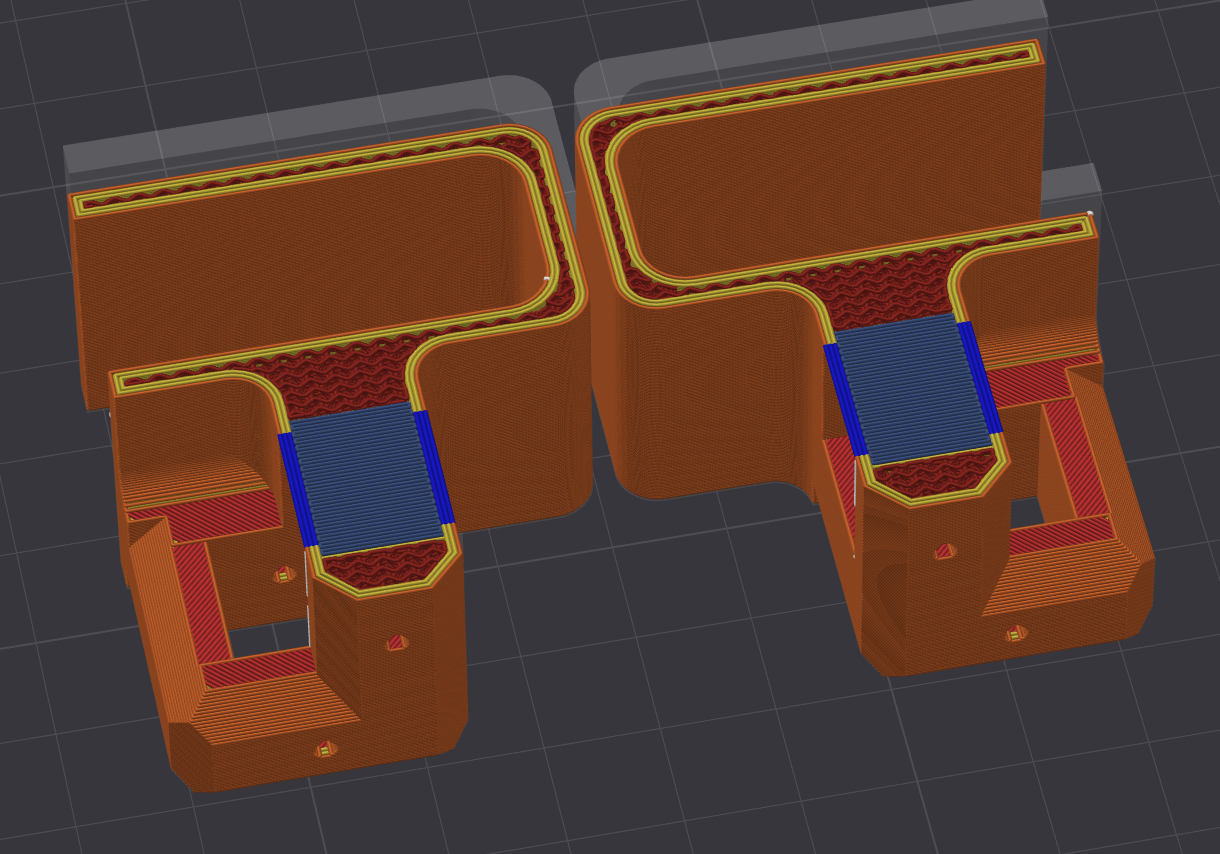

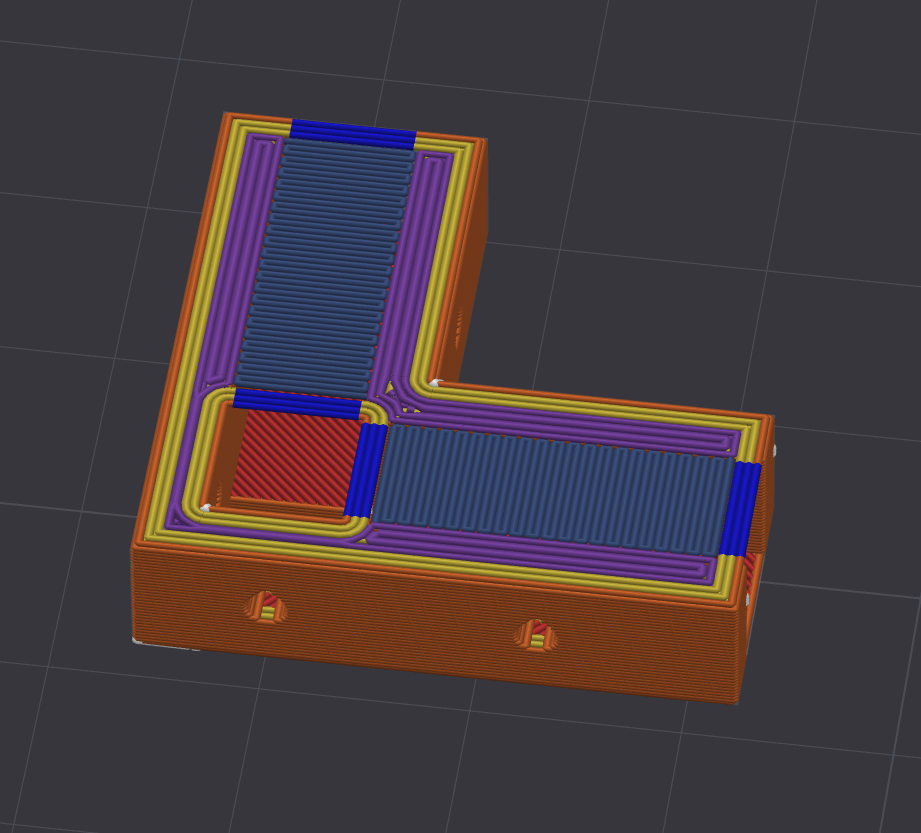

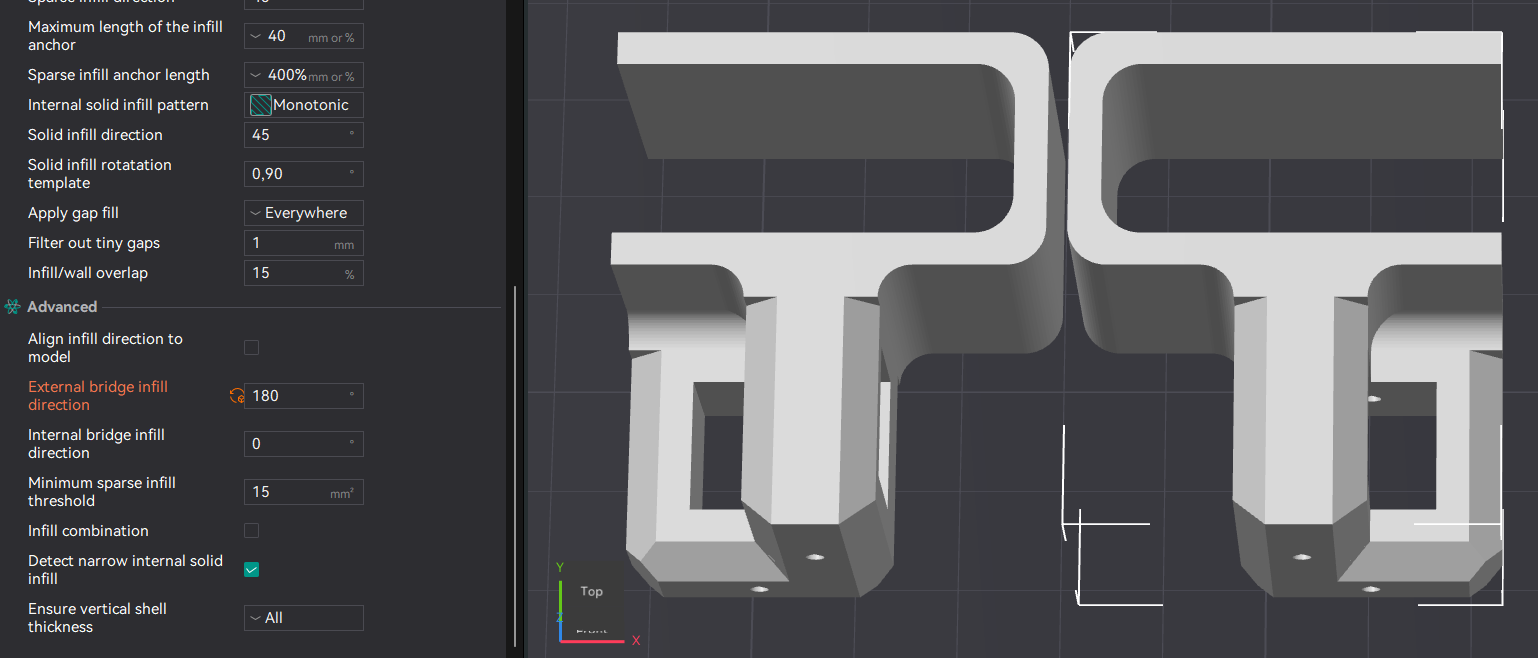

External Bridge Direction: Defined per-part, ensure shortest bridge length (pre-configured in .3mf file)
No Support
No Brims
Assembly Instructions are included in the Other Files section of the Downloads. I have tried to make these instructions clear and concise, but let me know if there's something I should clarify.
Tips & Tricks
This is not a novice project, one rack may take more than one day to print, and a not insignificant time to put together. Plan accordingly, your printer and time will be occupied!
Thoroughly plan your build. There are a lot of parts to choose from, and misprints can be costly.
Thoroughly plan assembly. Some pieces should be assembled in certain orders, but it is entirely dependent on the configuration you are building.
Confused what length to use as the main gantry cross bar? The correct length is [Space You're Trying To Fill] minus 1-1/2 inches. Example: use the 11-1/2 inch bar to fit a 13 inch space.
Check your overhangs and bridges, adjust if necessary.
A 1/16" punch or Allen wrench may be used to remove rivets if mistakes are made in assembly.
Some rivet holes be a very tight fit for filament, use pliers to grab and push filament through.
