Solder Scroll Without Gears v2
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
Thanks to Victor for the great Solder Scrolland TactfulElf for the Remix.

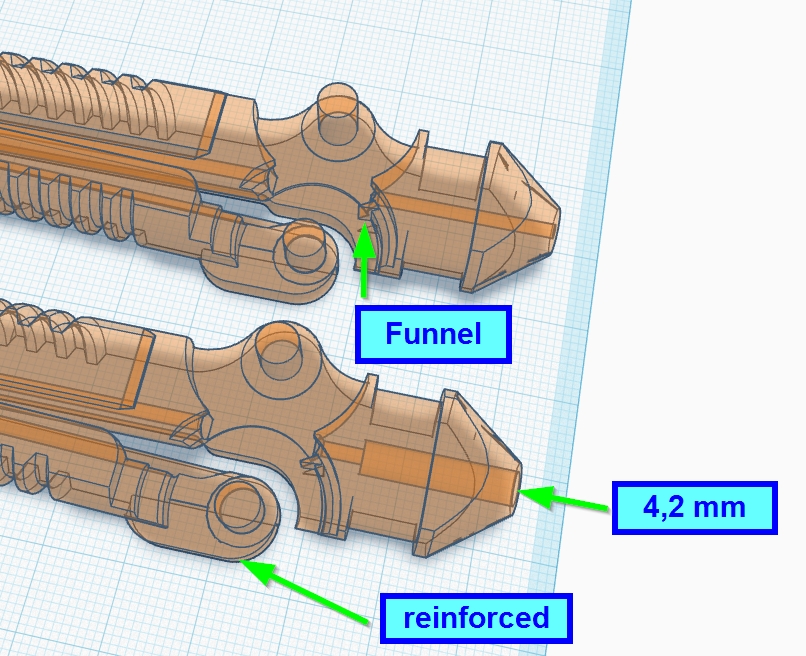

Now with two ball bearings, optional PTFE, funnel for solder, downward coil, left and right handed, reinforced and RH version from Luer lock.

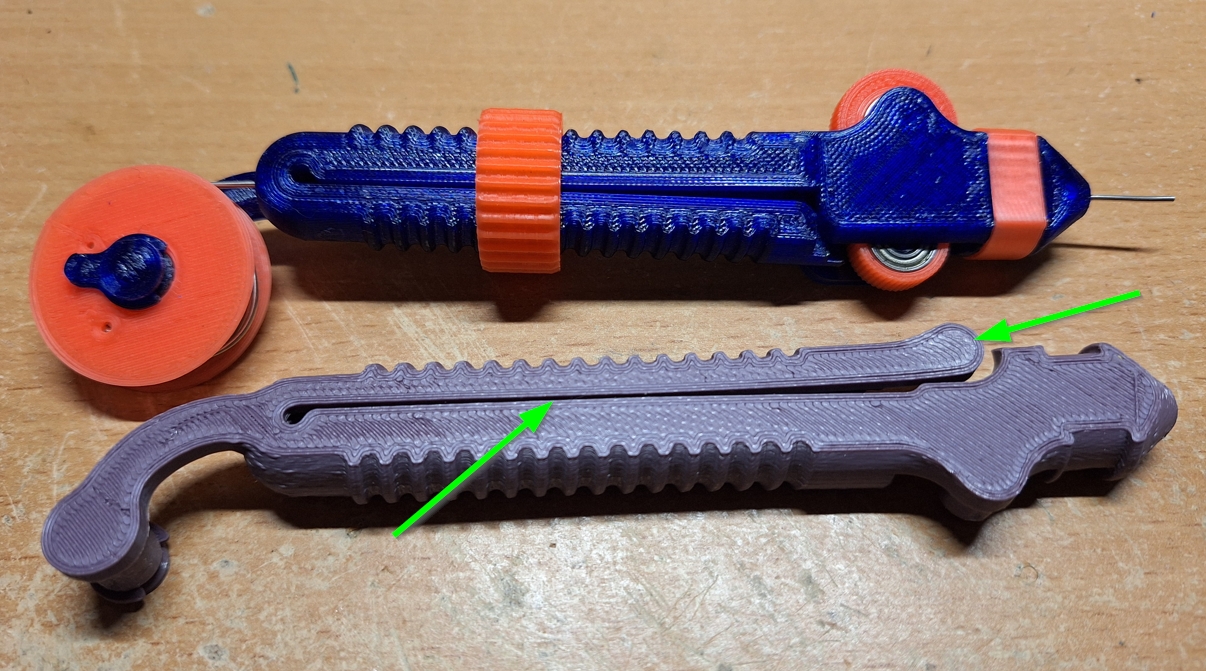

I printed my first solder scroll with PLA, which was a mistake; PLA deforms under pressure. PETG is like a spring and doesn't deform. I recommend at least PETG with more walls, top and bottom layers. Inserted a 5x11x5 (685 ZZ) bearing into the small and large roller. Use all remaining parts from the original and possibly the Modified spool for Solder Scroll from Jindrich or jabbanman.
I'd be happy to see a make or remix.
