Salad Fork w/ AntHead HF Cartographer Mods

On my Salad Fork 1.1 build, I chose to use:

• AntHead tool head


• Rapido 2 (High Flow hotend)


• Cartographer v4 probe

Needed Hardware:

• z_carriage_rear_carto:

  • 4x M2x4 SHCS

  • The salad fork manual calls for M2x6 screws which are too long with my modifications. M2x4 hold the printed parts to the carriage securely without any wobble.

Overview of Changes:

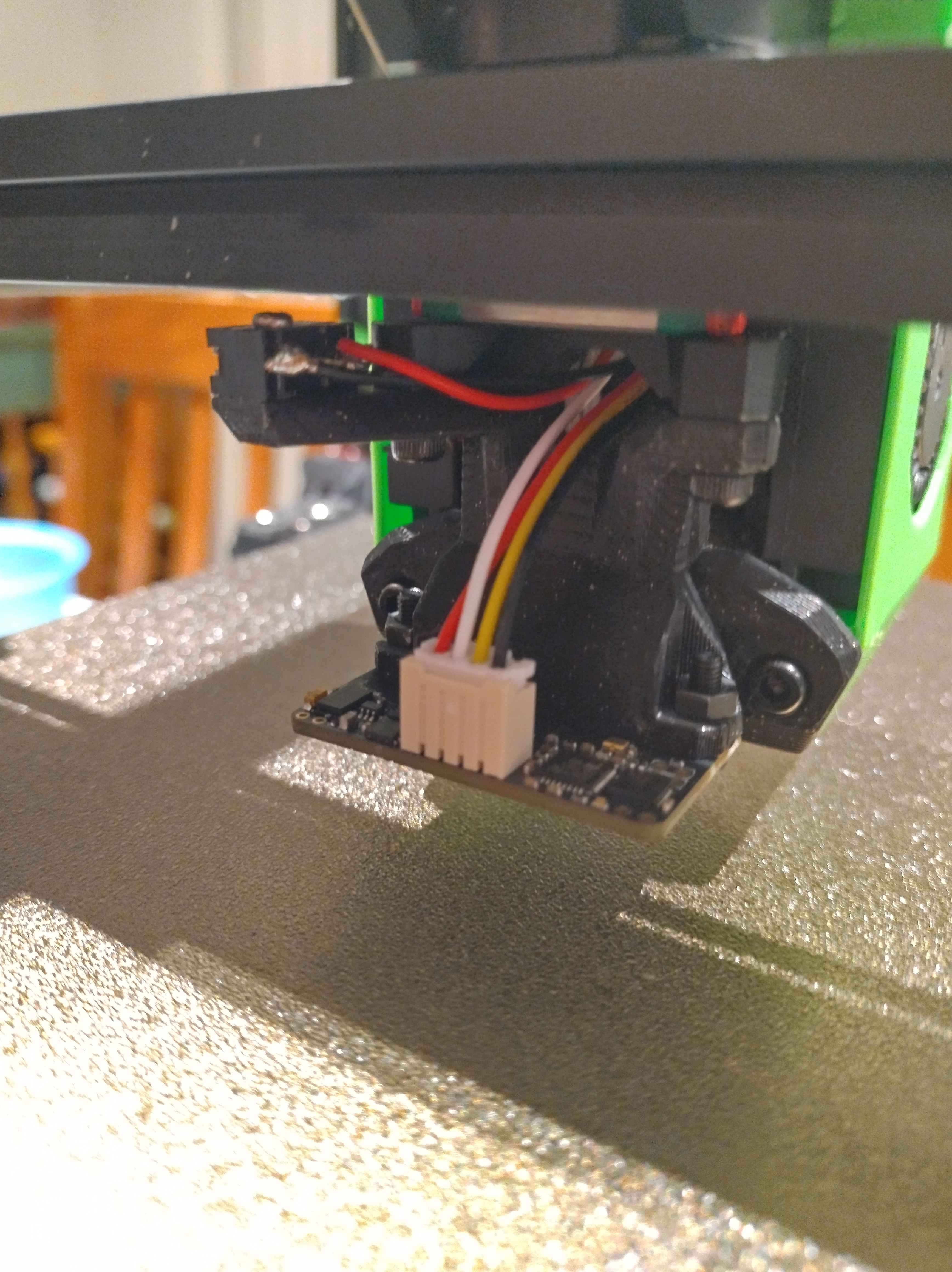

Because this uses a HF version of the Anthead, I needed to modify the probe mount to be 9mm longer + stretch the x endstop 2mm out.

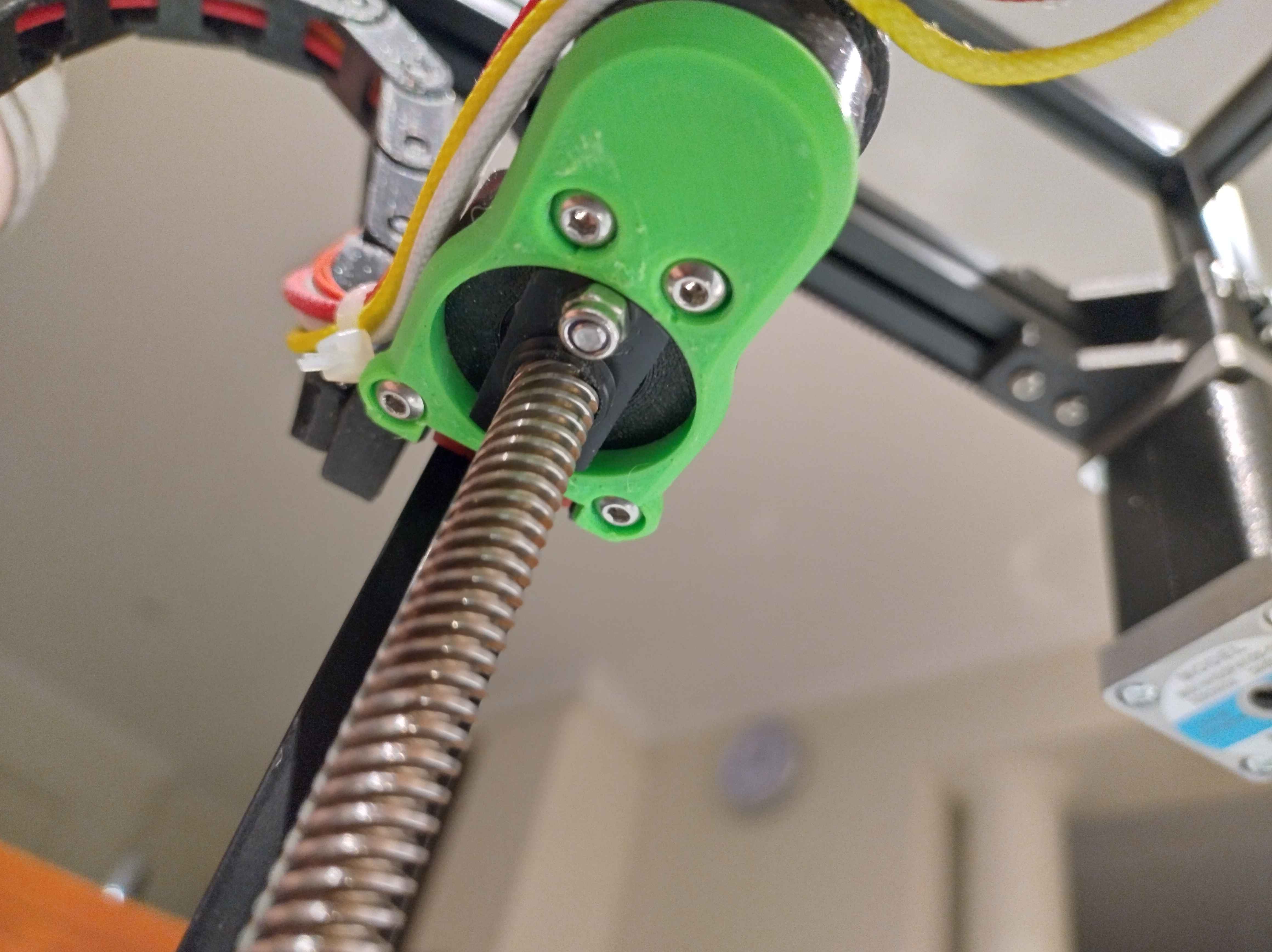

This created a new problem: The rear z lead screw was then able to smack into the Cartographer. I altered the motor mount + leadscrew carriage parts so that the rear z lead screw was about 5mm back. I measured about 4.6mm - 4.7mm of clearance was needed so I just rounded it up.

Issues:

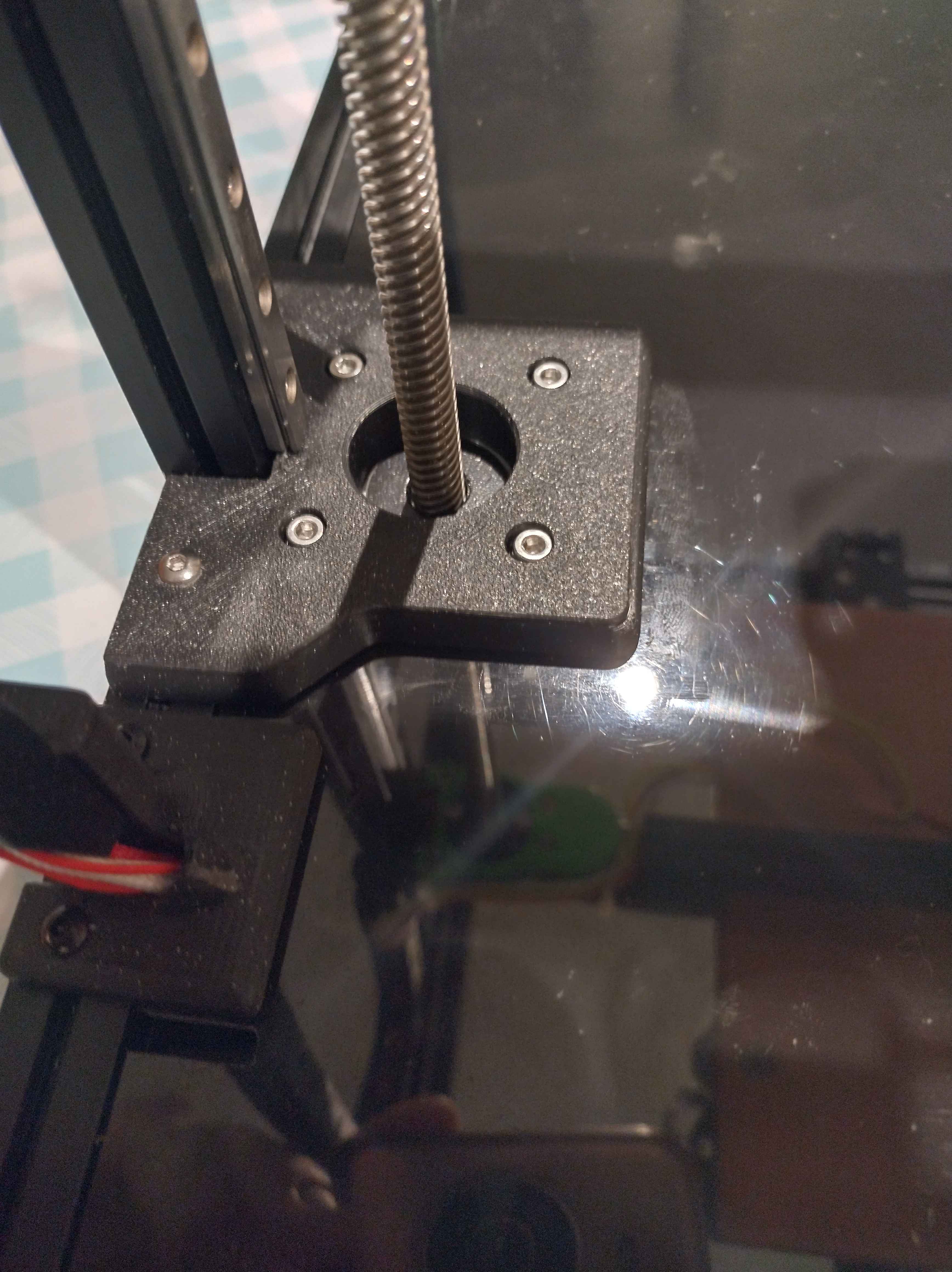

There is currently an issue with the rear z motor plate where the top holes (the ones that screw into the frame) don't align with the rear frame nuts properly. I may get around to fixing that spacing eventually. Just be prepared to cut/sand the hole a little.

NOTE:

These mods were all edited within Blender since that's what I know best. I could share the blender file but it's pretty much just an STL. This is going to be a case of what' here is what you get.
