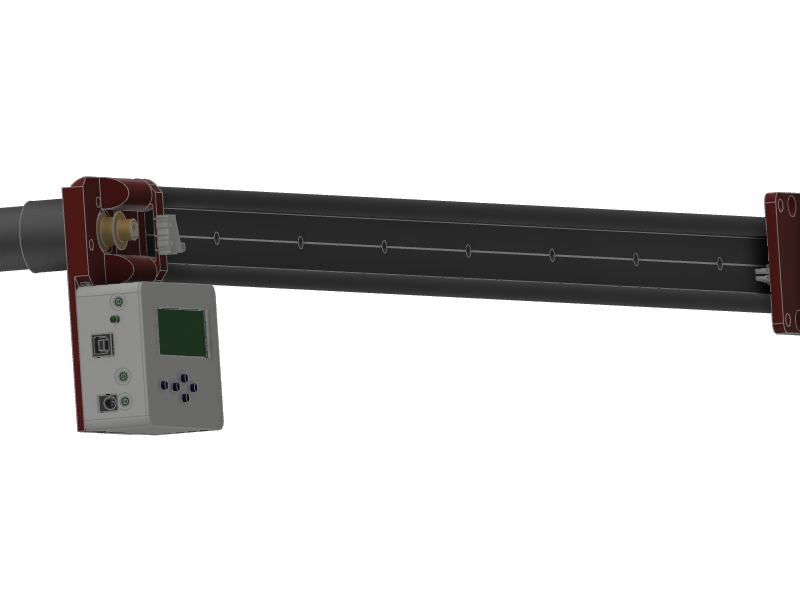

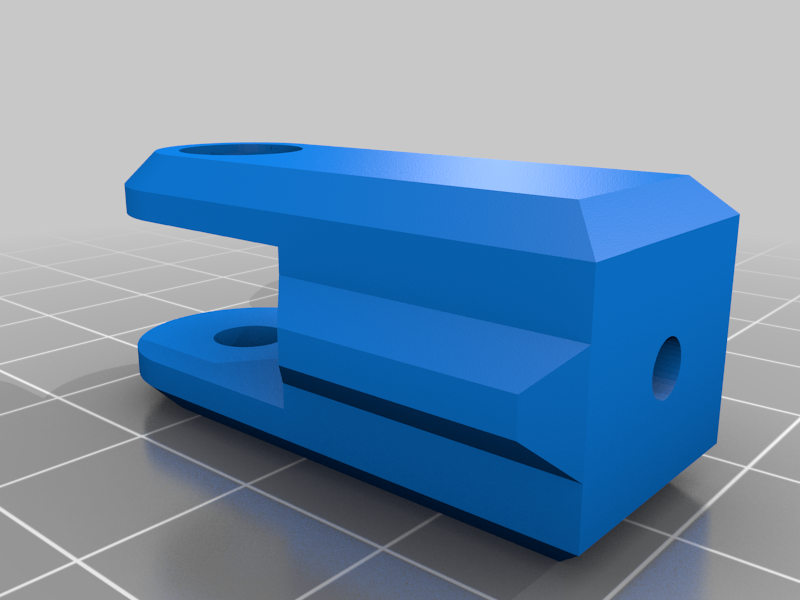

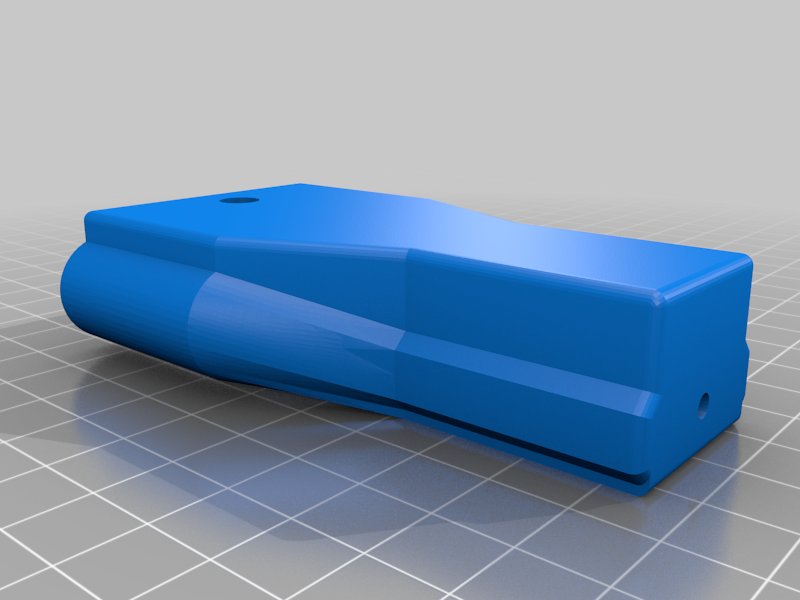

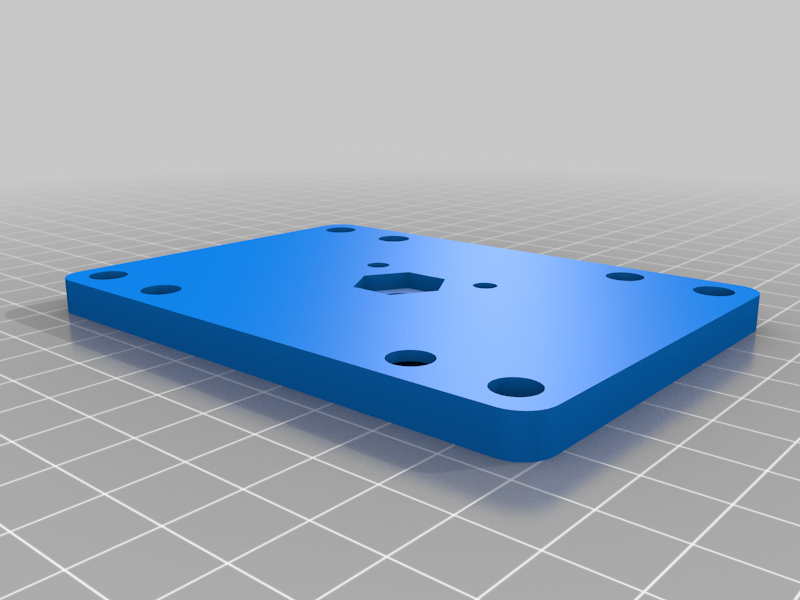

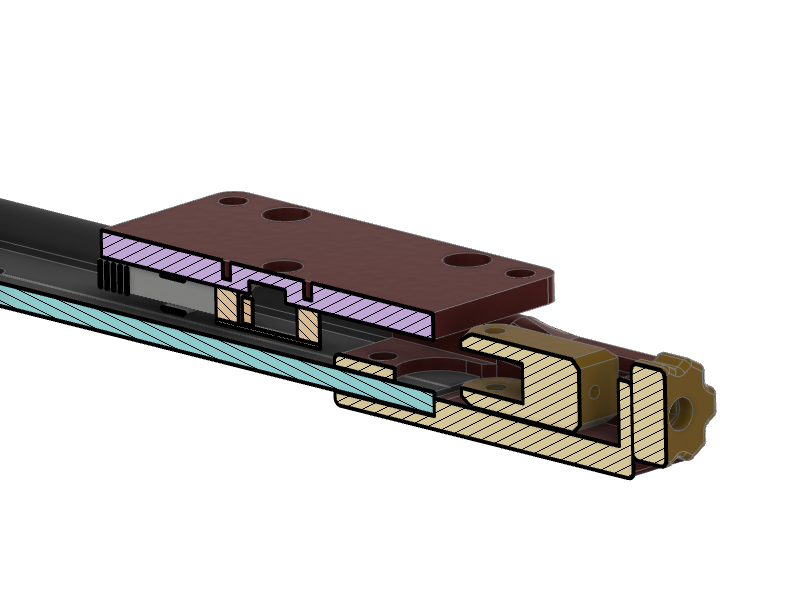

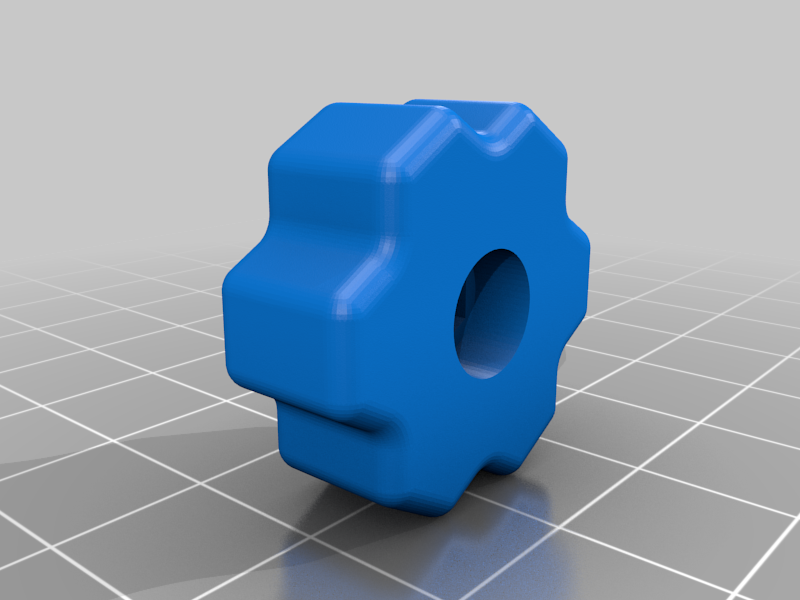

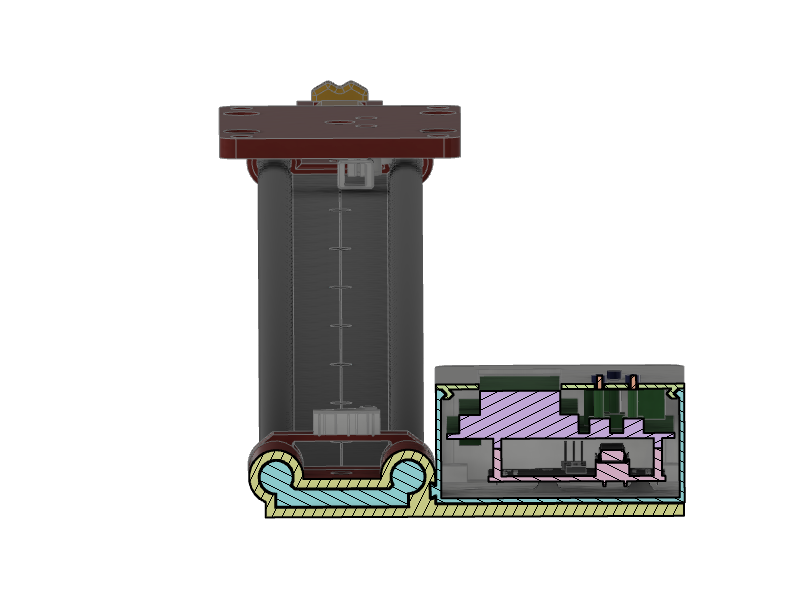

A timelapse dolly rig I constructed from an aluminum sliding rail I acquired long ago. The rail came with an aluminum sled, but I removed the slider bearings and affixed them to a 3D printed sled instead. I designed a belt tensioner using regular 6mm timing belts and components. The belt tensioner just uses a random spring from a shampoo bottle dispenser along with M3 bolts / nuts
The brains of the timelapse dolly is an Arduino Uno with a DollyShield from http://shieldlist.org/dynamicperception/dolly

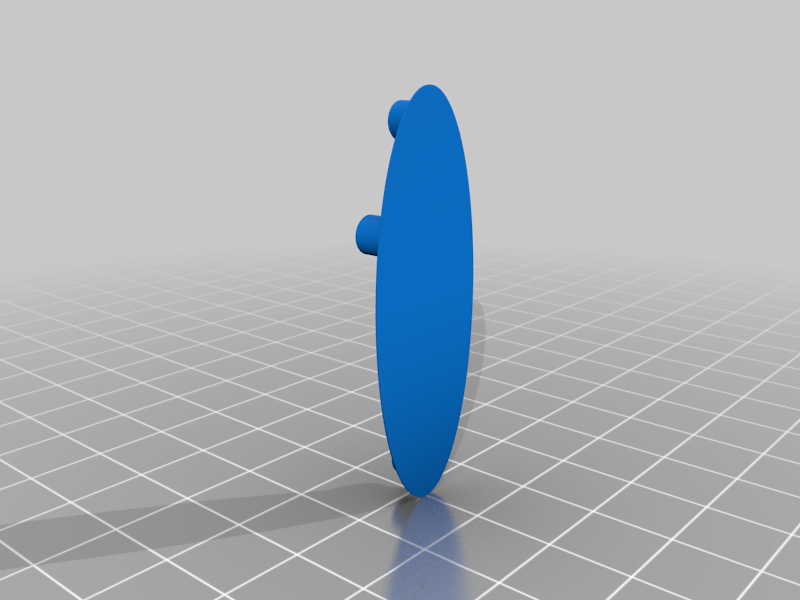

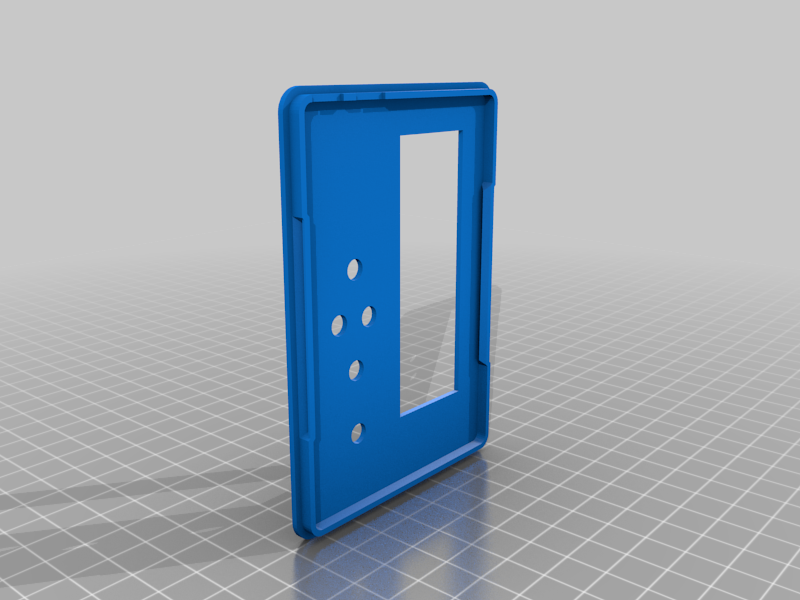

Printable buttons can be done in TPU or PLA.
The motor is a no-named ~1RPM planetary gear setup I purchased for a robotics project in college.
Print Settings
Printer:
FLSUN i3 2017 Customized
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
25
Filament:
CC3D PLA+
Red
Notes:
Many components were items that were scrapped from other projects and I have no formal BOM list.
If you choose to construct this, you might need to make adjustments for your motor and/or drive belt.
