Over-Center Toggle for offset mounting

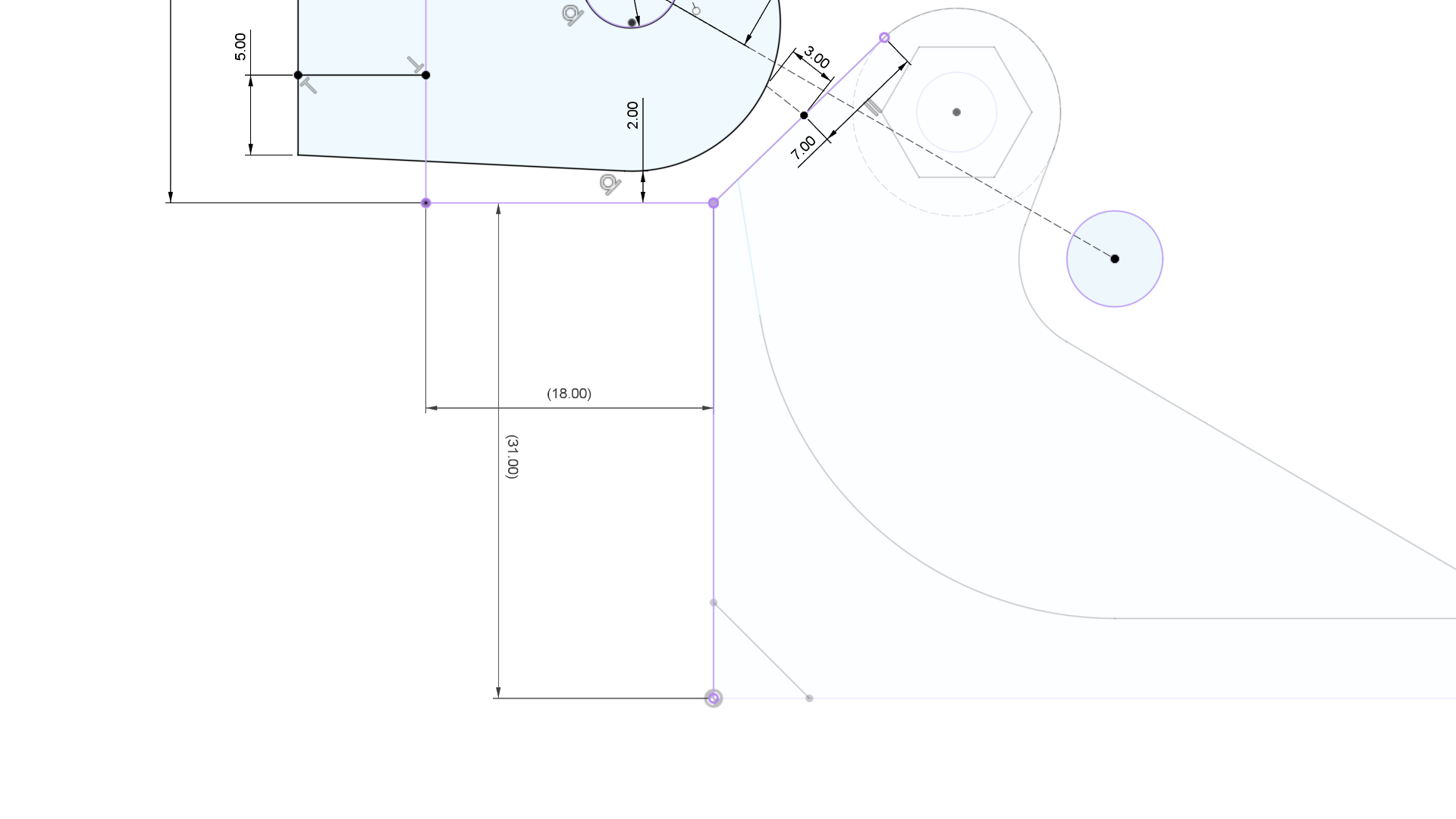

Another take on the over-center latch I needed for a specific door in a conversion van. This door has a  corner I needed to  get around, so it's  designed for that specific spacing. I can change that a little, so if this is close to what you need but not quite right,  send me a message and I'll see what I can do =]

This version needs way less hardware and tucks into the corner (at least it did for my specific use case with heavy trim on the door frame.)

Print for strength, 3 walls, 6-8 tops and bottoms, dense or solid infills etc.

Just print 2 loop sides, and one of each of the rest. STLs should all be in ideal printing orientation. (supports required for base and handle. I usually try to design for support-free printing, but this design demanded strength over efficiency.)

The "loop" cross pieces may snap in tight enough not to need glue. I still glued mine even though they needed a few good hits to set them in tight, since it  was going in a van and I didn't want it to rattle loose.
