Magnetic multiplication table board: 1x1 - 10x10
- Ocena
- 0 / 5
- Polubienia
- 7
- Pobrania
- 23
- Wydruki
- 0
- Wyświetlenia
- 341
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Math
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
Multiplication table Board
The chip displays the multiplication, and the answer is shown below it. This allows children to independently check if they know the correct answer. The chips are held in place by magnets.
Additionally
In addition to the printed parts, you will need:
5x2mm Magnet - 200 STK.
Glue
Tip: I used a 3D printed magnet dispenser to ensure that the magnets were always placed in the correct orientation.
AMS
Ideally, you would use a 3D printer with AMS. However, it is also possible(At the base) to write the numbers on a sticker or something similar.
You can also manually change the color on the chip.
Printing and other instructions

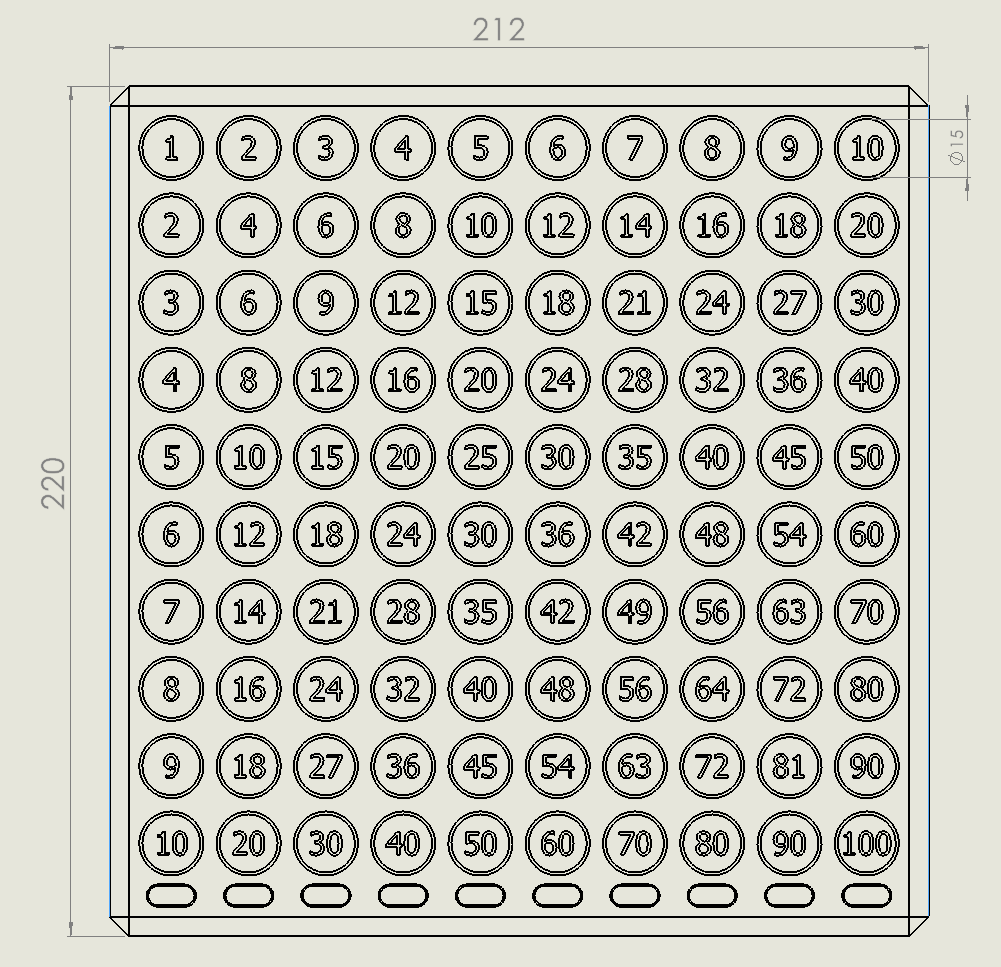

Base
Break at 6.4mm for the magnets
Color the numbers in the slicer
Tip for 250x250 printers: Make the cleaning tower smaller so that the base has enough space.
Multiplication Chip
A different color is used for each number sequence to make it easier to identify the sequence.
Break at 2.6mm for the magnets
Color the numbers in the slicer
Colorpart
A piece indicating the color is glued into the base
Print this piece along with the other pieces in the corresponding color to save time
