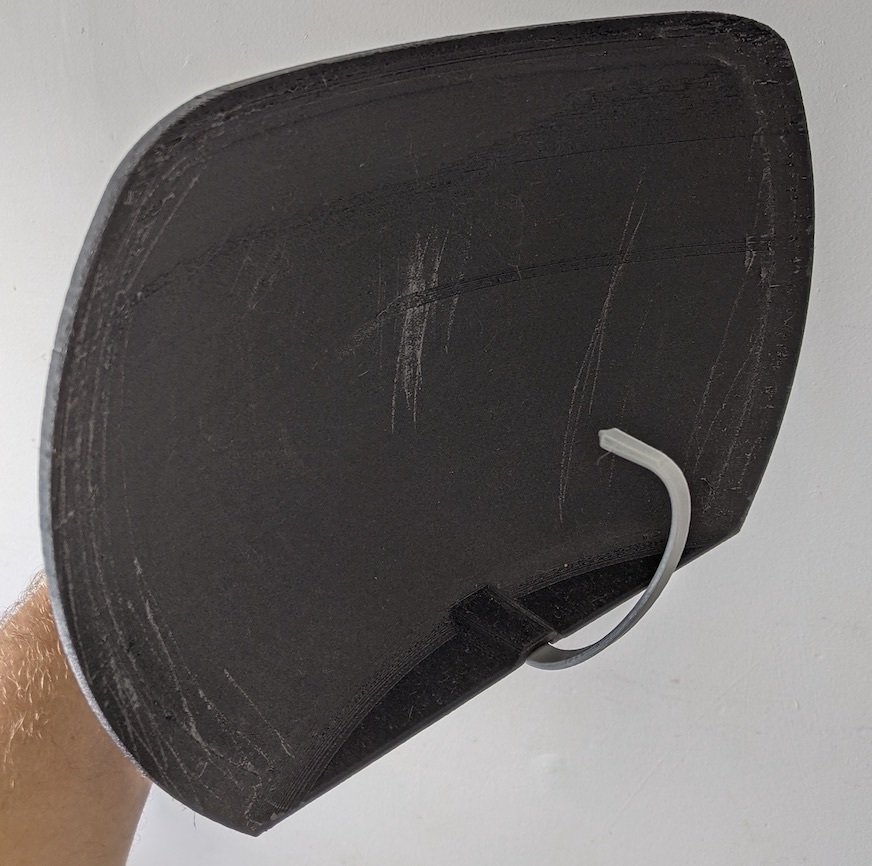

This is the final iteration of my parabolic mic design. I had conceptualized this as a more pandemic-friendly "meeting mic" to us instead of handing around a wireless microphone. The idea didn't work as well as I was hoping (too much background noise), but I went through 3 printed iterations and feel like the design is unique enough that you might appreciate building off of it.

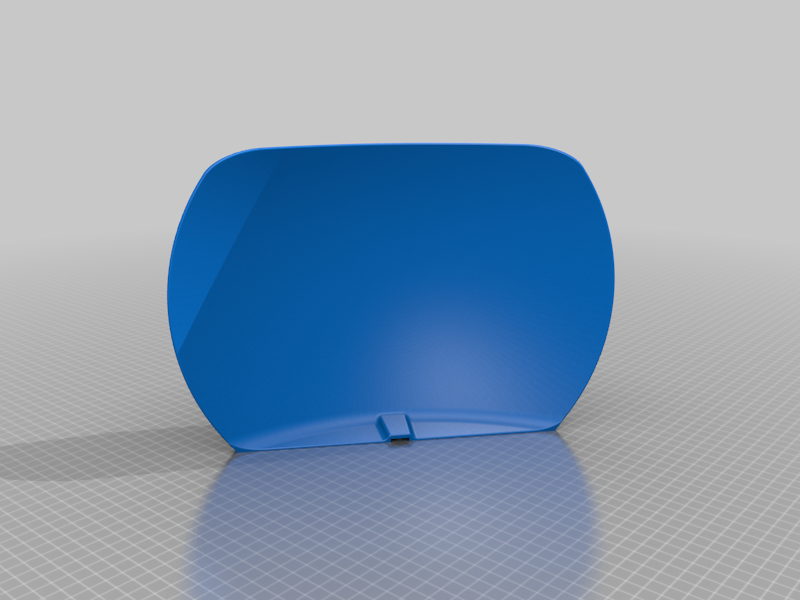

The main dish is designed fill the extents of my Prusa Mk3 build volume and the STLs should already be oriented correctly for that build volume.

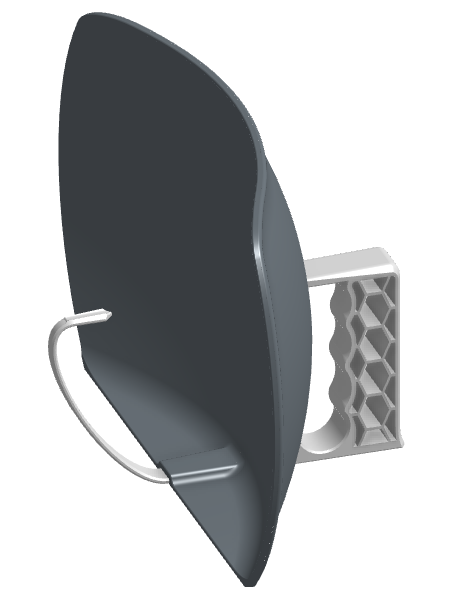

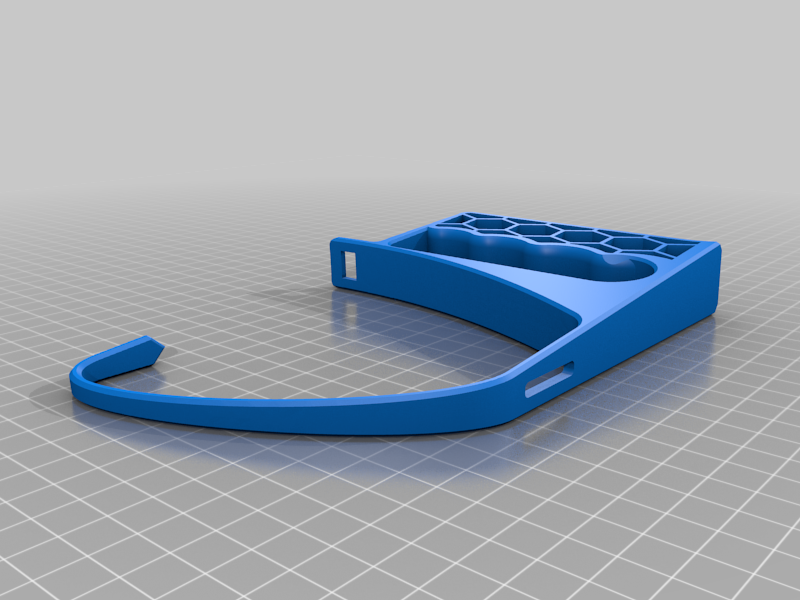

The handle and mic holder are one part and a lavaliere microphone mounted on the 'boom' should put the mic pick-up right at the focal point

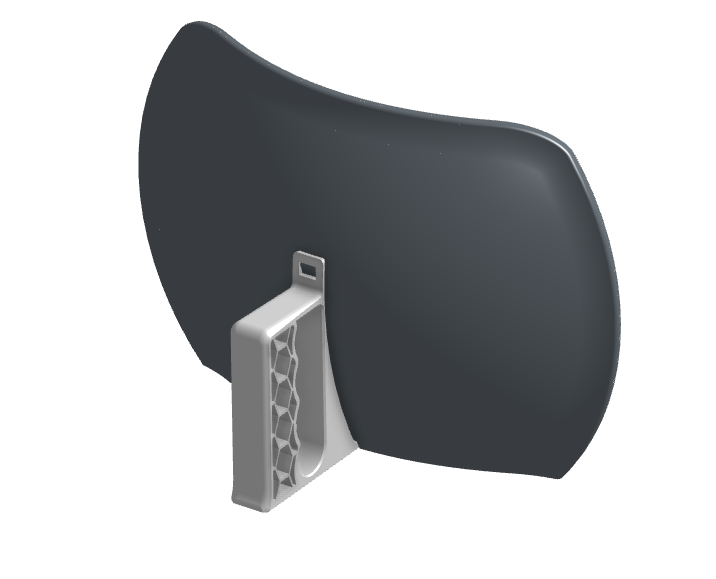

Checkout the original OnShape CAD here: https://cad.onshape.com/documents/f213f65154dba7f5431b81fc/w/c325a9b5e270ab8e079a4d4c/e/f2cc91dd2c2b3bef67a35349
Print Settings
Printer Brand:
Prusa
Printer:
i3 MK3
Rafts:
No
Supports:
No
Resolution:
200
Infill:
10
Filament: Overature PLA
Category: Audio
