5 Gallon Bucket Internal Support

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Other Ideas
Licencja
Creative Commons — Attribution — Noncommercial — Share Alike

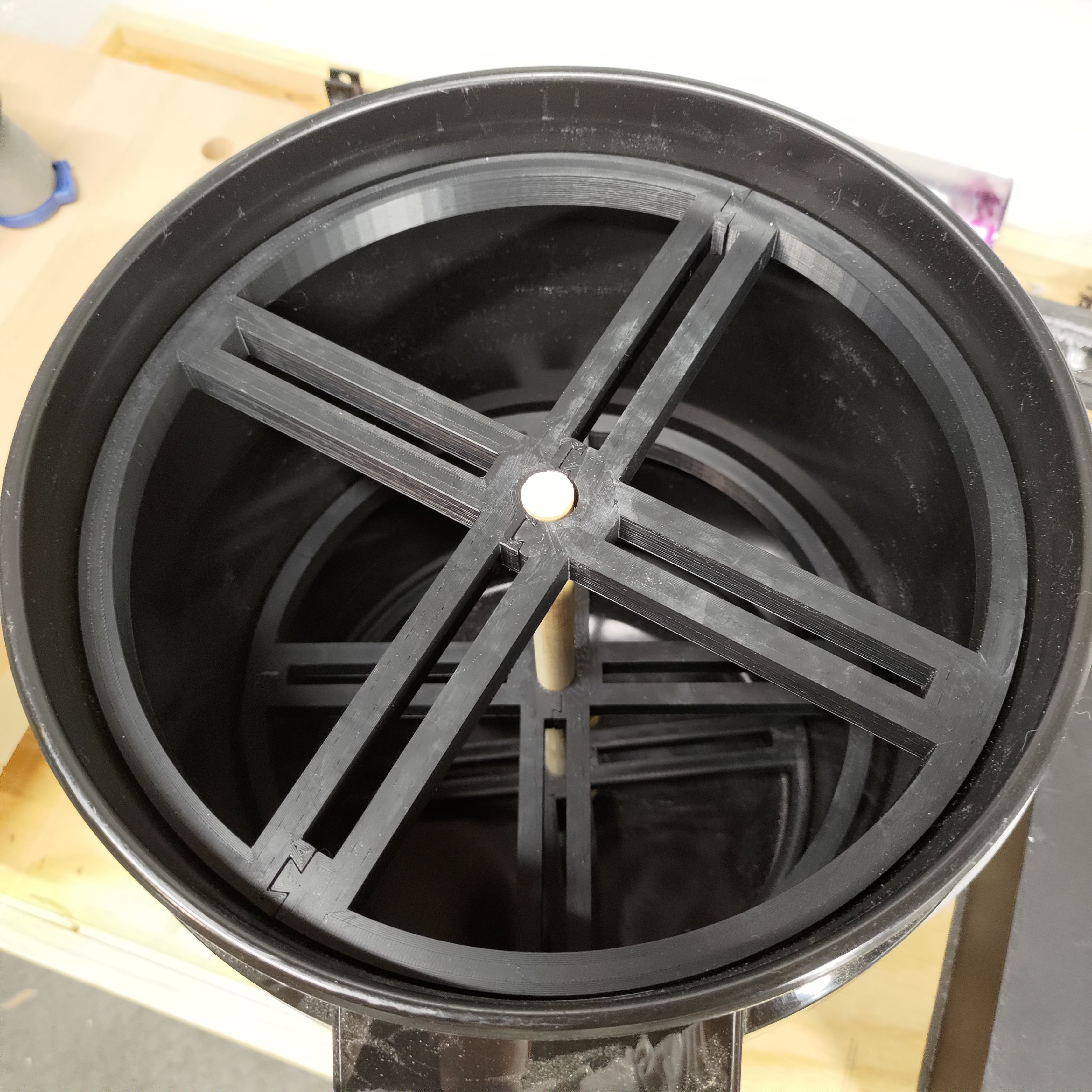

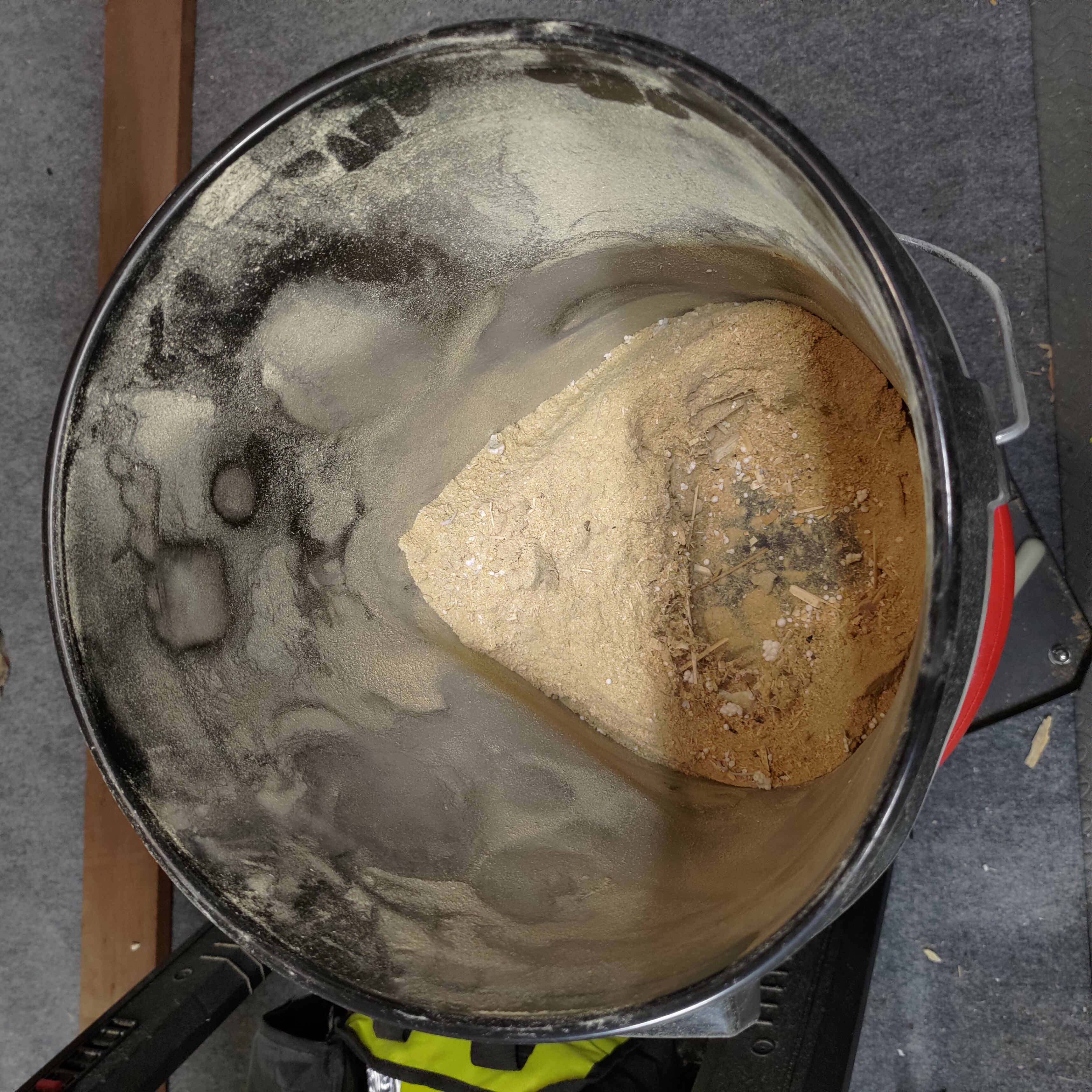

I recently purchased a dust extractor and the vacuum can collapse the 90mil 5 gallon bucket. I have a cyclone to separate the dust into the bucket. The bucket will collapse eventually no matter how careful I am with the hose and usage. I created this internal support to insert into the 5 gallon bucket to keep it from collapsing. I plan to use three of them and since the bucket has a slight taper in the further inside the bucket. I have printed at 100%, 95%, and 90% and these seem to work for the bucket I have. It is recommended to measure the ID of the bucket and if it is above 290mm you will need to scale it  I recommend printing three of the for maximum support.

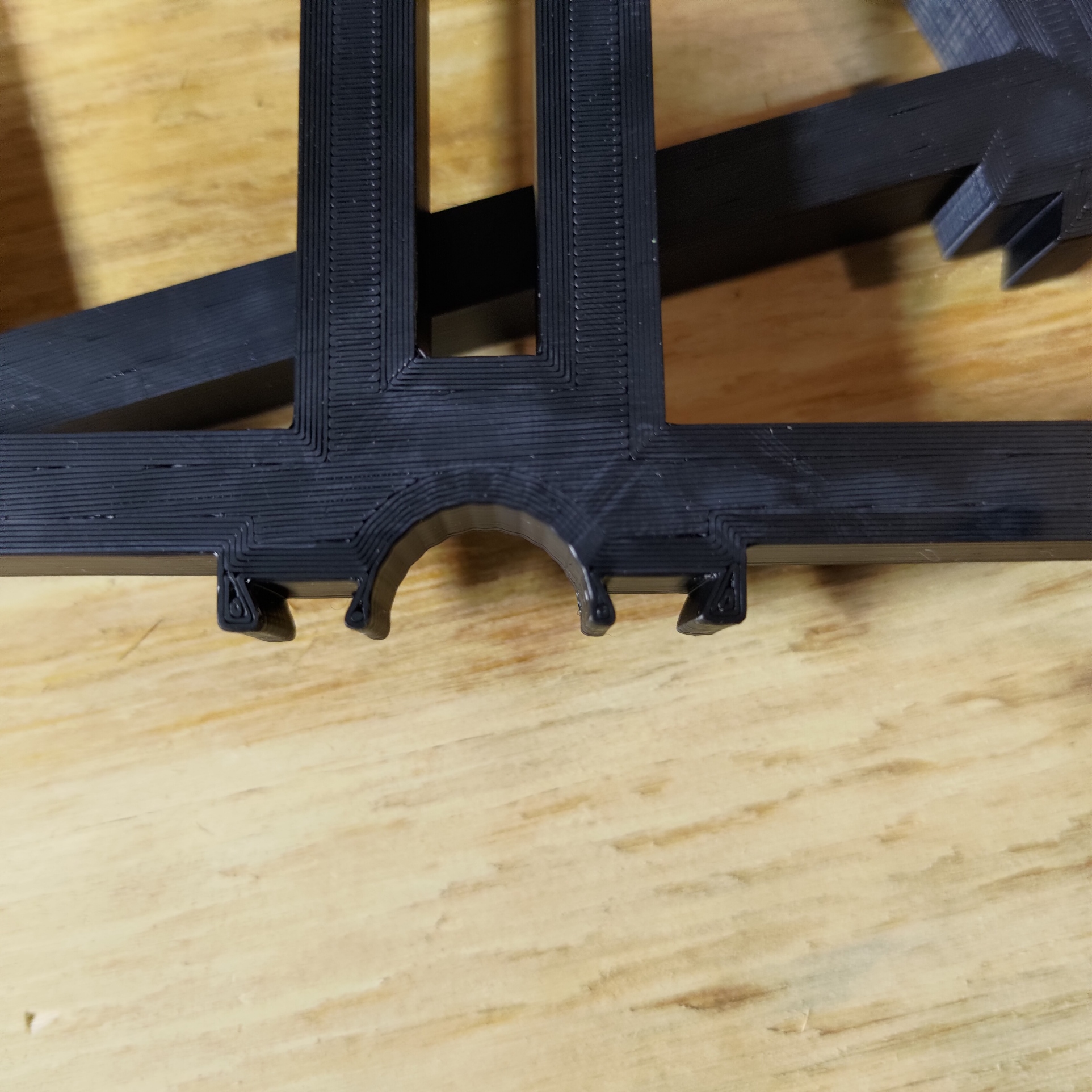

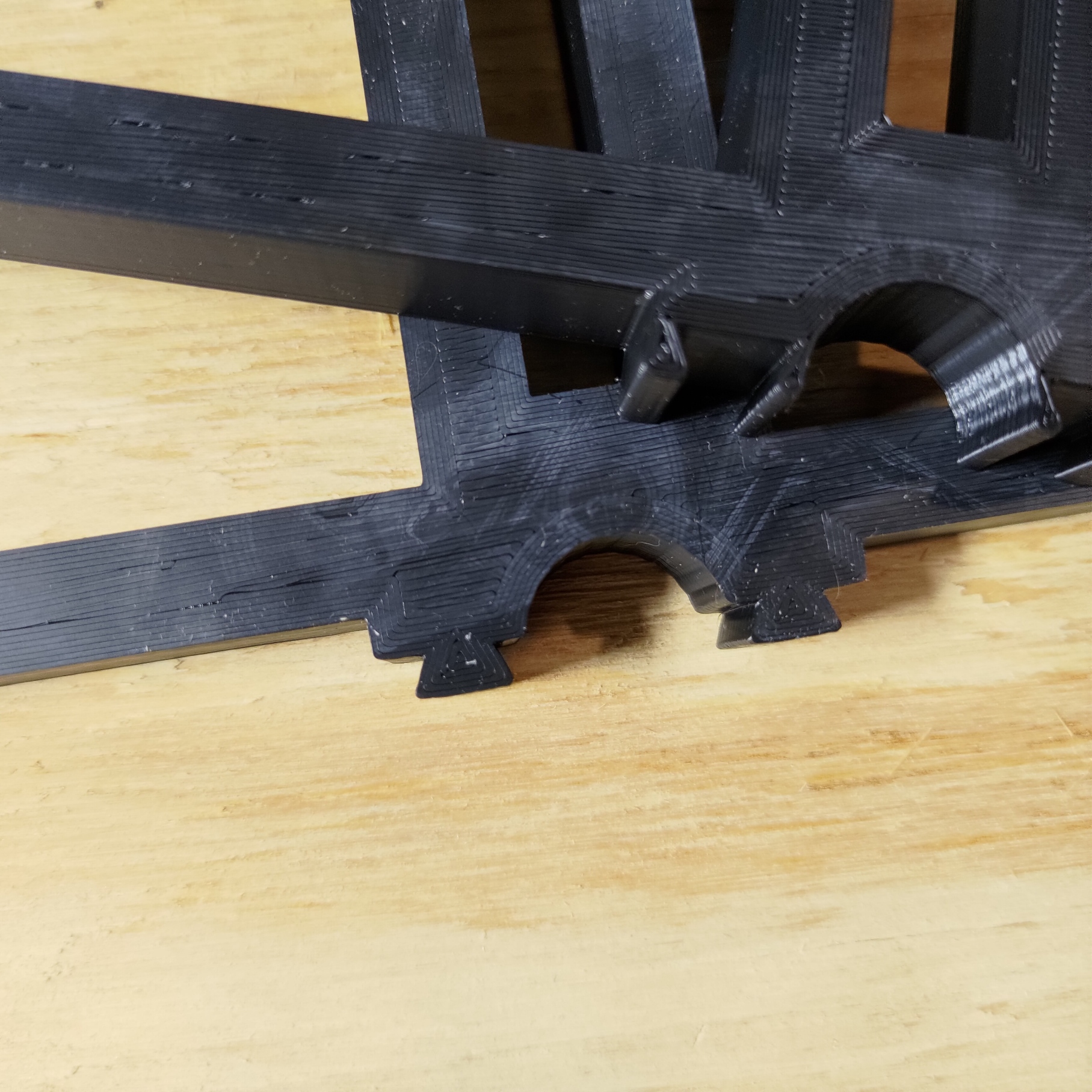

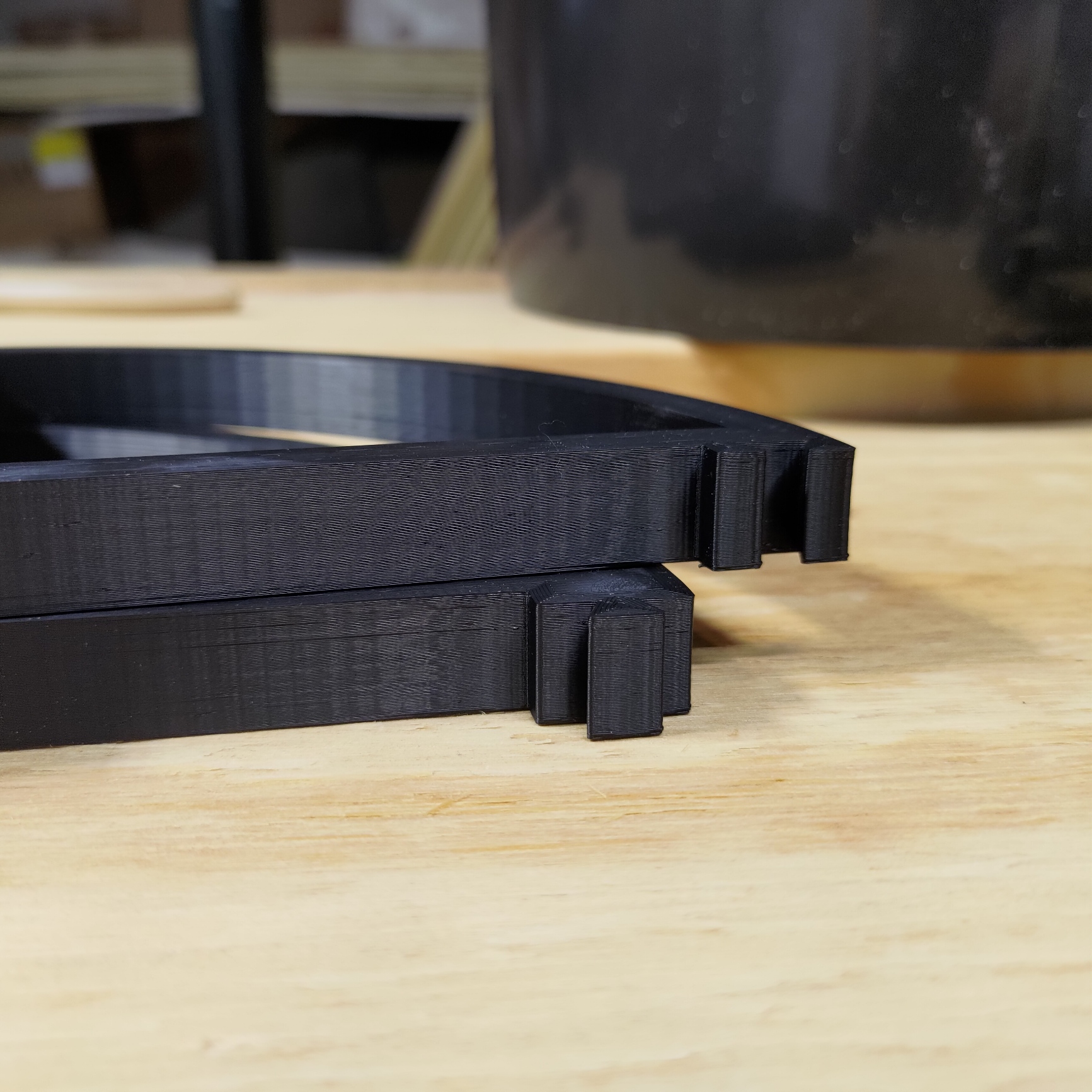

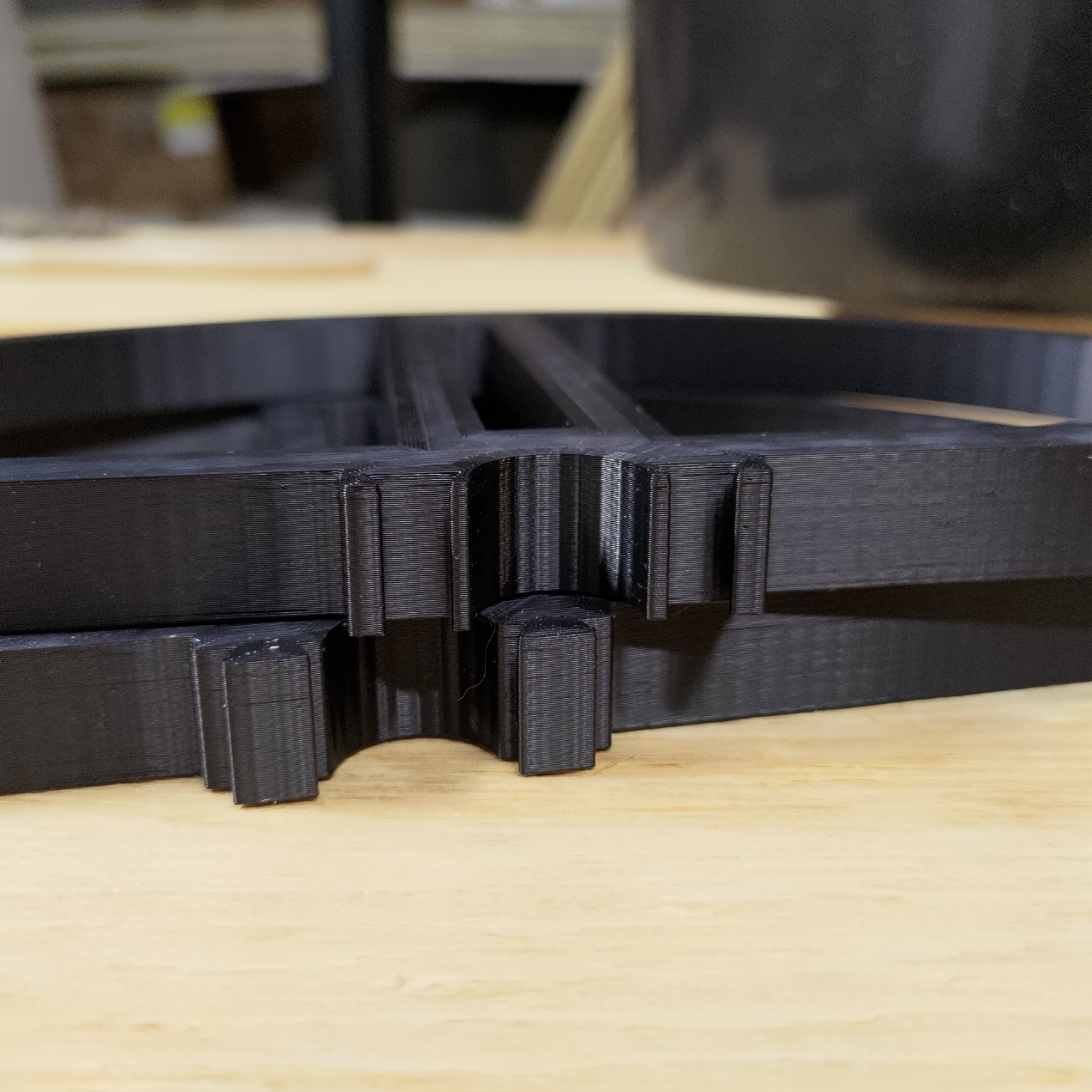

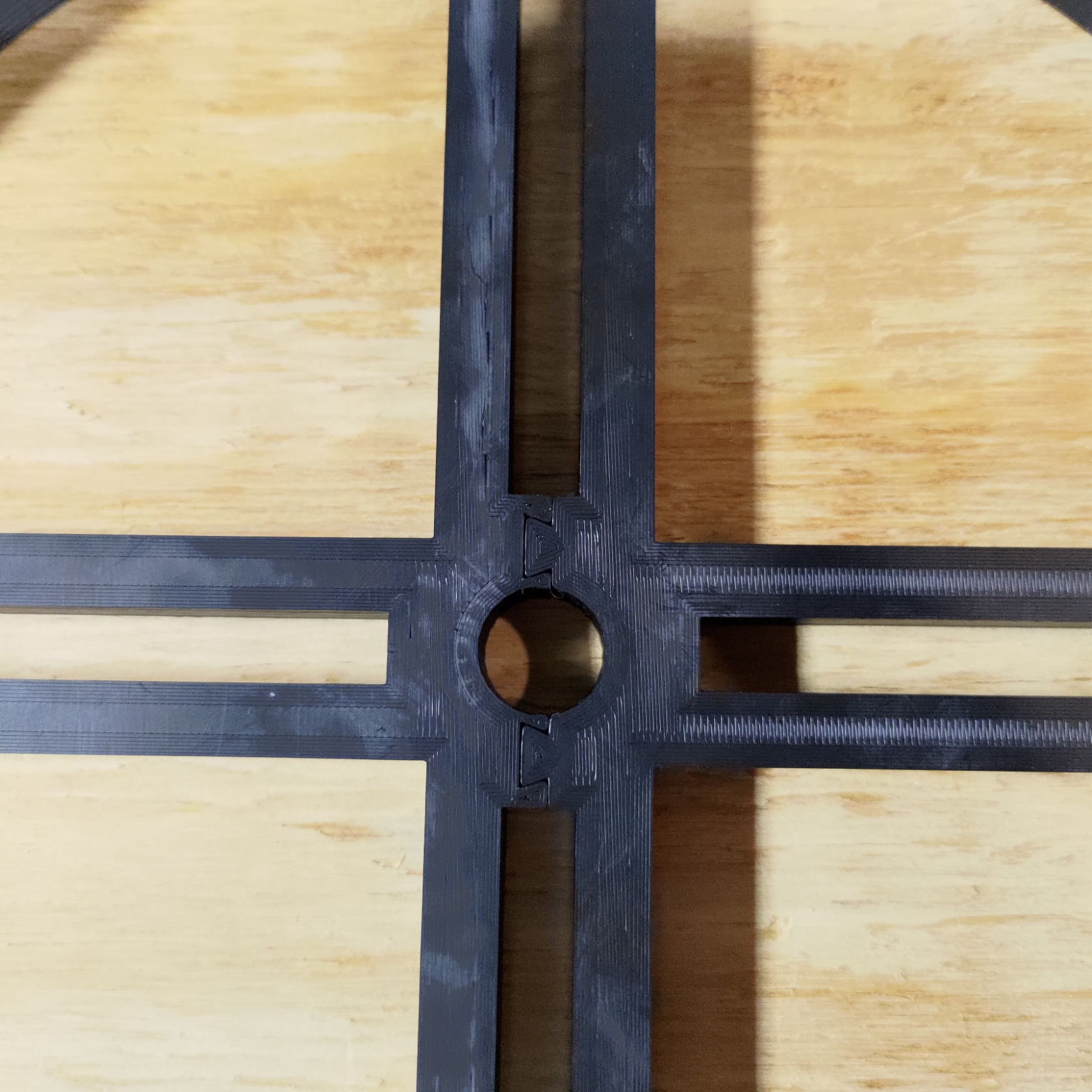

The print profile used is 0.4mm nozzle with Bambu ABS using 0.20 Strength profile and some slight modifications in the strength parameters tab. The infill is set to gyroid at 50% for strength. I found that printing any higher infill provides no additional strength. I included the first version of the file of the part where I have not yet added the dovetail joinery and the outer diameter is segmented.
I do imagine that this can be used for a number of applications for internal support to prevent crushing or collapsing. Scaling works okay with 90-100%. I have not gone smaller so proceed with caution if scaling below 90%.

0.2mm layer, 5 walls, 50% infill

2 plates | 9.2 h | 0.4 mm | 204 g
