Infinity spec1ale caster tool
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

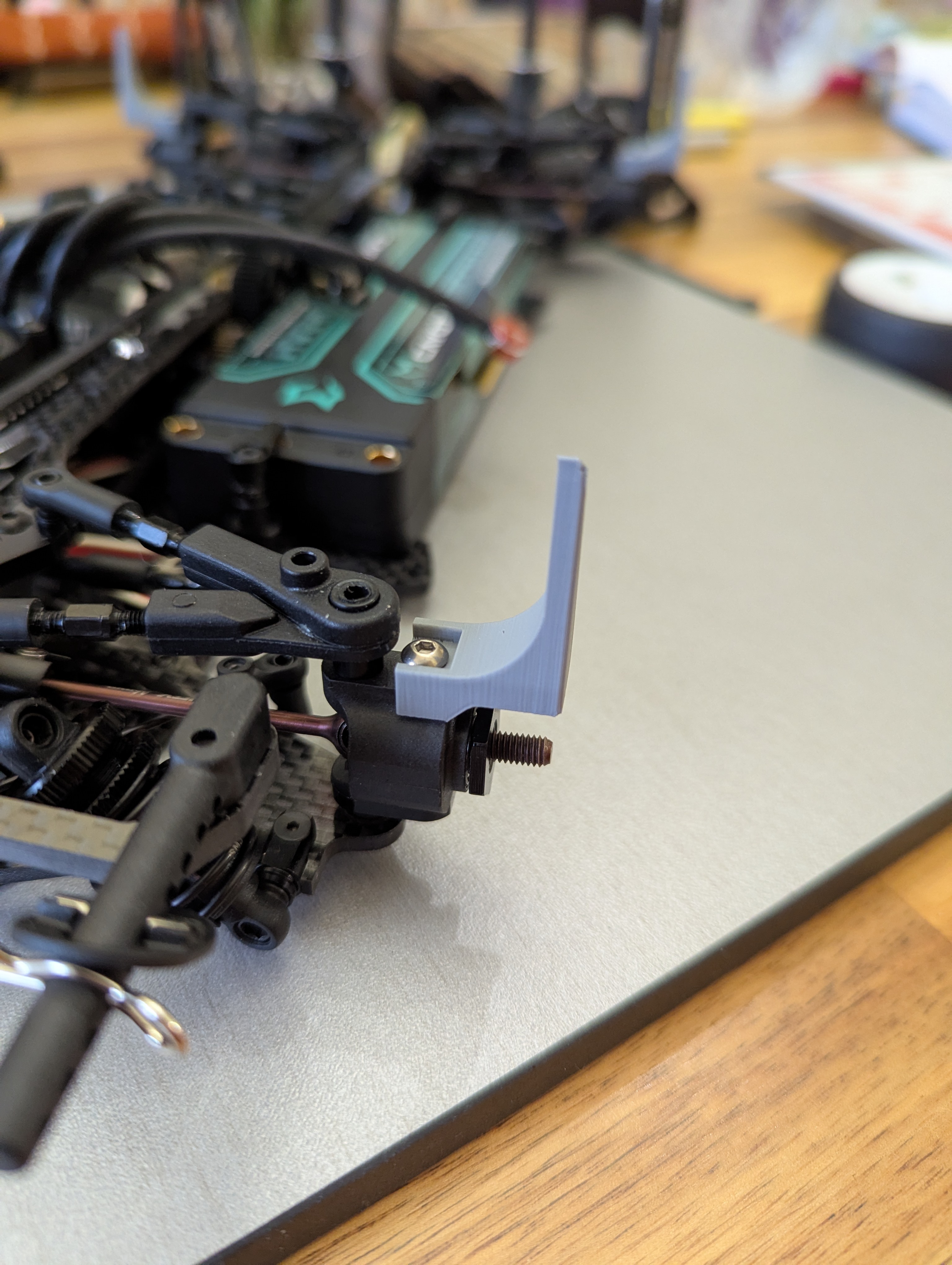

Setting caster on a touring car usually means eyeballing it or using expensive dedicated gauges. This tool clips directly onto the front and rear uprights of the Infinity Spec1ale and sits on your setup tool surface, giving you a clean, repeatable reference to measure caster angle accurately.

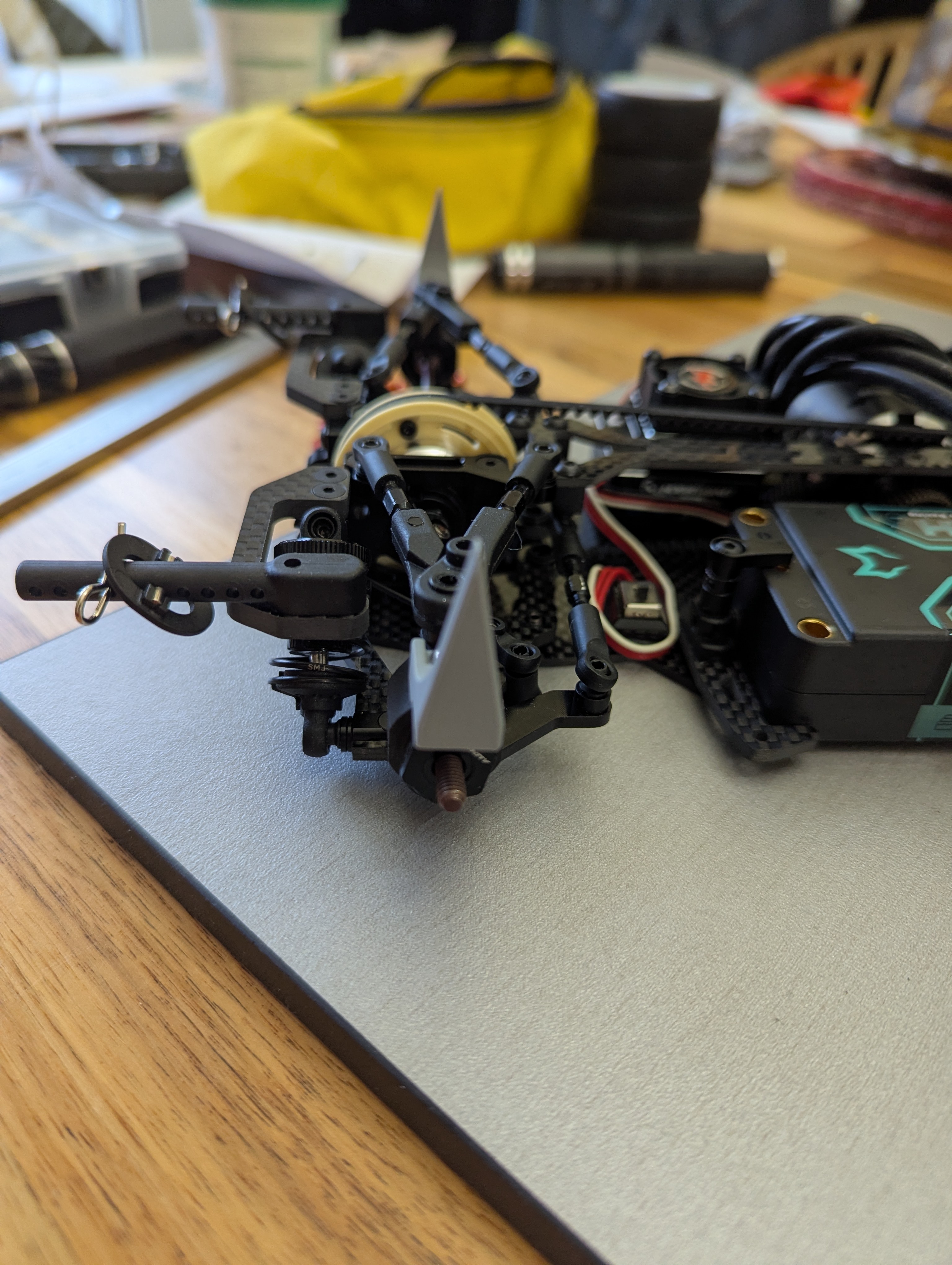

Designed to work with the geometry of the Infinity Spec1ale. Place the car on the setup tool, clip on, and read your caster with a digital angle gauge or inclinometer on the tool's flat face.
Tested with the Hudy setup tool. Should also be compatible with Arrowmax and SkyRC setup tools — verify fit before use.
Print settings:
Layer height: 0.15 mm
Infill: 60%+
Material: PLA recommended — better dimensional accuracy and rigidity, ideal for a measurement tool
No supports needed
3 perimeters minimum for tight tolerances on the clip
