LED Lightstrip circle mount
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Bedroom
- Licencja
- Creative Commons — Public Domain
Print for mounting your LED-Strip to the ceiling

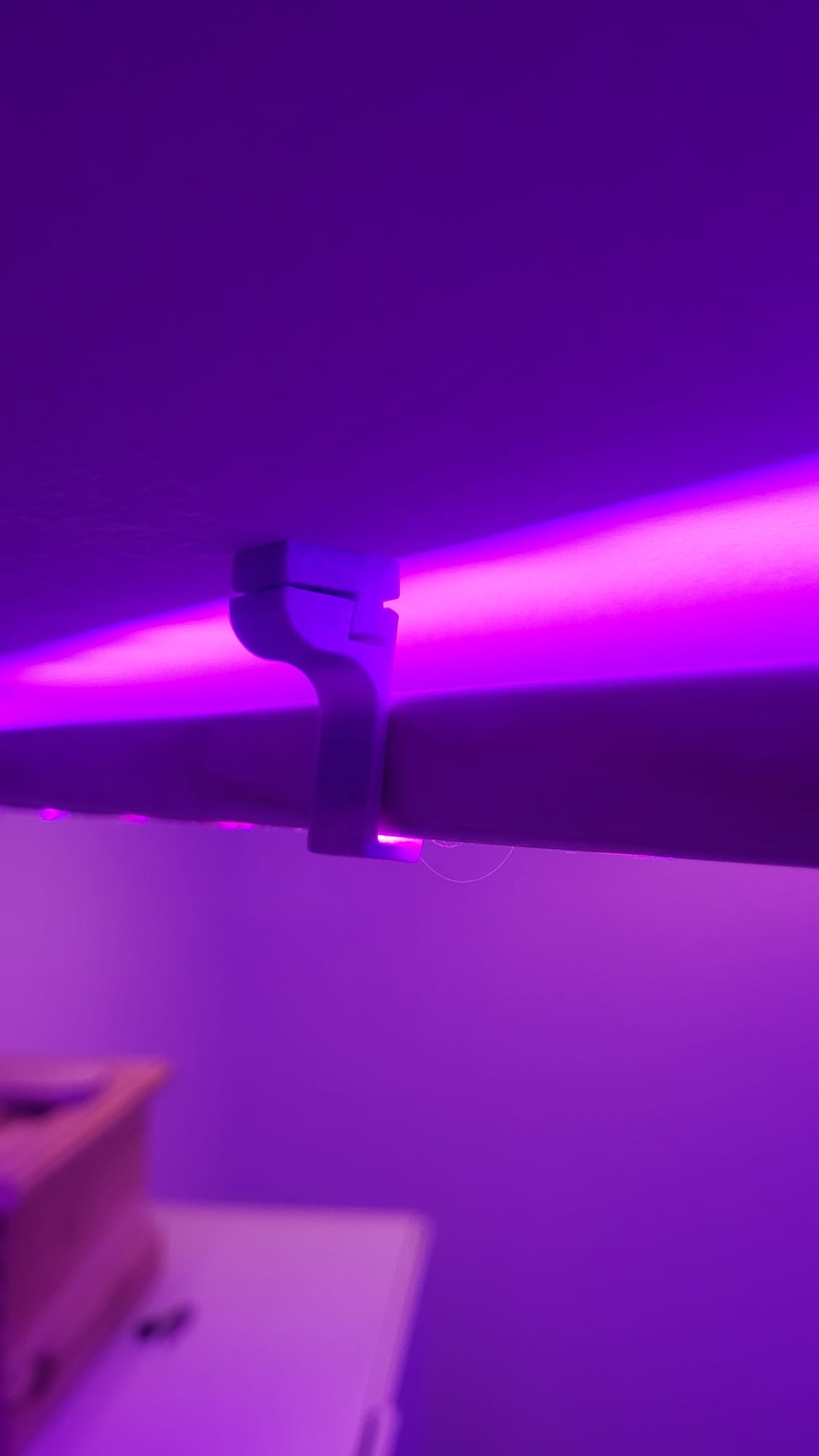

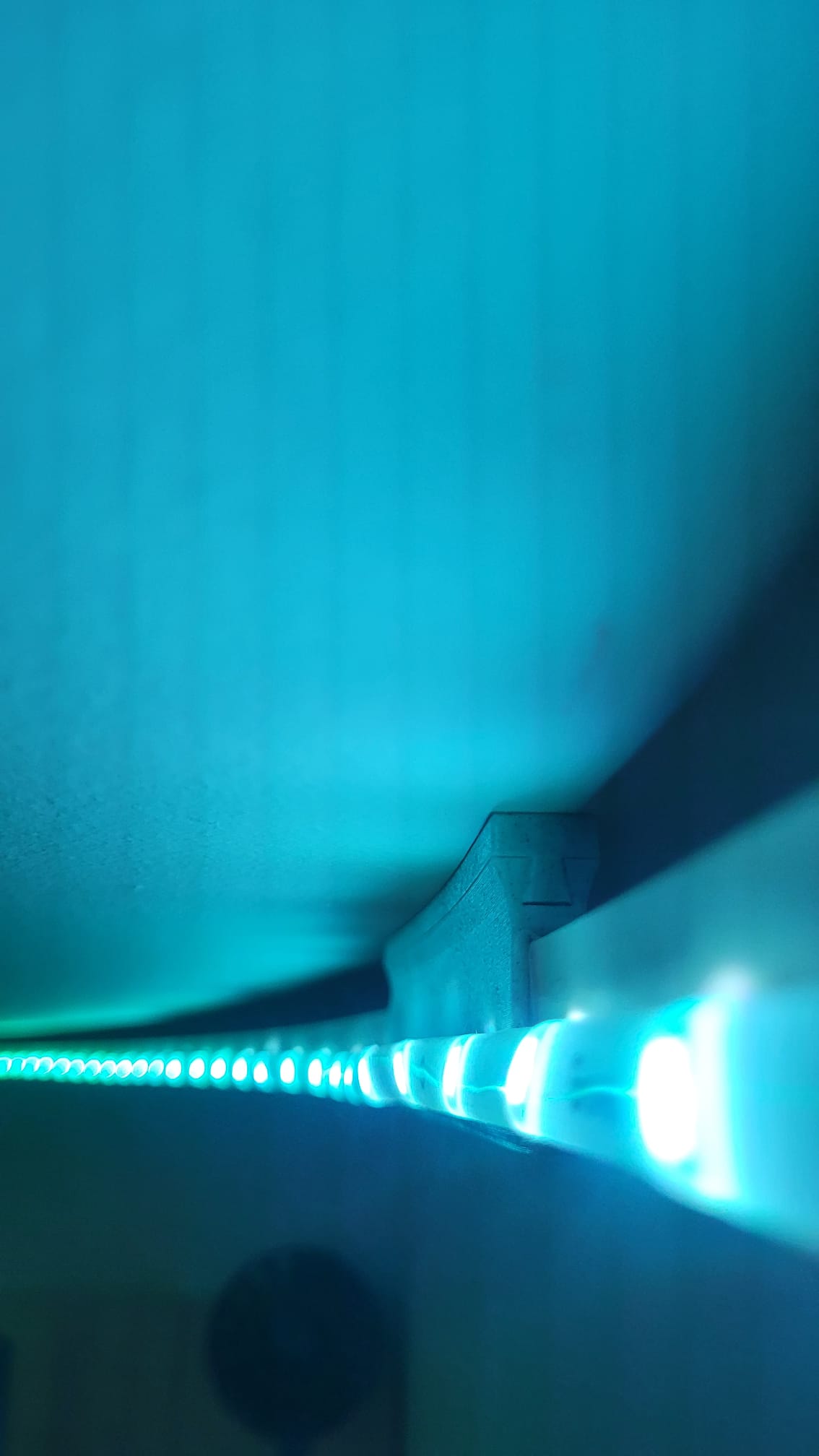

No screws visible. Slide on mount.

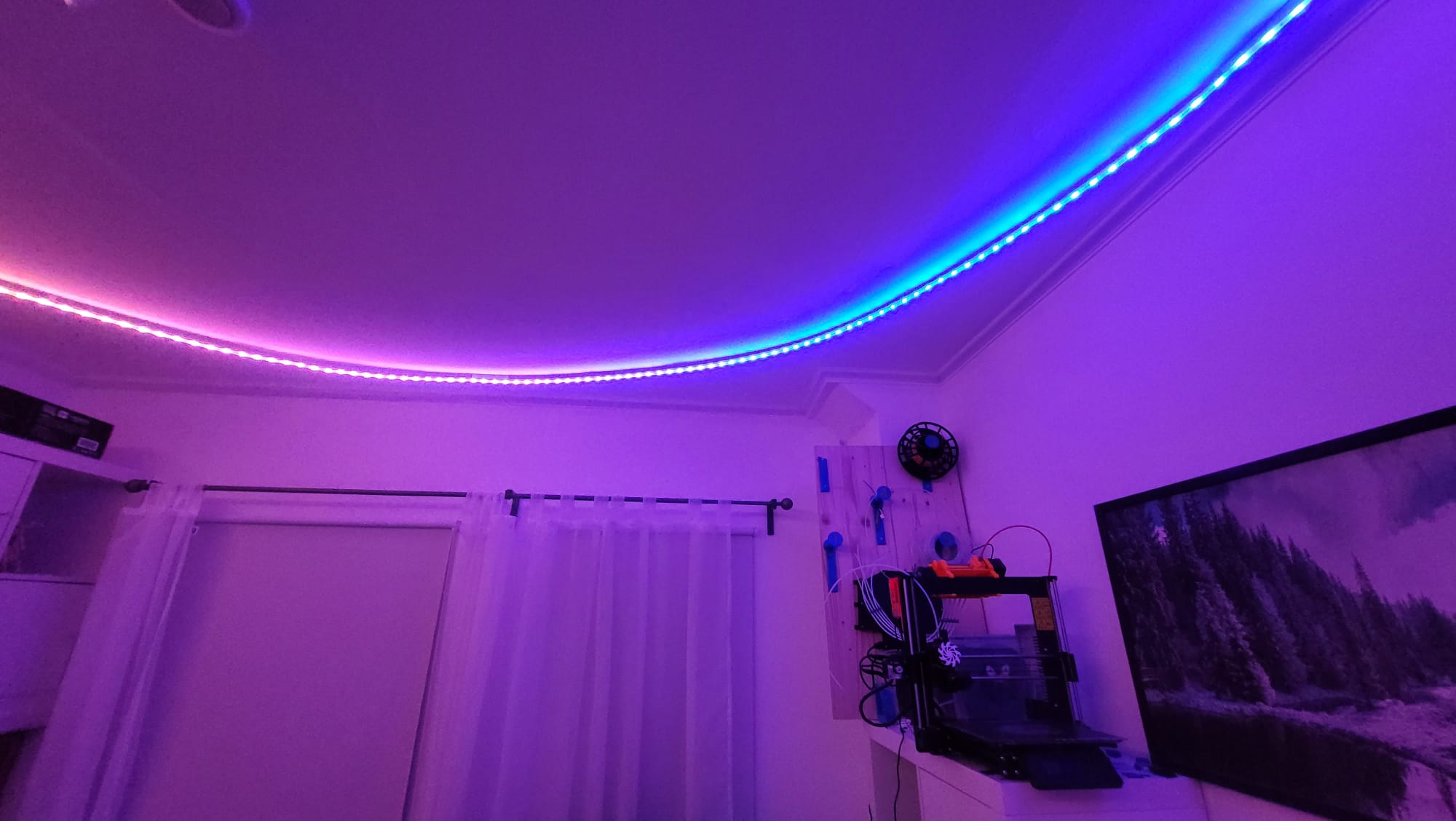

Your need a rectangular profile of about 4x20 mm with a length of 2,4m I designed it for a 10m strip. the inside of the circle is a little longer than the strip ( 5 cm ) The circle has a diameter of 3,183m.

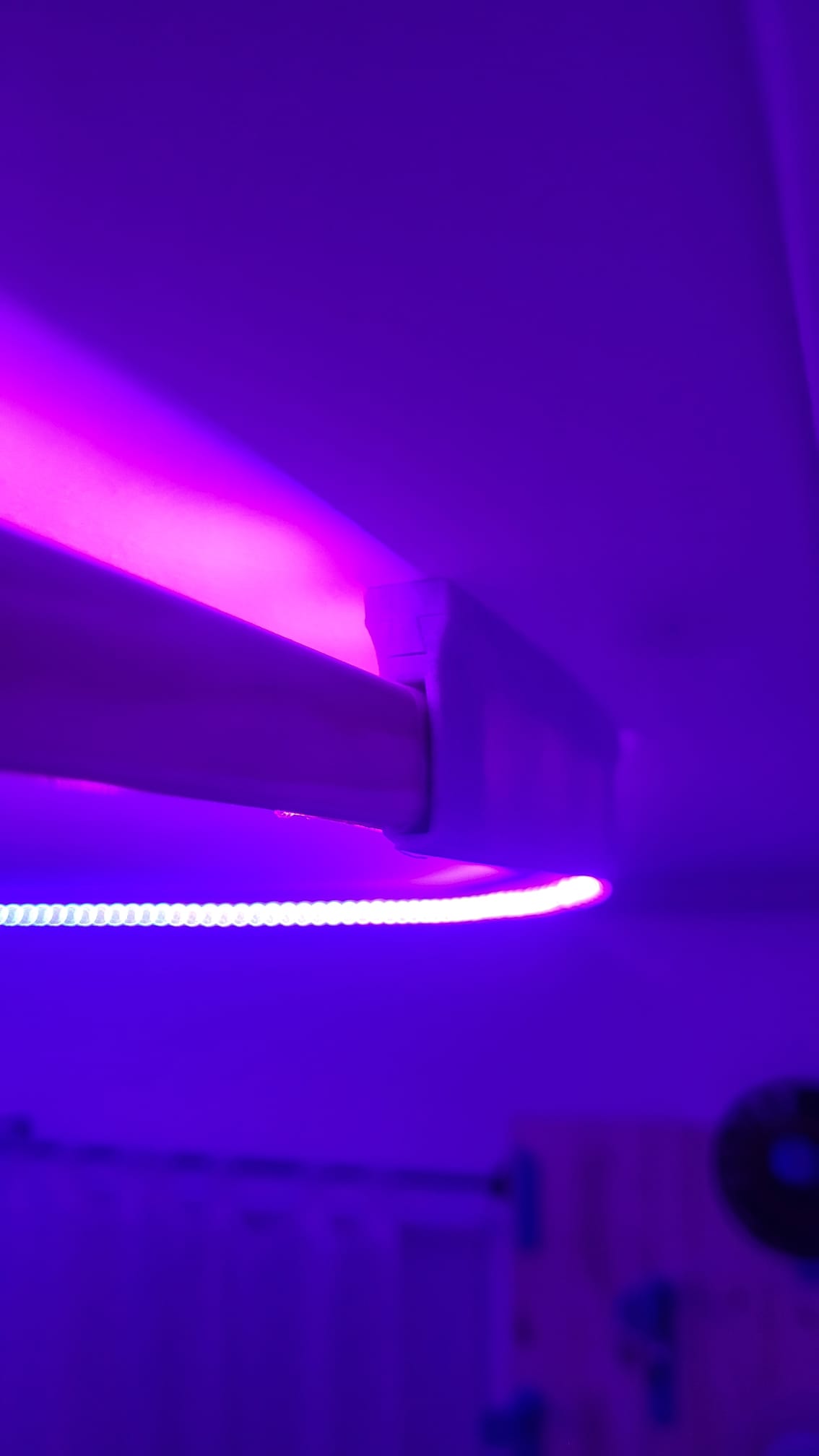

There is also a support for the corners of the circle. In my room it sagged a bit.
Material: PLA is fine
Layer Height: 0.2 mm
Infill: 15%
Supports: Not required You may need a brim for the small parts
You need to print the Parts in the file 4times. (Every 90° a mount and 45° in between the corner suport)
