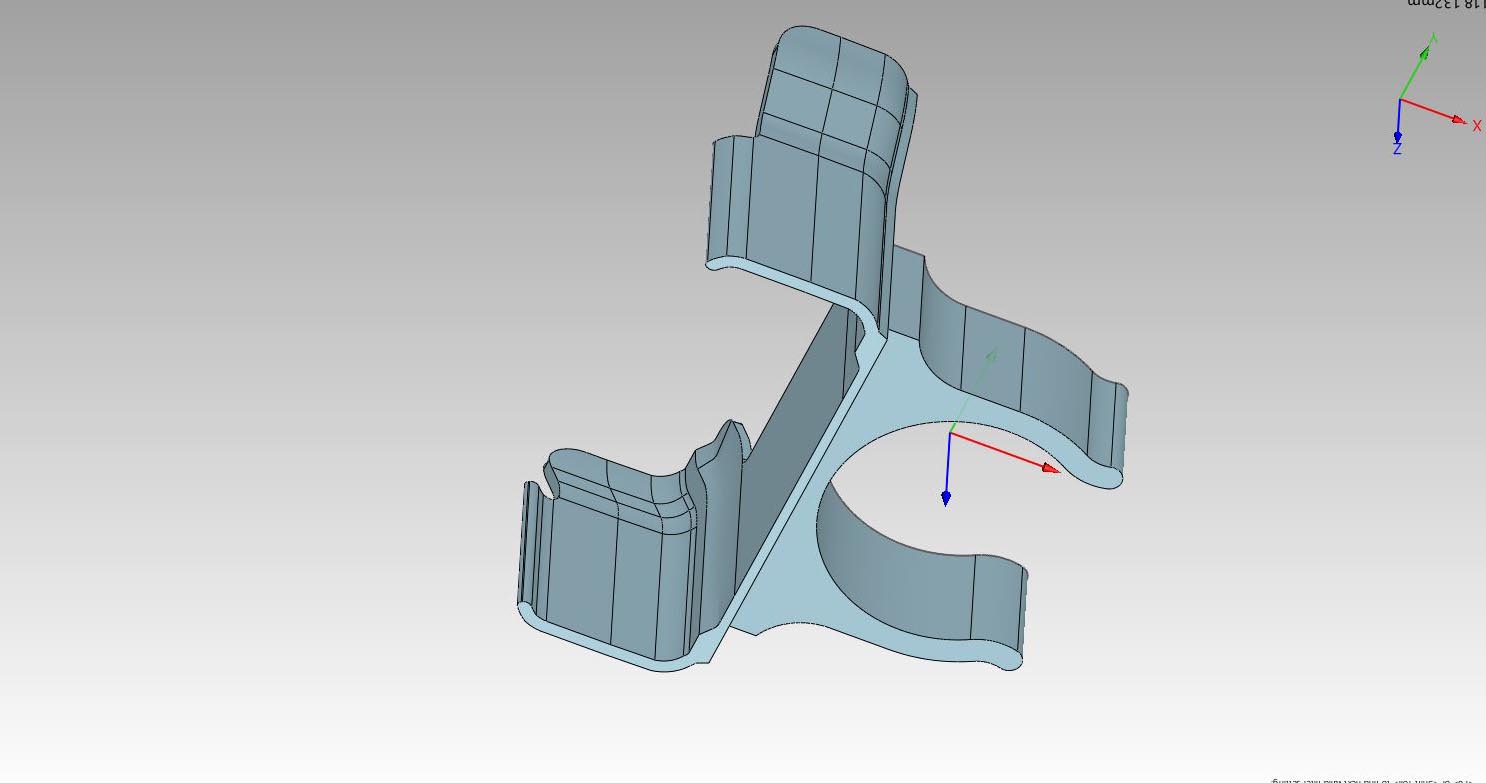

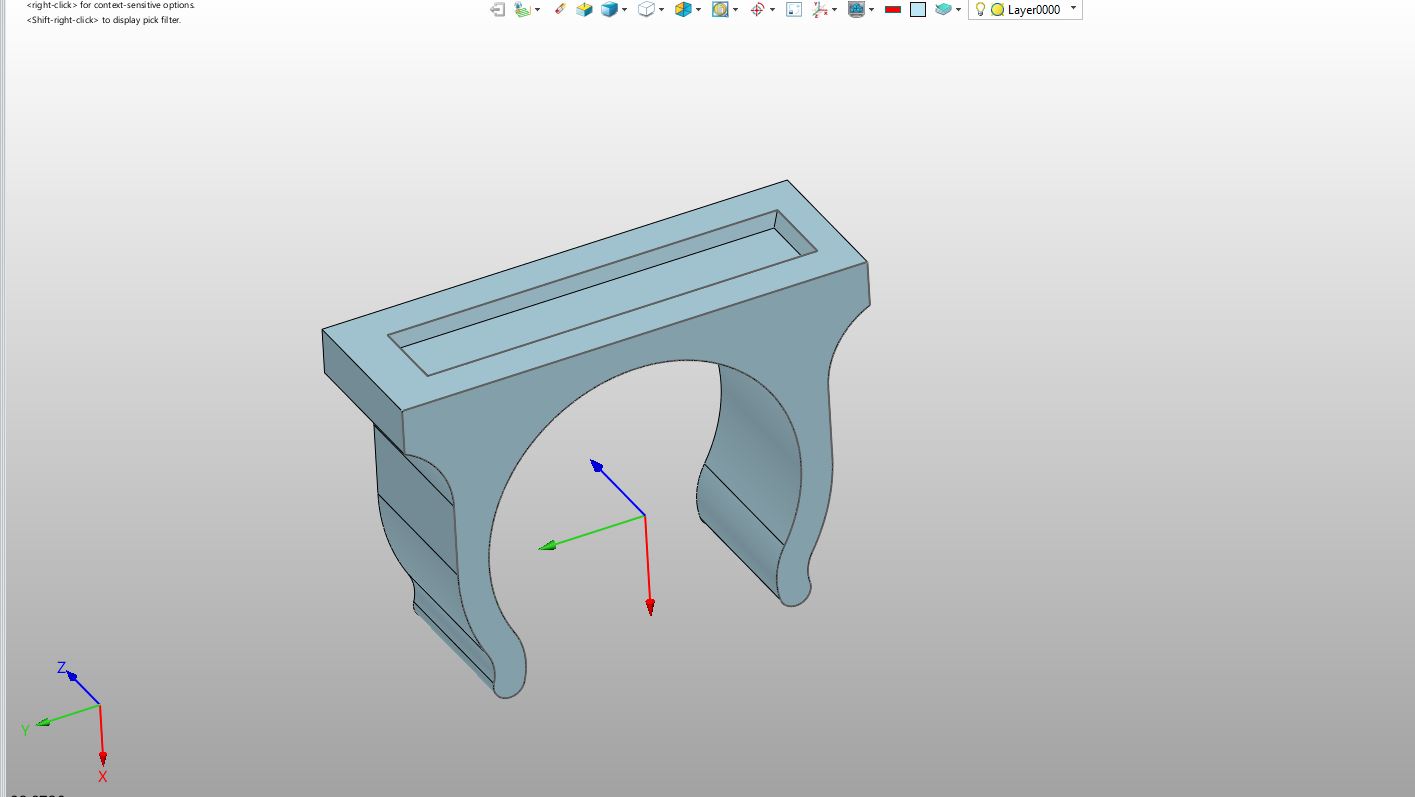

The hand controller holder is made in two parts. Part A to hold the hand controller, Part B to attach to the tripod leg. My tripod leg has a diameter of 40mm. If you have a different diameter leg, then you will need to design Part B yourself.

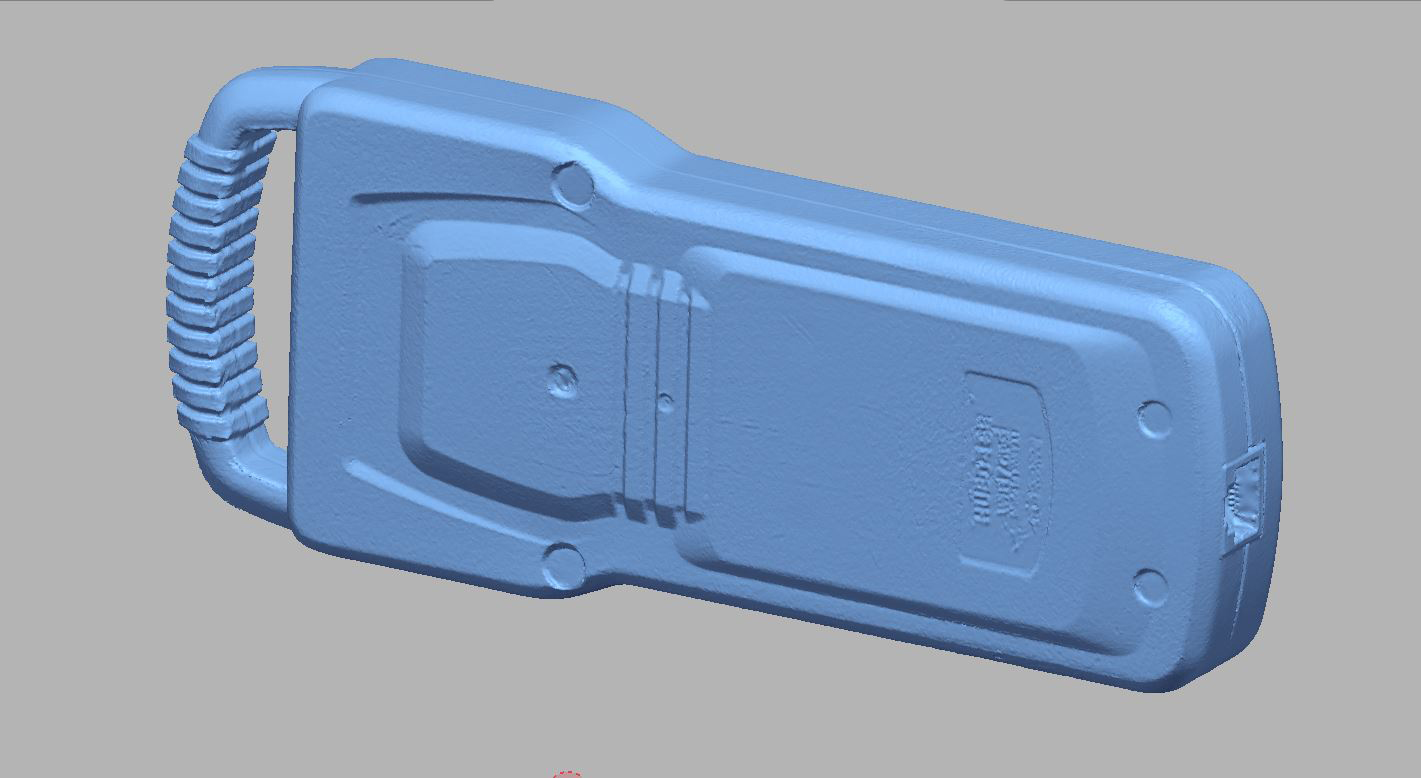

The hand controller was scanned using an SLS scanner and the outline reverse engineered.

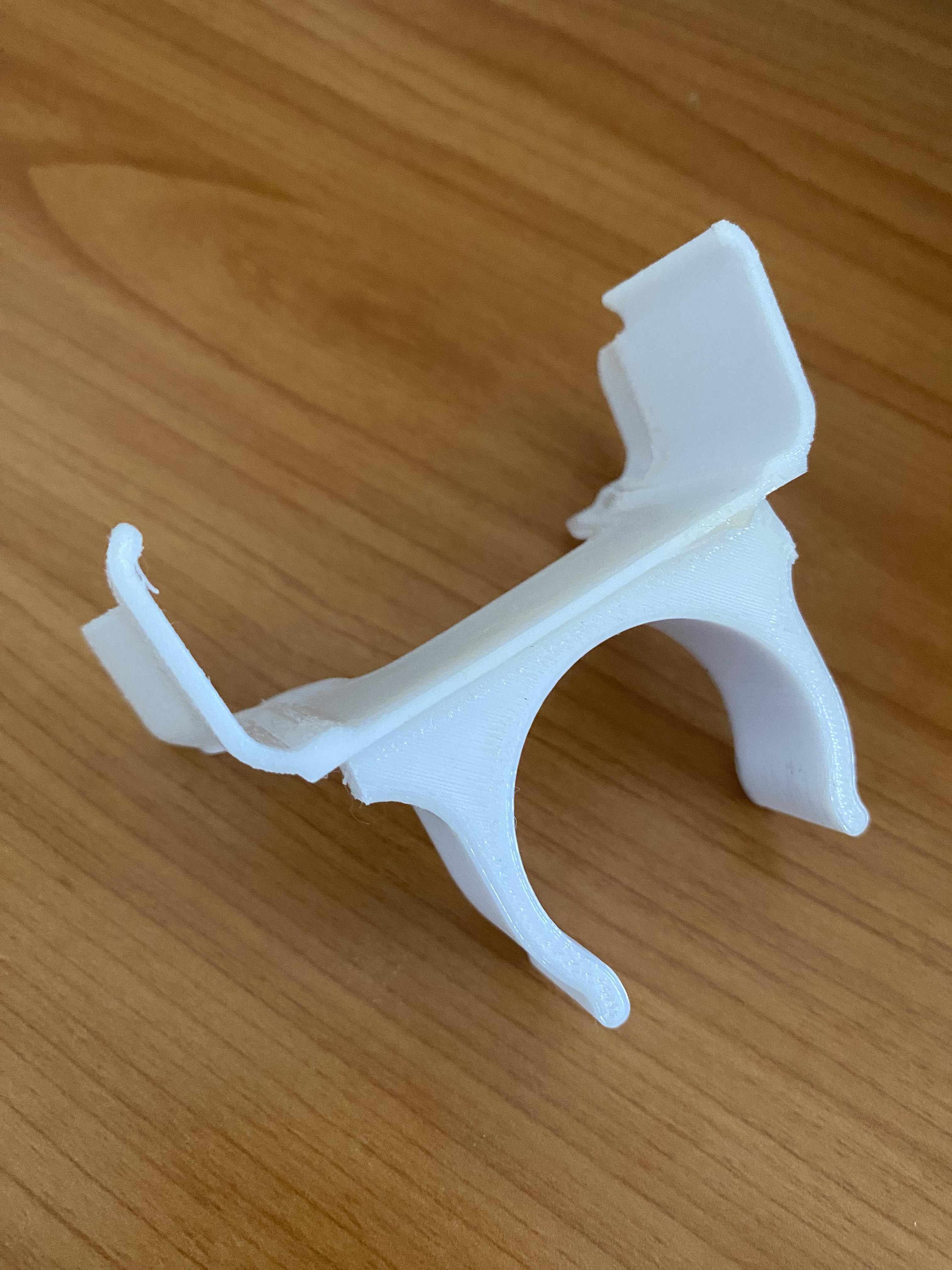

I printed in PETG with a layer height of 3mm then glued with epoxy.

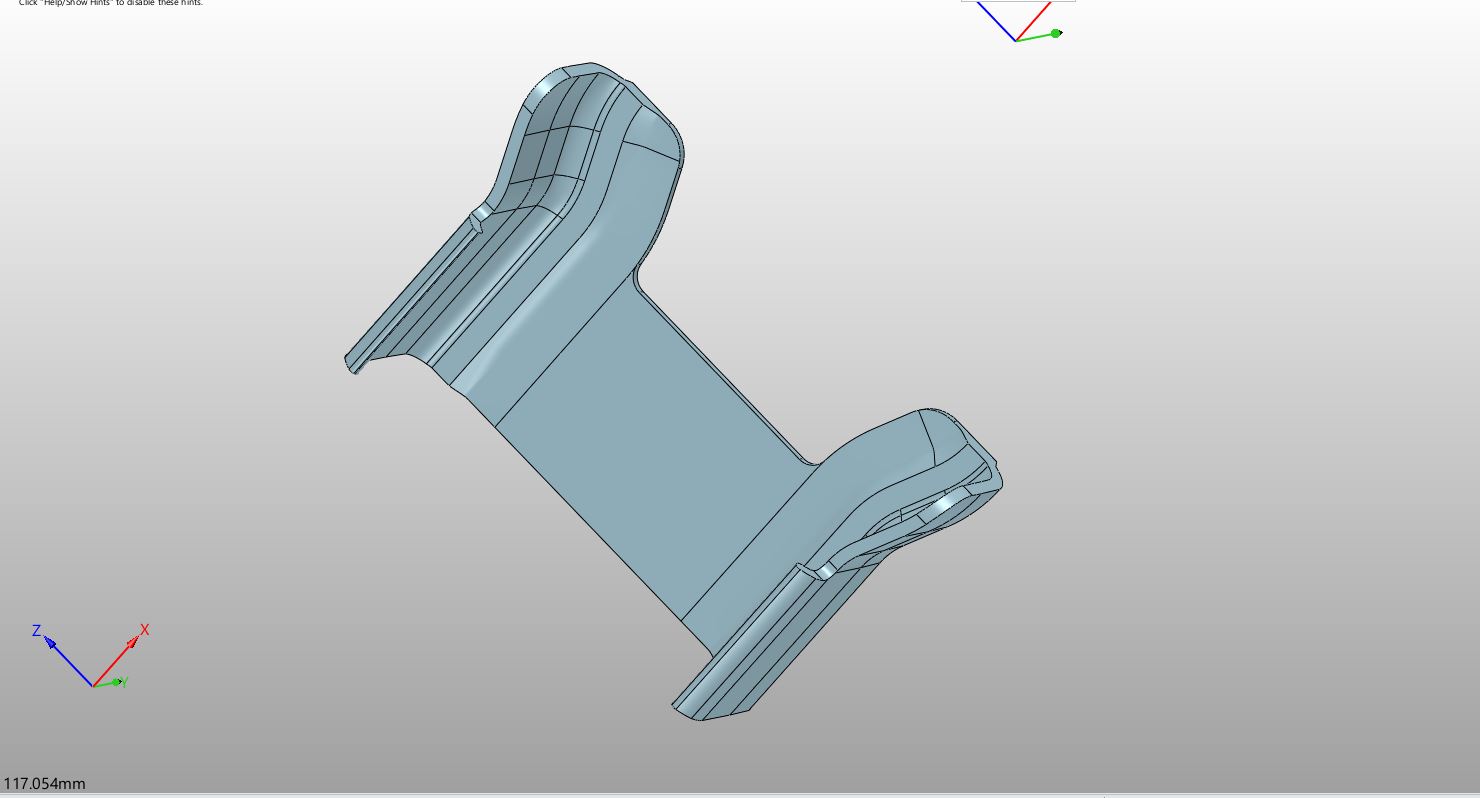

The hand controller mount Part A has a thickness of 1.5mm so will need to print with above 50% infill for strength.
No need to generate any supports
