ESP32 Mini DevDock - Prototyping Sled
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial

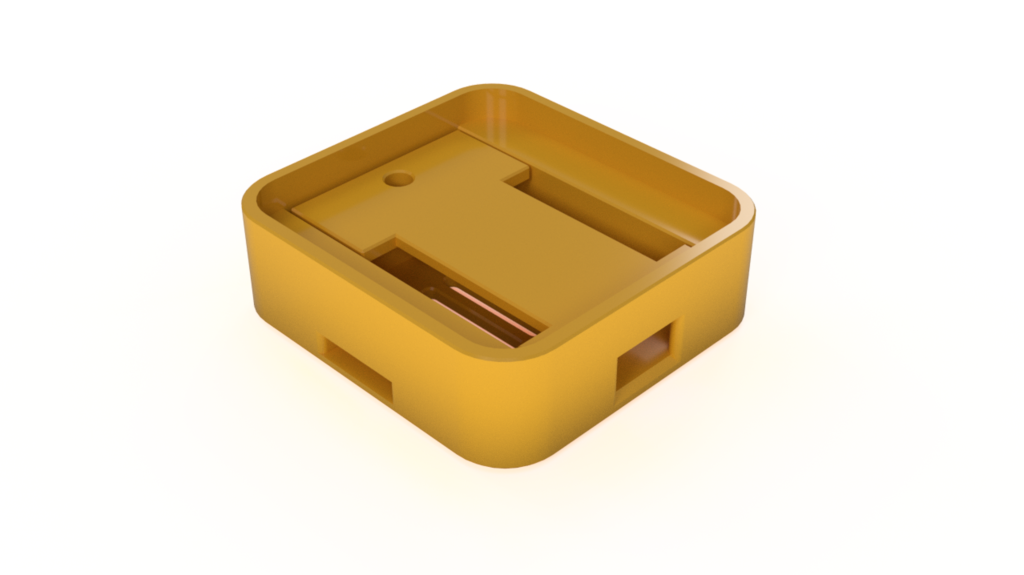

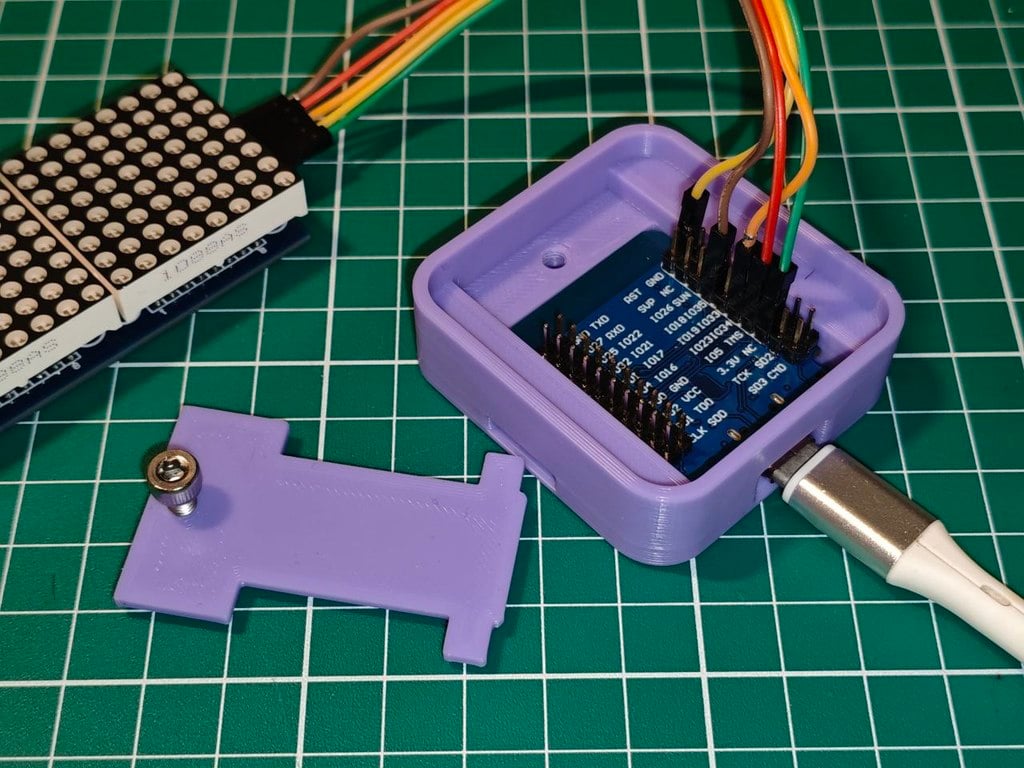

The ESP32 Mini Dock is a lightweight, secure, and practical solution designed to keep your development board in place during the prototyping phase. It prevents accidental shorts on your workbench and provides a stable base for connecting sensors and peripherals before moving to a final enclosure.
Main Features:
- Designed for the ESP32 D1 Mini NodeMCU
- Full access to the USB port and all GPIO pins.
- Large base to prevent tipping when using stiff jumper wires.
Requirements:

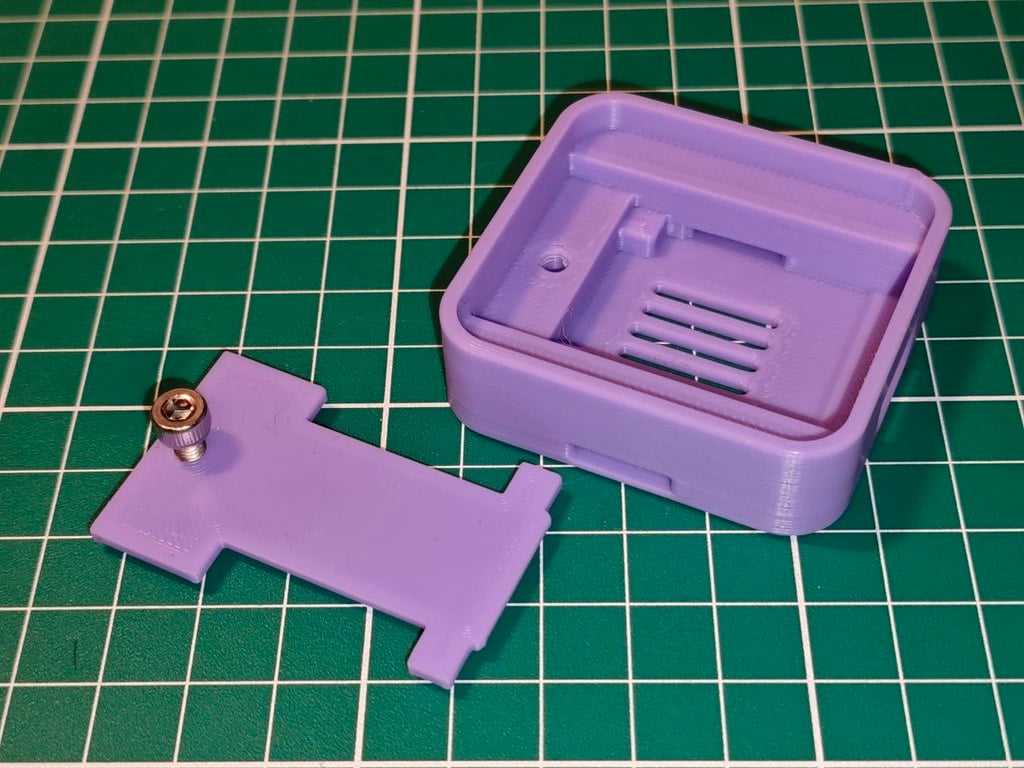

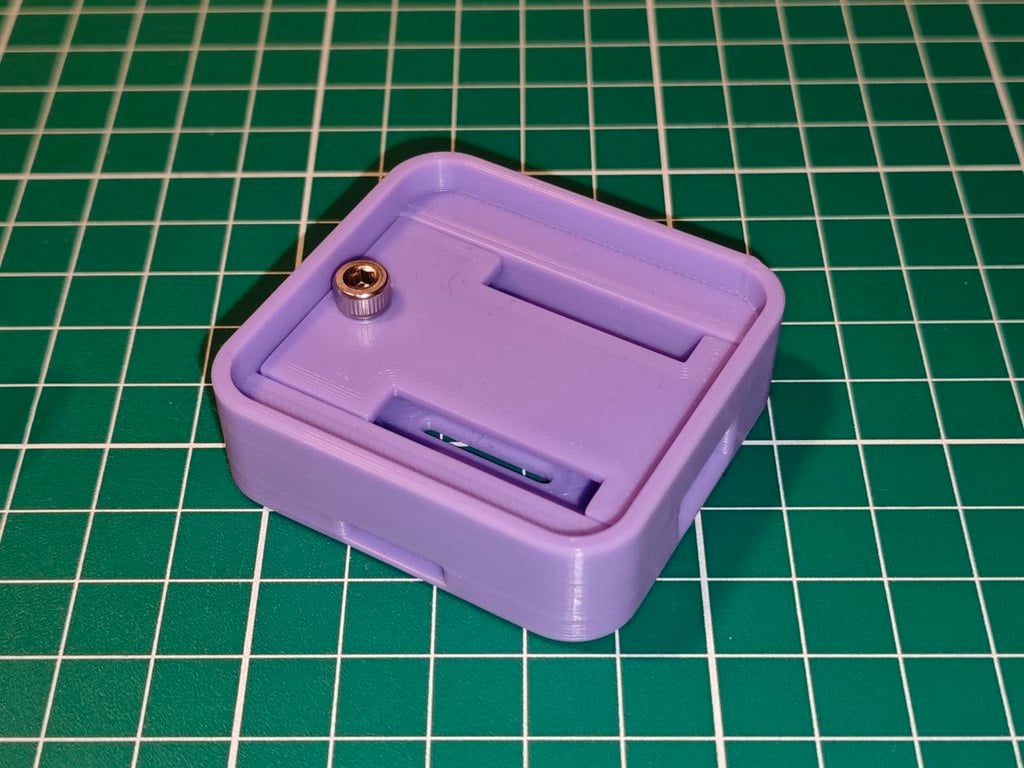

- 1xM4 screw to secure the plate cover.
Printing Recommendations:
- Material: PLA+, PETG or ABS
- Infill: 15% - 20% (Grid or Gyroid).
- Supports: No supports needed.
- Wall Loops: 3 or 4 for extra durability around the pin headers.
Category: Electronics
