Svbony MK105 Modular Accessory System

This is a modular accessory system designed specifically for the Svbony MK105 Maksutov telescope.

The system is built around a base mount installed on the telescope tube, with interchangeable threaded accessories.

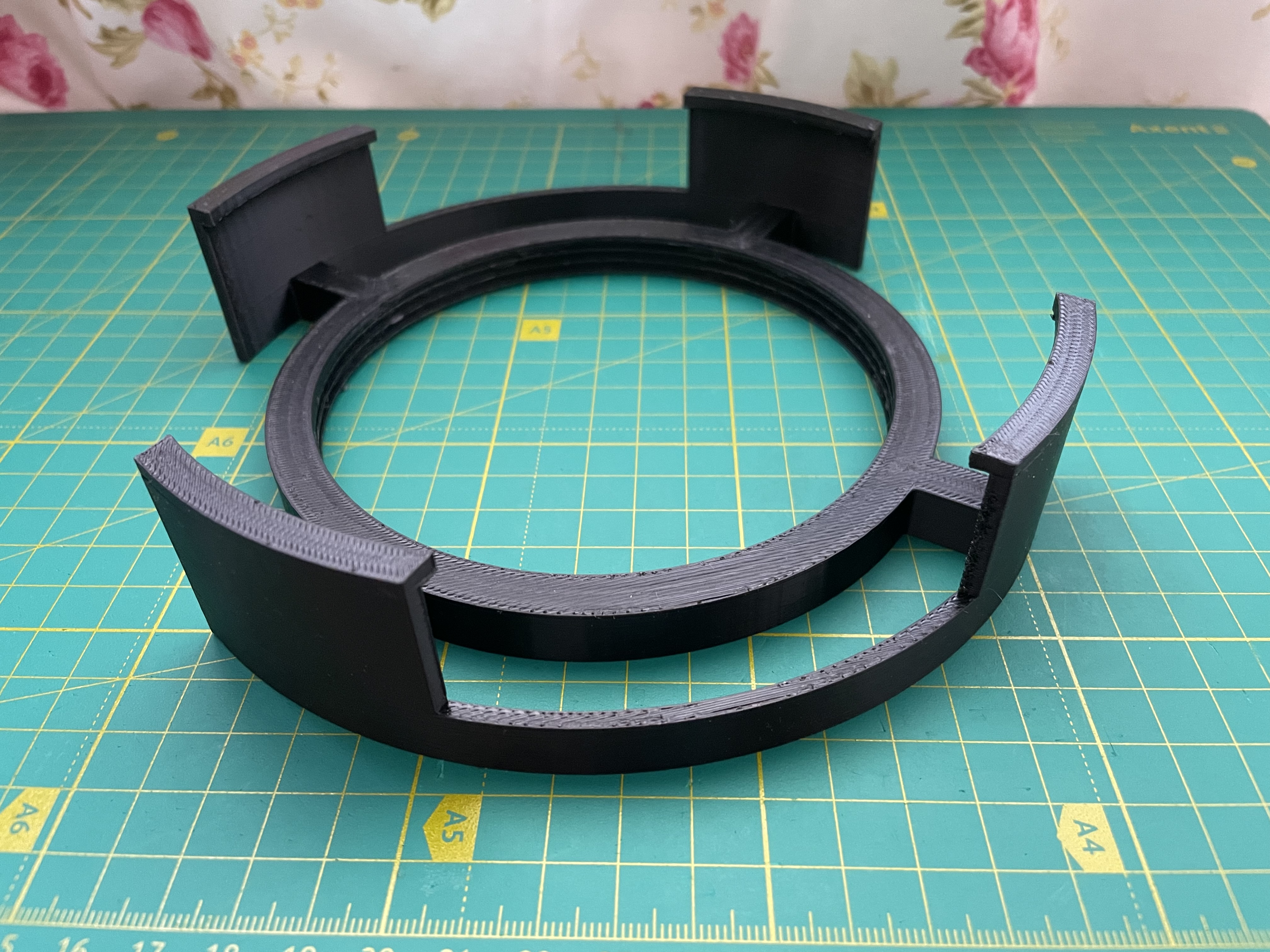

1 Base Mount (Core Component)

• Slides onto the telescope tube

• Features a shaped dovetail stop to prevent slipping and rotation

• Reduces vibration

• Provides a threaded interface for accessories

The mechanical stop ensures the base does not shift or rotate even when the telescope is tilted.

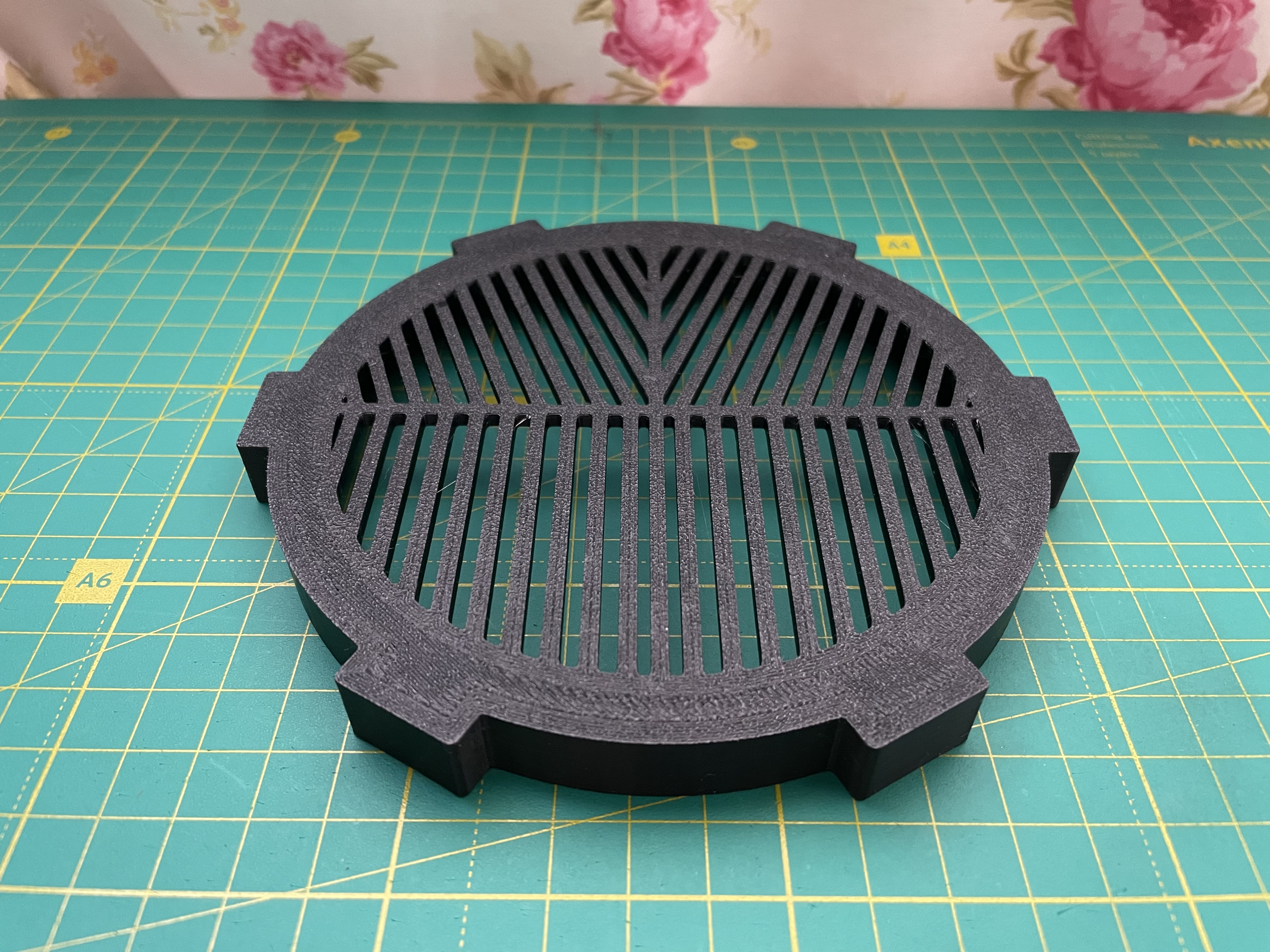

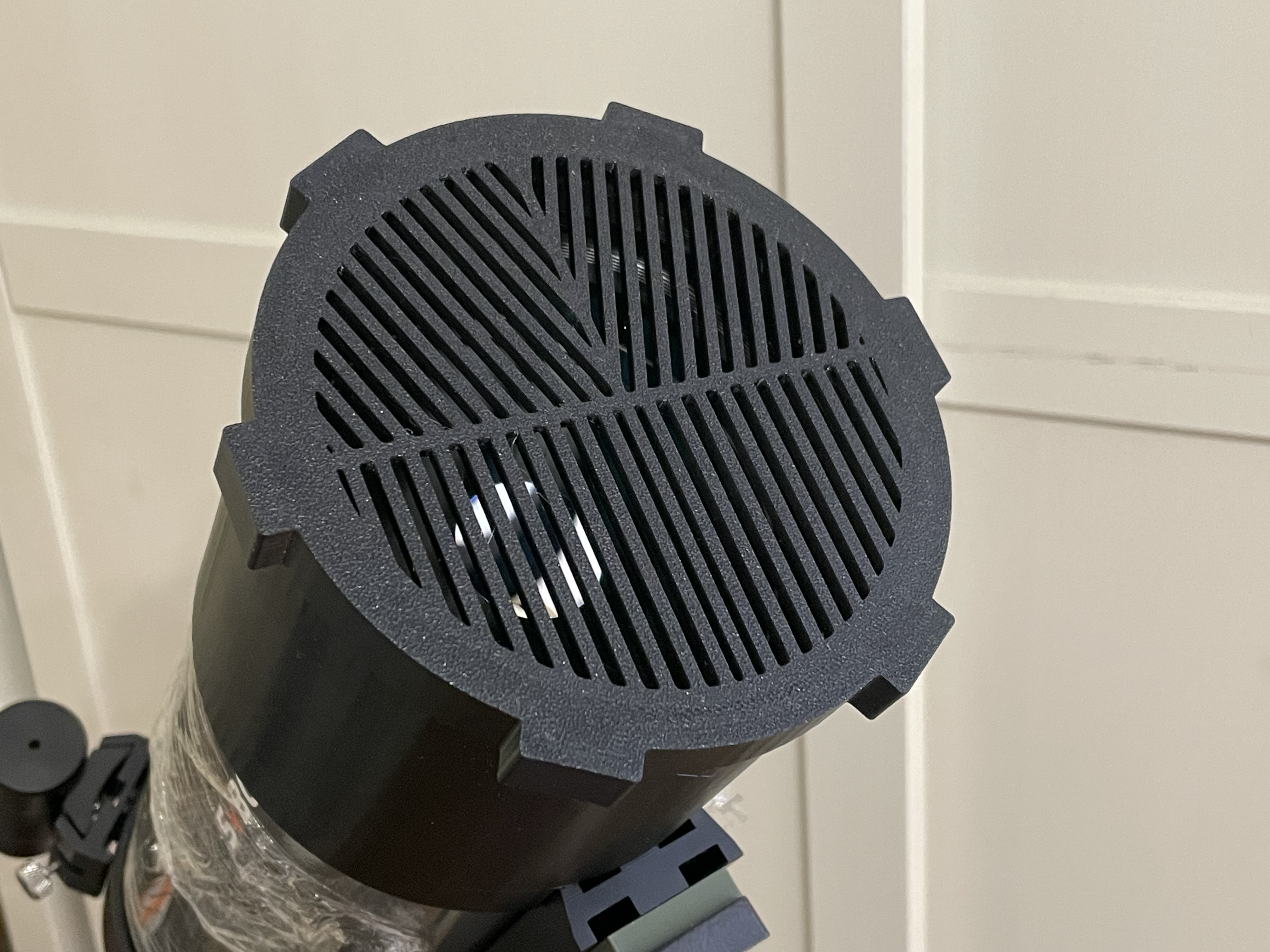

2 Bahtinov Mask

• Threaded attachment to the base

• Stable and precise focusing

• No rubber bands, tape, or temporary solutions required

• Quick installation and removal

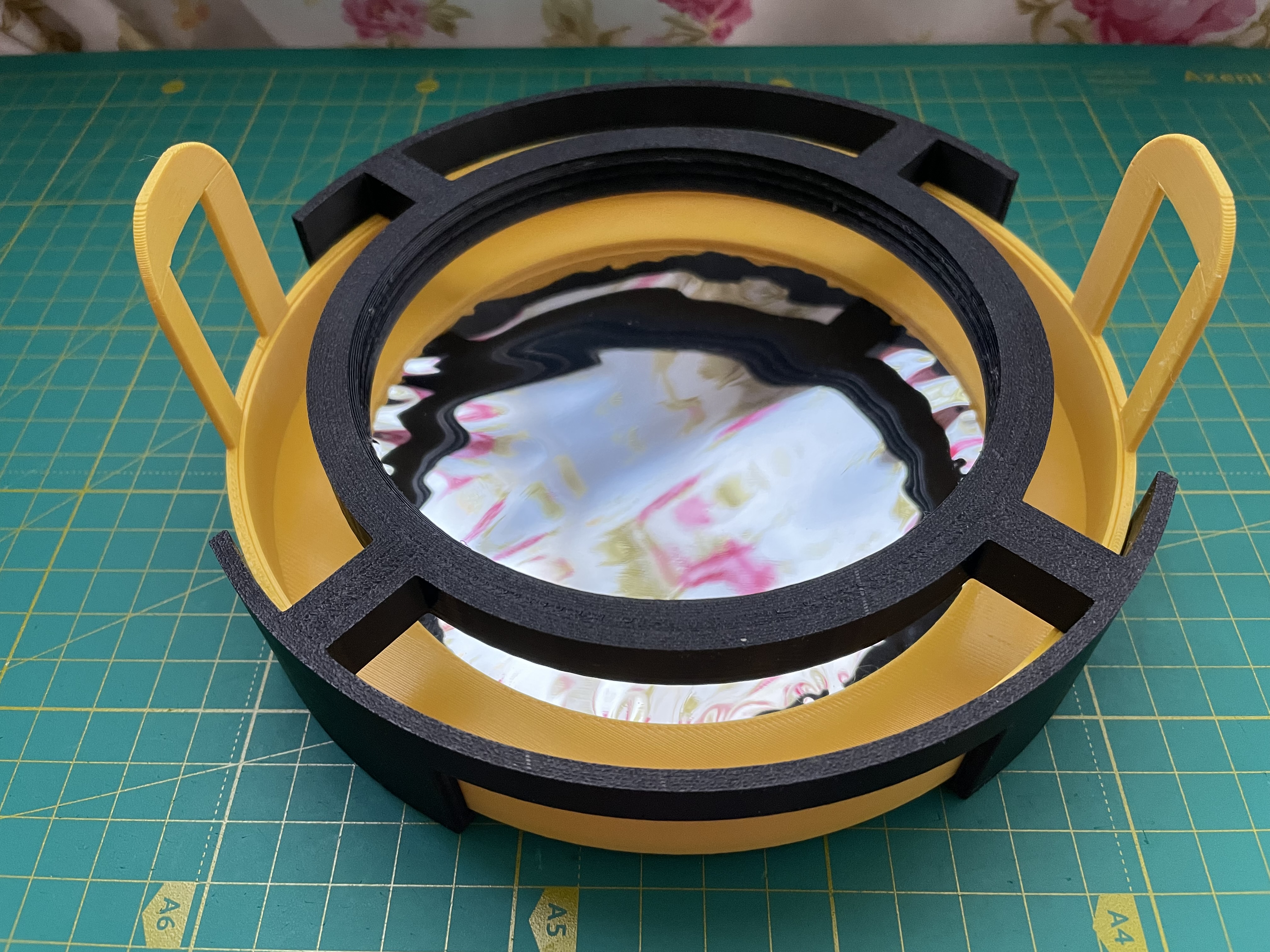

3 Solar Filter Holder

• Threaded attachment

• No risk of slipping or rotating

• Secure and stable mounting

• Compatible with my Newton 130 solar filter model

The deep cylindrical seating helps prevent accidental detachment.

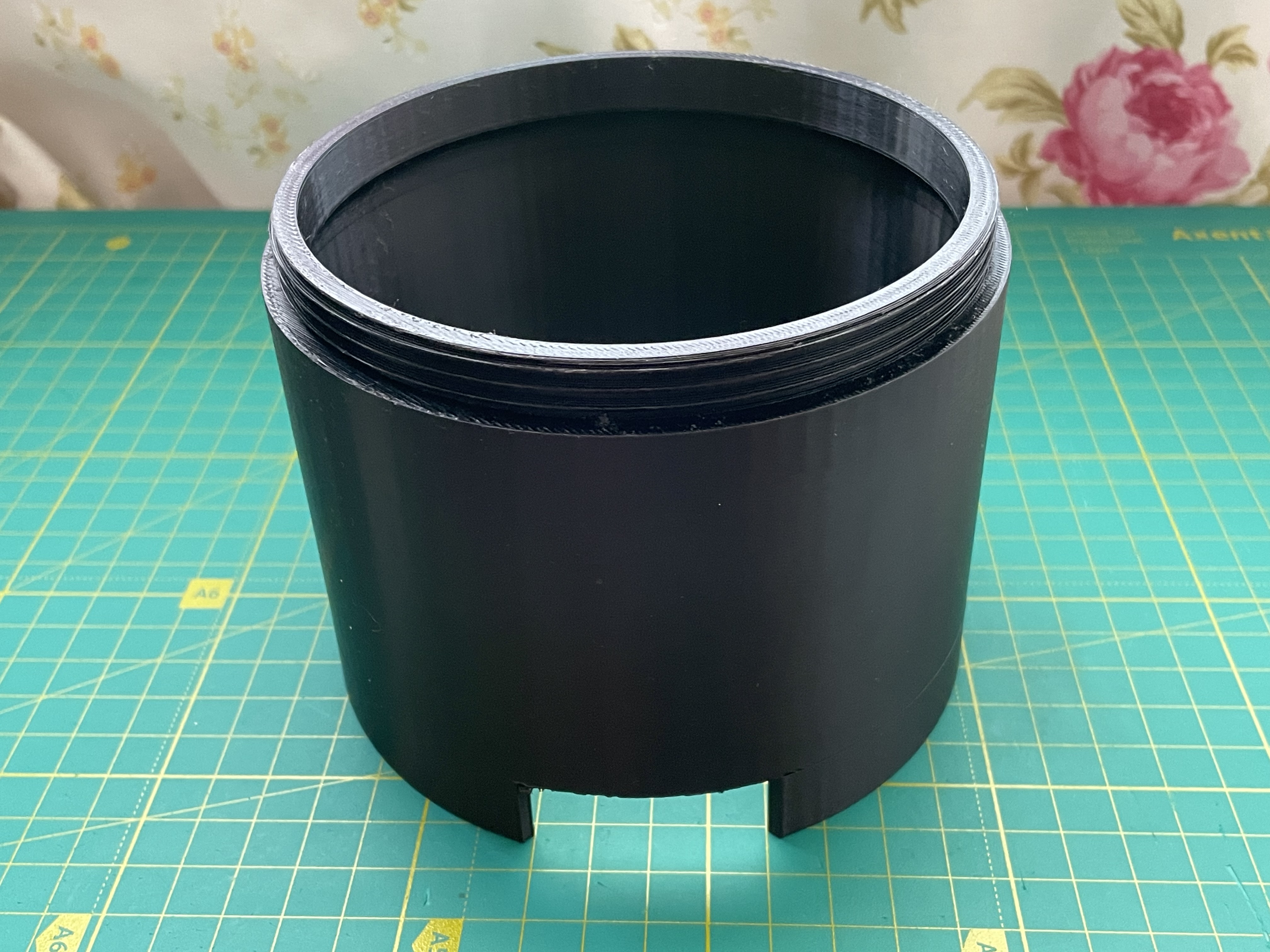

4 Protective Cap

• Threaded connection to the base

• Protects the front optics from dust and debris

• Secure fit without falling off

• Can remain installed when no other accessory is mounted

Designed for transport and storage protection.

⚠ IMPORTANT – Solar Observation Safety

Observing the Sun without a certified solar filter is extremely dangerous and can cause permanent eye damage.

• Never point the telescope at the Sun without a proper front-mounted solar filter

• Always inspect the filter material for damage before use

• Do not use if the filter is scratched, torn, or loose

• Ensure the filter holder is fully secured before solar observation

The author assumes no responsibility for improper or unsafe use.

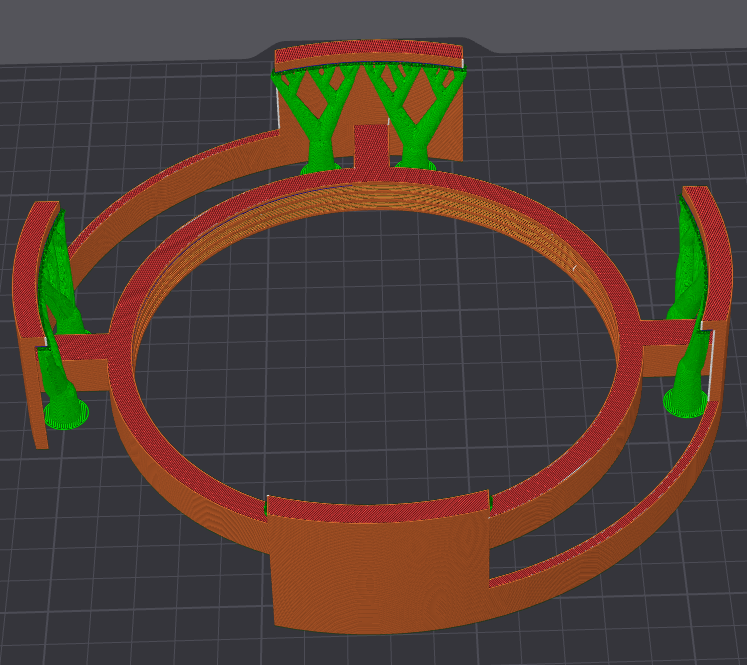

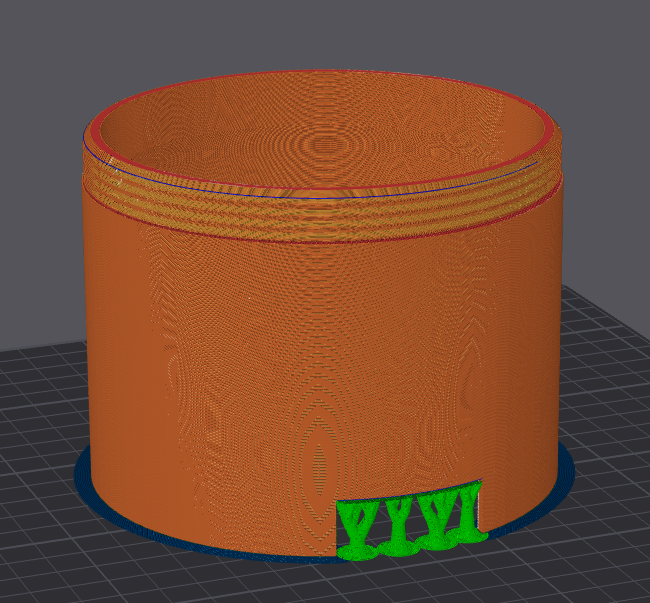

Printing Recommendations

• Material: PETG or PLA+

• 3–4 perimeters

• 30–40% infill

• Print threads without supports

• Adjust tolerances depending on your printer calibration
