With this mod, it is now possible to buy a whole Nextruder in pieces without the need for buying a MK3.9 Kit.
This mod removes the need for the missing 'Pin 2.9x8.5', 'Tubular spacer 13.2x3.8x0.35', and the 'Spacer 6x3.1x8'. These are still not available to purchase on Prusa eShop - See assembly link at the very bottom for images.
ASSEMBLY INSTRUCTION

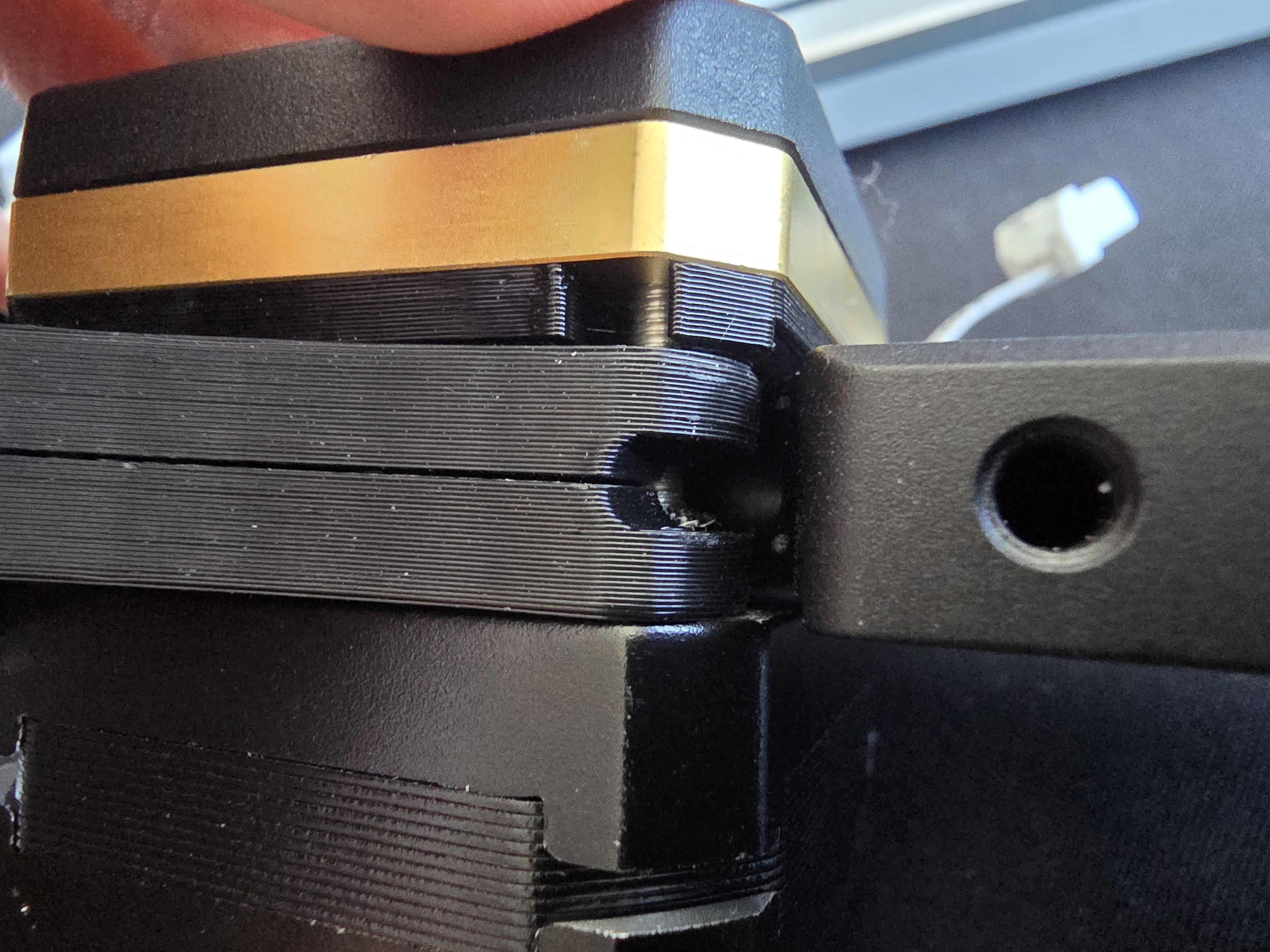

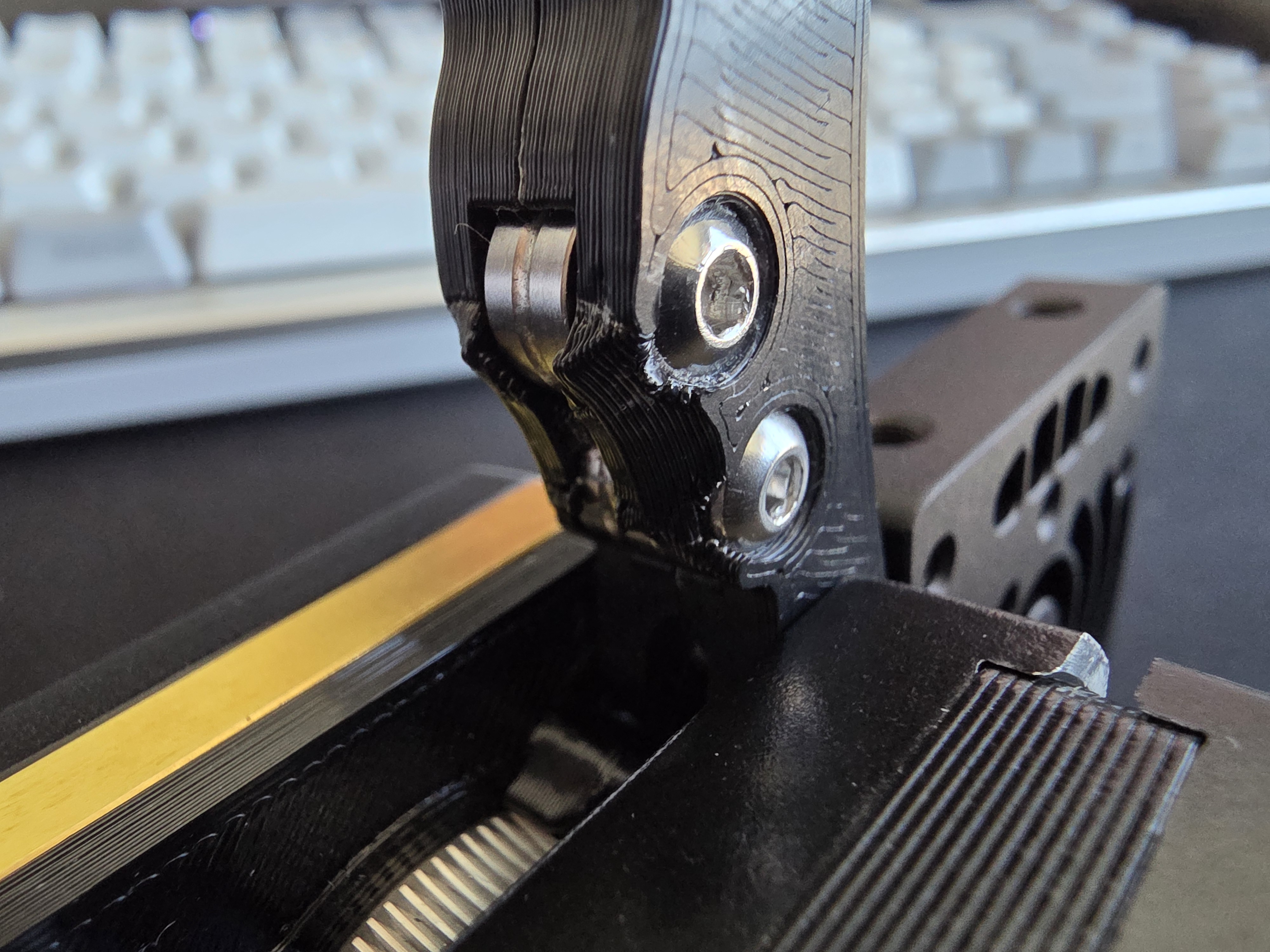

Idler Lever:
Reference the main instruction as required: https://help.prusa3d.com/guide/5-nextruder-assembly_707767#713746
Insert 3 M3 washers into each Idler Lever Left and Right printed part instead of the Tubular Spacer.
Screw in M3x6 BHCS through the middle 2 holes of IdlerLever-A and insert the 693-2RS-U Bearing.
Keep screwing into the printed parts if necessary until the head of the screw is flush with the lever.

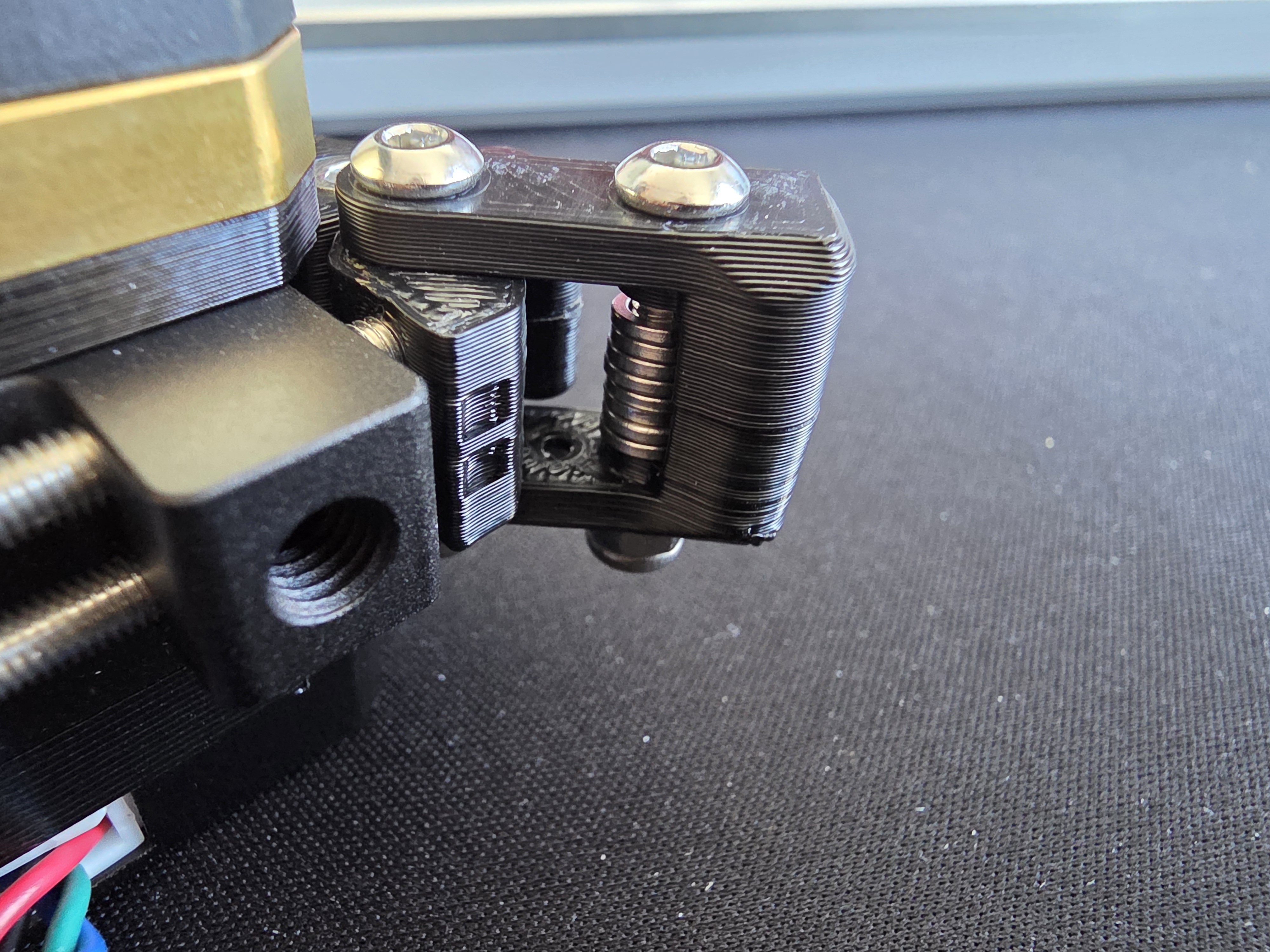

Idler Swivel:
Reference the main instruction as required: https://help.prusa3d.com/guide/5-nextruder-assembly_707767#714420
Instead of the Spacer 6x3.1x8, insert 8 M3 Washers (5mm OD).
Full BOM:
QTY | Price (ea) | LINK/DESCRIPTION |
|---|---|---|
2 | 3.99 | |
2 | 2.49 | |
2 | 1.49 | |
1 | 3.99 | |
1 | 1.49 | |
1 | 37.99 | |
1 | 39.99 | |
1 | 8.49 | |
1 | 3.99 | https://www.prusa3d.com/product/filament-sensor-accessories/ |
1 | 50.99 | |
1 | 12.99 | https://www.prusa3d.com/product/heatsink-thermistor-ntc-100k-90-mm/ |
14 | 0 | 5mm OD M3 Washer which replaces |
2 | 0 | M3x6 BHCS screw which replaces Pin 2.9x8.5. |
1 | 0 | M3x6 SHCS Screw for Idler |
2 | 0 | M3x20 BHCS Screw for Idler |
2 | 0 | M3 Locking Nut for Idler |
2 | 0 | M3x30 Screw for Idler Tensioner |
3 | 0 | M3x25 SHCS for outer plate |
1 | ? | M3x25 Set Screw (headless), you can grind off the head of a M3x30. |
1 | ? | Nextruder Heaterblock/thermistor/heater/nozzle |
1 | ? | Generic 4010 Axial Dual Ball Fan |
1 | ? | Part Cooling Fan, up to you |
1 | ? | Toolhead Board, up to you |
Total Cost: $175.86 USD + Shipping + 0 + ?
but it's the Nextruder it's worth it!
Pin 2.9x8.5 and Tubular spacer 13.2x3.8x0.35 as seen here: https://help.prusa3d.com/guide/5-nextruder-assembly_707767#713746
Spacer 6x3.1x8 as seen here: https://help.prusa3d.com/guide/5-nextruder-assembly_707767#714336
