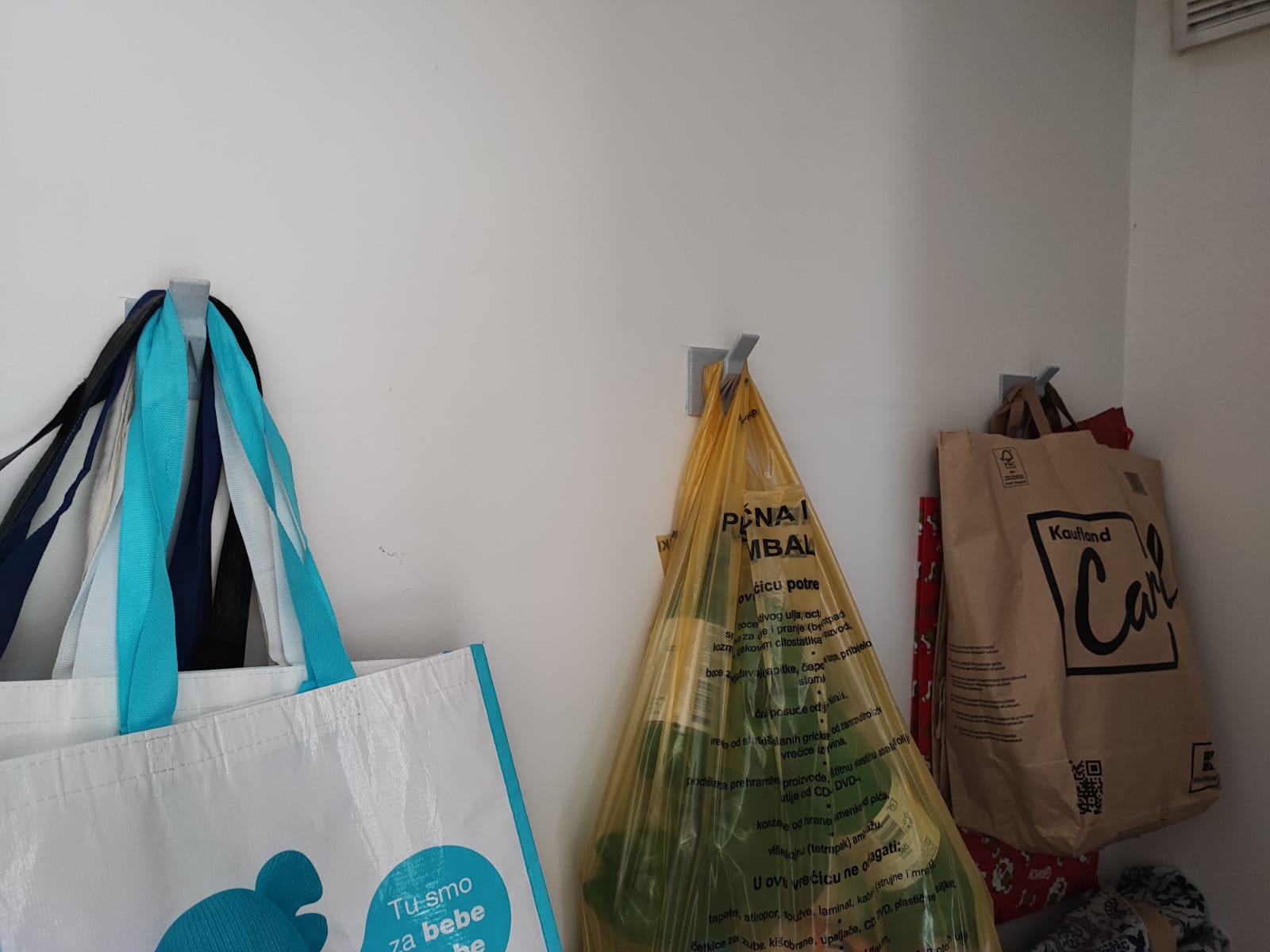

Strong adhesive hook created because store-bought ones couldn’t hold heavier loads or fit multiple items.
- Ocena
- 0 / 5
- Polubienia
- 0
- Pobrania
- 5
- Wydruki
- 0
- Wyświetlenia
- 26
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other House Equipment
- Licencja
- Creative Commons — Attribution — Noncommercial
A strong adhesive hook designed to be mounted on flat surfaces using double‑sided tape. The model comes in the most commonly used tape widths: 12 mm, 19 mm, and 25 mm.
The hook includes a recessed channel for the tape on the mounting side, which provides:
better adhesion
more even force distribution
easier and more precise tape placement (cut only to length)
protection against shifting
compatibility with thicker tapes
The original model was designed for tape 1 mm thick and 19 mm wide, with additional versions created for 12 mm and 25 mm widths. The recess depth is 0.4 mm.
If you need different dimensions or have suggestions for improvements, feel free to reach out and I’ll gladly adjust the model.
Installation Tips
Clean and dry both the mounting surface and the surface where the tape will be applied.

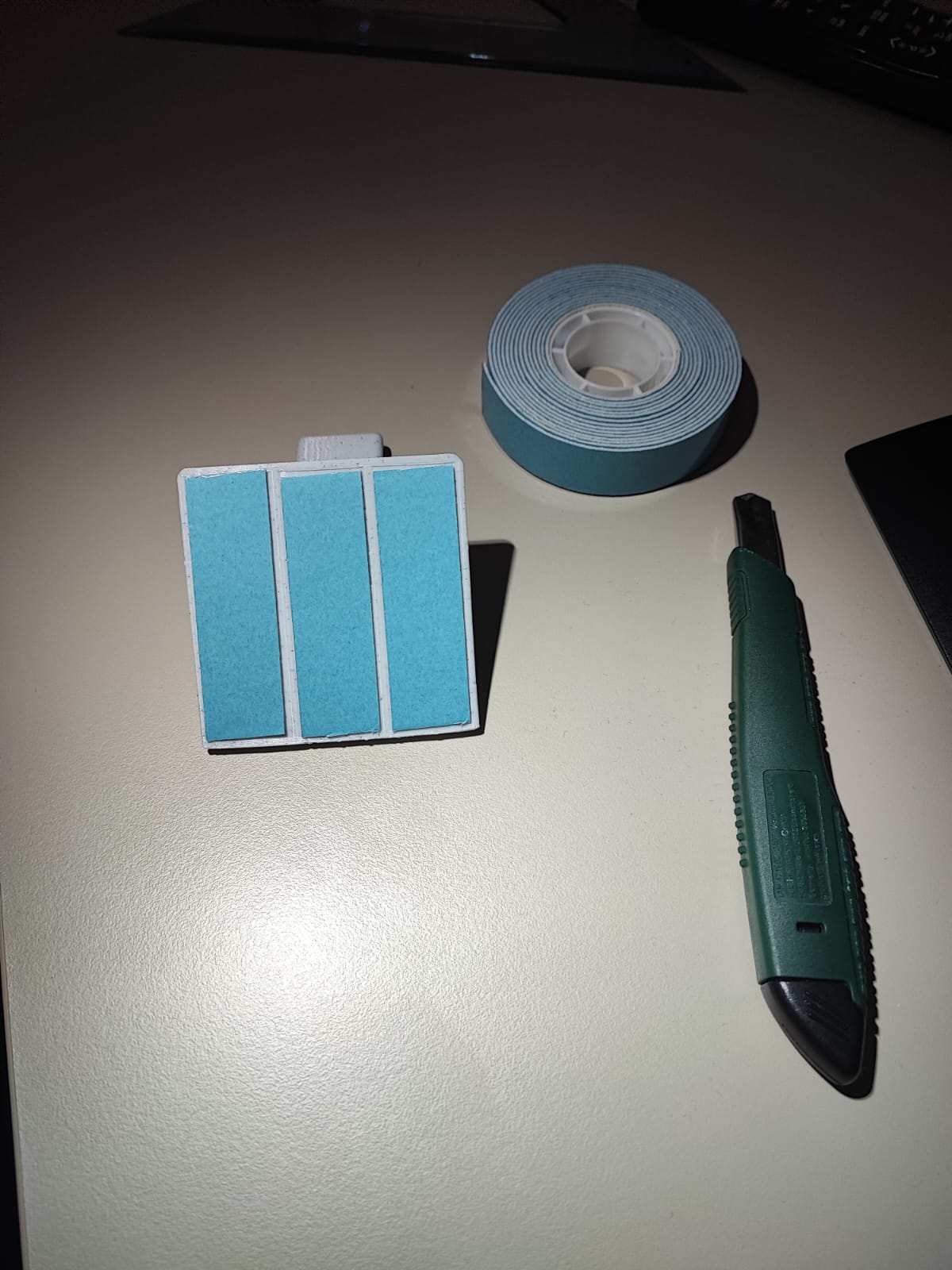

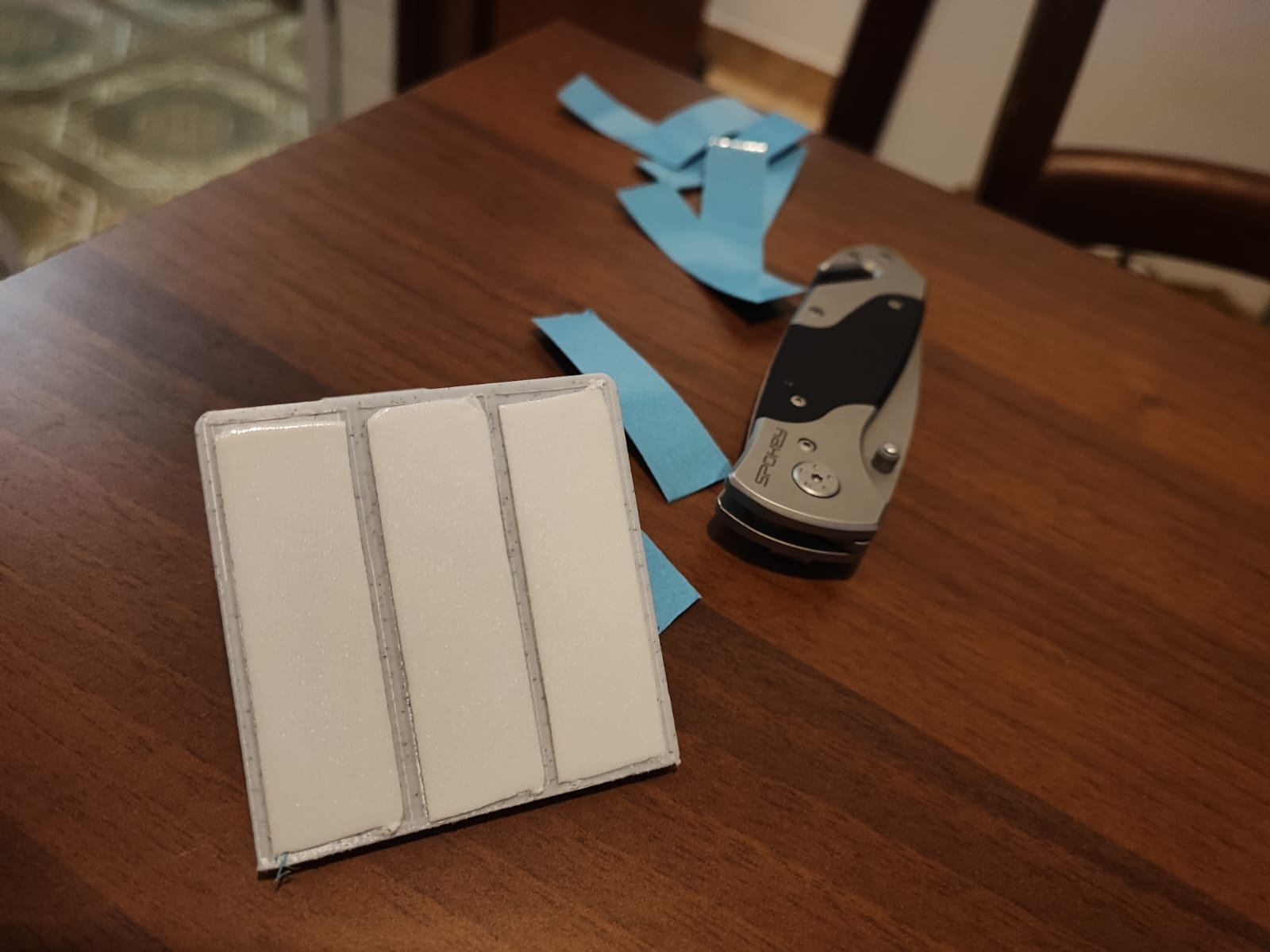

Carefully place the tape into the recessed channel on the hook and trim it to length.
Press the hook firmly against a flat surface for 20–30 seconds to bond the tape to the print.
Attach the hook to the final surface and press again for at least 30 seconds.
Allow 24 hours for full adhesion. In colder environments, give it more time.
Print Settings
Material: PLA for indoor use; PETG recommended for outdoor exposure
Walls: 4
Top layers: 5
Bottom layers: 5
Infill: 30% Gyroid

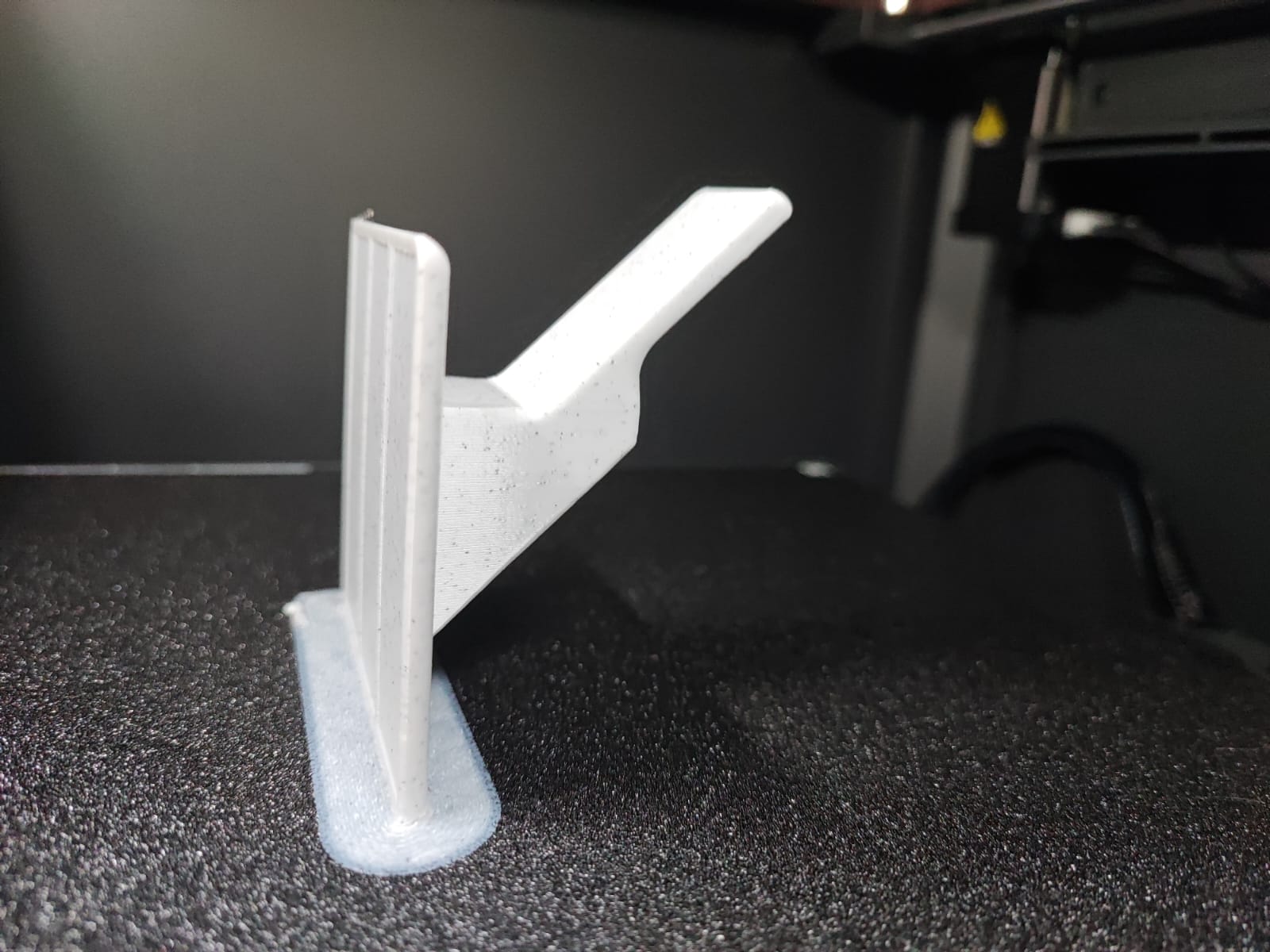

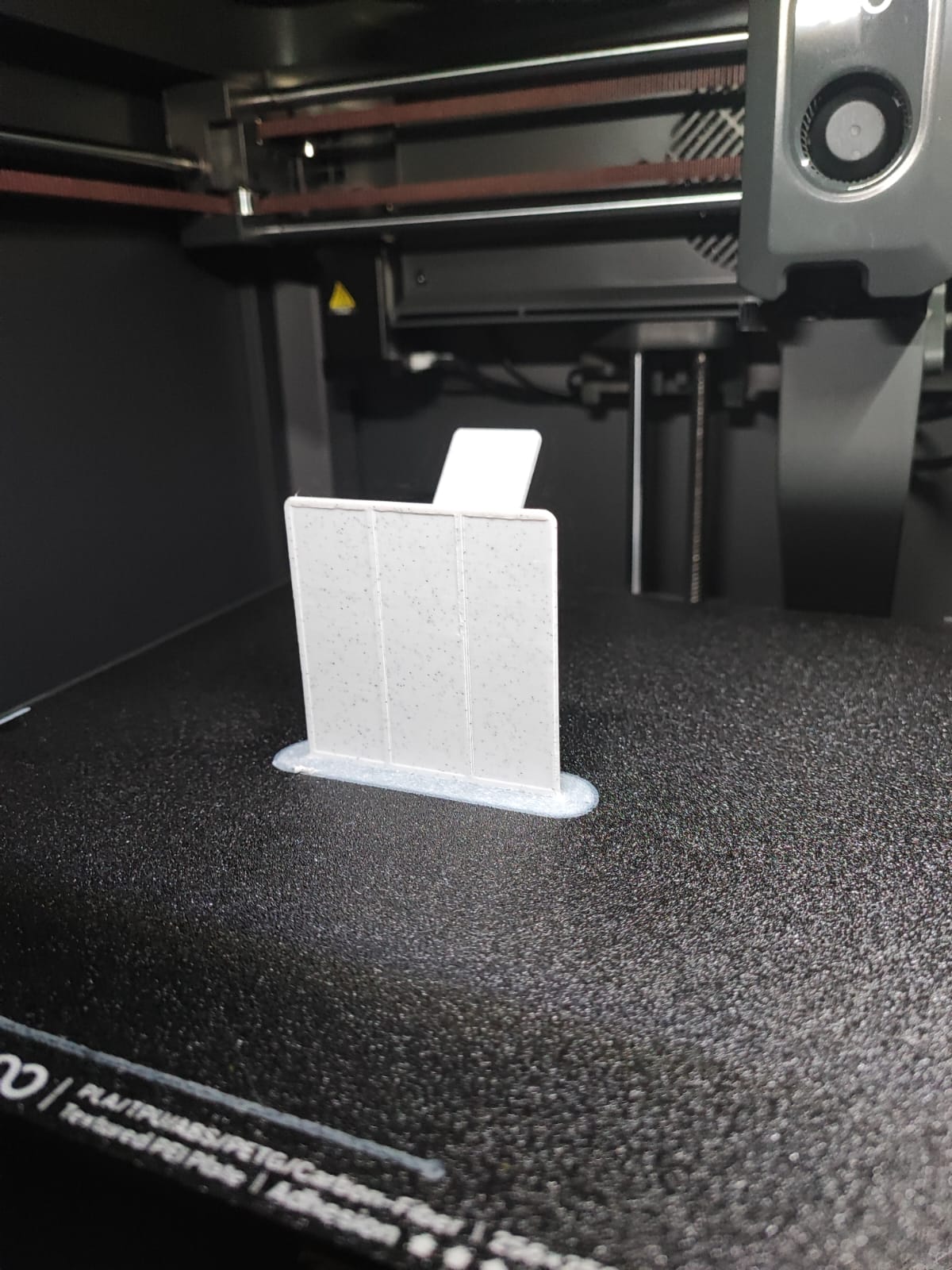

Orientation: as shown in the preview images
Supports: not required (optional brim recommended due to narrow footprint)
