ThinkPad & Pixel 8 Webcam Bracket
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.

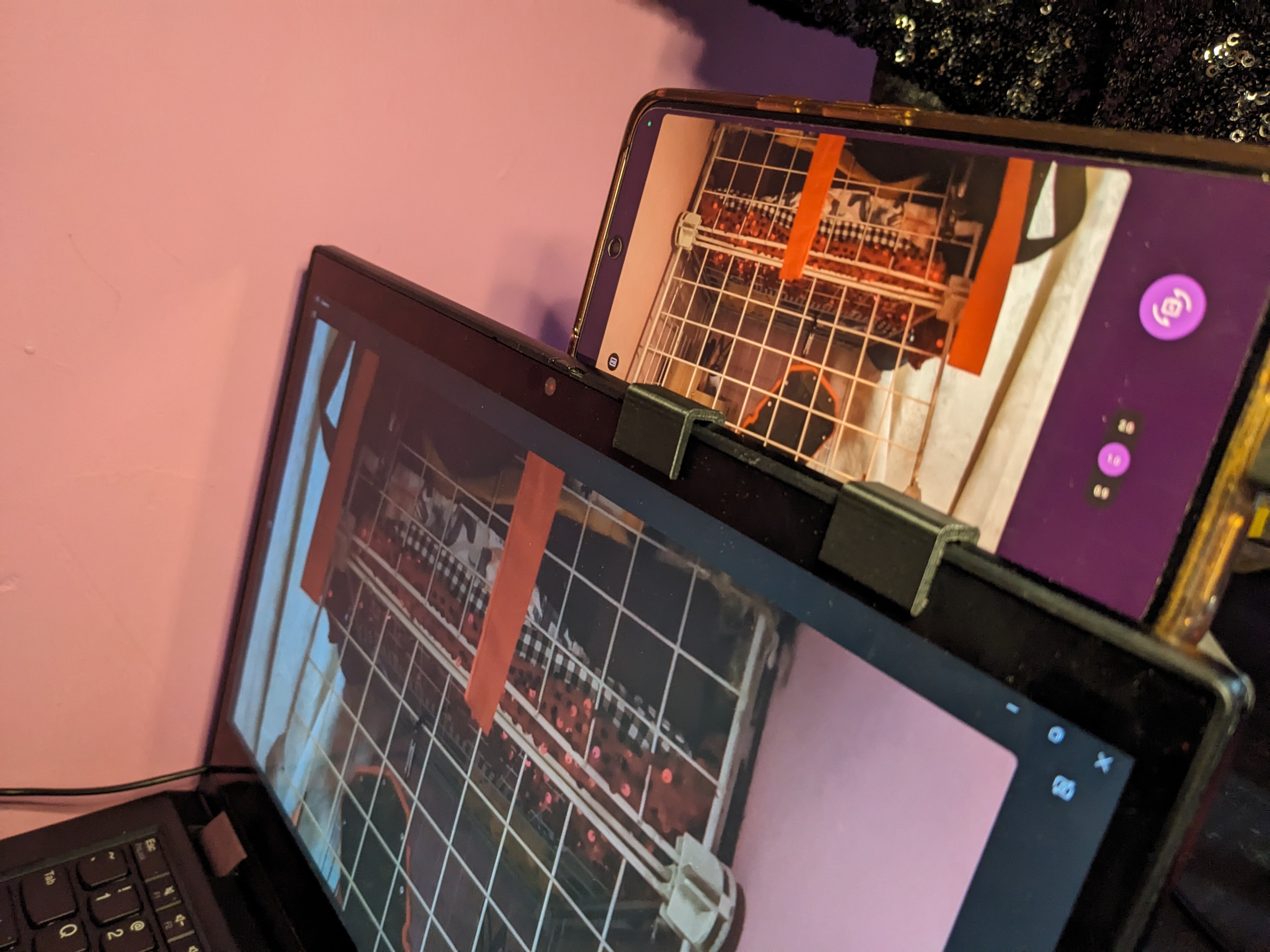

Custom mount to use a Pixel 8 (w/ case) as a webcam on a ThinkPad L13 Yoga. Snug fit, screen-safe rounded edges.
- Ocena
- 0 / 5
- Polubienia
- 1
- Pobrania
- 10
- Wydruki
- 0
- Wyświetlenia
- 67
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Computers
- Licencja
- Creative Commons — Attribution — Noncommercial
Turn your Pixel 8 into the ultimate webcam for your ThinkPad!
This bracket was specifically designed to bridge the gap between the Lenovo ThinkPad L13 Yoga and the Google Pixel 8. With the release of the native "Webcam" mode in Android, this mount allows you to leverage the Pixel's superior camera sensor for professional-grade video calls and streaming.
Key Features:
Precision Fit: Tailored for the specific screen thickness of the L13 Yoga and a Pixel 8 wearing a standard protective case.

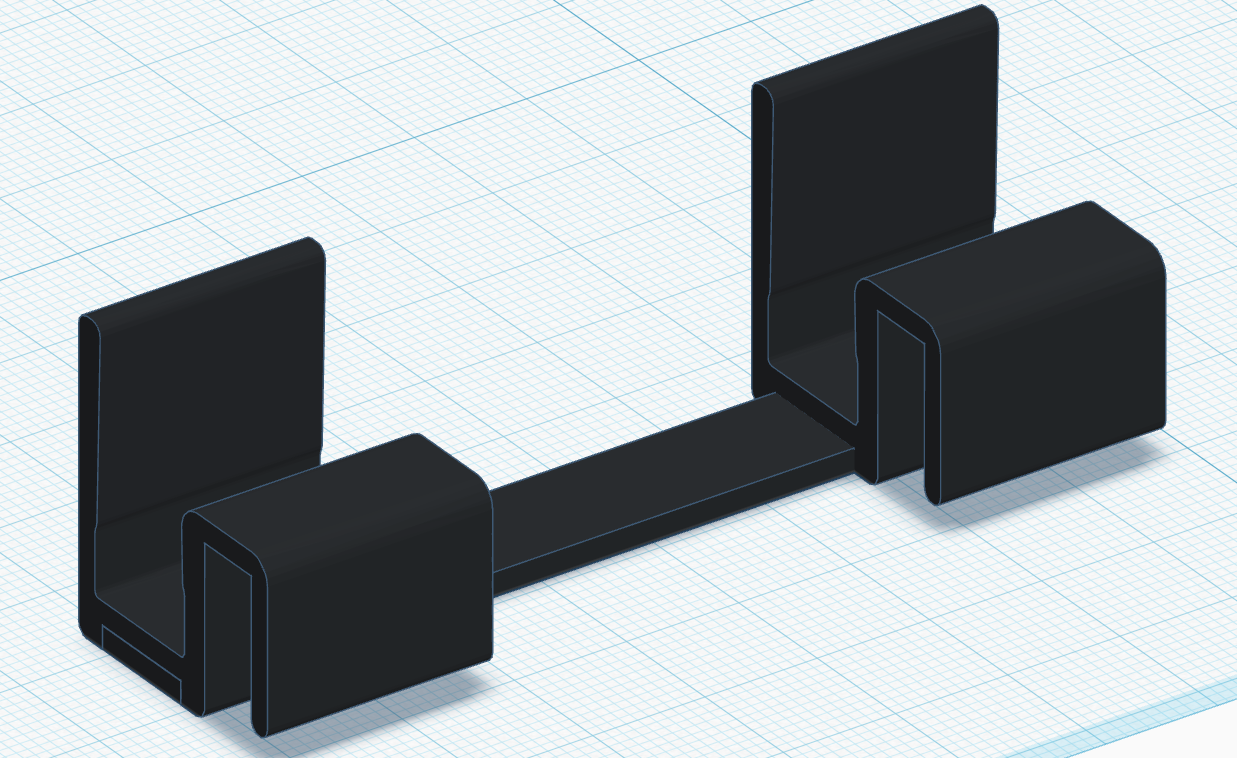

Screen-Safe Design: Originally blocked out in Tinkercad and refined in Fusion 360, the model features rounded fillets on all contact points to ensure your laptop bezel remains scratch-free.

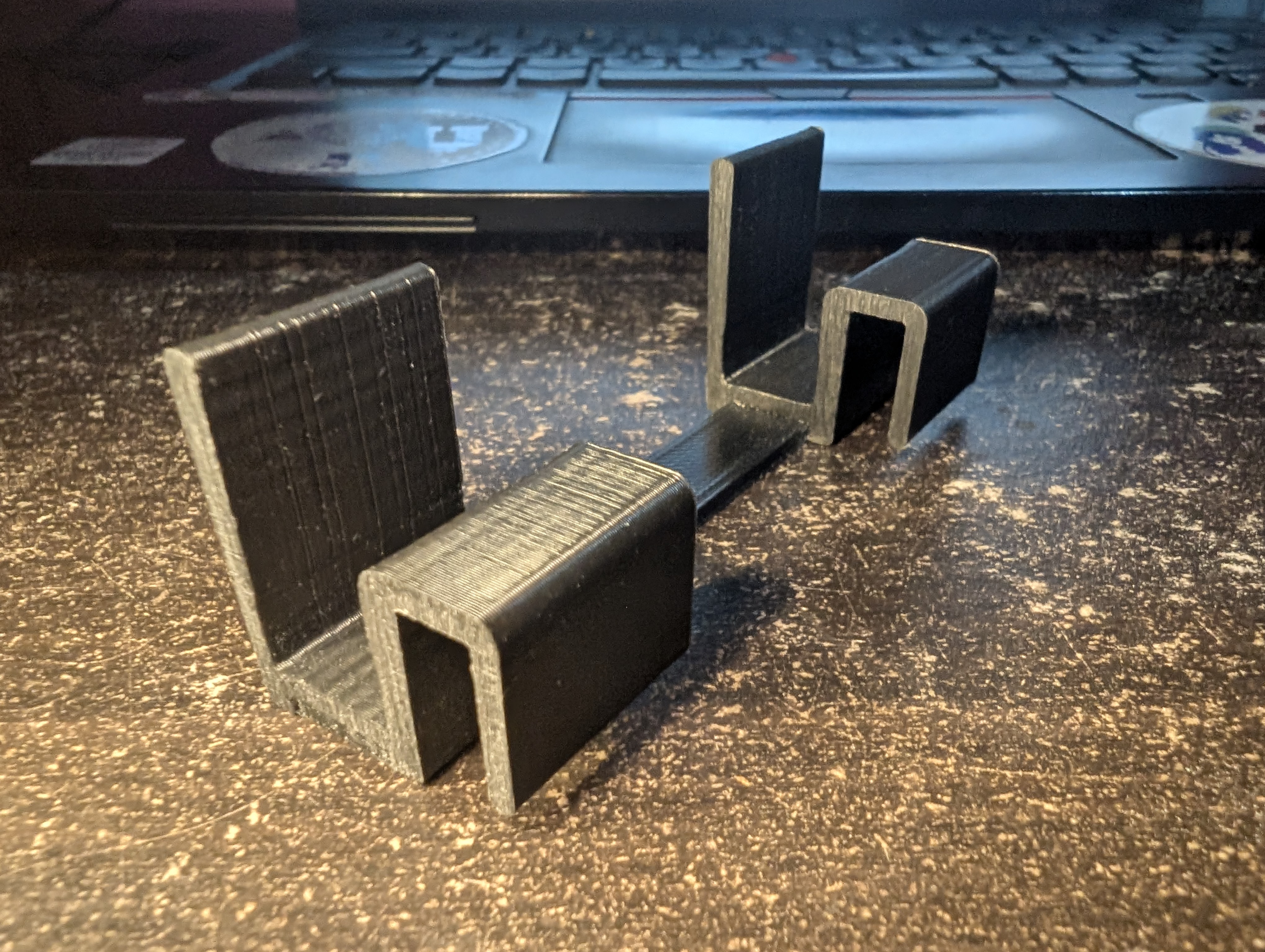

Stable & Lightweight: The "H-bracket" geometry provides a secure grip that won't wobble during typing, yet remains small enough to toss into a laptop sleeve.
Full Port Access: Designed to leave the USB-C port unobstructed for a reliable wired connection.

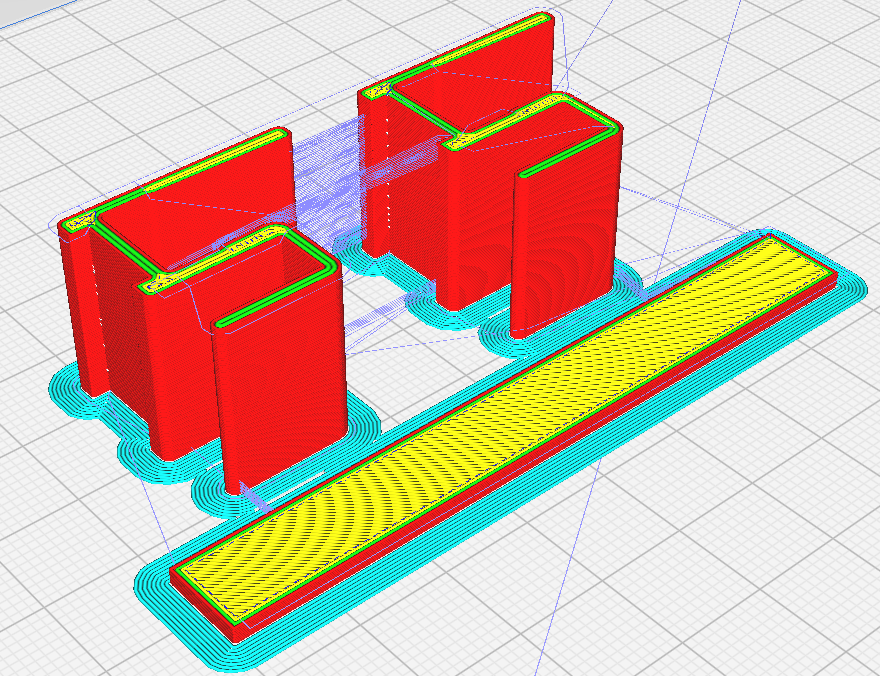

Print Settings:
Material: PLA or PETG (Black recommended to match the ThinkPad aesthetic).
Infill: 15-20% (Grid or Gyroid).
Supports: No supports required if printed on its side.
