Hobby 3D-printed 13:1 dual-disc cycloidal drive, load-tested, safe operating torque 3.43 Nm, 50.75% efficiency.
- Ocena
- 0 / 5
- Polubienia
- 5
- Pobrania
- 45
- Wydruki
- 0
- Wyświetlenia
- 425
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Engineering
- Licencja
- Creative Commons — Attribution

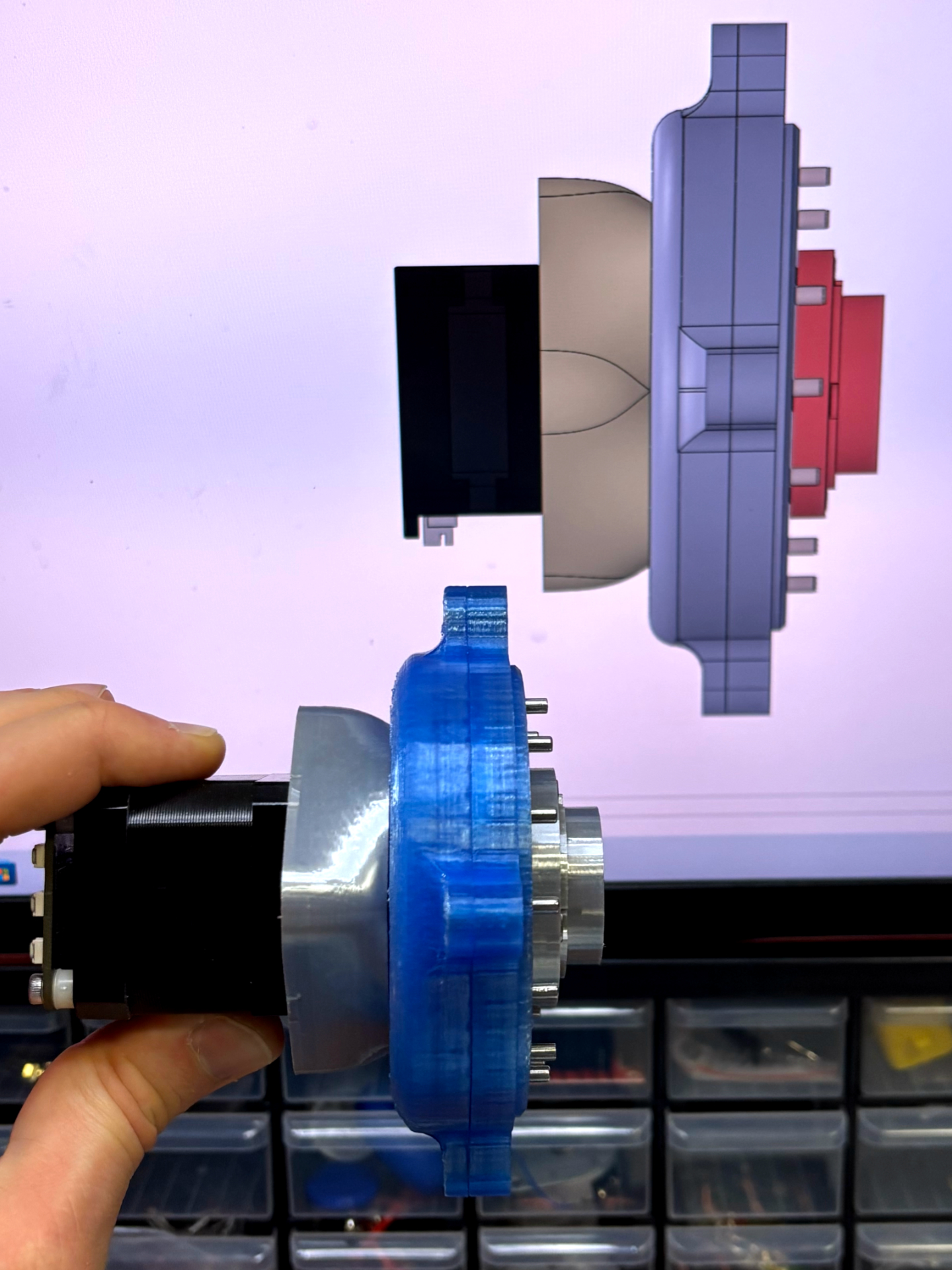

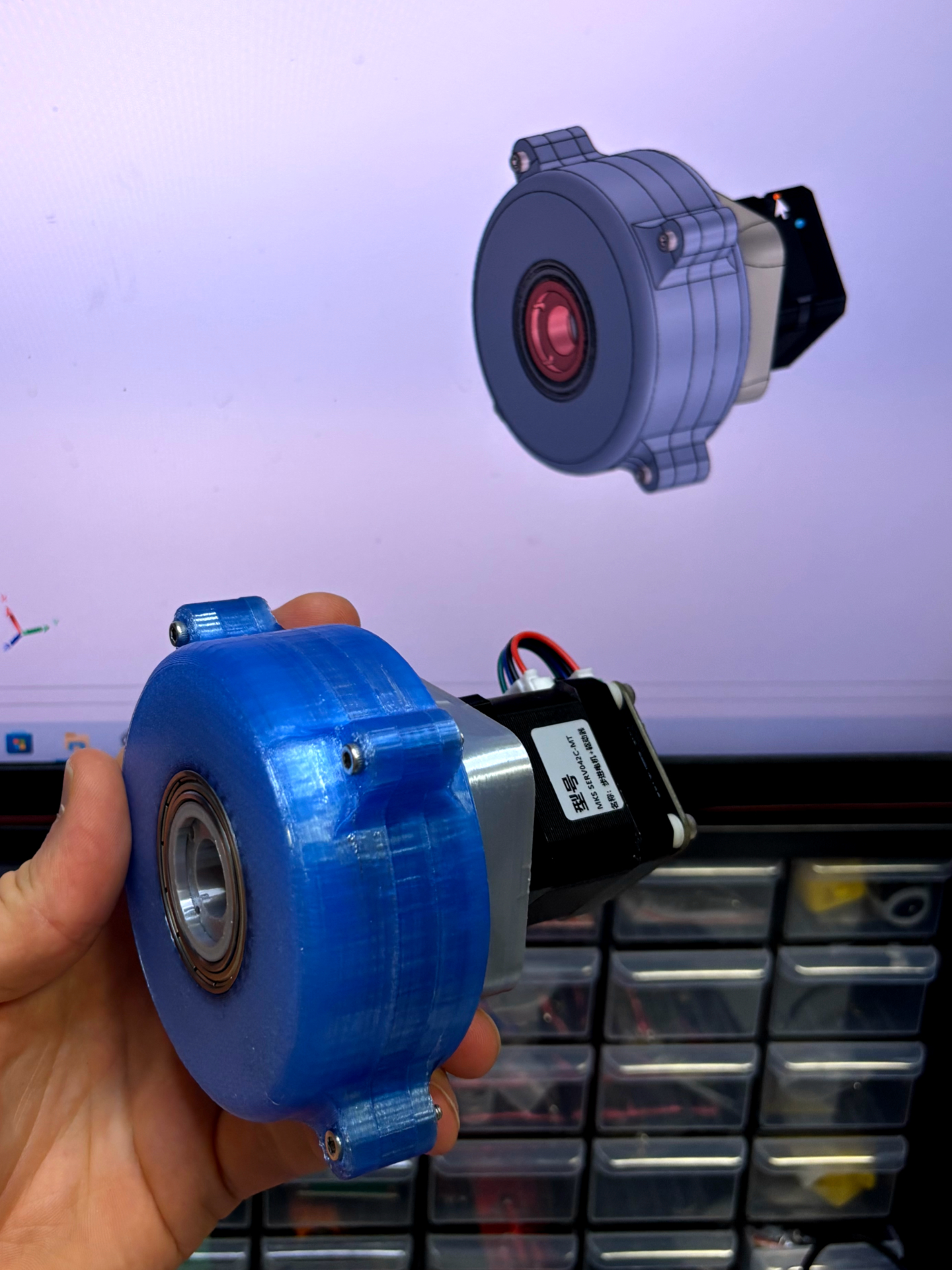

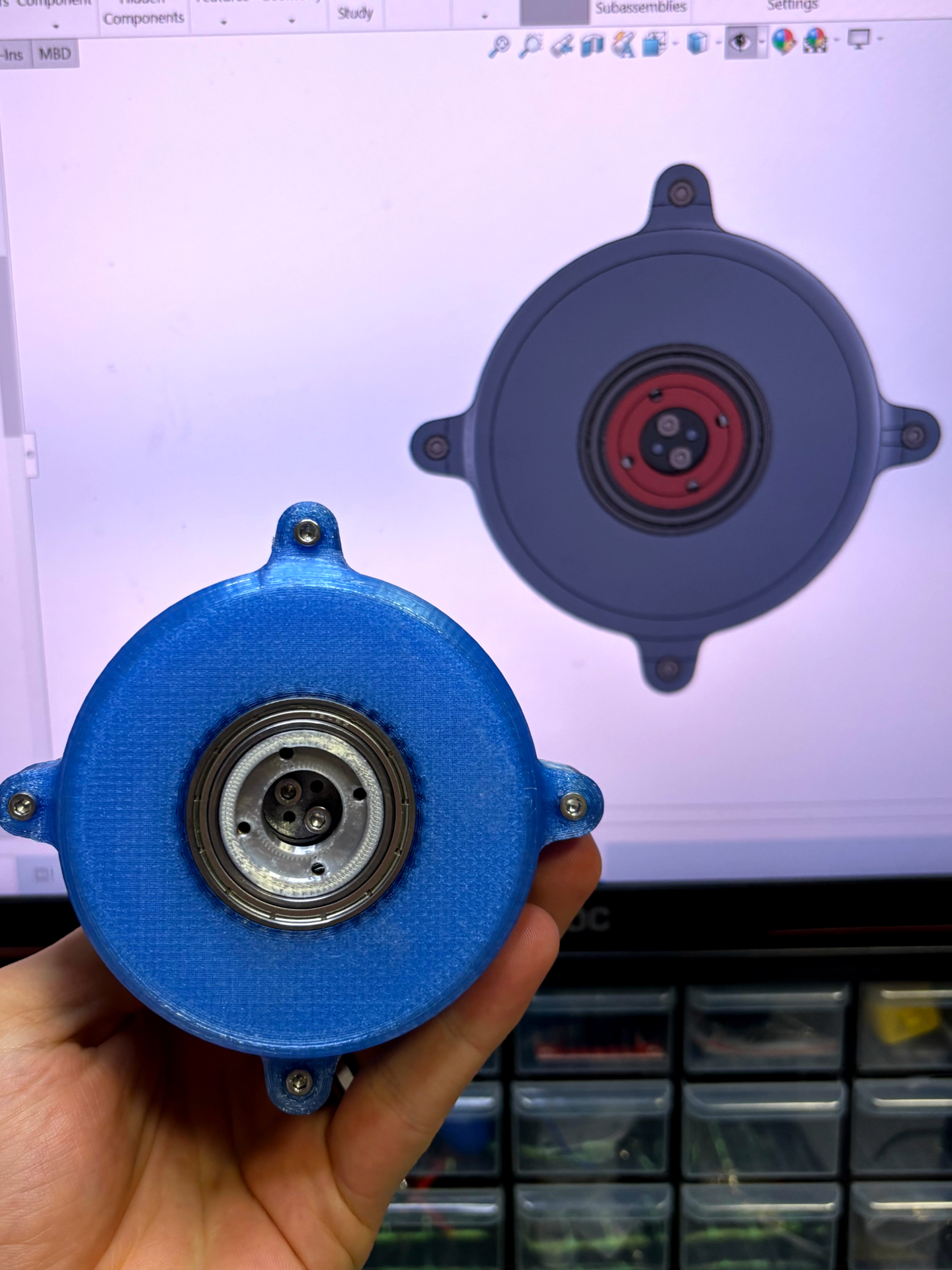

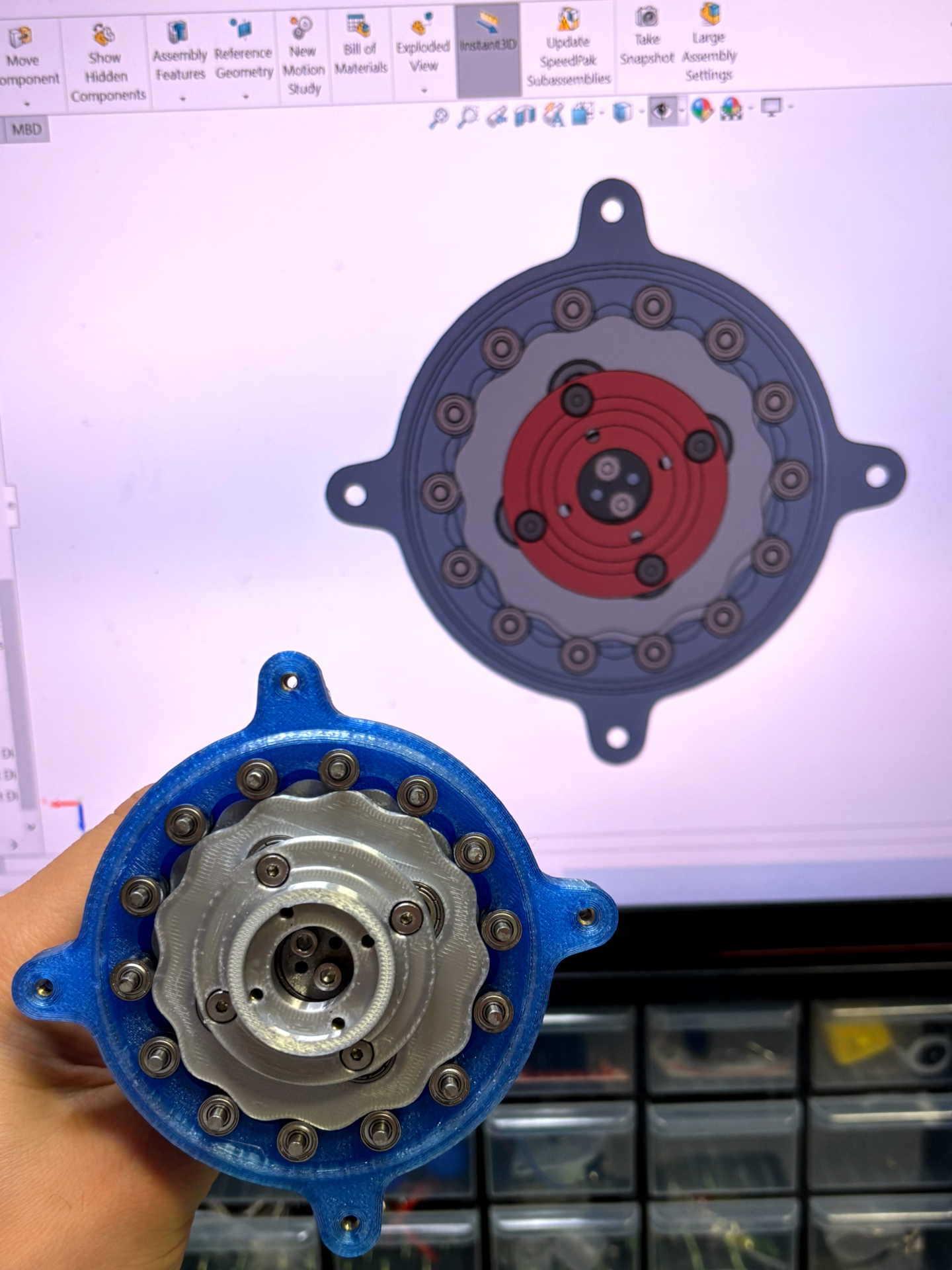

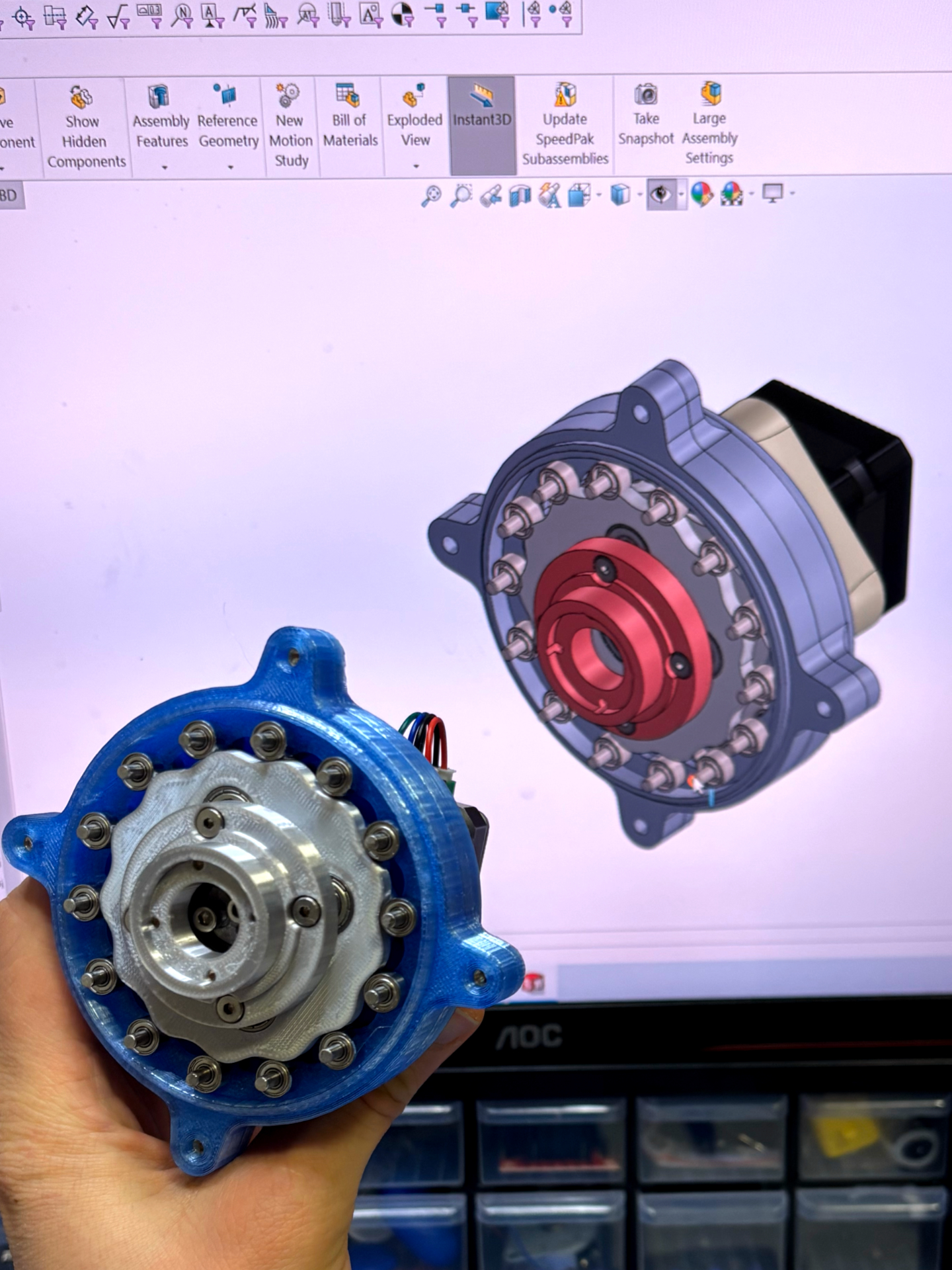

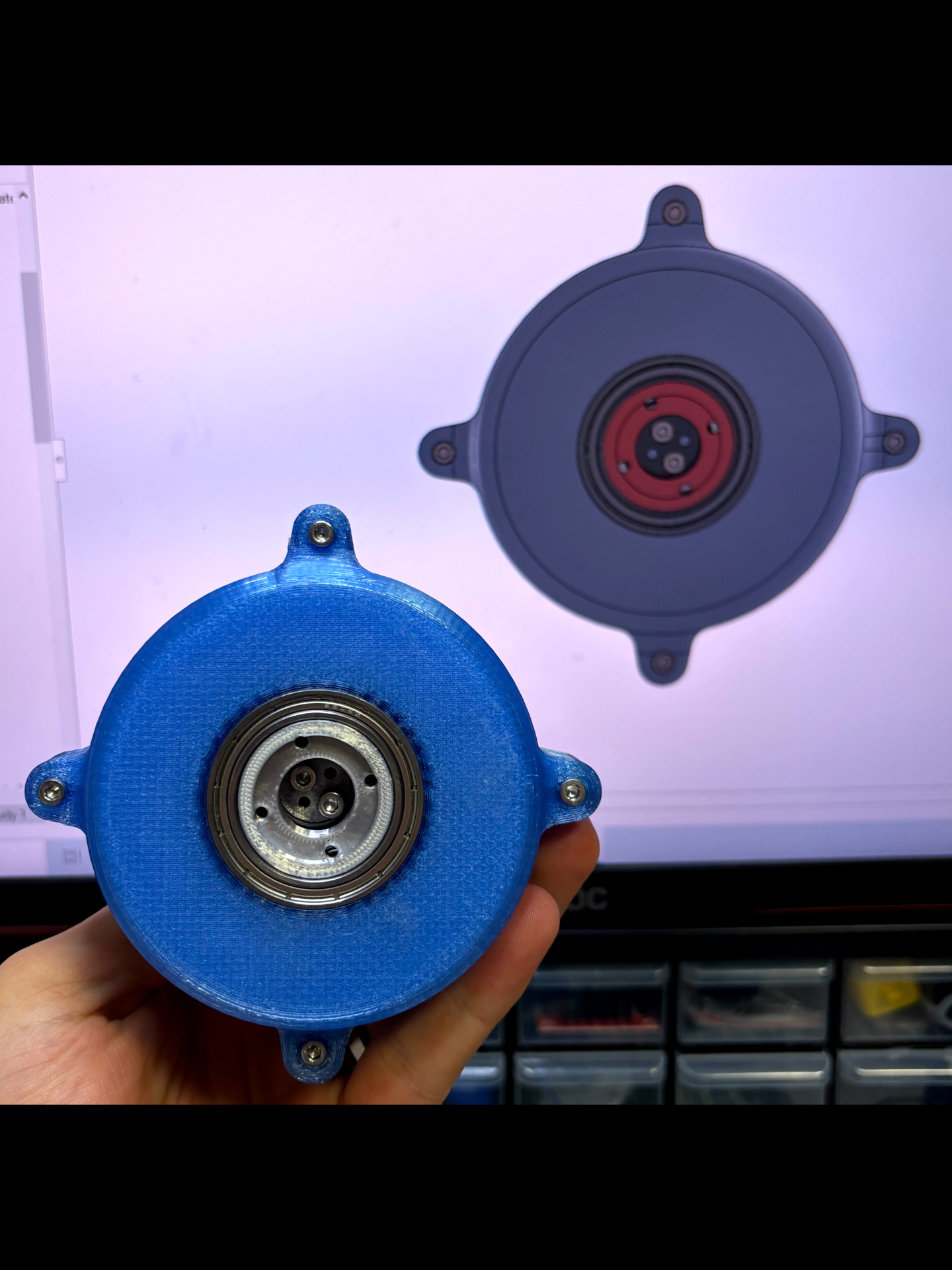

This is a hobby engineering project of a 3D-printed dual-disc cycloidal drive with a 13:1 reduction ratio.
All custom mechanical parts were designed from scratch and optimized for 3D printing.
Included:
• Assembly instructions
• Calculations and datasheets
• YouTube build and test video
A pulley and weight system was used for load testing.
Test setup:
• Pulley radius: 35 mm
• Lifted load: 10 kg
• Measured output torque: 3.43 Nm
• This value represents the safe operating torque
• Higher torque may be possible but was not tested
Drive input:
• Motor: NEMA 17 stepper motor
• Supply voltage: 12 V
• Driver current: 1.6 A
• Microstepping: Full step (1/1)
Speed:
• Theoretical motor speed: 120 RPM
• Actual motor speed under load: 86.7 RPM
• Output speed: 6.67 RPM
Reduction ratio: 13:1
Print Settings
Nozzle diameter: 0.4 mm
Materials:
• Outer housing (3 parts): PETG
Layer height: 0.18 mm (initial 0.20 mm)
Material: PETG
Infill: 50% Gyroid
Walls (perimeters): 4
Infill/Wall overlap: 35%
Top layers: 5
Bottom layers: 3
• All other printed parts: PLA
Material: PLA
Infill: 60% Gyroid
Walls (perimeters): 5
Infill/Wall overlap: 35%
Top layers: 5
Bottom layers: 5
Download the documentation from the Files section:
• Assembly Instructions - (BOM)
• Technical Report – Calculations and Test Results
