Screen mount for Skywalker roaster

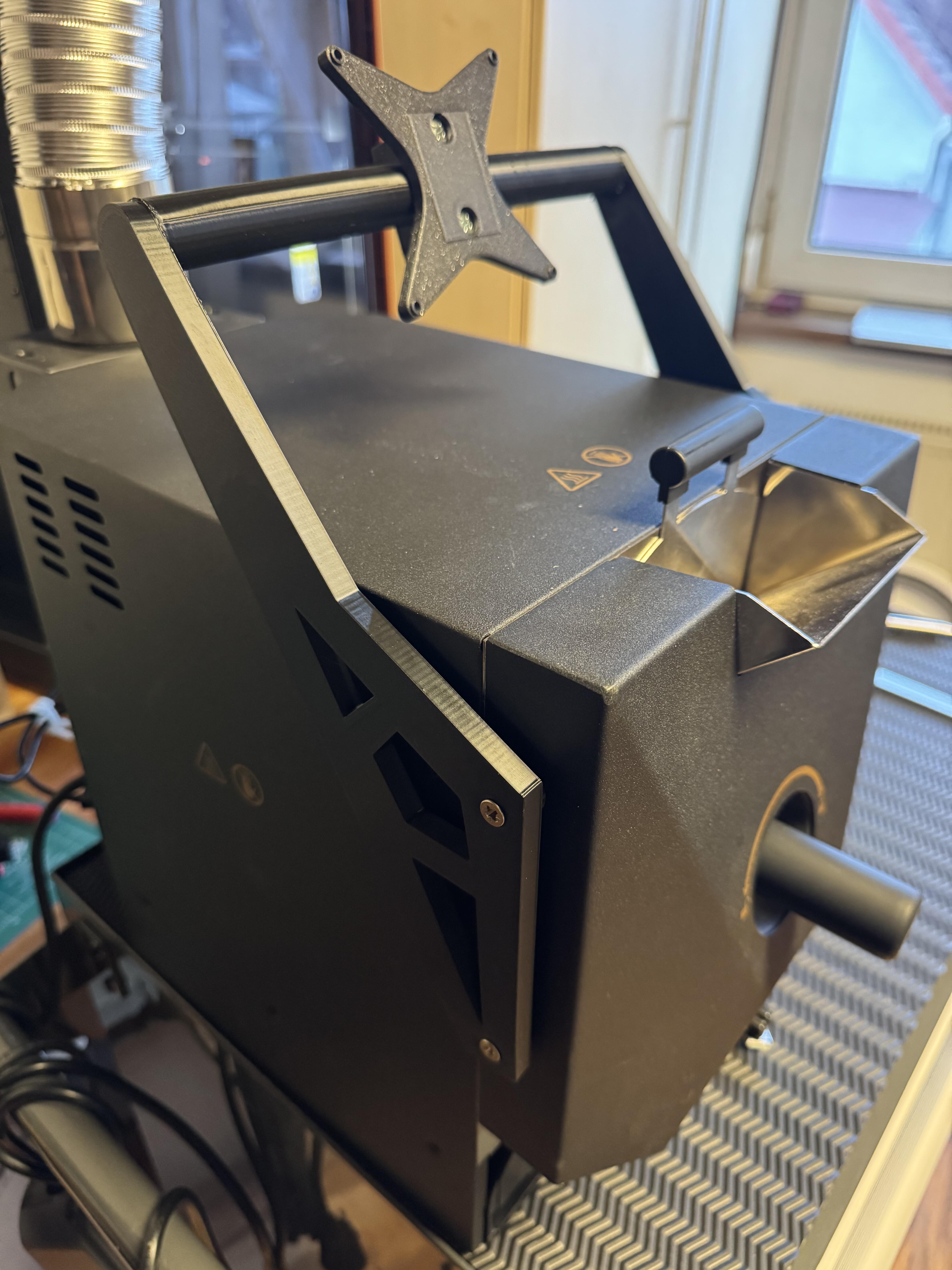

This mounting system utilises existing countersunk 4mm holes of the front panel as this is already "insulated" and is therefore the least exposed to heat.

My system is a Raspberry Pi - 10.1" Touchscreen Monitor and the roaster is a Skywalker v1.
(as far as I am aware the outer dimensions are the same between v1 and v2, but that's for yourself to verify [99mm distance between mid-point of screw holes on each side and 220mm between left and right])

Tested with following materials (5 consecutive roasts with in-between protocol):

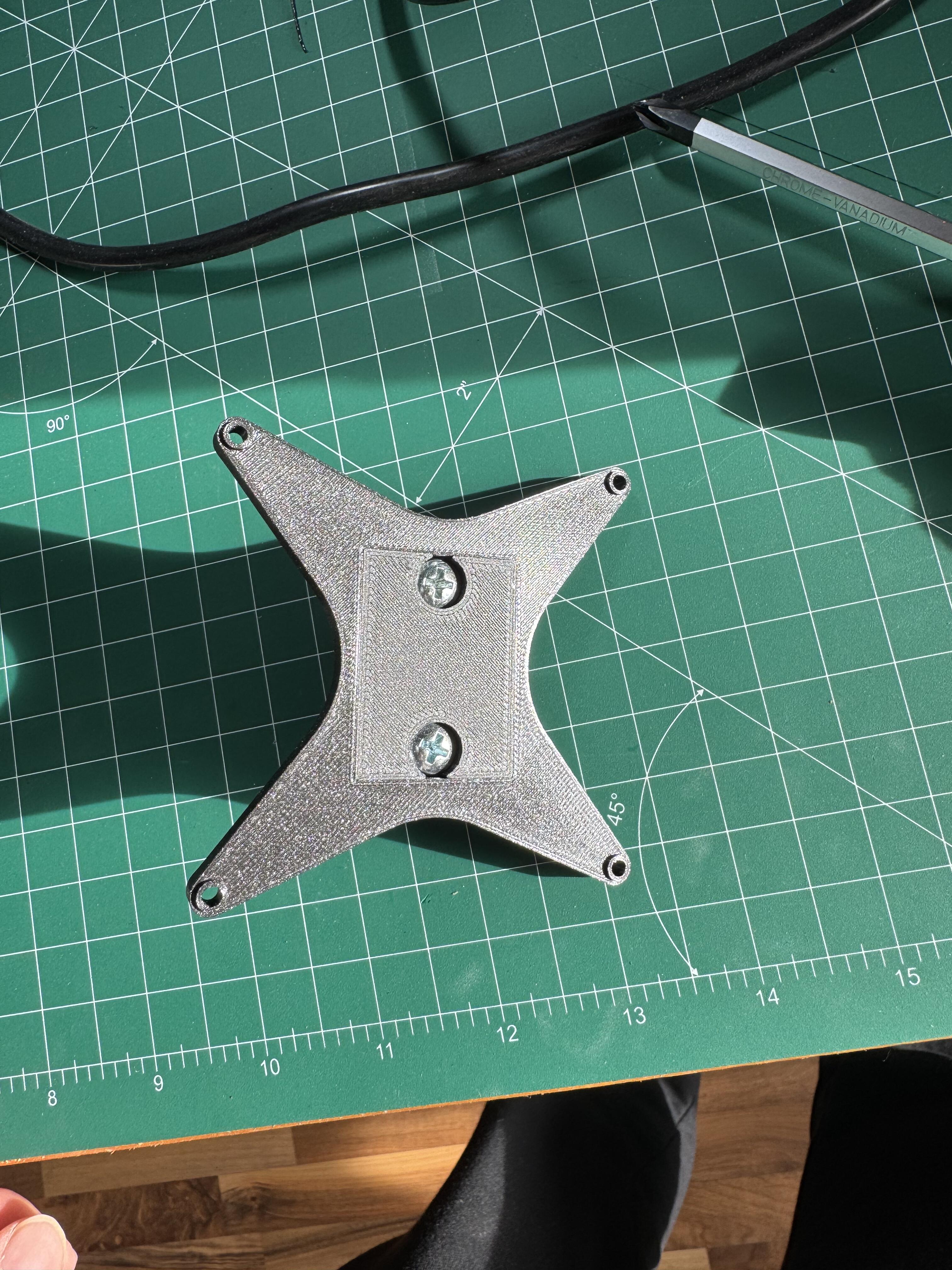

1. Base (2 parts): PC

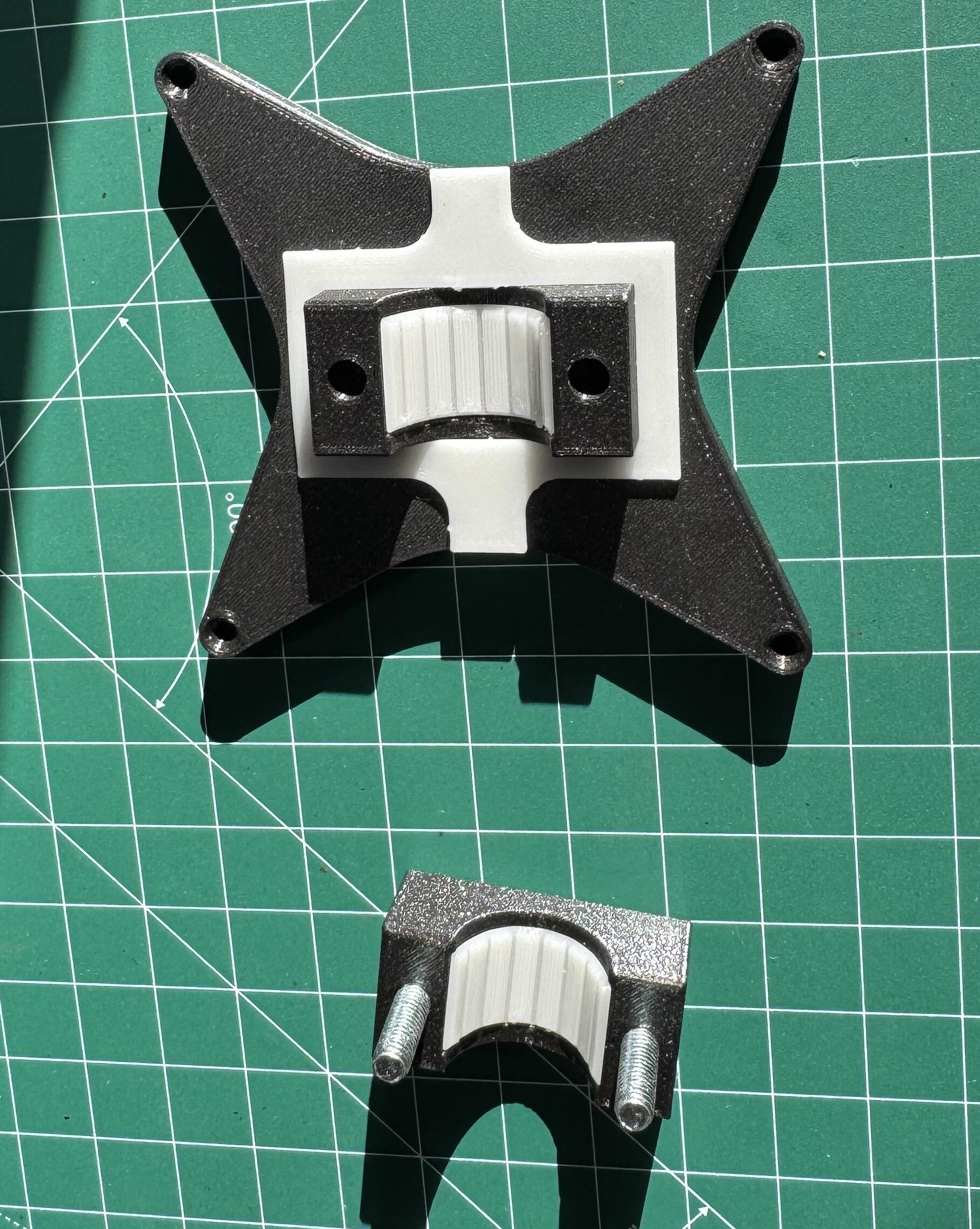

2. Adapter and bracket: PLA

3. Inlays and gasket: TPU

• All with 15% infill

• No visible or feelable structural damage of the material.

• ASA or ABS should be fine for the base, don't use PLA!
  (I guarantee for nothing!!)

Supports are not needed for the bracket, but are not visible later, so I made the print with.

Additionally to the filaments you will need:

• 4x   M3x10 screws

• 4x   4x10mm countersunk screws

• 2x   M5 nuts

• 2x   M5x25 screws

Exposing electronic parts and plastic to heat can be a fire hazard or release dangerous gases.
Exposing your electronic device to heat can damage your device.
Using this design is completely at your on risk!

Enjoy roasting :-)
