Basil Portland Fork Mount Spacer (M3-M6)
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor Sports
- Licencja
- Creative Commons — Attribution

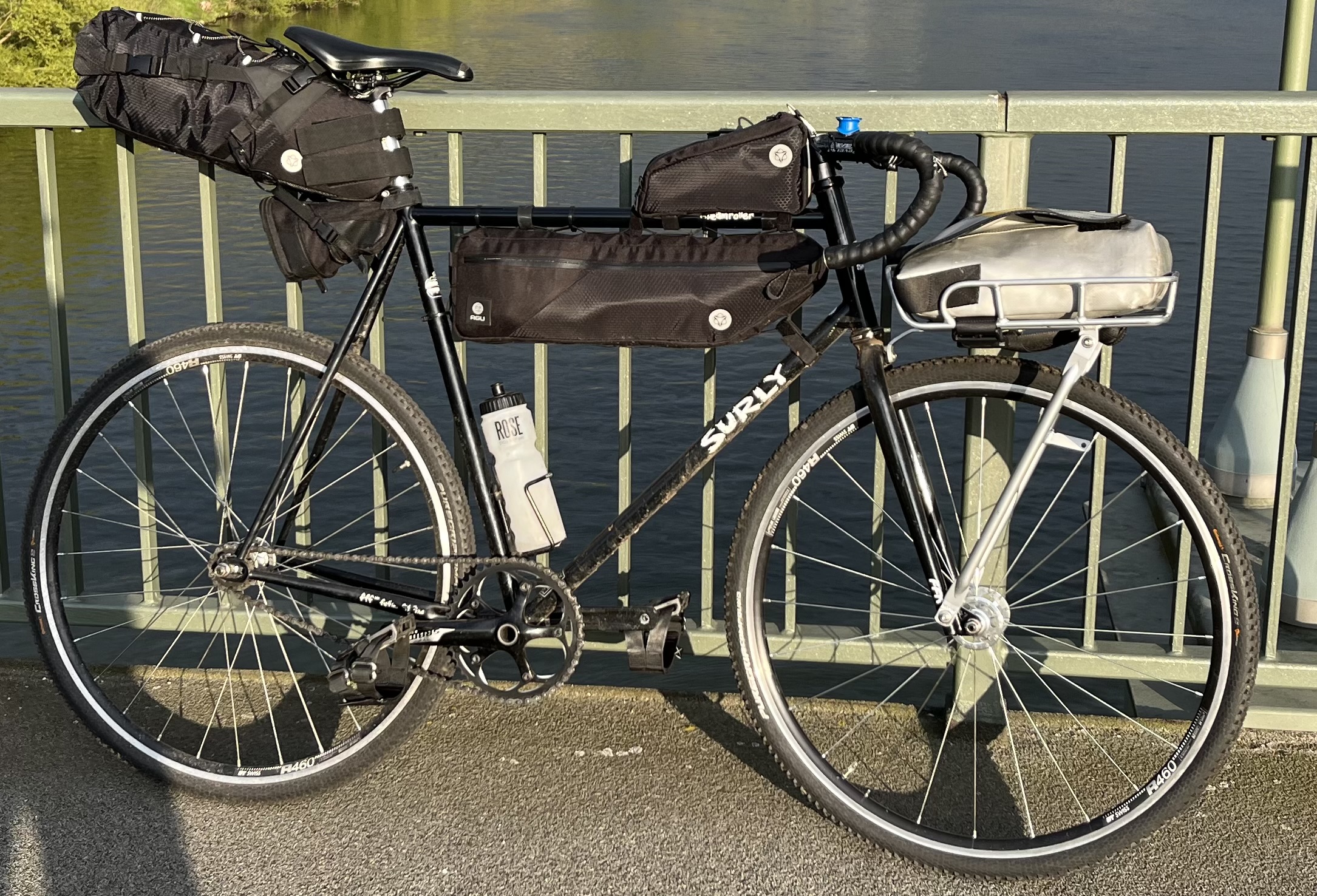

The Model This spacer allows you to mount the Basil Portland front rack directly to your bike fork's threaded eyelets instead of using the wheel axle. It is compatible with M3, M4, M5, or M6 hardware, depending on your fork's specifications.
Print Settings
Material: PETG, ABS, or ASA (Required for UV resistance and durability)
Layer Height: 0.2mm
Infill: 30% (Grid or Gyroid)
Walls/Perimeters: 3-4 (For structural integrity around the bolt)
Supports: Not needed
Hardware / Assembly
Bolt: 1x M3, M4, M5, or M6 (Length depends on your fork/spacer thickness)
Washer: Recommended for both sides to distribute pressure.
Instructions: Slide the bolt through the rack mount and the printed spacer, then thread directly into the fork eyelet. Do not over-tighten if using plastic spacers.
