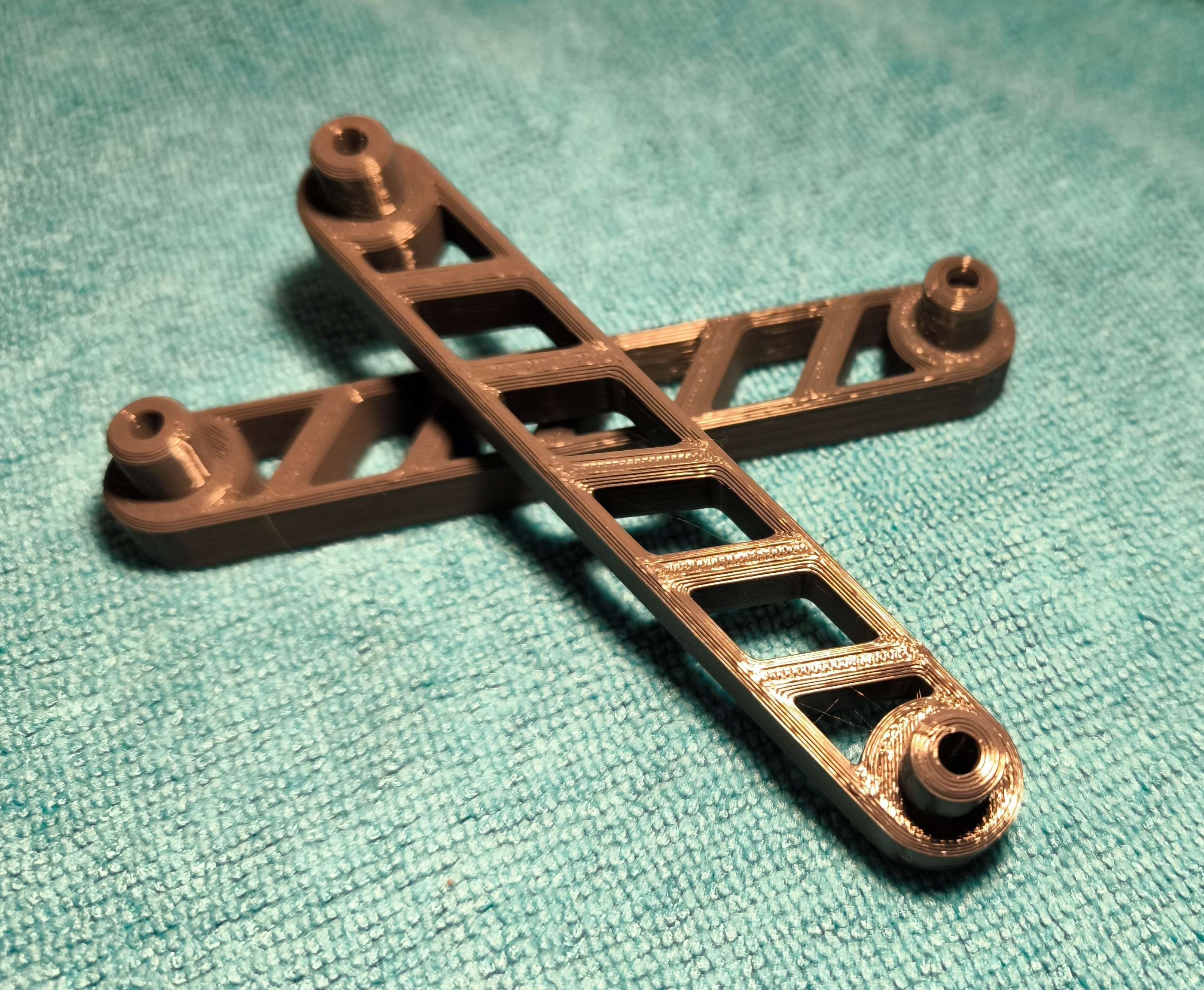

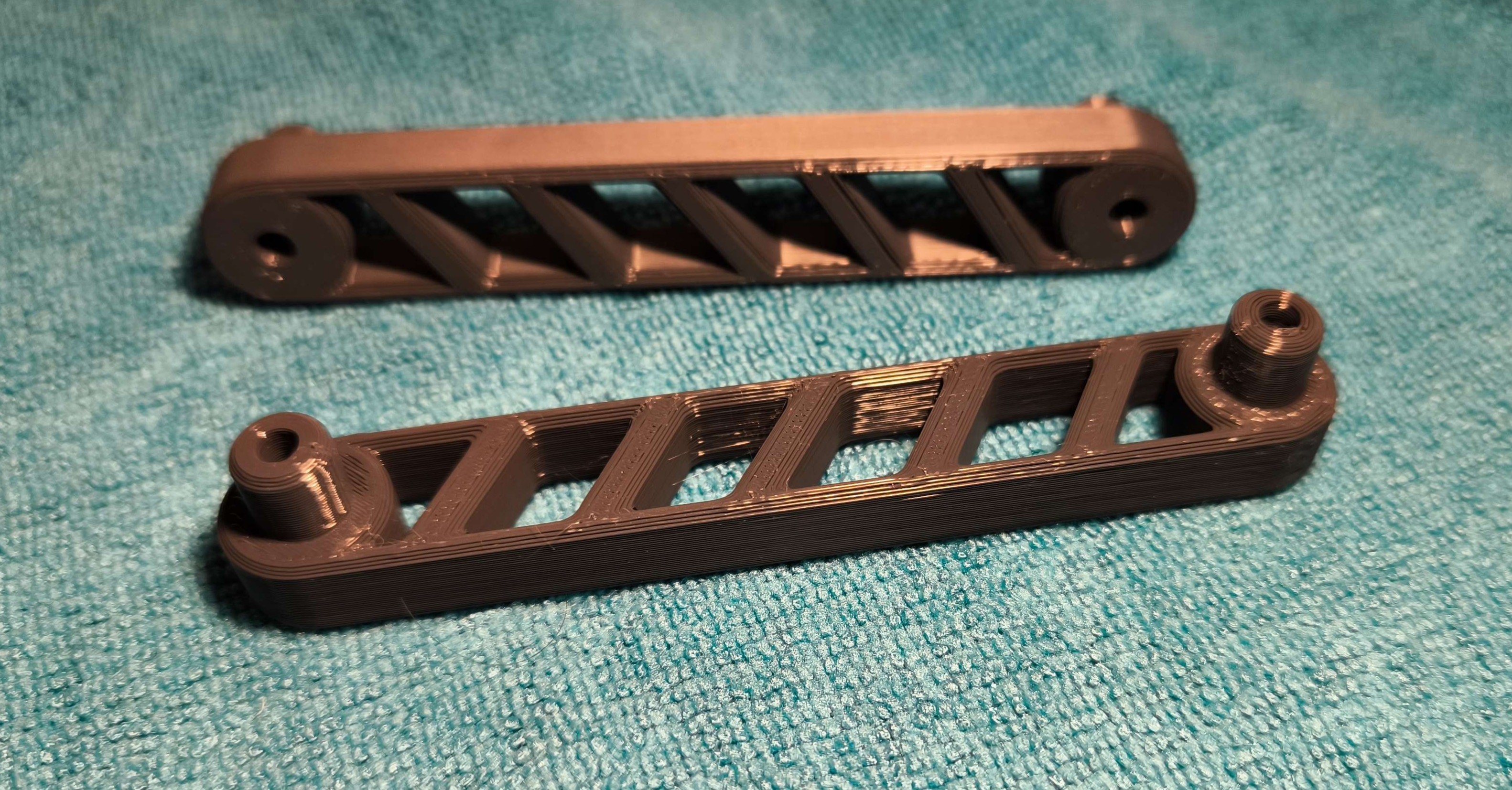

1 cm Riser / Feet for KRUPS Essenza Automatic
About this model

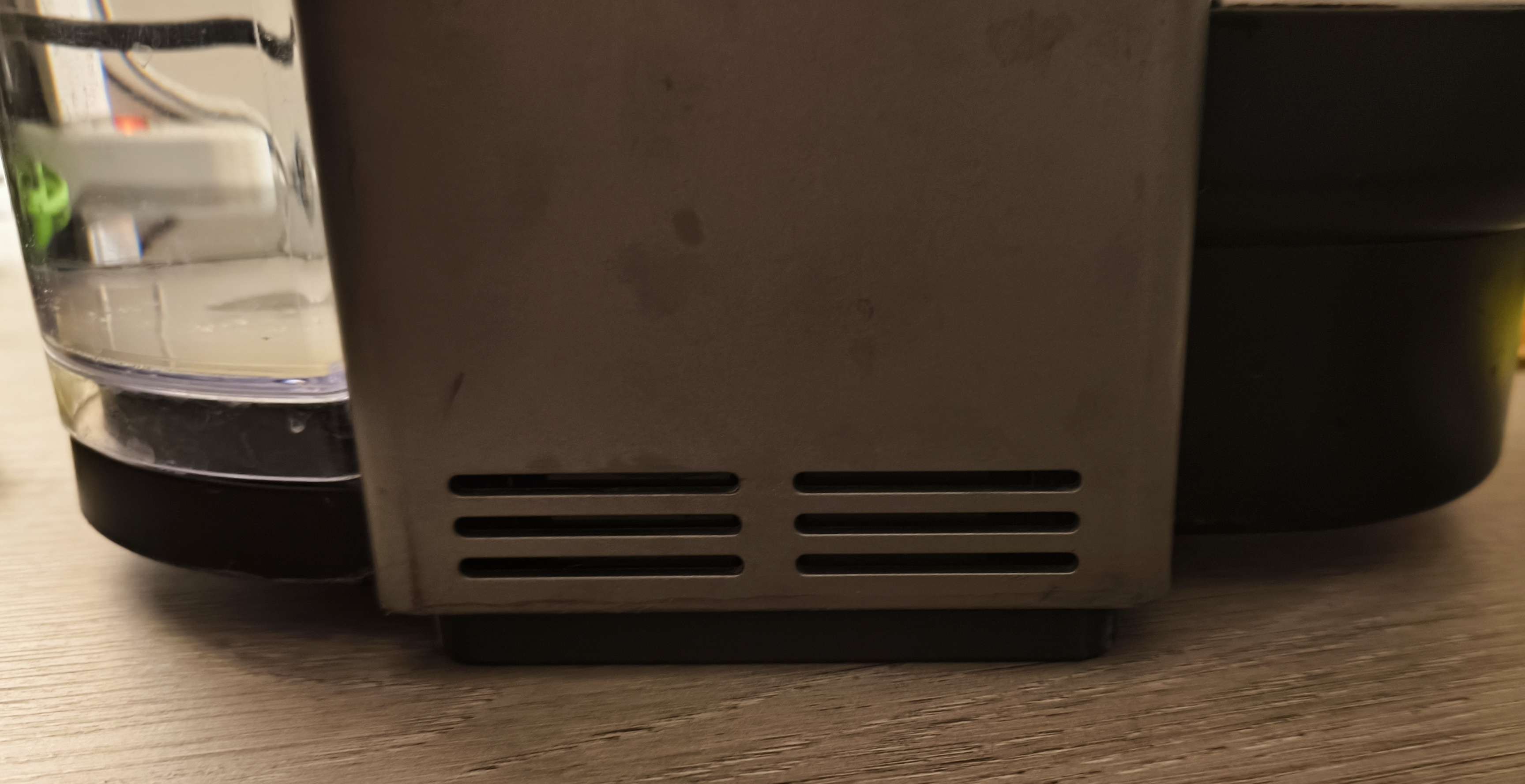

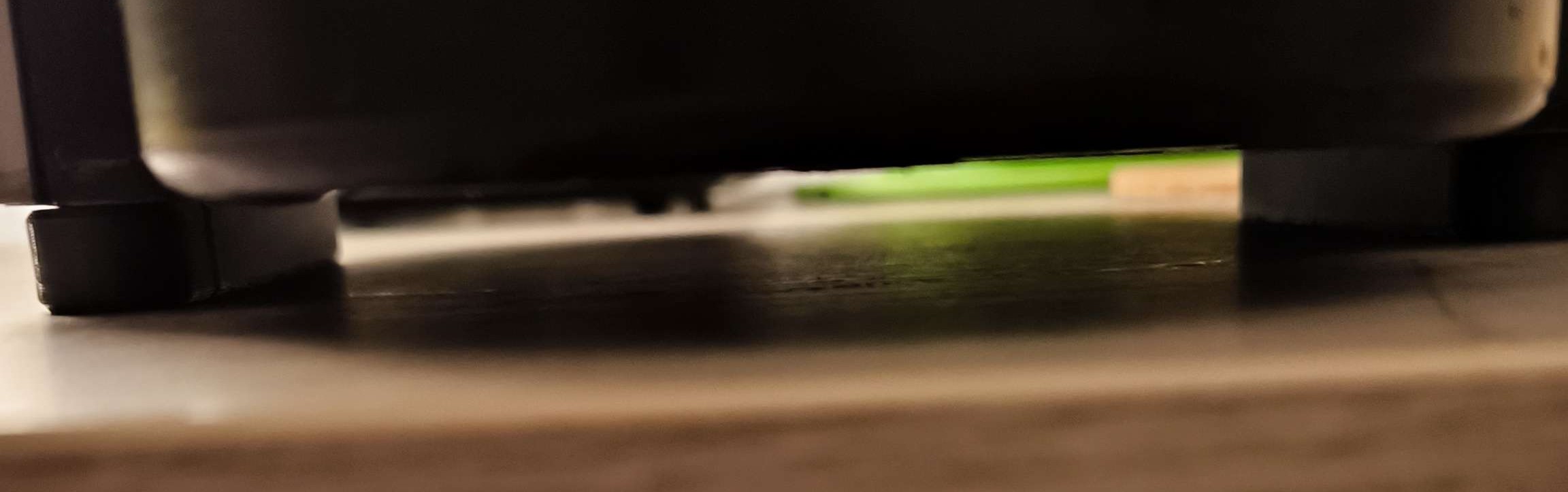

My KRUPS Essenza Automatic has a leak when making coffee, and I haven't been able to figure out exactly where the water is coming from. To help the water drain out and prevent it from pooling underneath the device, I designed these risers to lift the machine by 1 cm.
Design Features

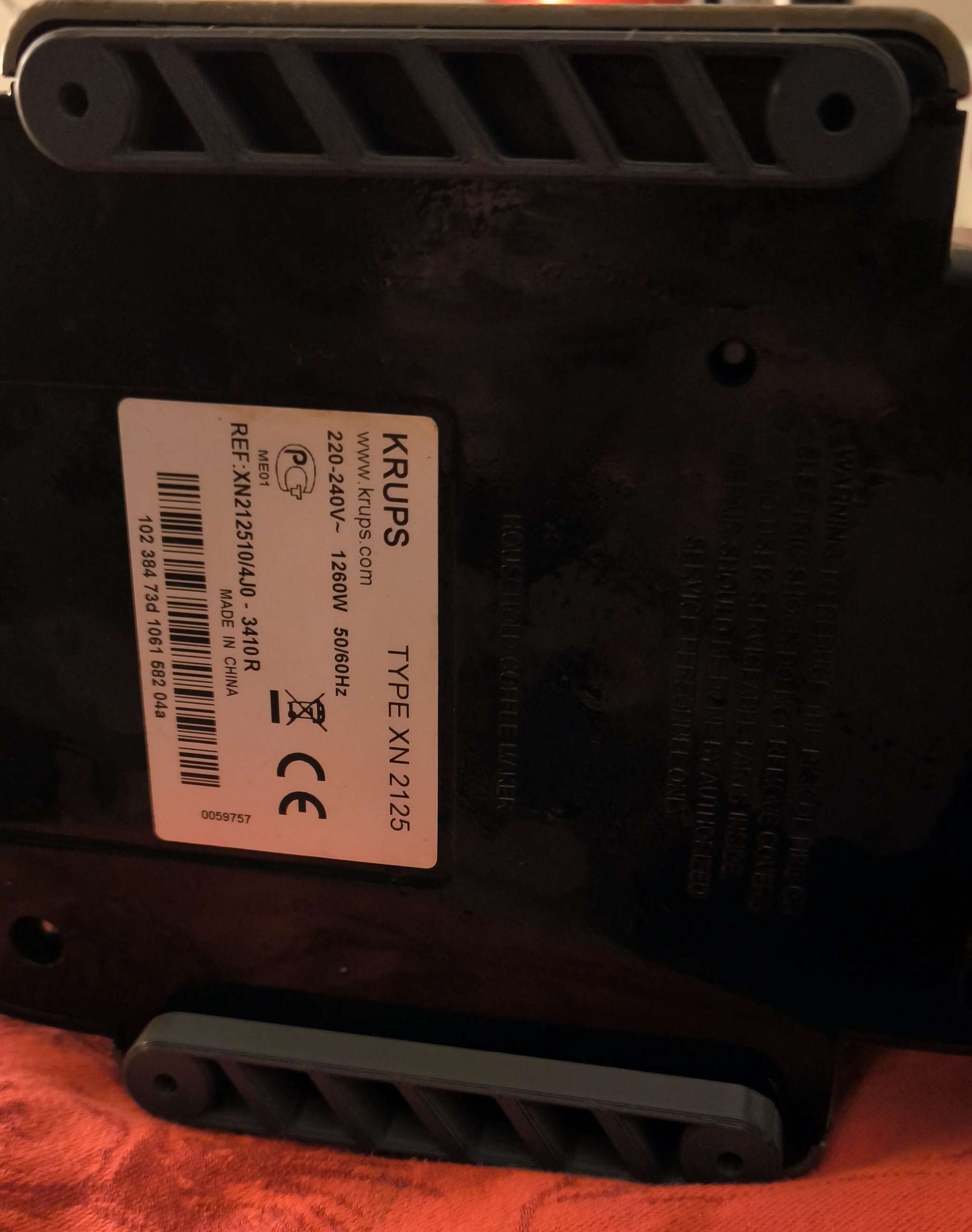

Easy Installation: Designed with a snug fit, these risers can be inserted directly and firmly into the existing screw holes under the machine. No glue or extra hardware required.
Compatibility: Modeled specifically for the KRUPS Essenza Automatic, but it may also work with other models that share the same chassis base.
Print Instructions
Quantity: You need to print 2 units.
Infill: The part can technically be printed with 0% infill, but 5 % at least is recommended to ensure good structural integrity under the weight of the coffee machine.
Material: PLA is sufficient.
If you want to adapt this for another project, the peg diameter is 9.1 mm, and the distance between the two holes is 90 mm.
Note: The PLA I used for the prototype looks much worse in photos than it does in real life.
