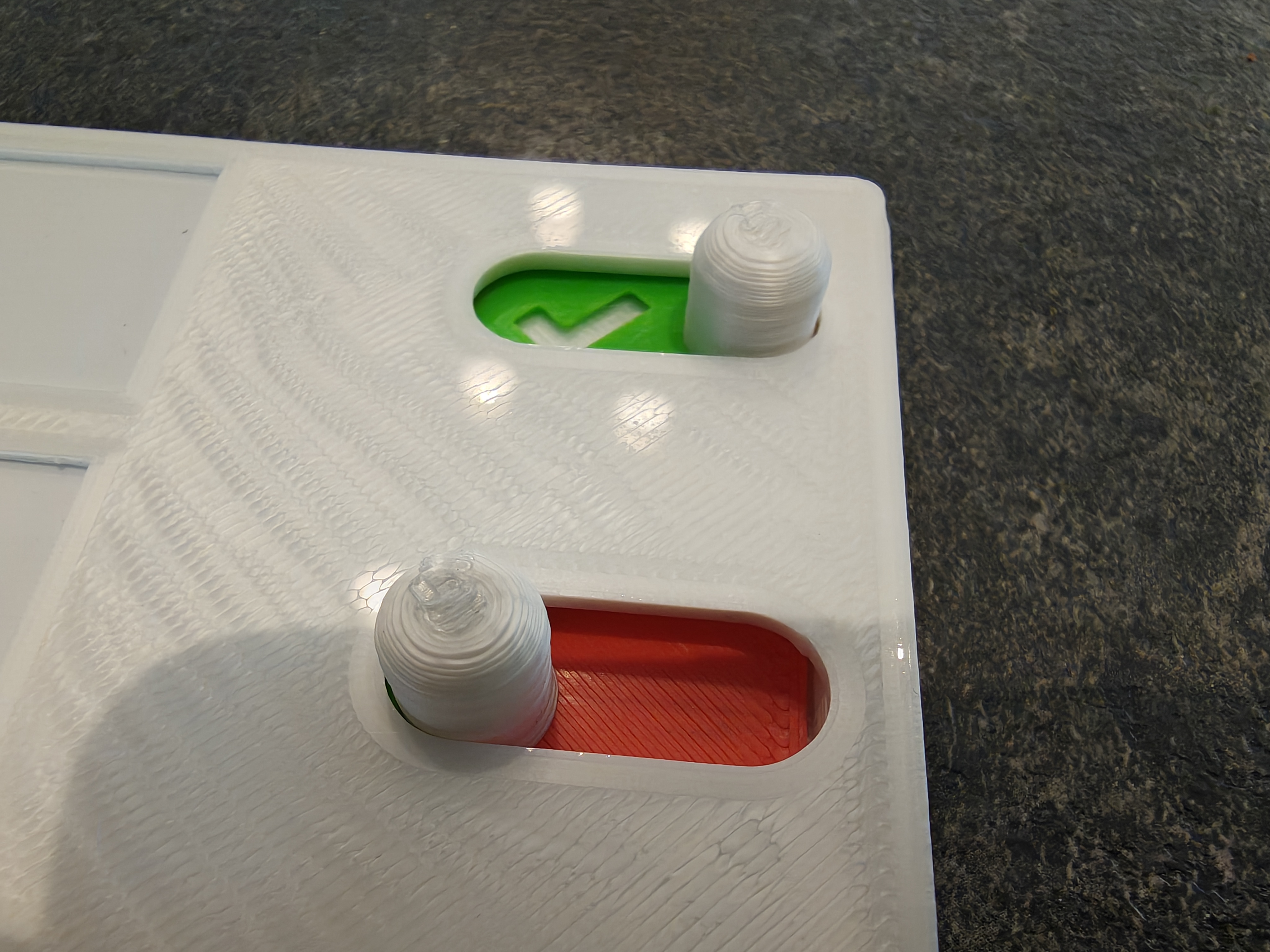

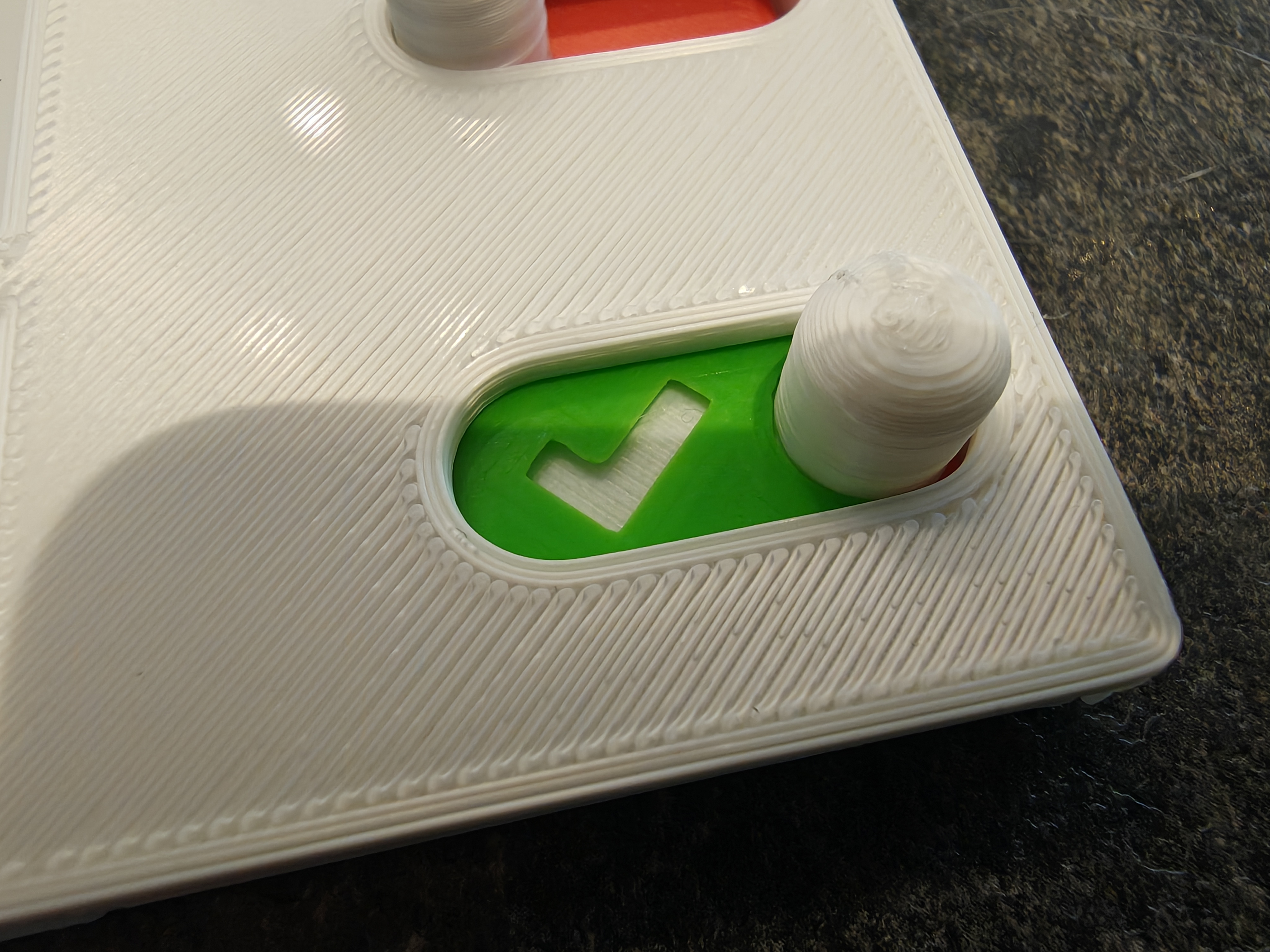

All part can be printed without supports and without color change mid print. You only need red,green and another color filament. tolerances are critical for a smooth snappy operation of the checkmark switch. No glue or screws are needed, Everything snaps in-place and the magnets are loose between the parts.

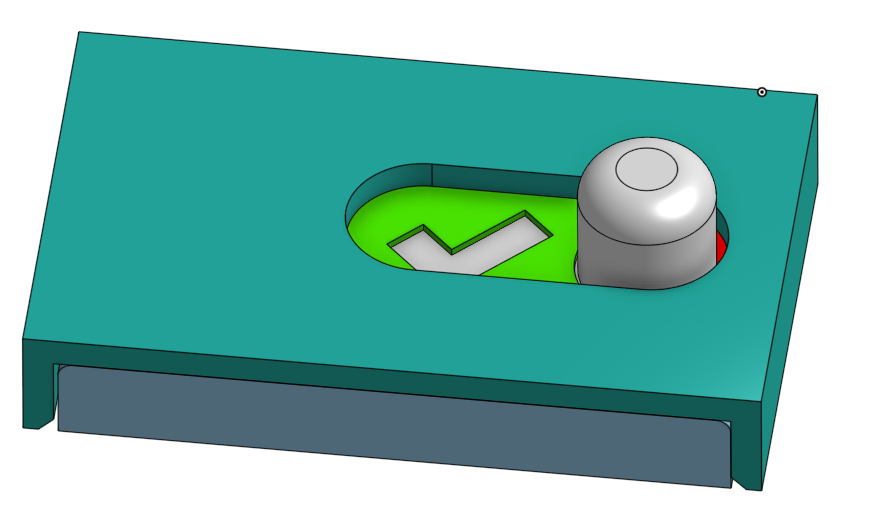

It is best to first print the parts for the test/fidget assembly to test if the operation is good.

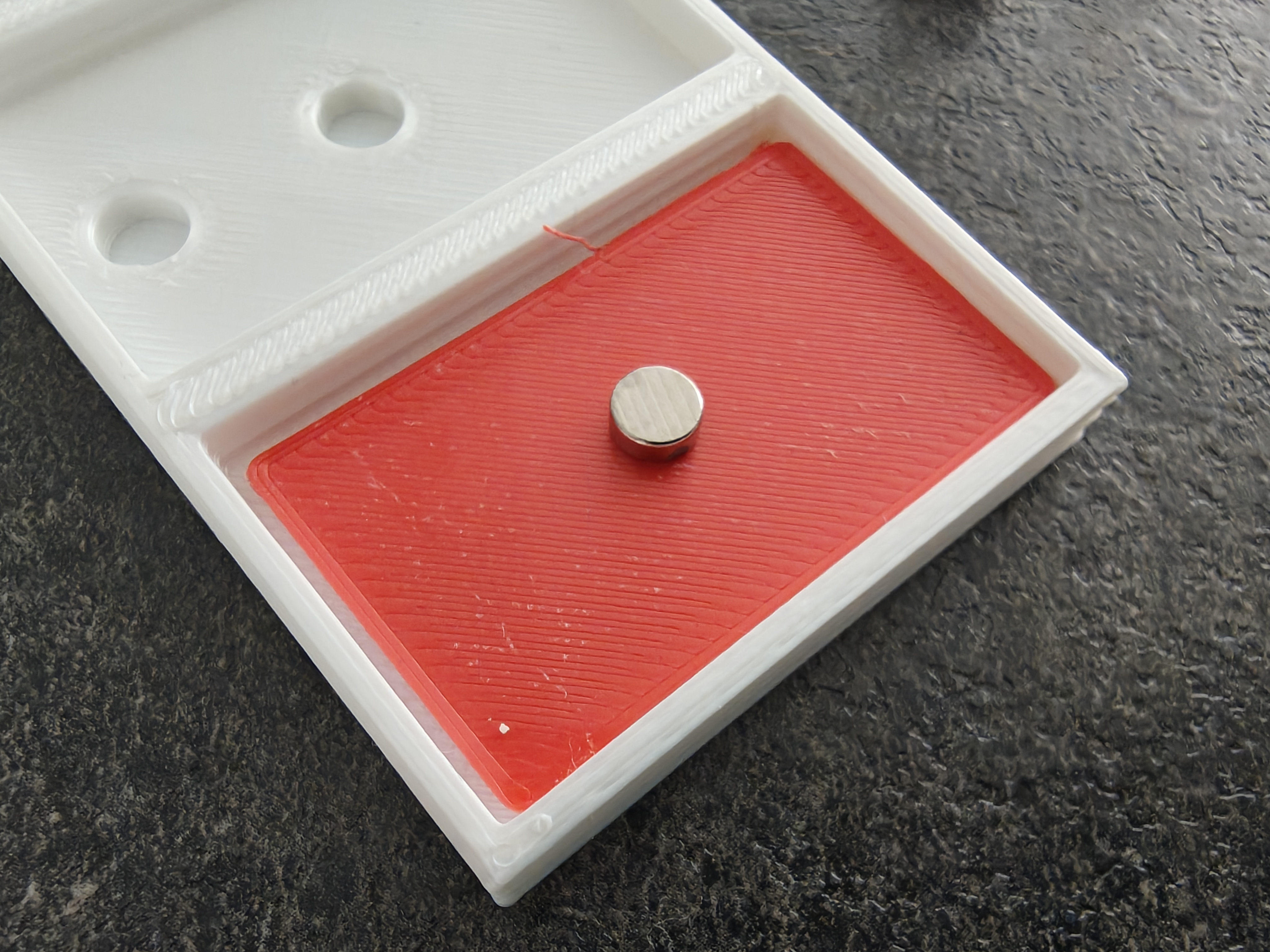

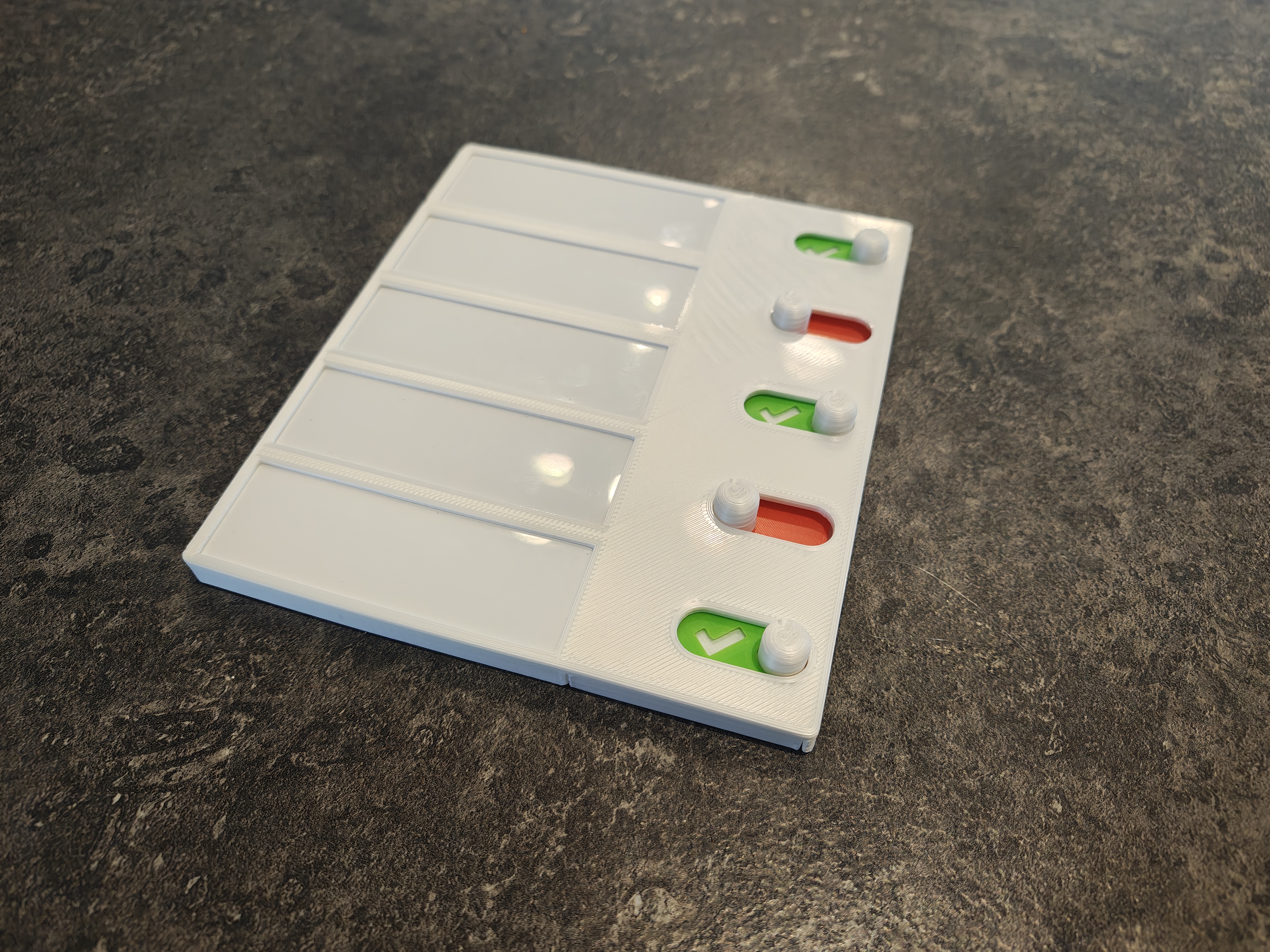

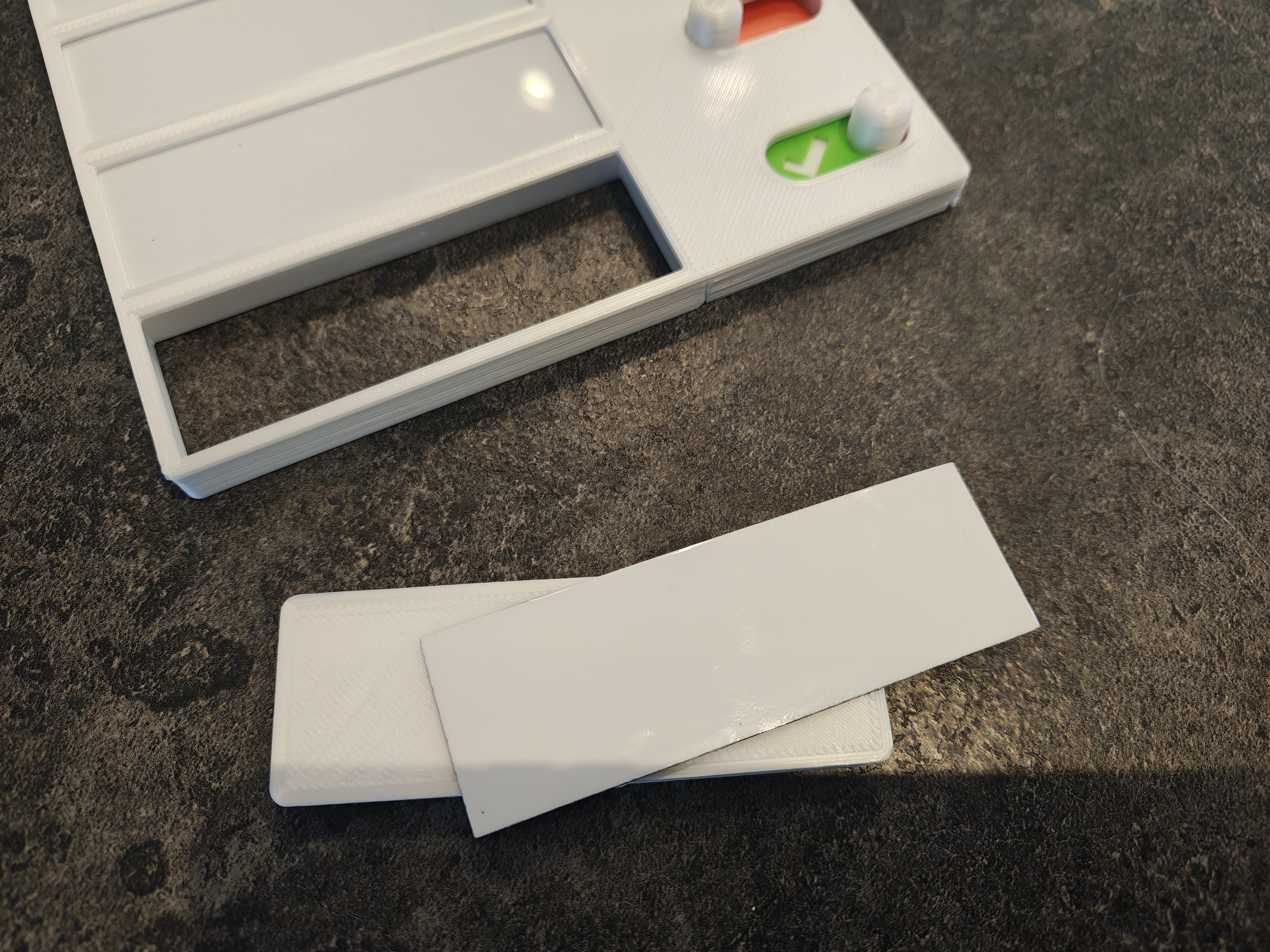

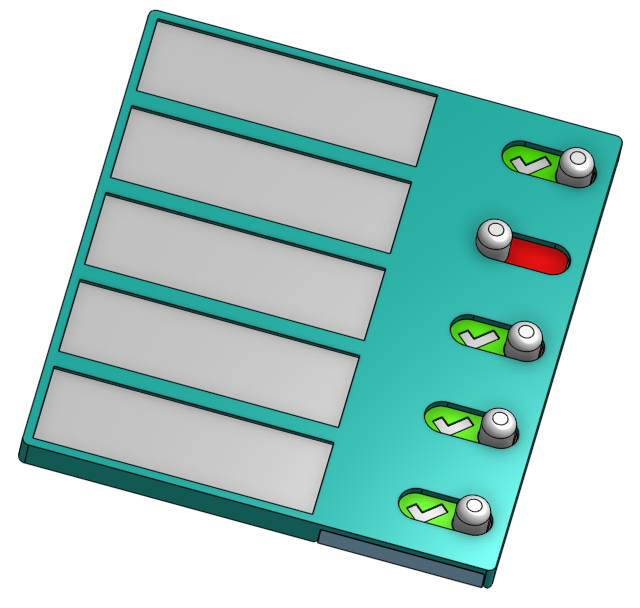

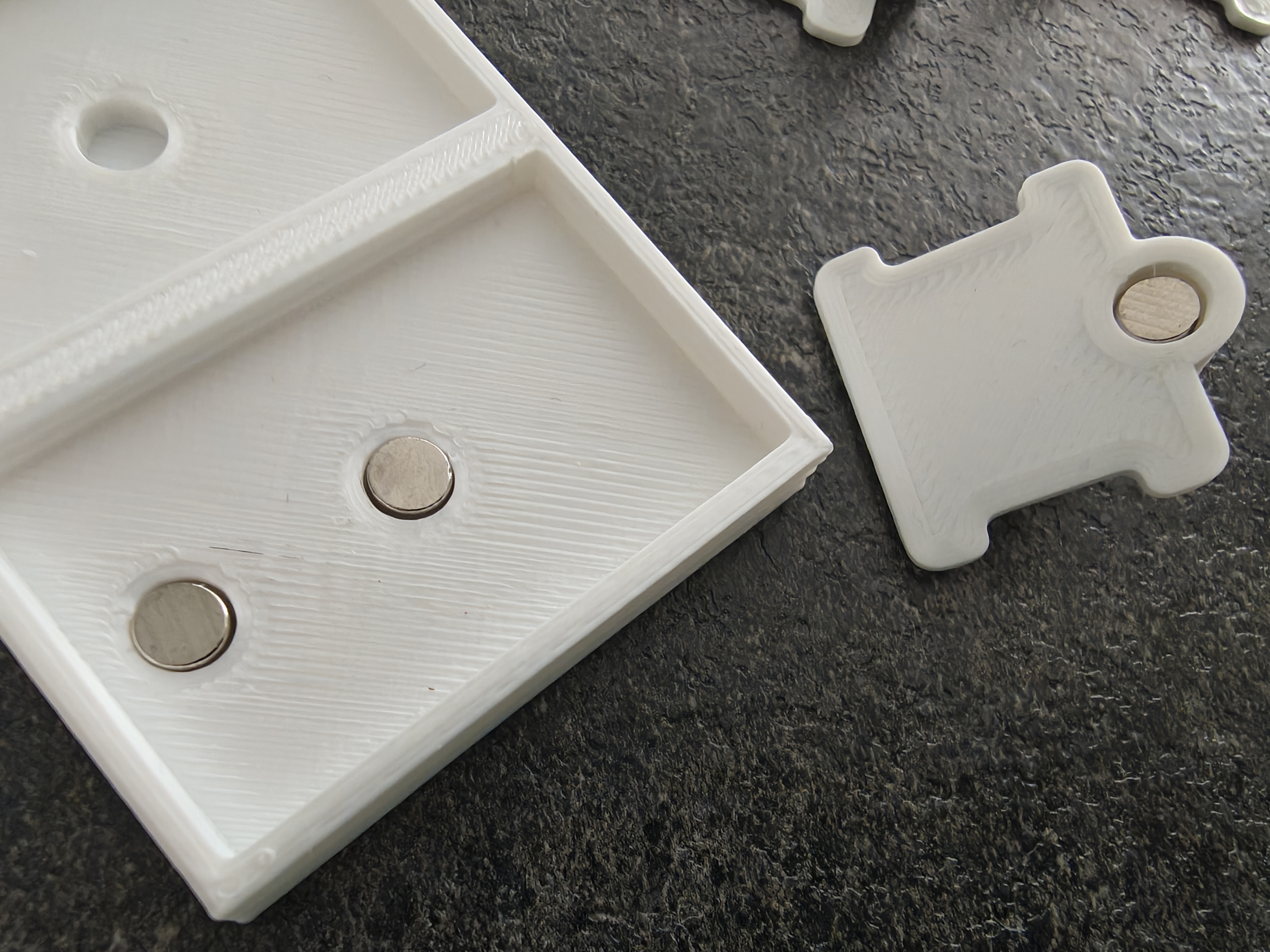

For the complete checklist model you need 15 2x5mm magnets and 5 25x76mm whiteboard labels
Round Magnets: 2mm thick and diameter of 5mm
Whiteboard Labels: LLPT Whiteboard labels 2,5 cm x 7,6 https://www.amazon.nl/dp/B0CS9KGDM1?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Designed with onshape:
