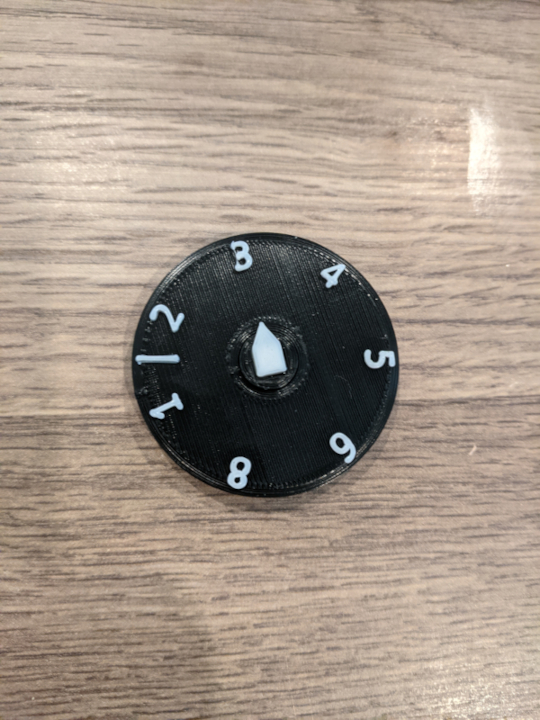

I've started experimenting with different nozzle sizes and didn't want to accidentally run a gcode through the printer for the wrong nozzle, so I made up this simple indicator to quickly see which nozzle is currently installed. The arrow stays in place and the outer labels rotate.
I made this in FreeCAD and it really didn't like trying to create a 0, and I knew printing a decimal would be difficult, so I left it as:
2 for 0.2mm
3 for 0.3mm
4 for 0.4mm
5 for 0.5mm
6 for 0.6mm
8 for 0.8mm
1 for 1.0mm
I added the bar between 1 and 2 to indicate the start/end position for the label
Assembly instructions:

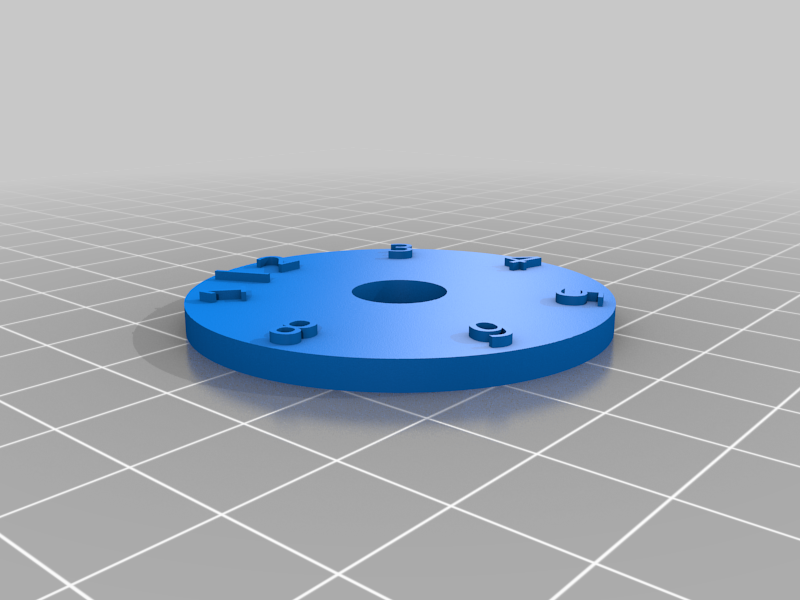

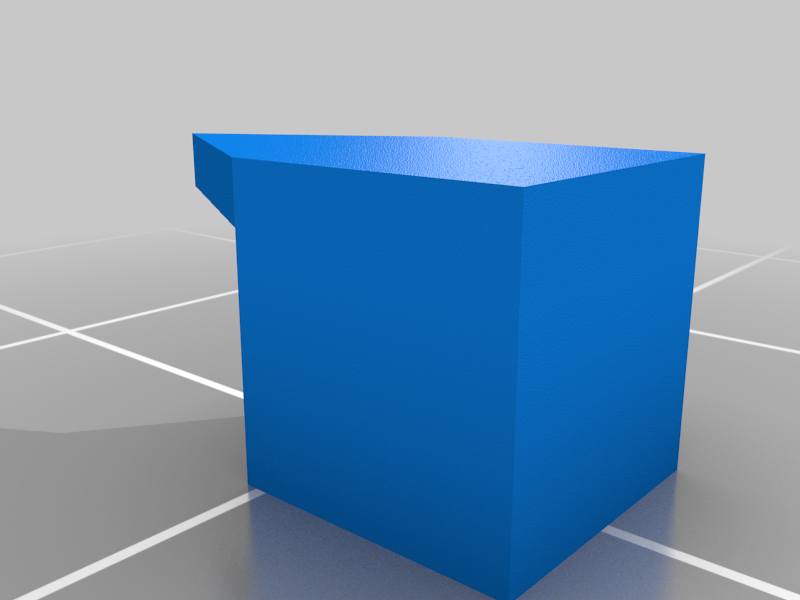

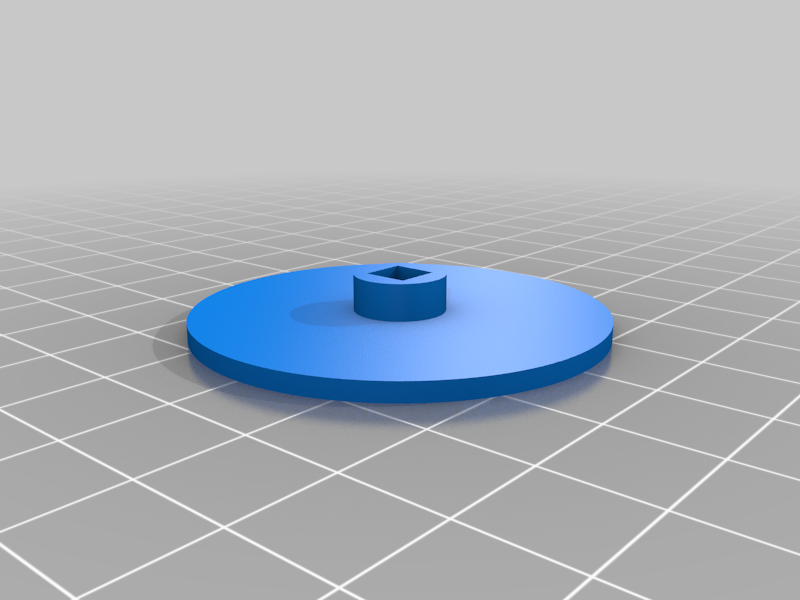

The Backplate has the Labels placed over it, then the Arrow. I superglued my arrow in to keep it all together.
Print Settings
Printer Brand:
Creality
Printer:
Ender 3 Pro
Rafts:
No
Supports:
No
Resolution:
200
Infill:
20
Filament: Hatchbox and SUNLU PLA Black and White, respectively
Notes:
I did a filament change midway to get the color change for the Labels.stl
