FanMount v2 for BeamCaseSFF
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Computers
- Licencja
- GNU Lesser General Public License
This is version 2 of the 2 Fans Mount for the BeamCaseSFF with mounts for 120mm and 140mm fans.

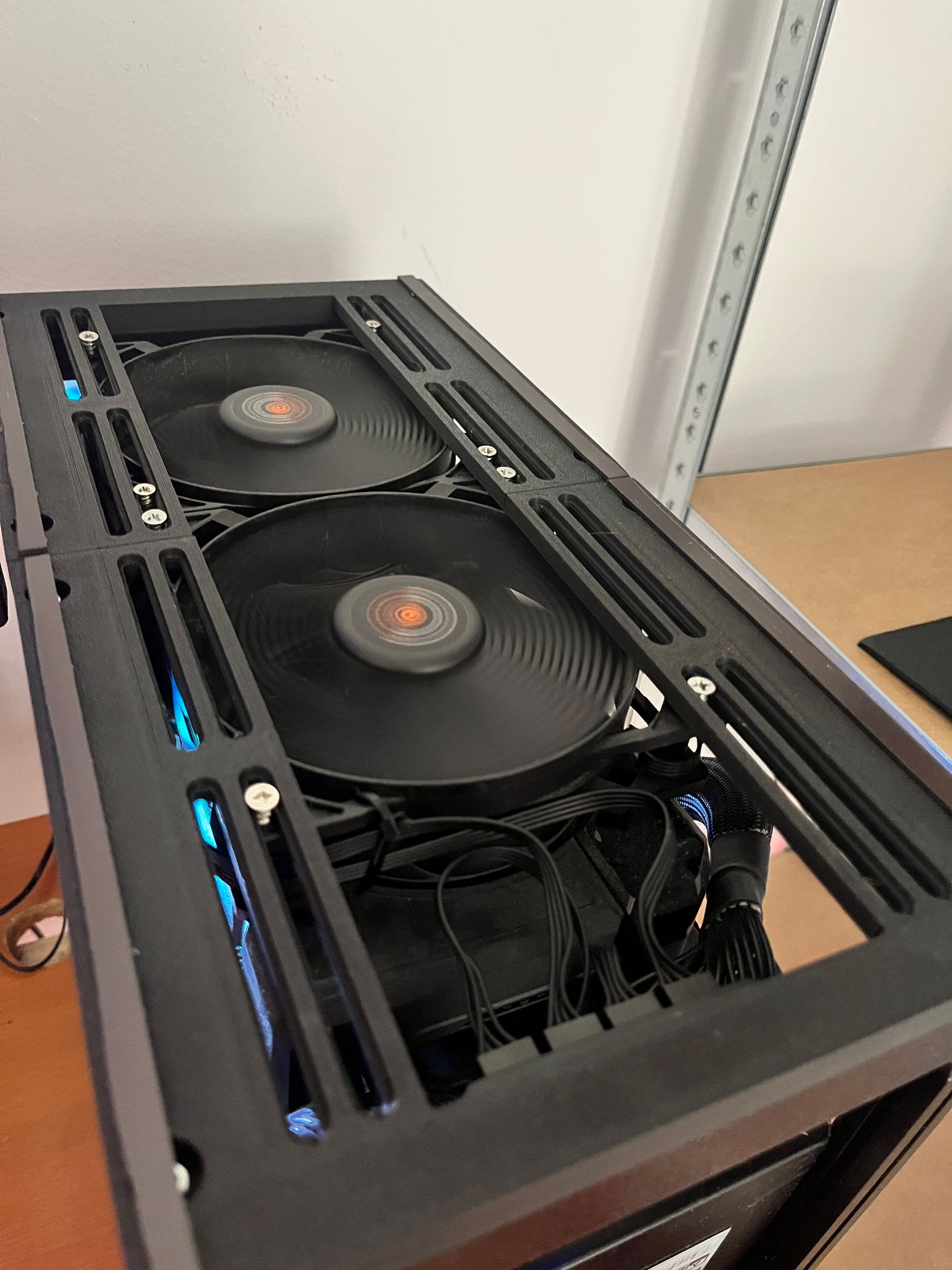

-Depending on the orientation of your case, these are either top or bottom case fans mount. they are especially put on the same side as the gpu, either to the back or to the front . if you have 2 slot gpu in a 3 slot case you can fit normal fans, if you have a thicker gpu the options are slim fans or change the thickness to the 20mm (haven't test it with this configuration) if you have the case with the 3 slots.
-I additionally made an height increased versions of the fan mounts to accommodate fans with 25 mm height they are the same as the previous with minor tweaks in design and with the height it will be flush with the beams, so it does not intrude with the interior of the case, you can even put 30 mm fans but then you cannot mount a 3 slot gpu in there.
-you will need two of these for a side, one thing in mind this is my own version and I extended them to 320 in length. you may need to adjust the holes of the panel in order to fit with the holes of the BeamCaseSFF panels or you can magnetic band attach the panels tot he mounts ( I added the modified mounts for the standard BeamCaseSFF, with the 300mm aluminum profiles).
-for the 0mm thickness 6mm bolts are needed, for the 5mm thickness 10mm bolts are needed, for the rest of the thicknesses just the 10 mm will fit perfectly. Another mention is that for the 0mm thickness you should use sunken screws, for the rest of the thicknesses hex screws.
-Also, I need to mention that i didn't have time to make photos because I haven't printed the mounts myself, they are actually version 3 because I modeled some iterations of the first version and i ran those for some time, but I felt like I need to make some changes and here we are. I will update with photos the model.
-For printing, add a modifier to enforce the fan mount part with higher wall count and infill density.
