Prusa CoreOneL Waste Bin

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Other Printer Parts & Upgrades
Licencja
Creative Commons — Attribution — Noncommercial — Share Alike
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

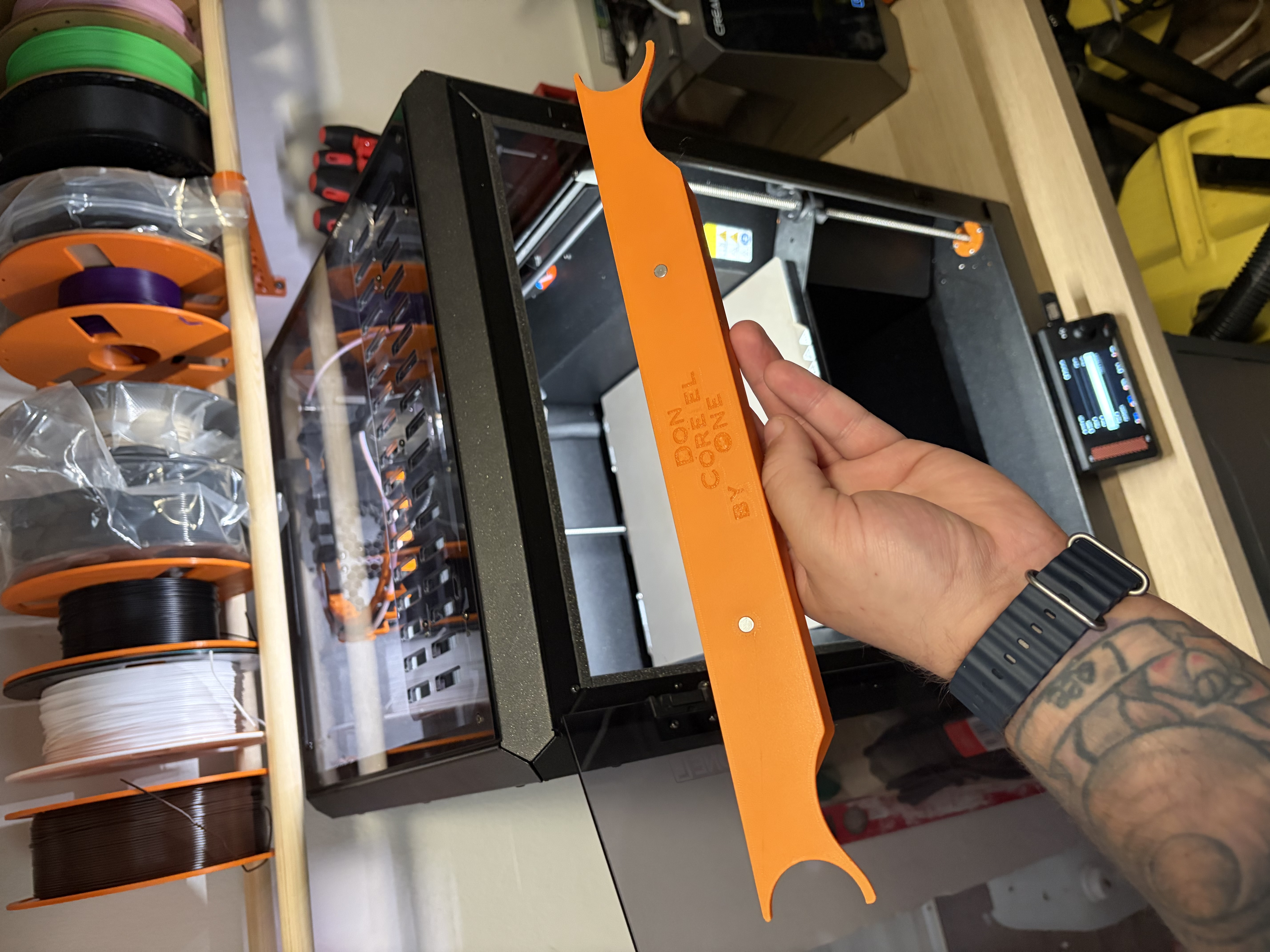

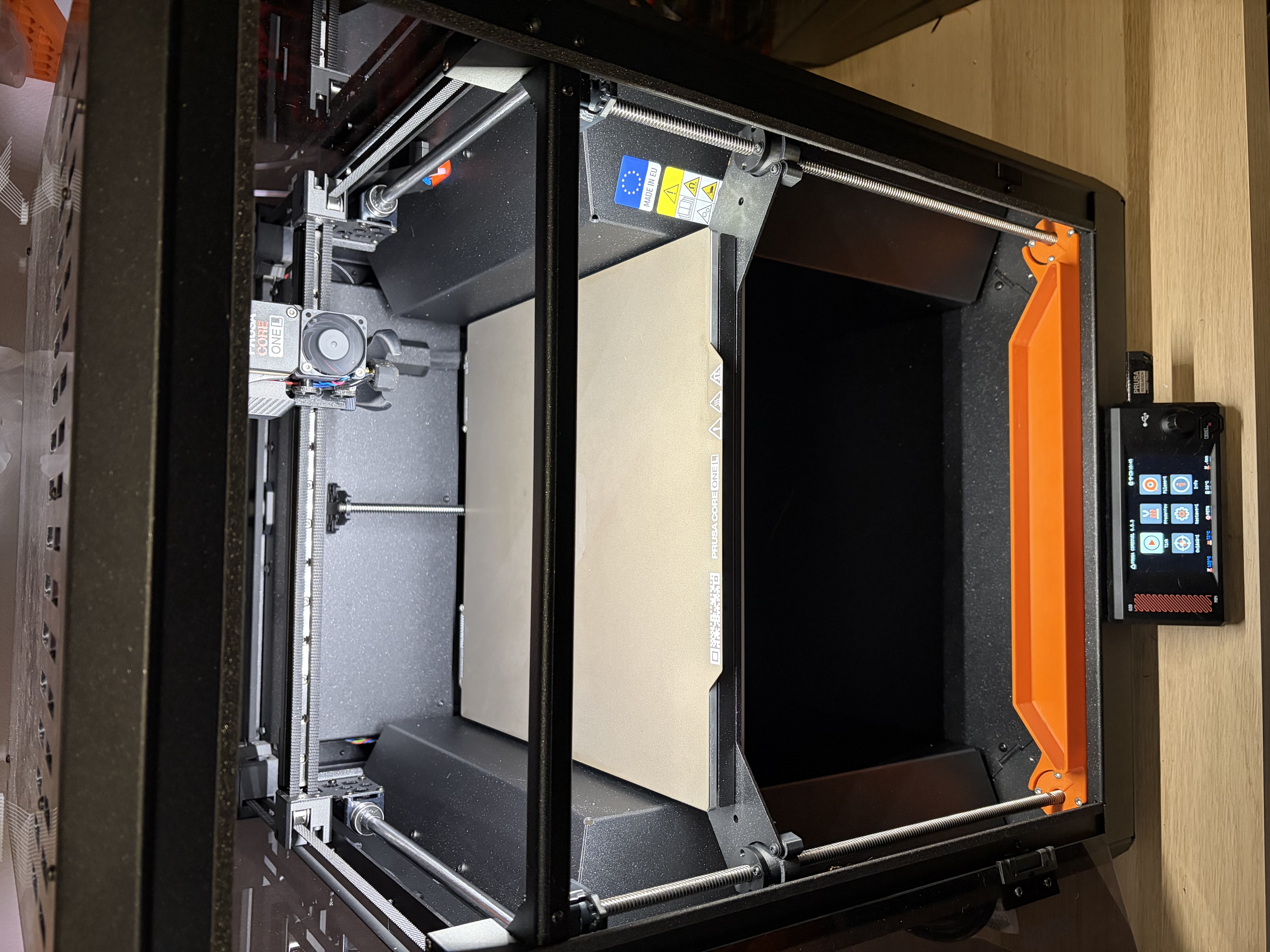

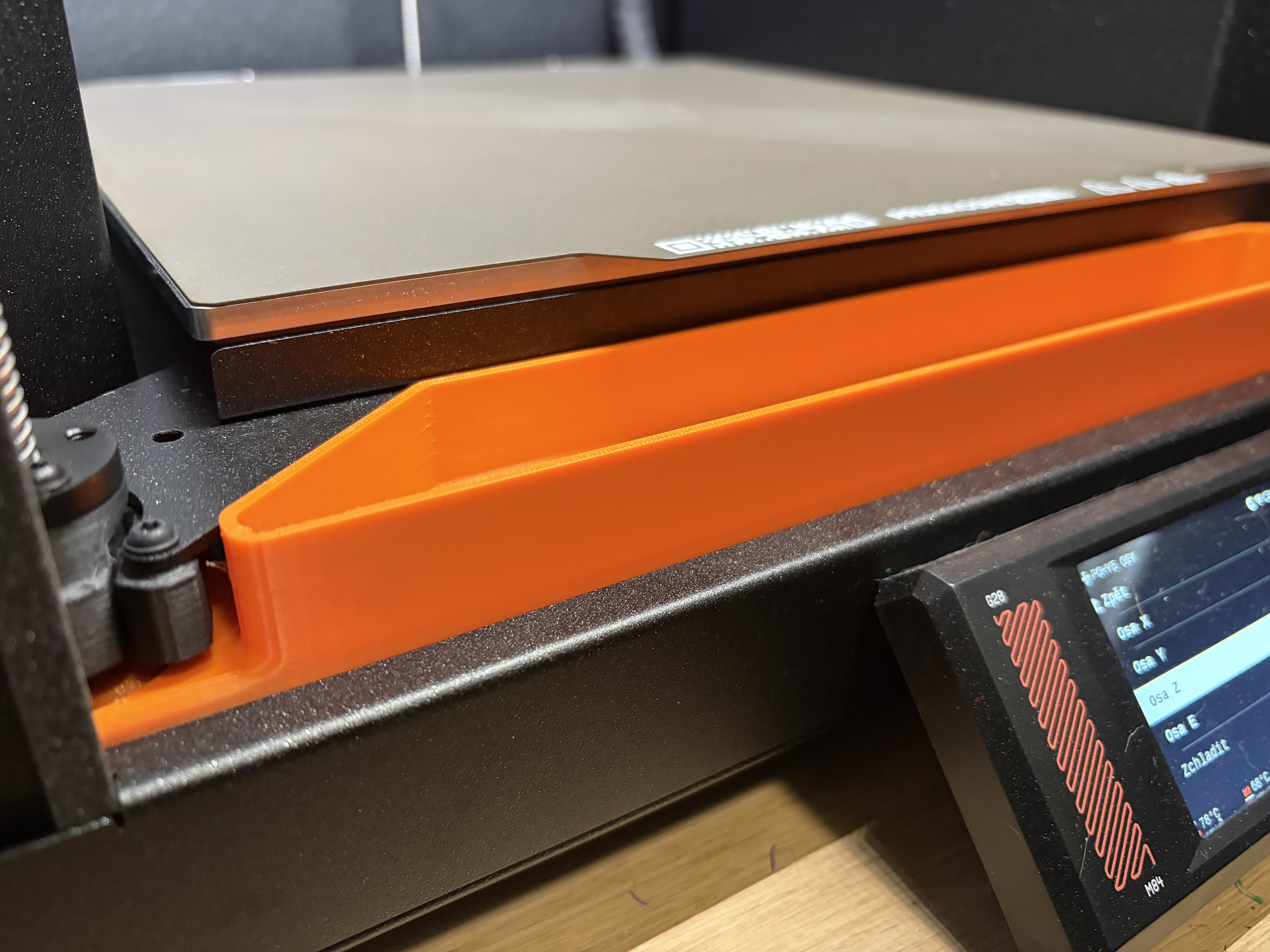

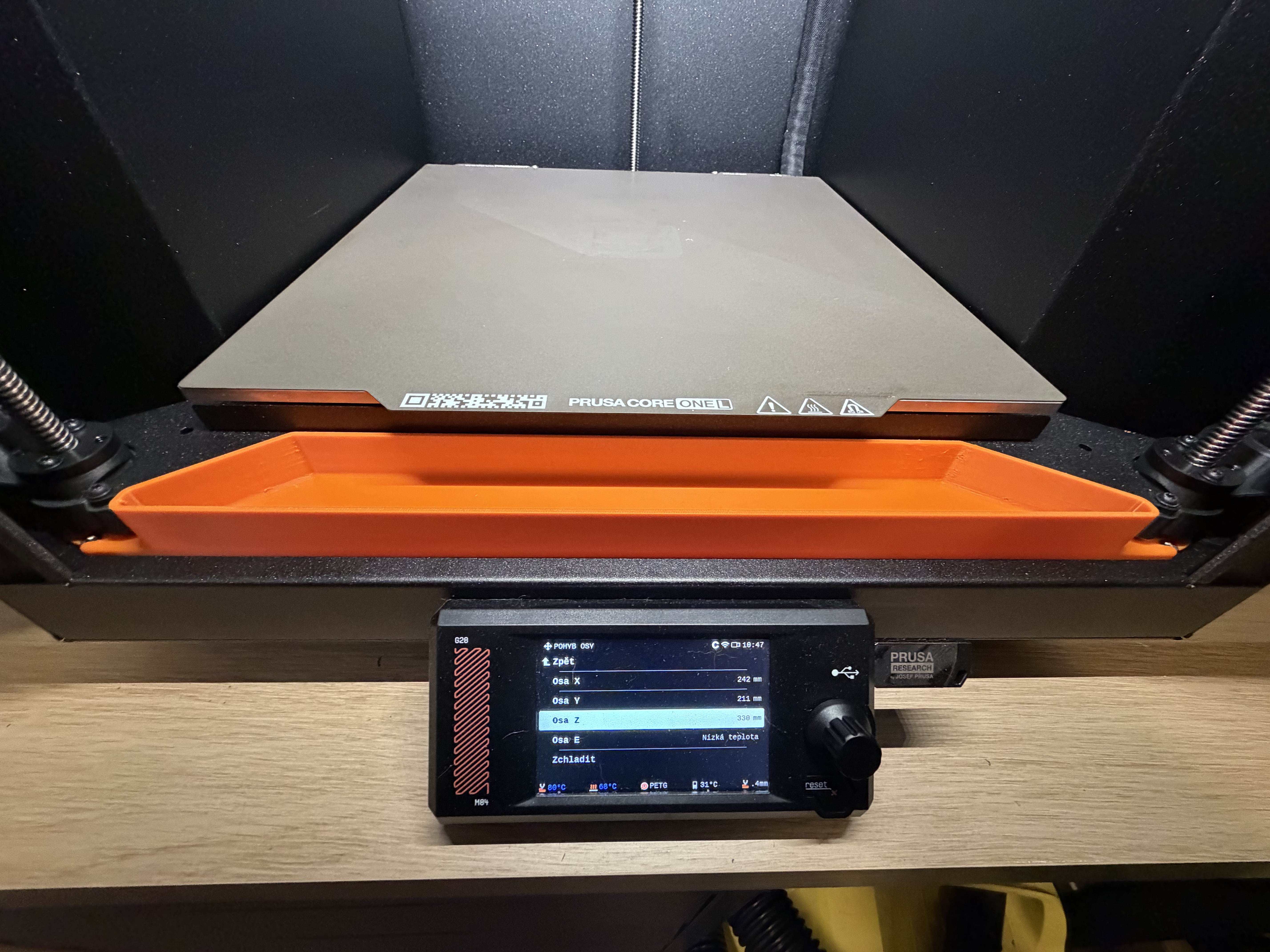

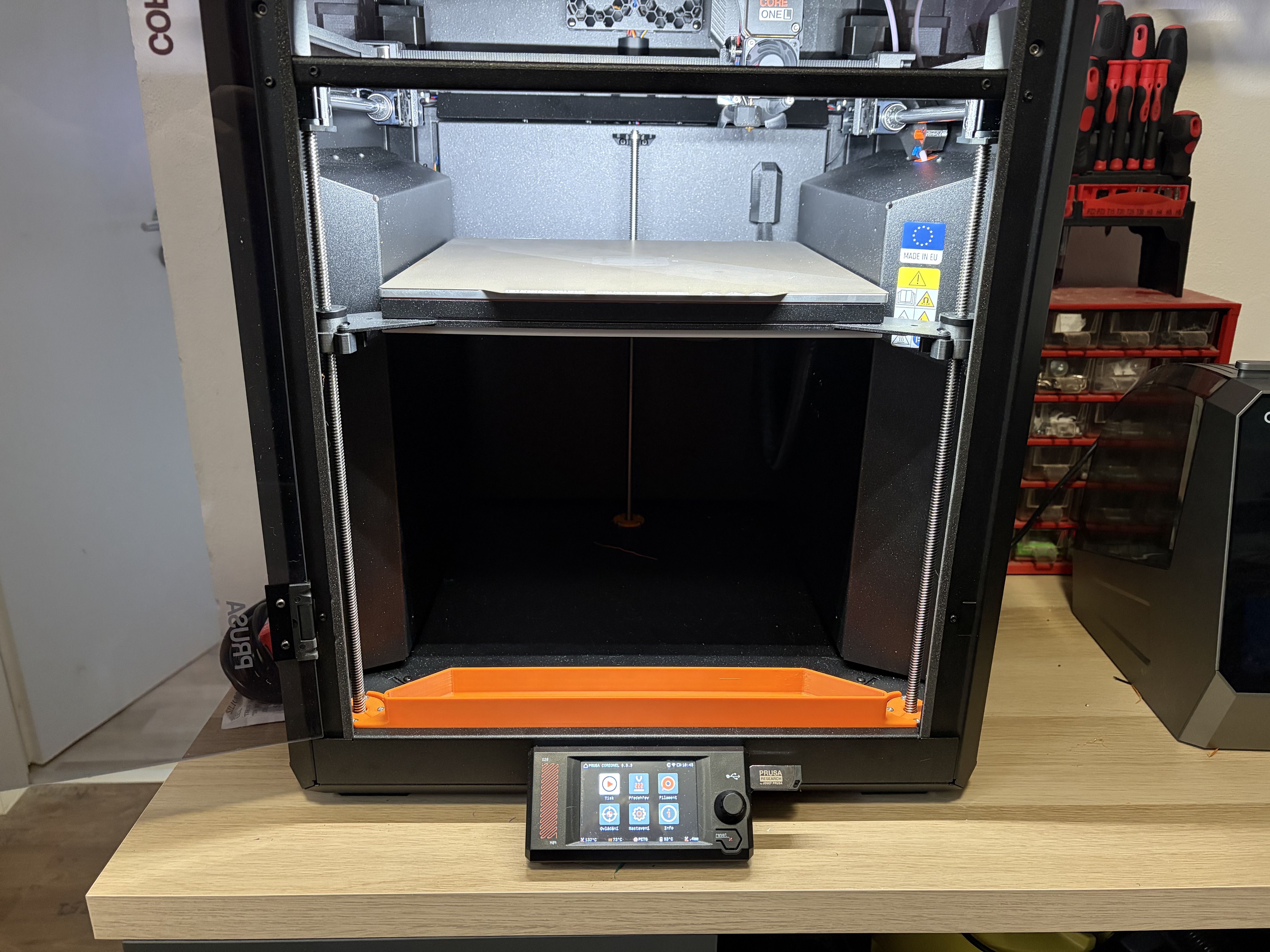

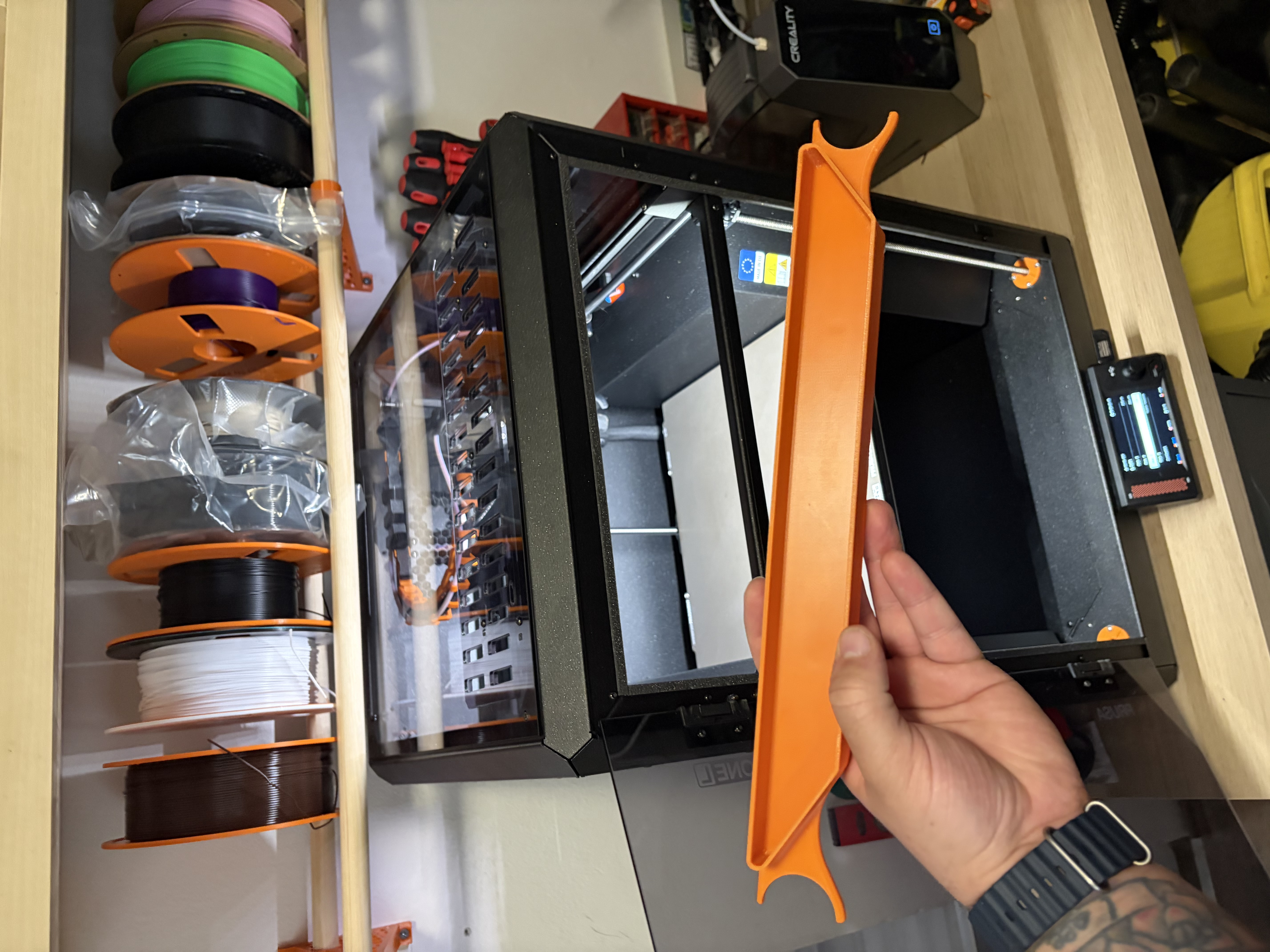

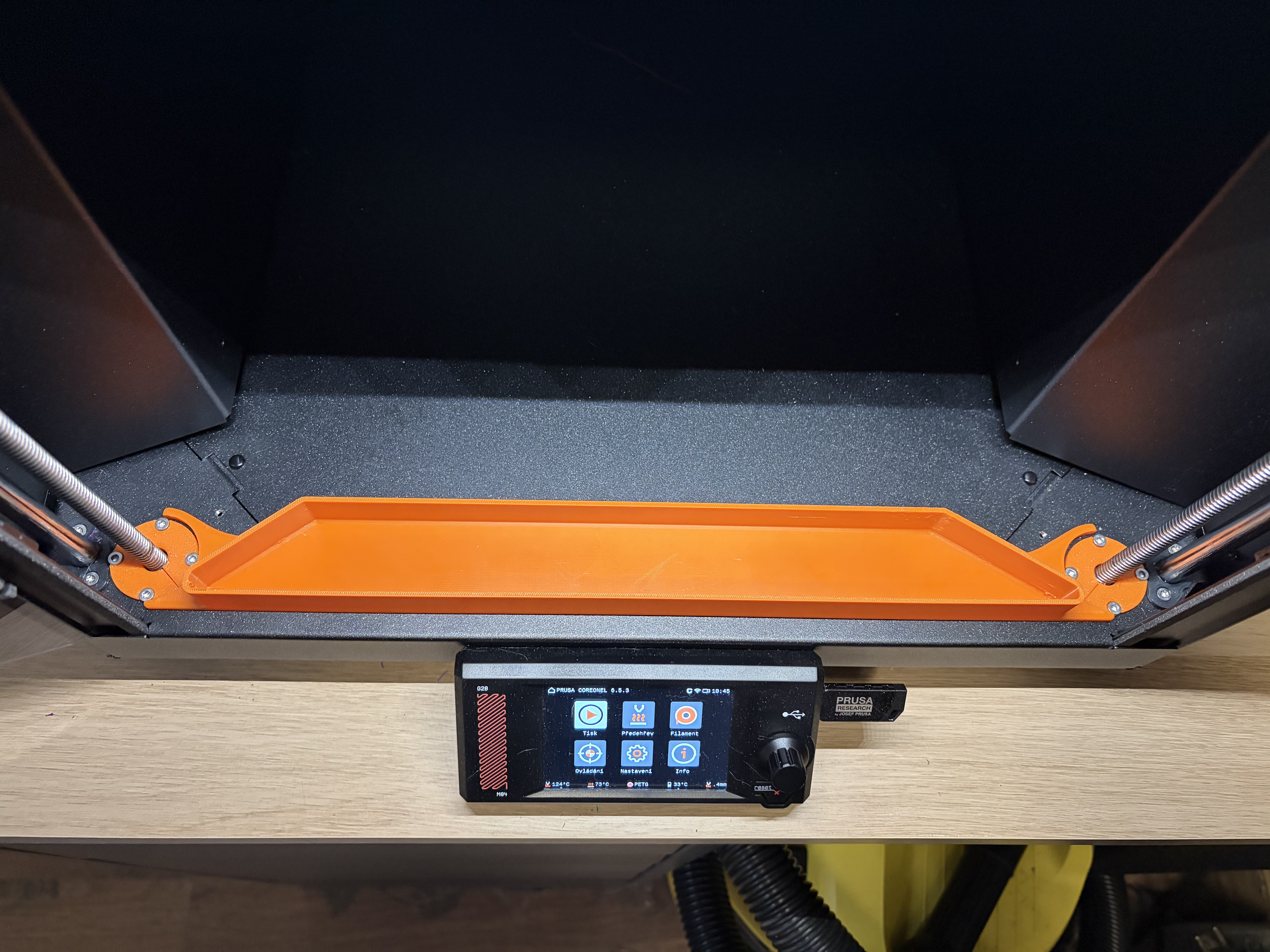

This is a compact waste bin designed specifically for the Prusa Core One L, helping you keep the inside of your printer clean and tidy.

During printing, filament purges, stringing, and small leftovers tend to accumulate inside the printer. This bin gives you a simple and convenient place to dispose of them instead of letting them scatter around the build chamber.

Key features:

  • designed for Prusa Core One L

  • keeps filament waste contained and out of the way – collecting purge lines and disposing of filament leftovers

  • quick and easy installation

  • clean, minimal design matching the printer interior

  • optional magnetic mounting

Mounting:

For a more secure hold, you can insert 2× magnets (Ø6 mm × 2 mm), but it also works fine without them.

Compatibility:

  • fully compatible with stock Core One L setup

  • shown in photos with dust covers by @dancan13f, but works perfectly with or without them

Design notes:

The model was created from scratch based on official Prusa CAD files:
https://www.printables.com/model/1520379-prusa-core-one-l-full-cad-assembly

Dust covers used in photos:
https://www.printables.com/model/1235883-prusa-core-onel-dust-protector

Printing notes:

  • recommended material: PETG or PLA

  • infill: 15–25%

  • no supports required

  • print orientation as provided in STL

Tagi

prusawastebindustbincoreonel
