Centauri Carbon Ventilation System

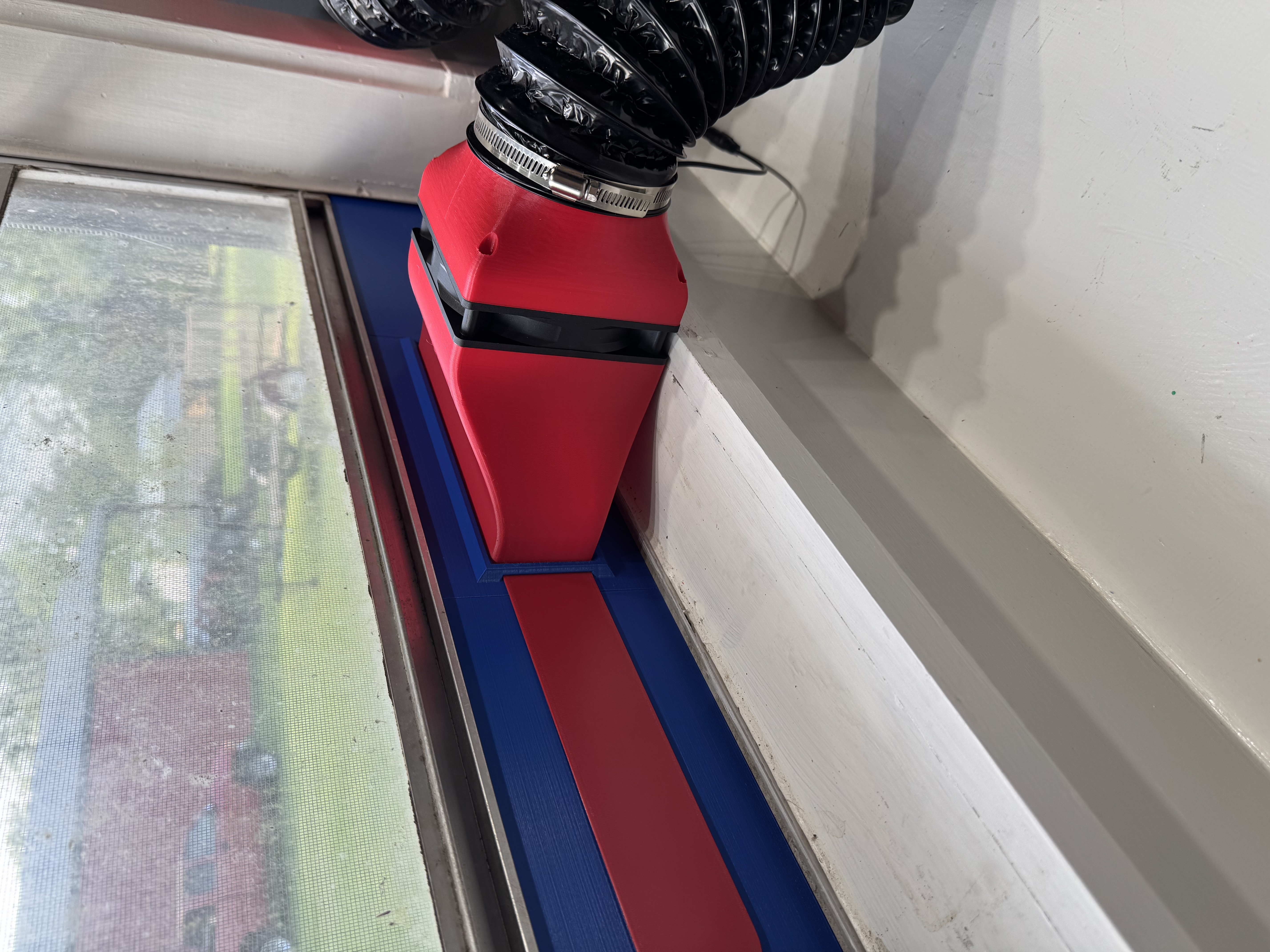

Will need 46 (6x3) magnets, 4in dryer vent hose, and 120mm fan. I used the stock screws. The manifold that goes on the back of the printer is dovetail cut to fit using orca slicer but I also provided the step files and 3mf of the whole thing and cut versions. PETG was used. I recommend 6 walls for the piece that goes into the window plate if you will be using the slide door, it's a tight fit and will require working it in but the seal is perfect after working it smooth. the window plate can be made out of wood but I made one to print with dovetail connections. It will fit a 35in window. I also removed the filter in the printer too, this way it flows better and I know for sure everything is getting sucked out.
