Description:

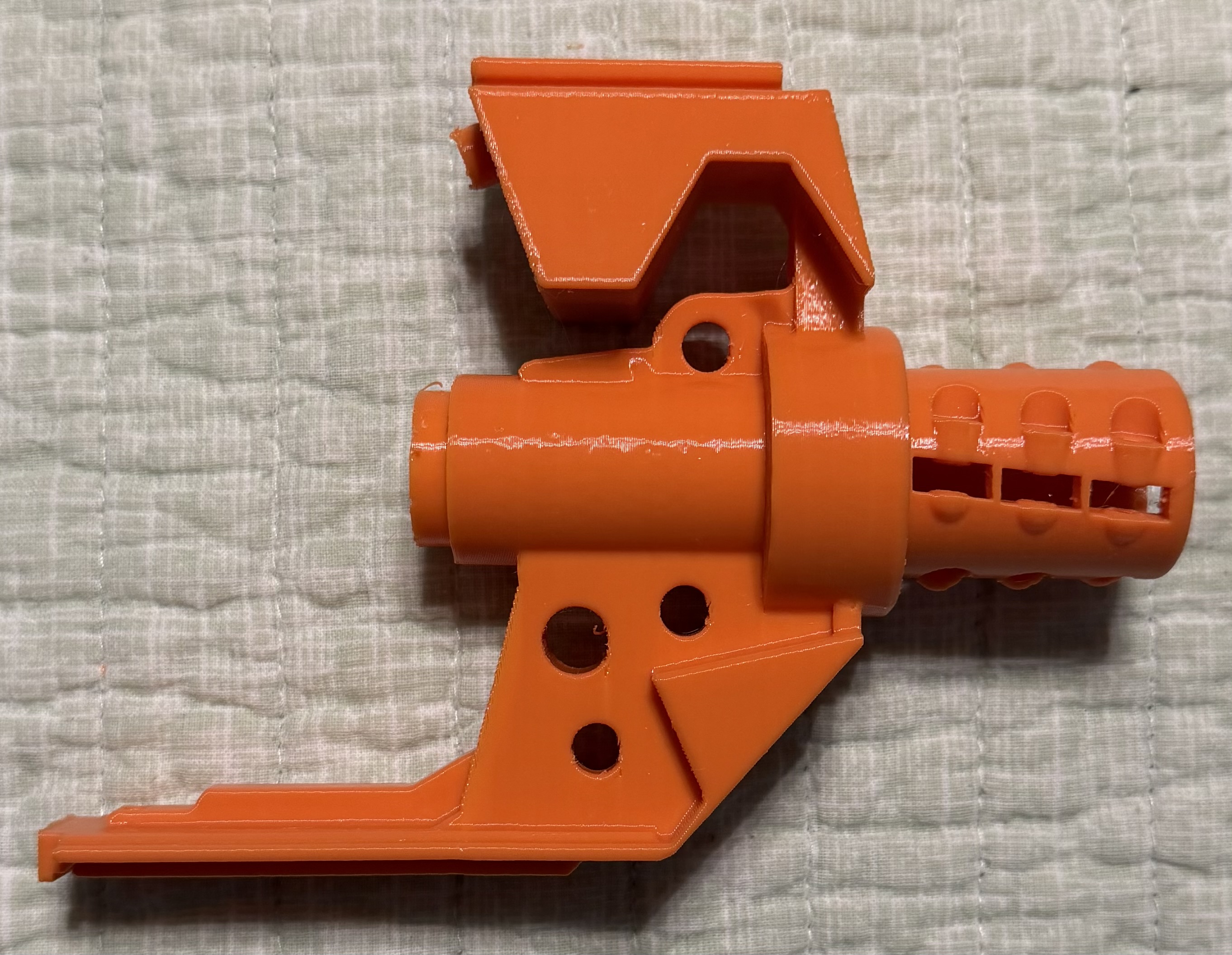

I wanted an accuracy device for my Stryfe, and I needed to decrease the FPS a bit. I tried some PCARs and even a NStrike lug BCAR, but was not thrilled with any of the results. That made me think of other ways to mount it and this new muzzle was born. This kit contains a muzzle with a BCAR and optional rails. With this attachment installed, I am getting rouhgly a 3 inch spread at 50 feet. That is about a 4 inch improvement from the original.
Testing:
I tested this using a single modified Nerf Stryfe and a 3S 850mAh 75C LIPO battery using a XT30 connection, Worker 1.0g darts, and a Daybreak flywheel cage. Readings were averaged over 20 shots. Bearings are always in the slots closest to the blaster.
Description | FPS | Min | Max | StDev | % Diff from Original |
|---|---|---|---|---|---|
Original Muzzle | 159.4 | 148 | 165 | 0.0 | 0.00 |
Short Muzzle with 0 Bearings | 152.5 | 142 | 158 | 4.6 | -4.36 |
Short Muzzle with 3 ABEC5 Bearings | 149.4 | 142 | 155 | 3.7 | -6.27 |
Short Muzzle with 6 ABEC5 Bearings | 148.2 | 140 | 143 | 3.3 | -7.03 |
Short Muzzle with 9 ABEC5 Bearings | 146.6 | 140 | 151 | 3.5 | -8.06 |
Materials:
2x M3x6mm Screws
2x M3x16mm Screws
9x M3x10mm Screws
9x F683ZZ 3x7x3mm Bearings (ABEC5 or better preferred)
Instructions:
I would suggest printing with 4 walls, 20% gyroid infill and the muzzle tip pointing up. SUPPORTS ARE REQUIRED for the muzzle. This is how the 3mf is set. BE VERY CAREFUL WHEN REMOVING SUPPORTS FROM THE MUZZLE. The insert going to the flywheel cage is very thin and can break off, especially when using fewer walls.
Insert the bearings to the BCAR with the wide areas towards the screw heads.
Add the screws (M3x10mm) to hold the bearings in place - repeat for each of the 9 bearings. Set the new muzzle aside.

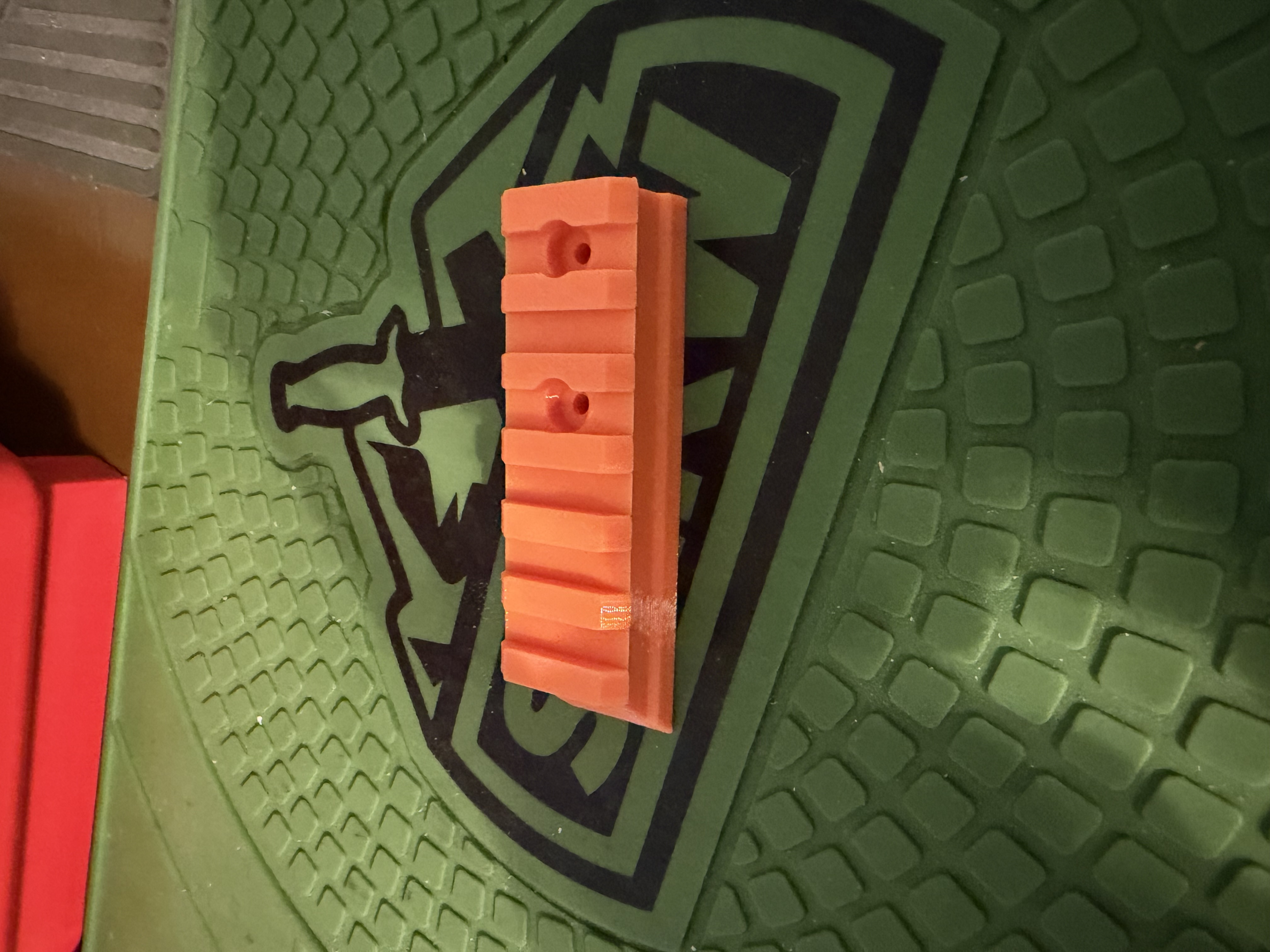

Attach the lower rail with 2 M3x6mm screws on the BCAR muzzle.

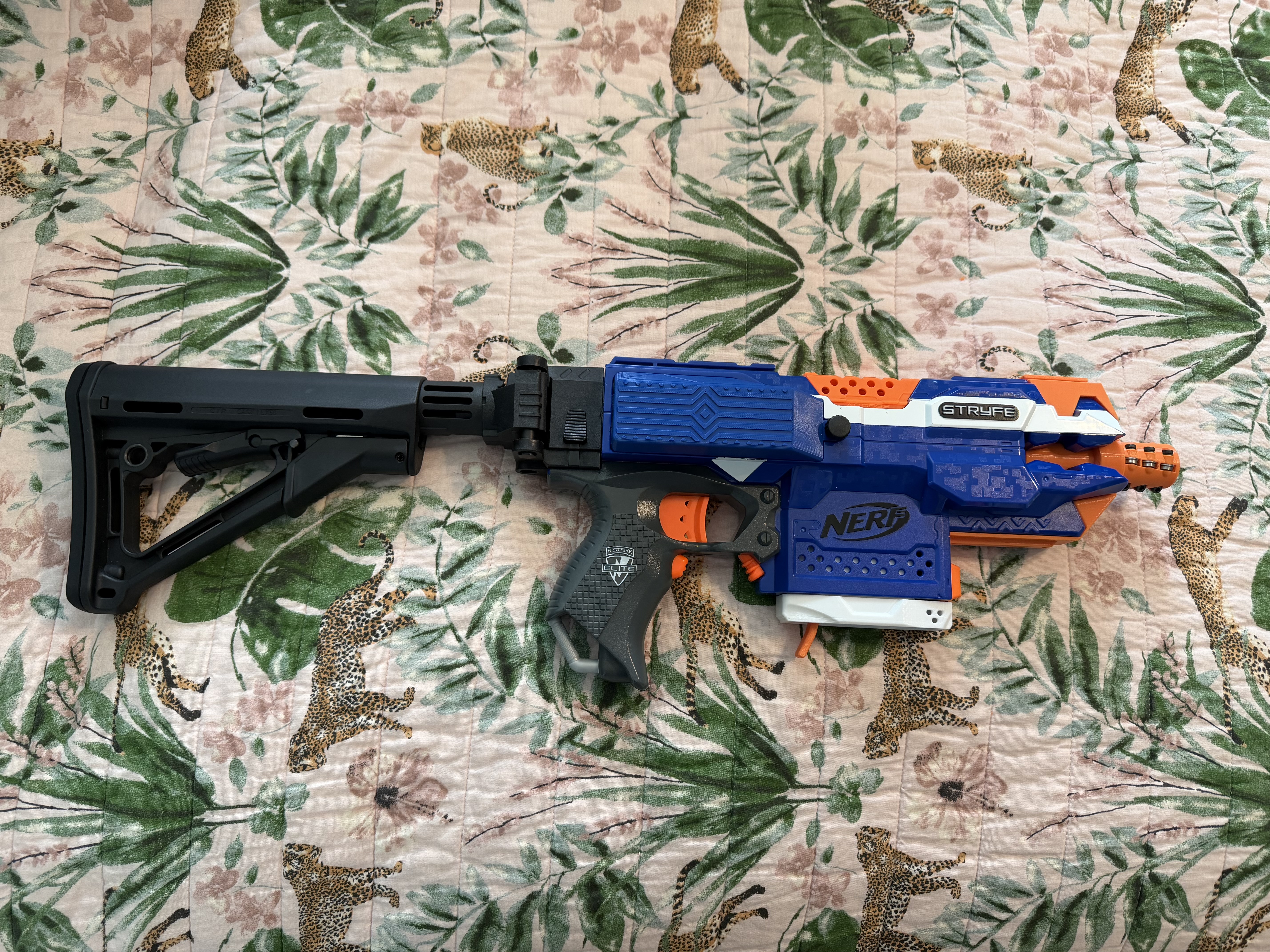

Remove the existing muzzle and front sling point and replace with the BCAR muzzle

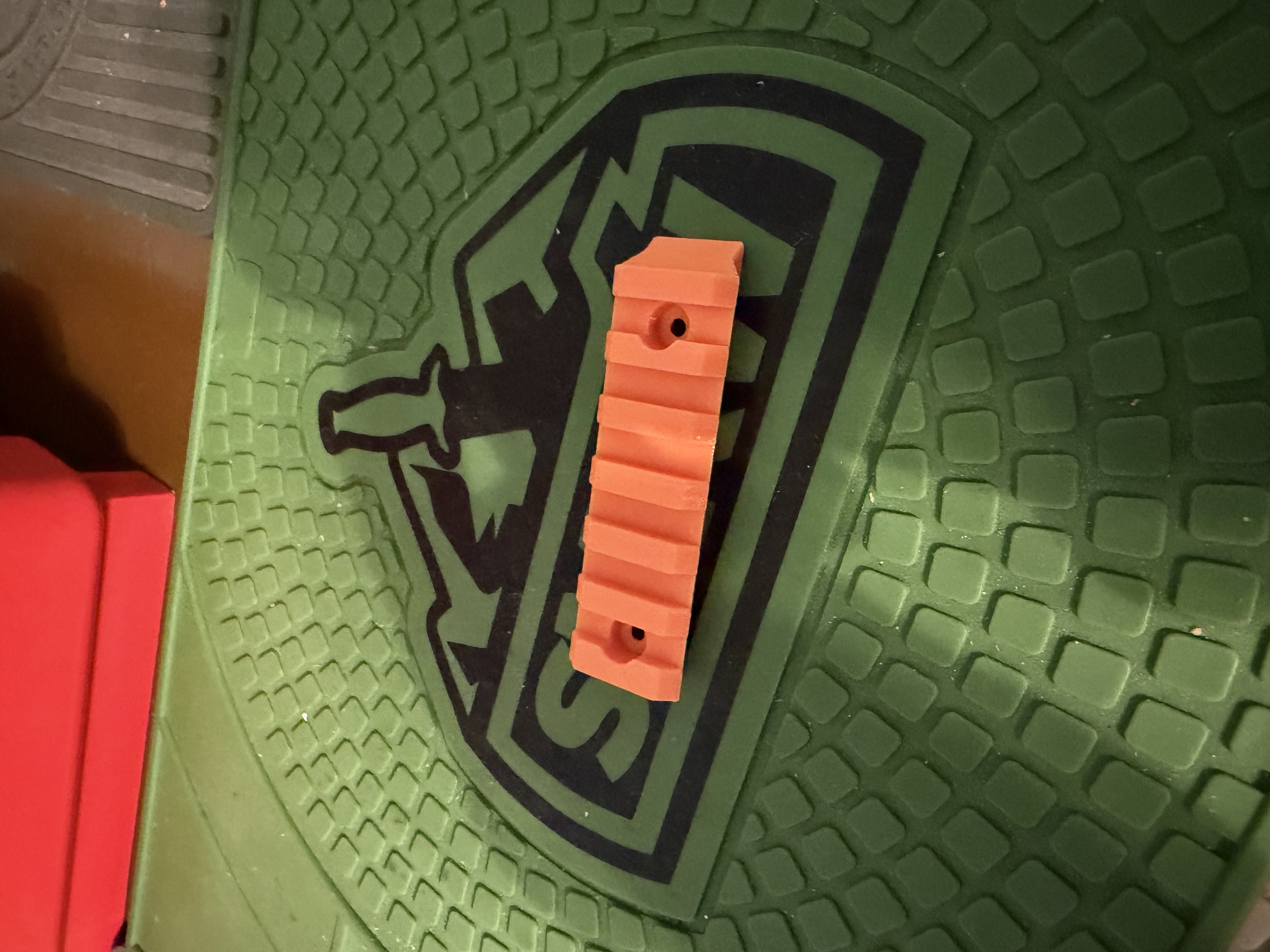

Install the upper rail with 2 M3x16mm screws.

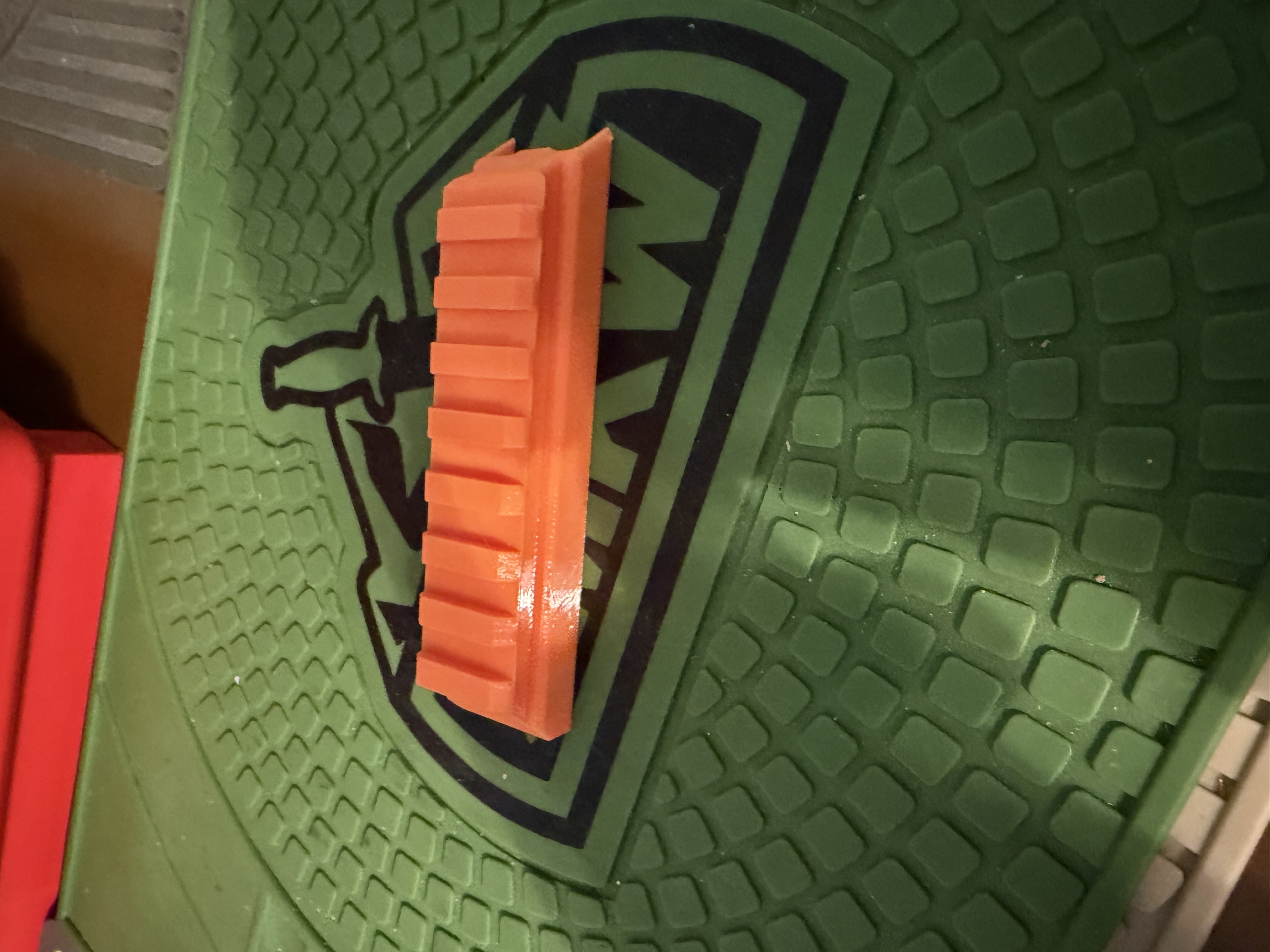

Slide the rear rail over the existing railing in the back.
