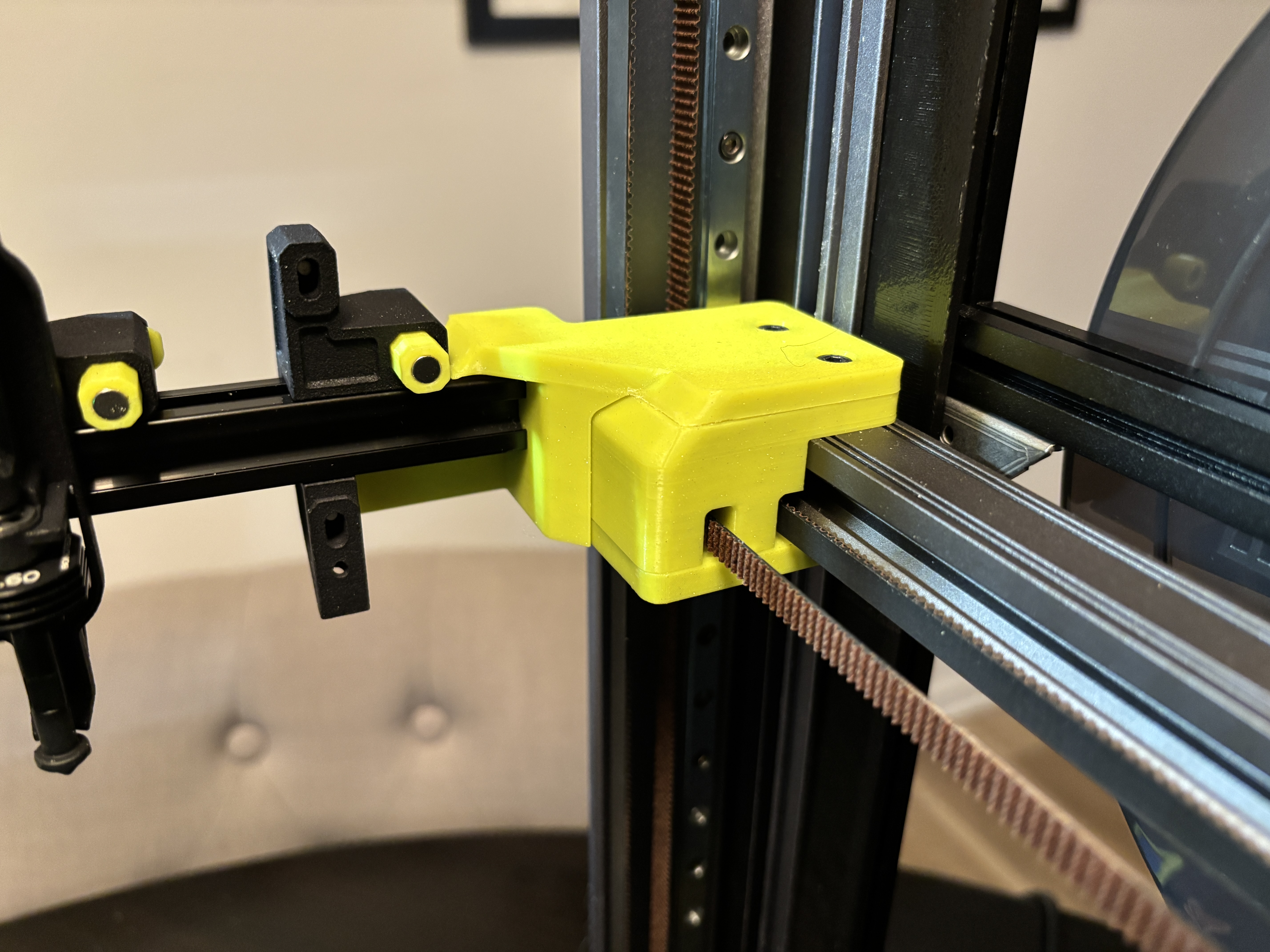

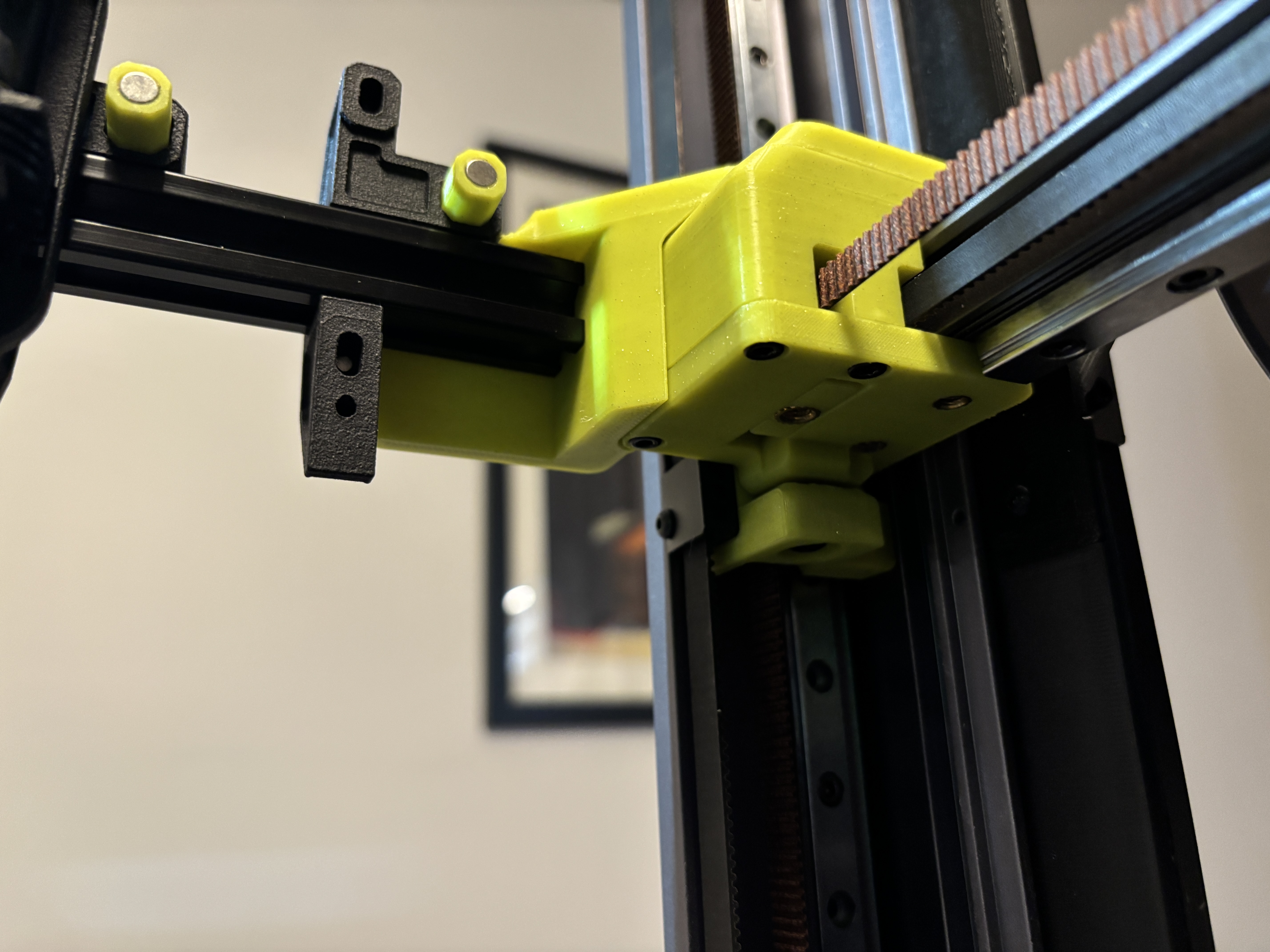

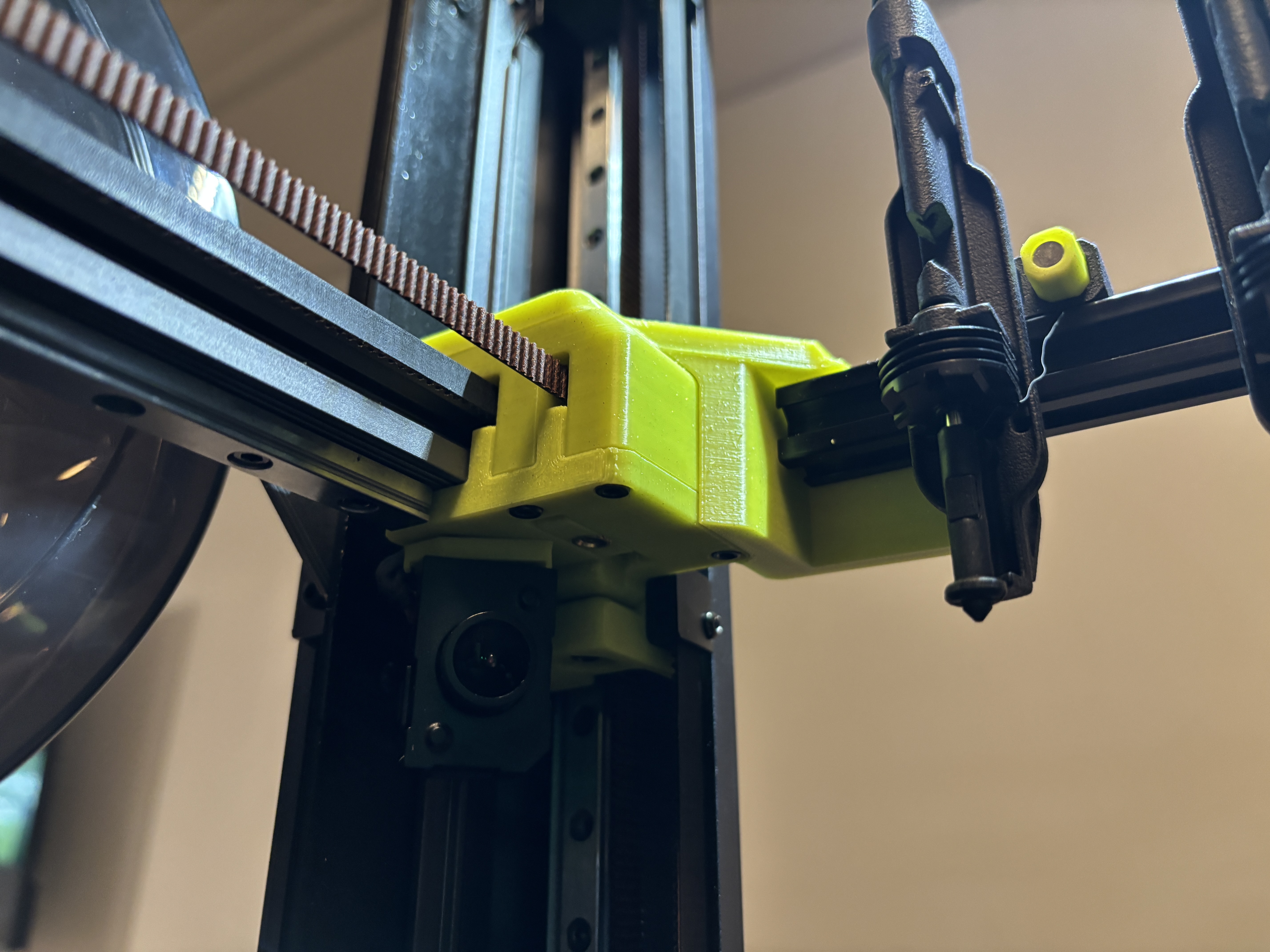

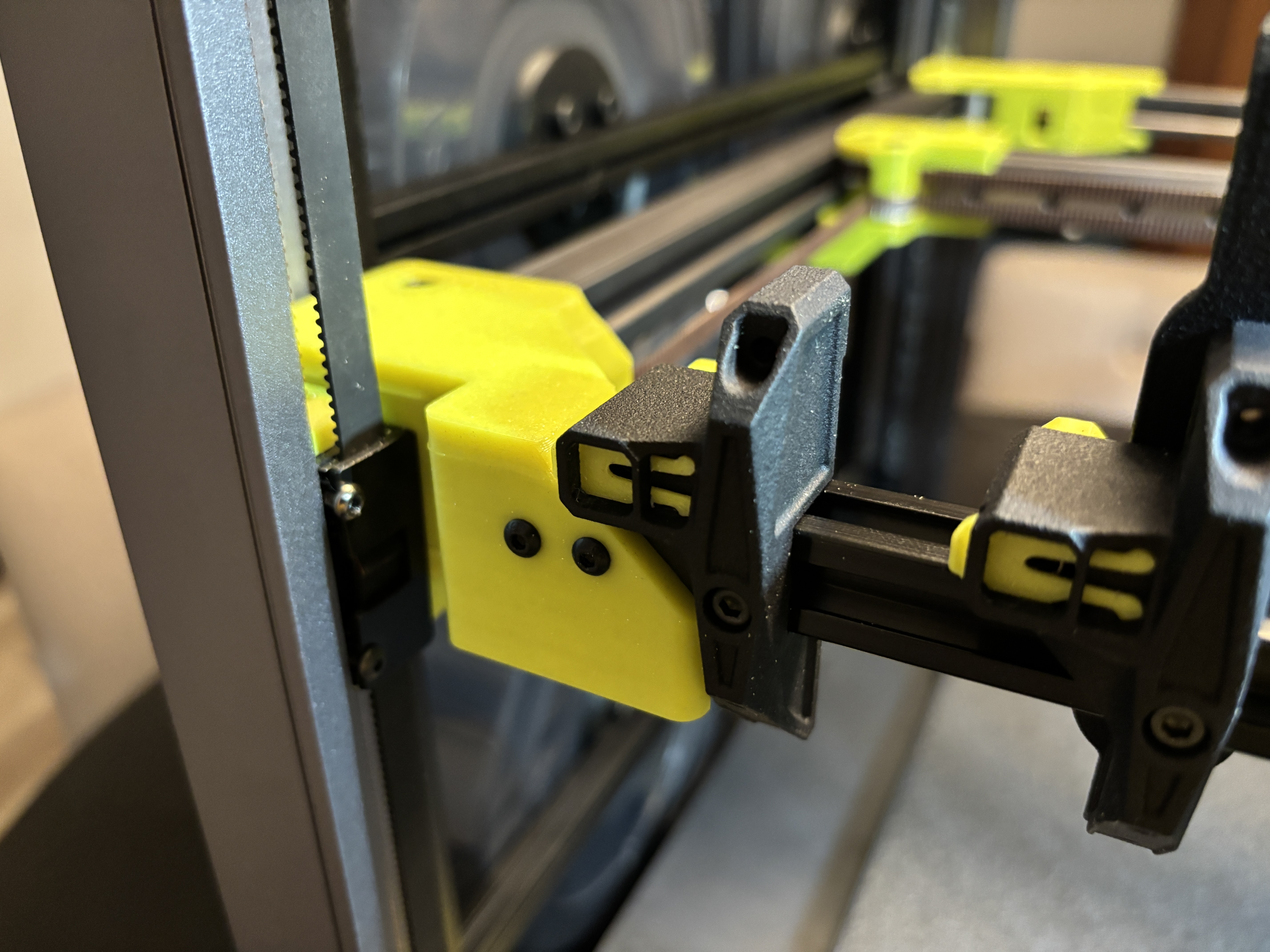

This is my first version of a custom-designed INDX toolbar mount for the Sovol SV08, engineered to integrate seamlessly with Nadir’s 3D Printed Gantry V2 system on Printables. The model provides a rigid, precise mounting solution for multi-tool or tool-changing setups, improving alignment and repeatability during operation.
Designed with strength and ease of installation in mind, the mount reinforces the gantry interface while maintaining compatibility with the SV08’s motion system. It’s optimized for 3D printing, minimizing support requirements while maximizing durability under repeated tool changes.

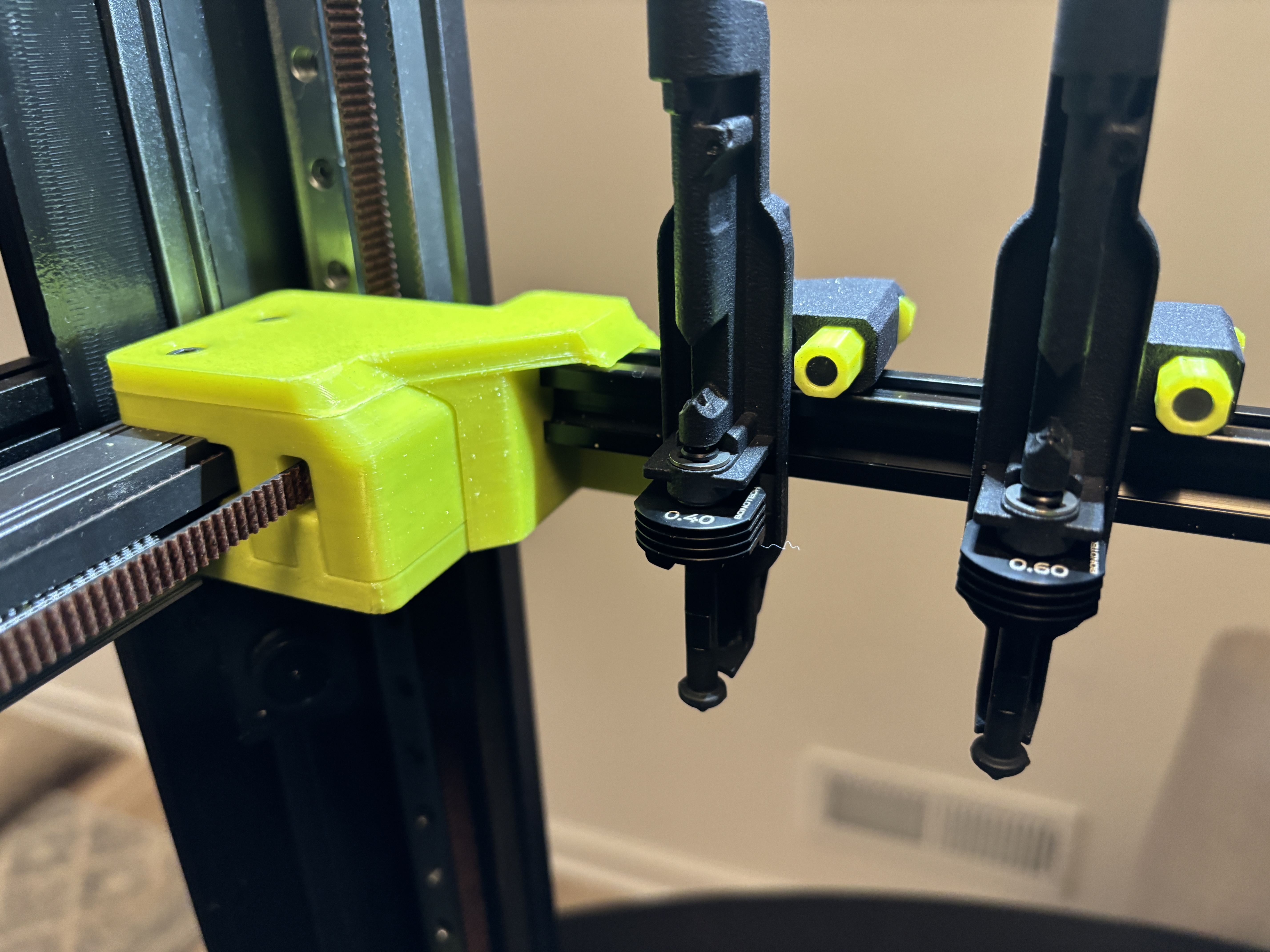

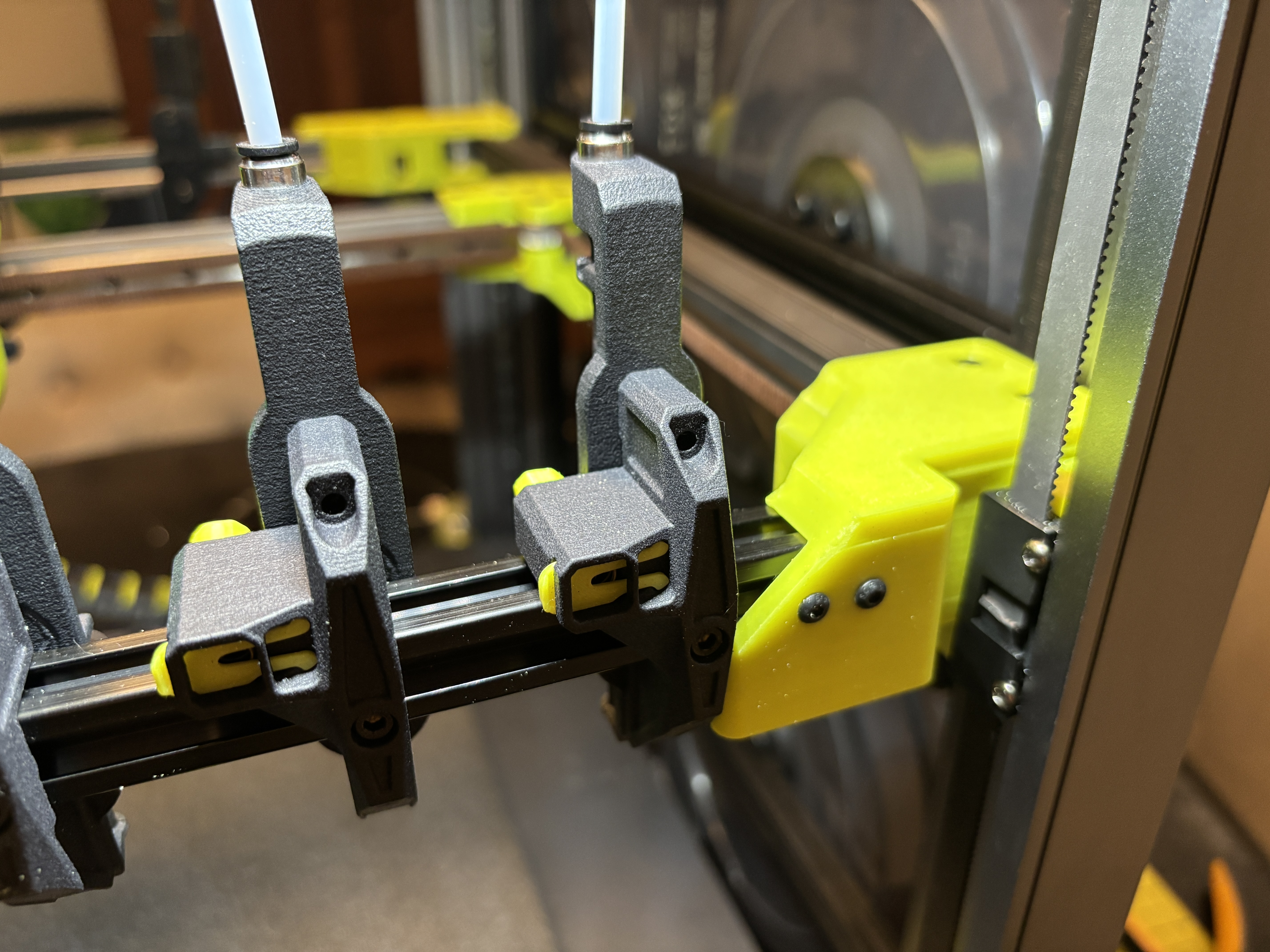

Allows for mounting up to eight Indx tools on the front Idlers with a spacing of 47mm. Unlocks the potential of Indx on the SV08 platform when paired with Nadir’s upgraded gantry system.
Additional hardware needed:
400mm 1515 or Makerbeam XL extrusion
Four M4 SHCS, 5mm longer than the M4 screws your using to attach the y extrusion to the front idlers
4 M3x6 BHCS
4 M3 nuts (Sliding or drop-in t-nuts for euro 1515 extrusion of square nuts for Makerbeam XL)
