This will give you some light in the bathroom of the RV, camper, or caravan when searching for the light switch at night.
No wiring required Simply attach it to the roof hatch.

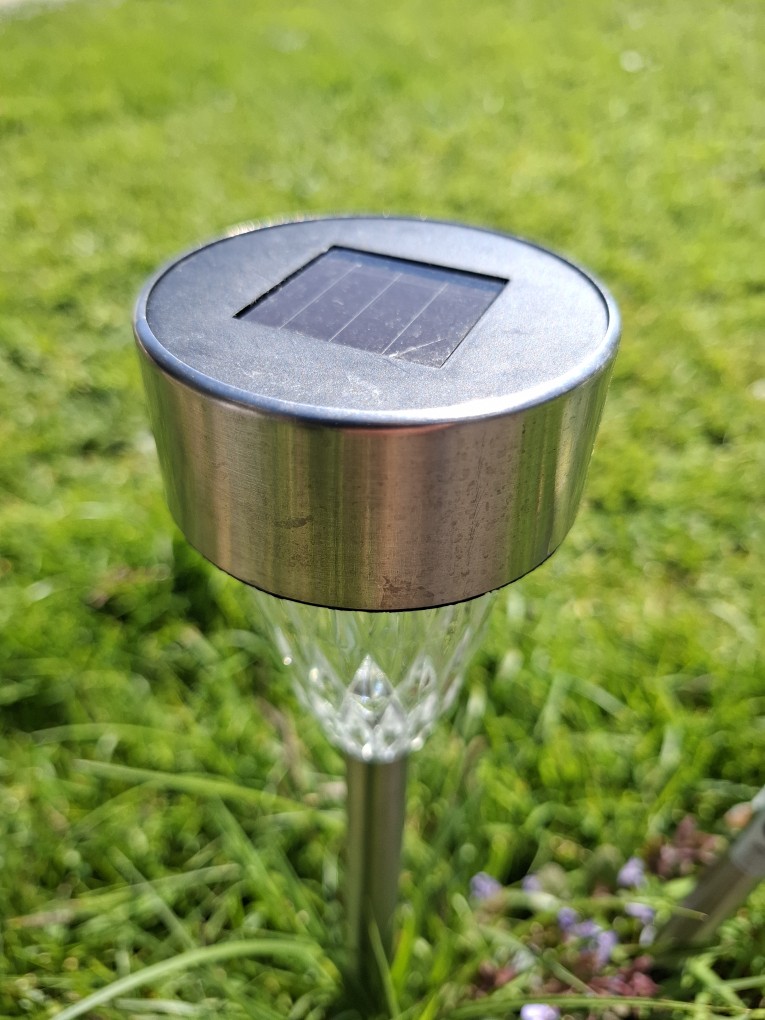

I used a cheap garden light with a solar panel. I could buy one for less than one euro.
V2 are additional changes. The clamp can be secured using an elastic. V1 tend to oscillate resulting in a blinking light. The cap V2 should solve that.
Parts needed:
One "el cheapo" garden light
Printing:
Filament: PETG (PLA will melt , as it can get very hot in a car)
Print the clamp. I used minimal "tree" support.

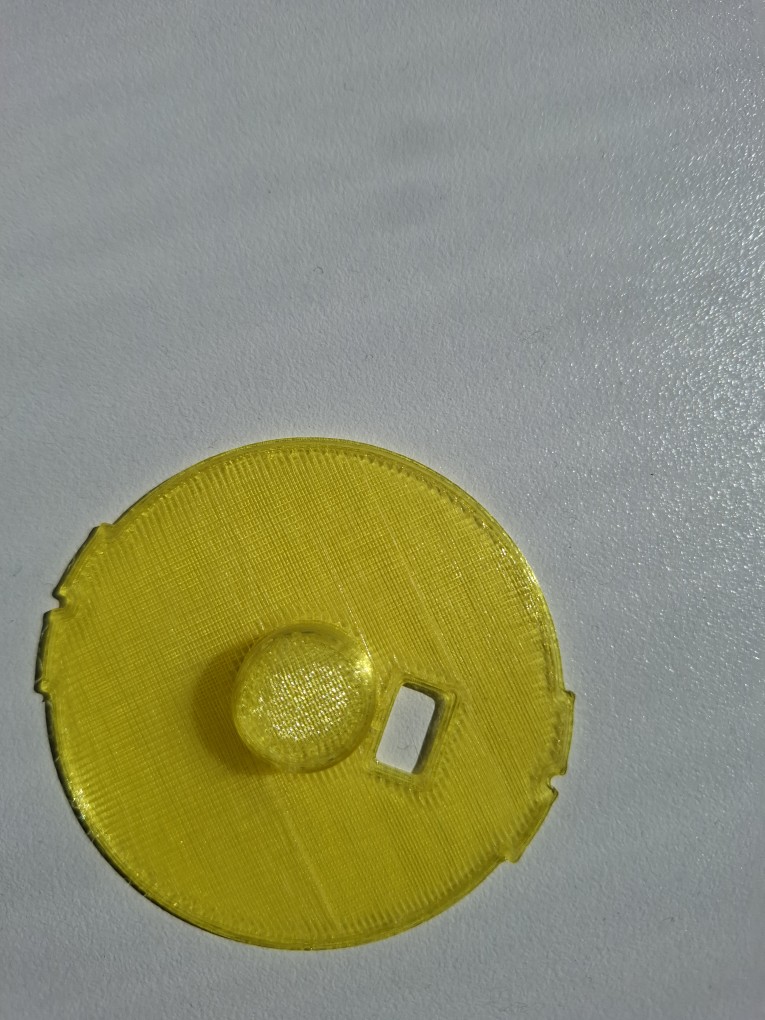

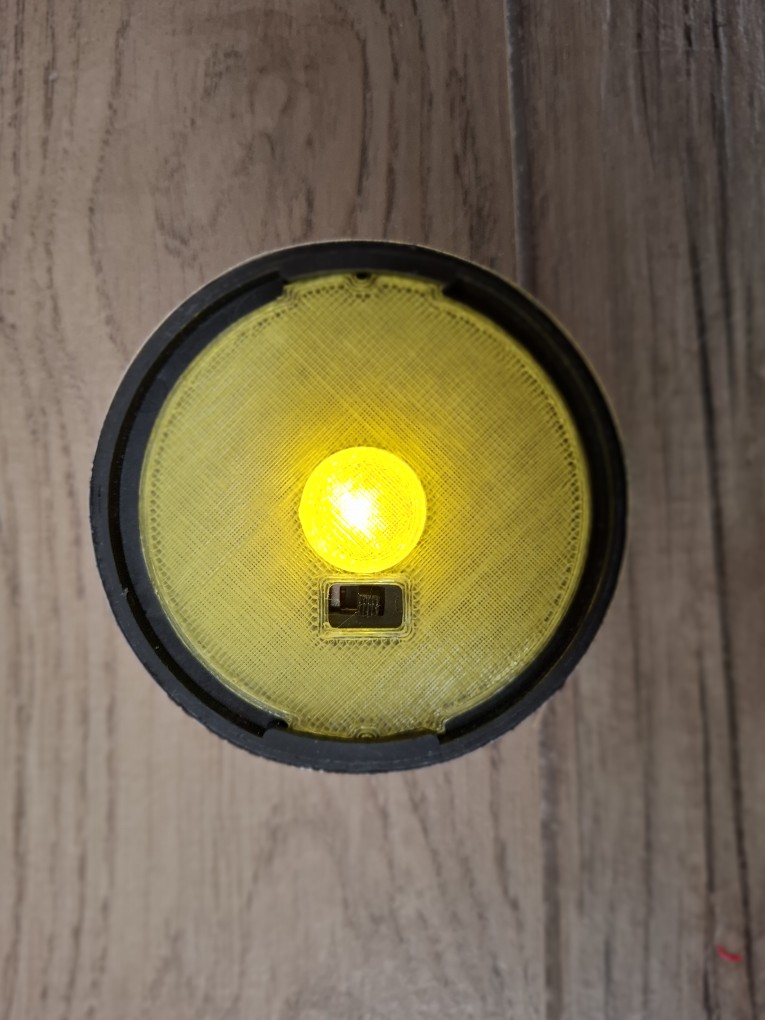

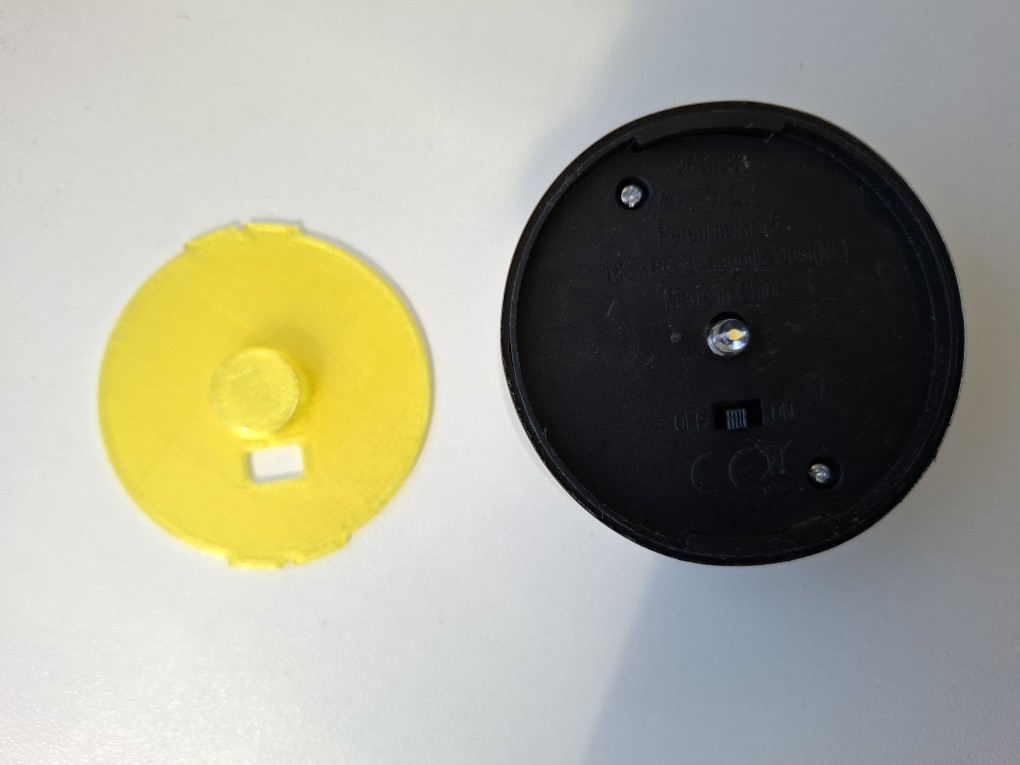

Optionally print the "soft" light cover. Use transparent filament.
How to:

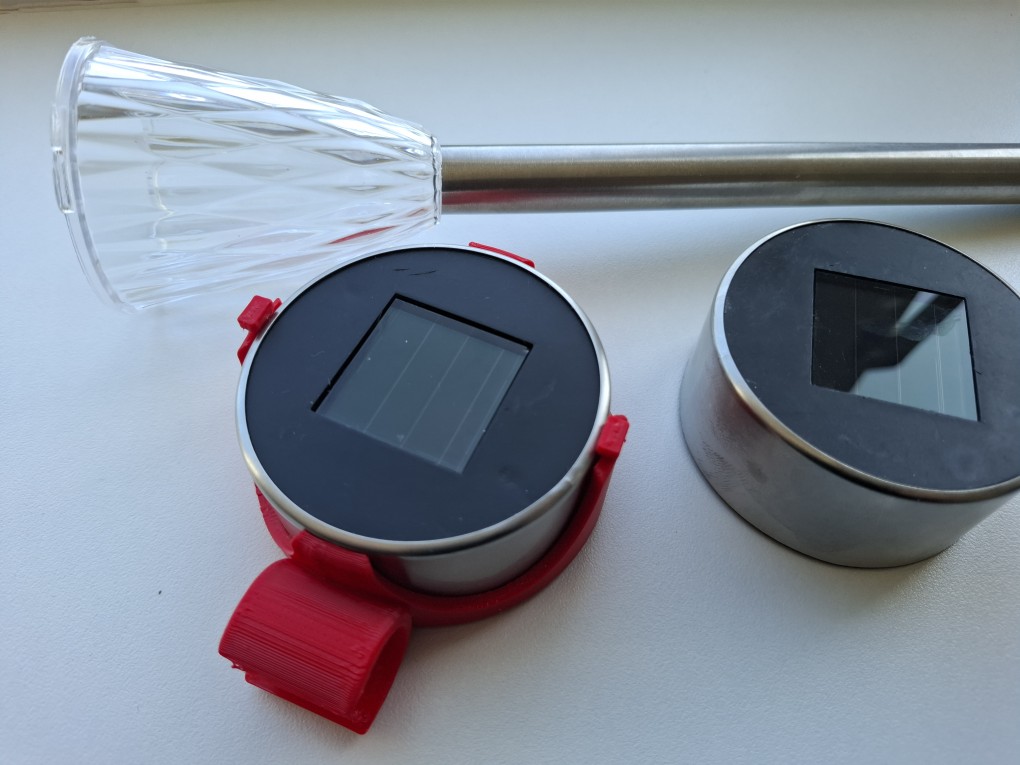

Put the light in the clamp.
Optionally put the "soft" part turning clockwise (mind the switch opening).

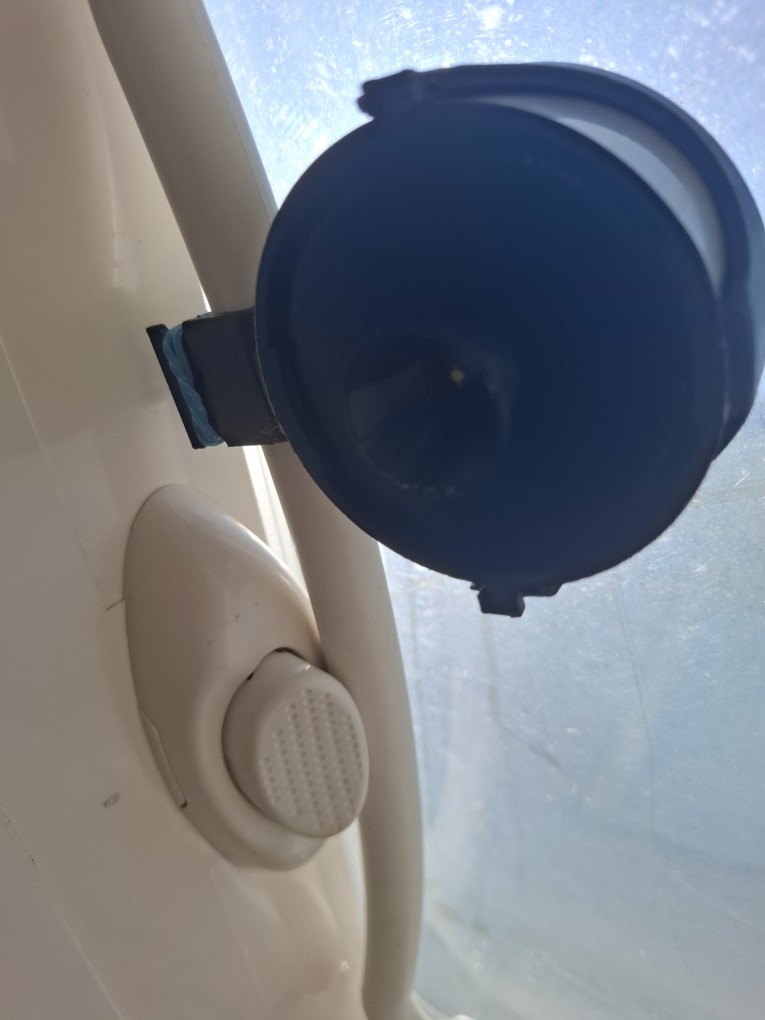

Click the light on the hatch handle.
That is all.
Enjoy!
