Hello,

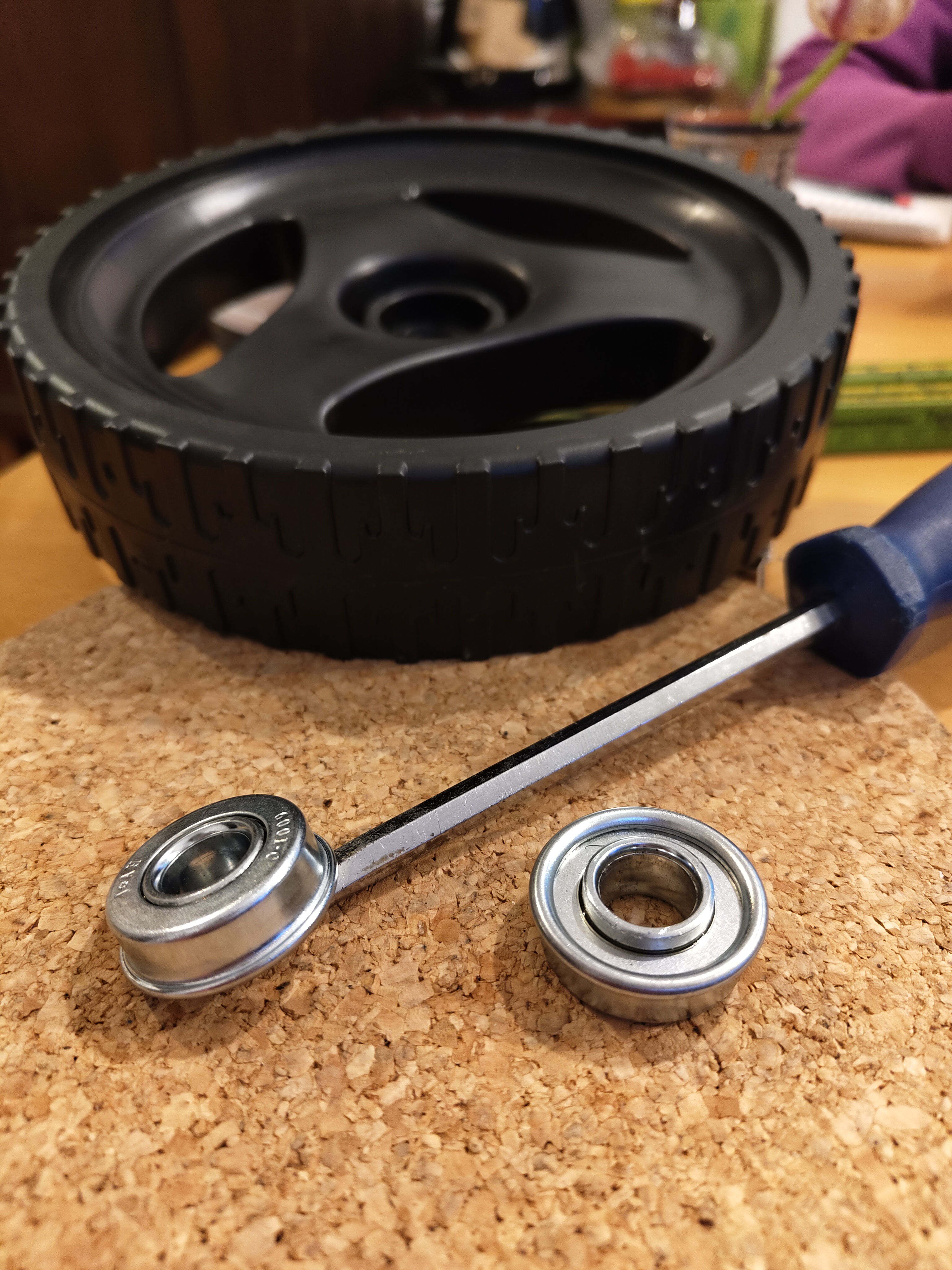

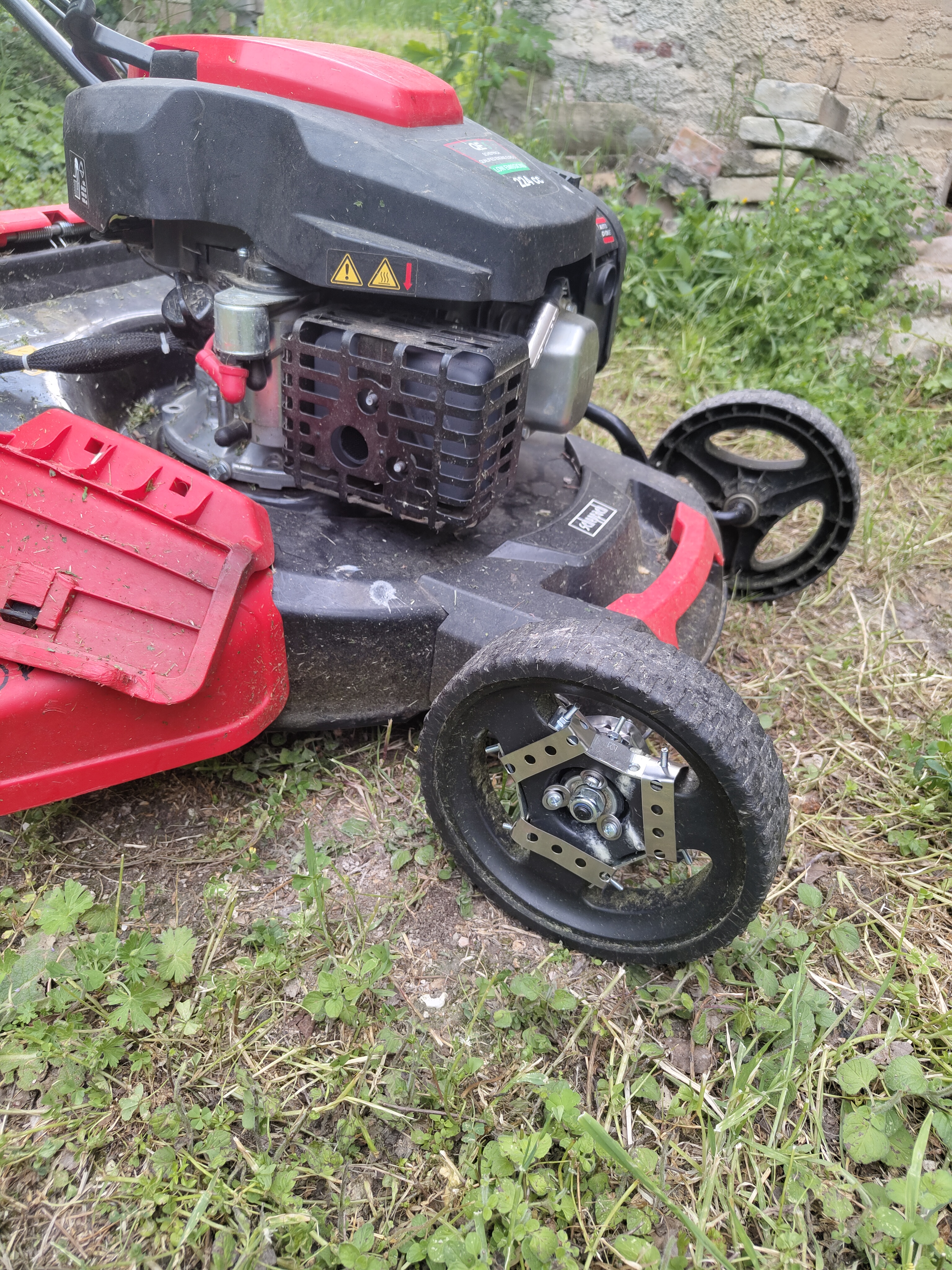

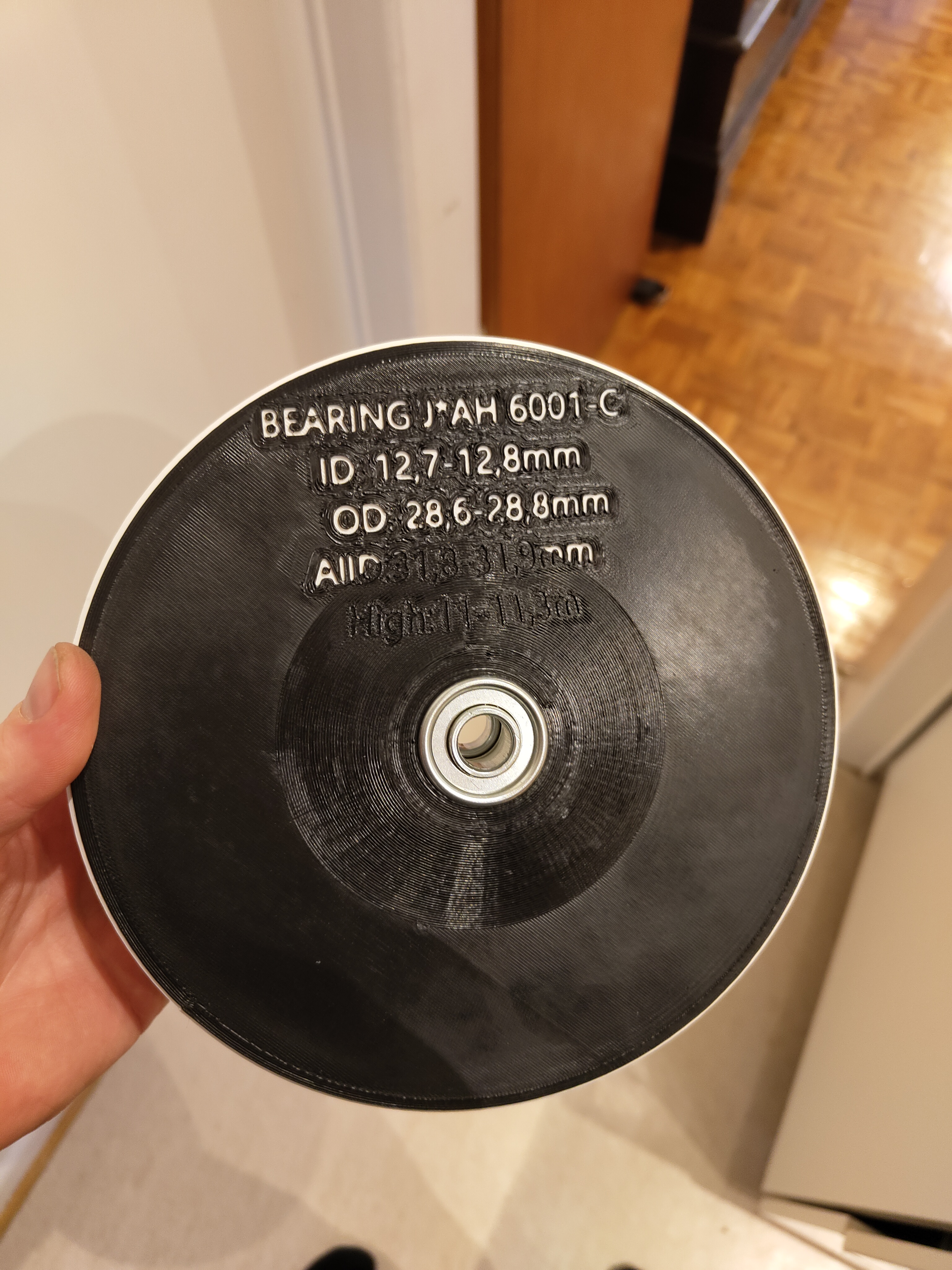

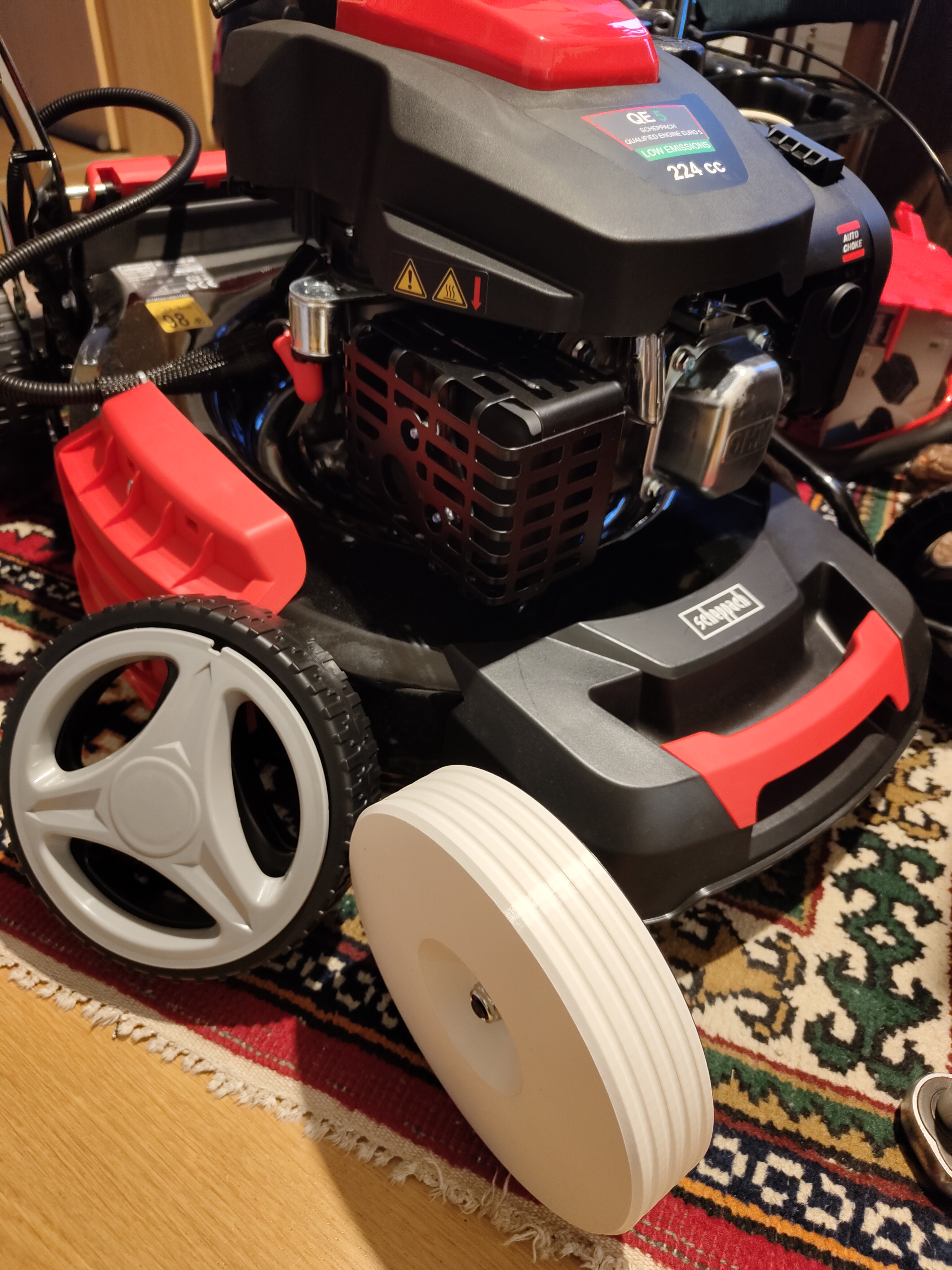

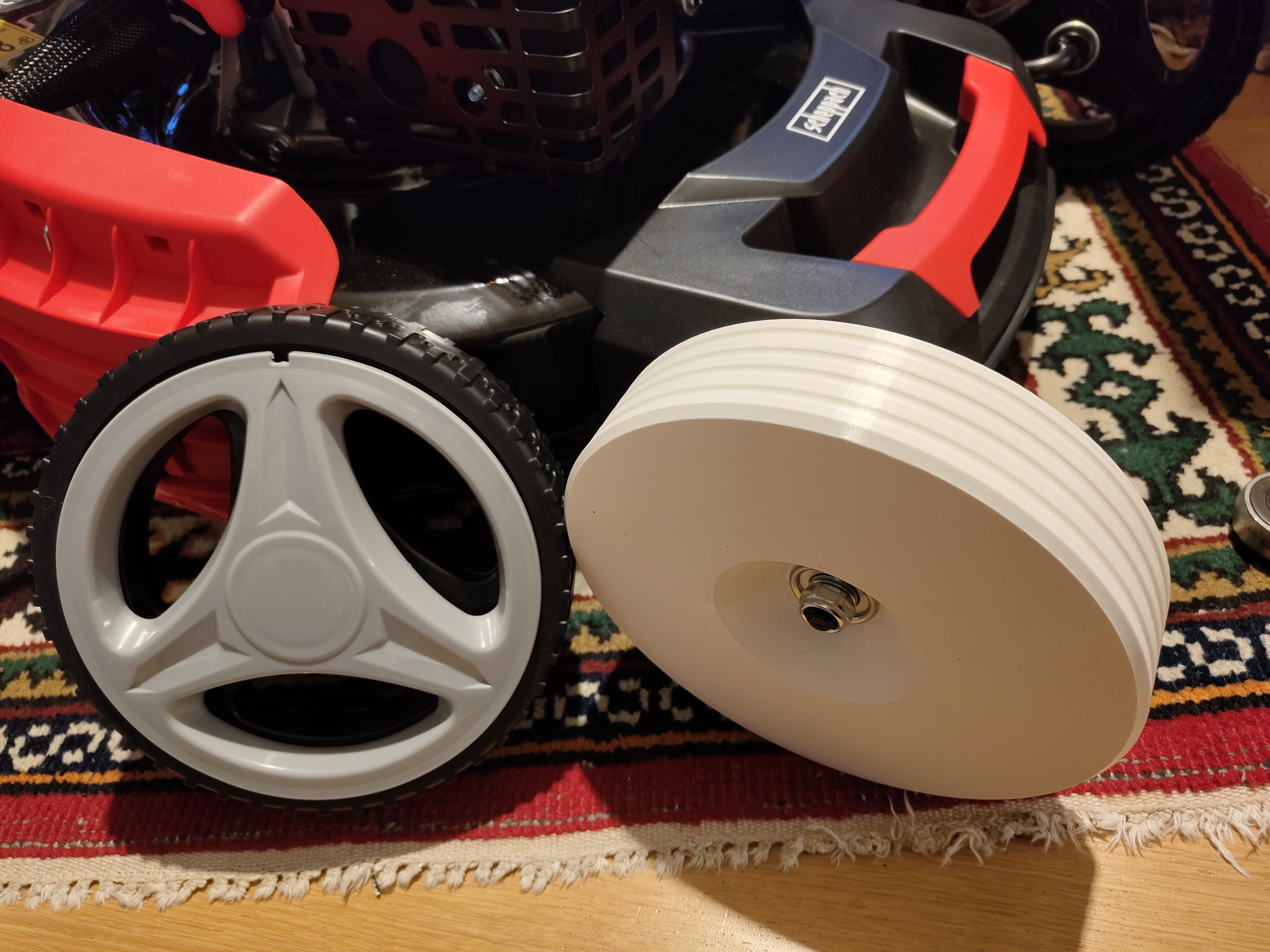

I lost control while mowing steep downhill and the mower gained some speed and crashed. Luckly nothing happend, just the frontwheel broke. So I created just a simple replacement wheel with nearly the same outer diamentions as the original. I also wrote on the inside of the wheel the diamentions of the bearing. So when someone need a full replacement he can lookup "Lownmower Wheel Bearings" and find an replacement as well (a picture of the bearing is also there). Freecad 1.1.0 File is also there, but without the writing of the bearing diamentions.
Maybe this fit's also other mower, so please let me know the model, so others can helped finding this too. Thx

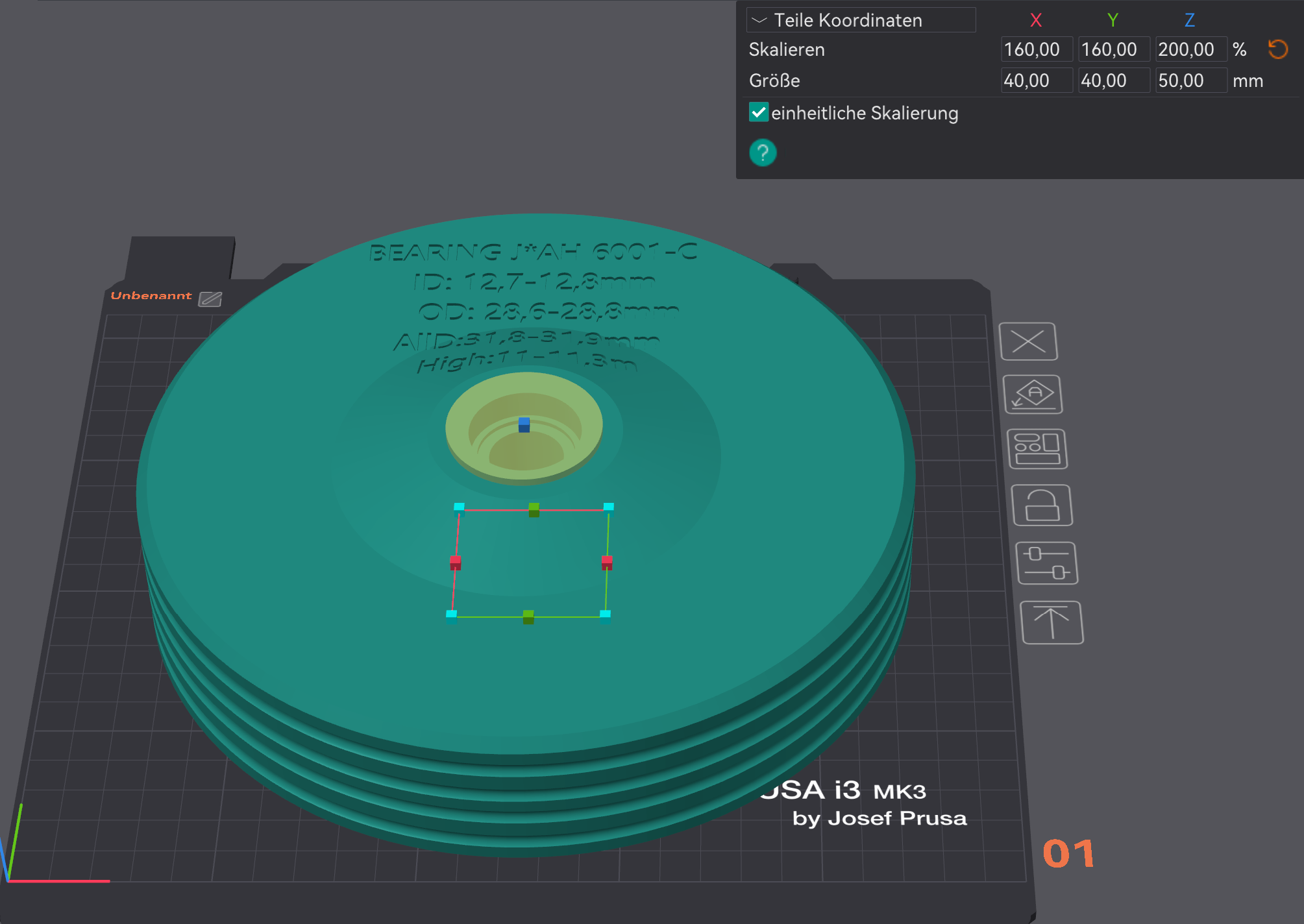

I used "Redline ASA-X" filament with 5 walls and 20 % Gynorid Infill. On the inner part where the bearing sits I used 10 Walls. 5 top and bottom Layers with 0.2 Layerhight. And a 0.5mm nozzle on the MK3s+
Please notice: Selling is prohibited. just for private use, please respect that.
No reuploads of unmodified files
Remixes only
Attribution required
No commercial use including printed parts
