Techno 293

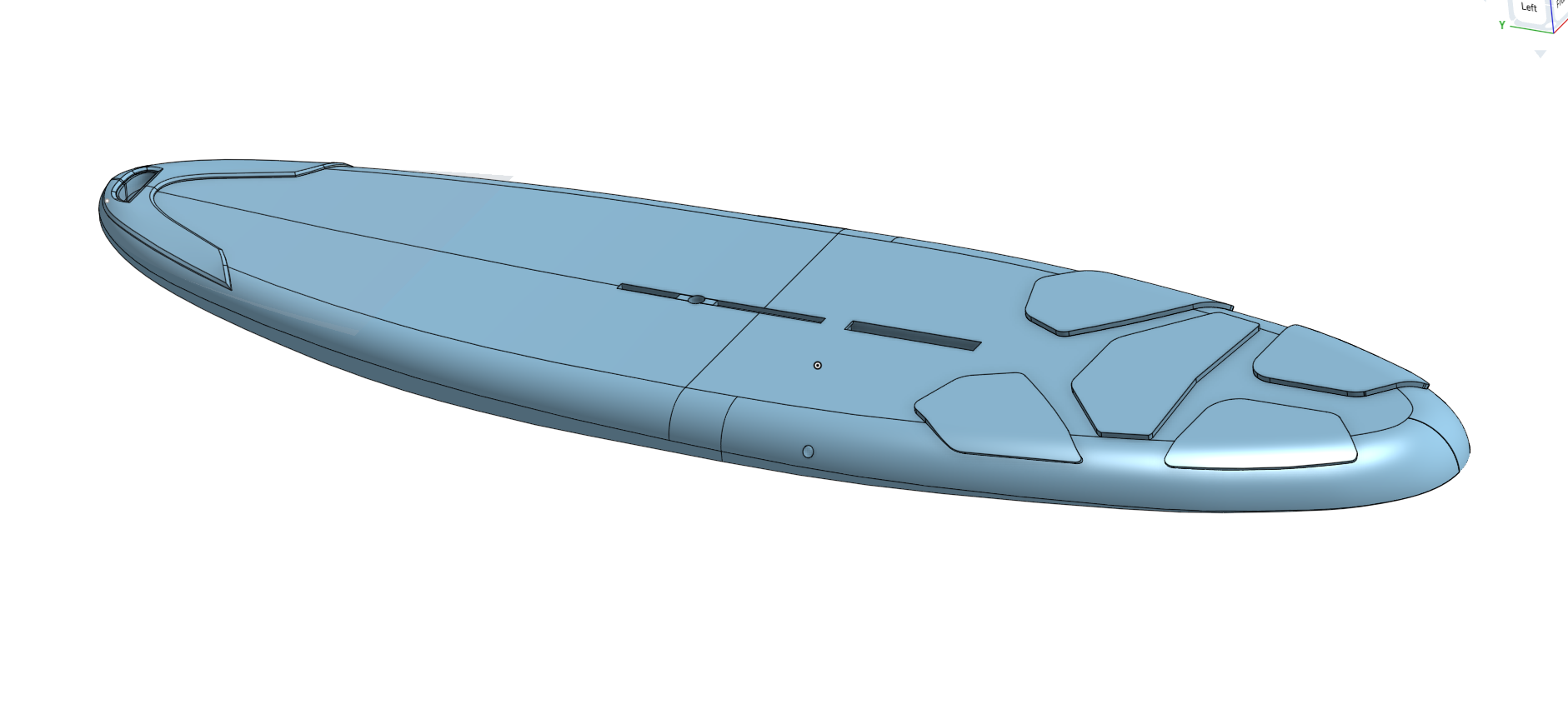

This model is a 1:10 scale replica of the original. For the boom and mast, I recommend using PETG material; PLA is suitable for all other parts. Everything was printed on a Prusa CORE One.

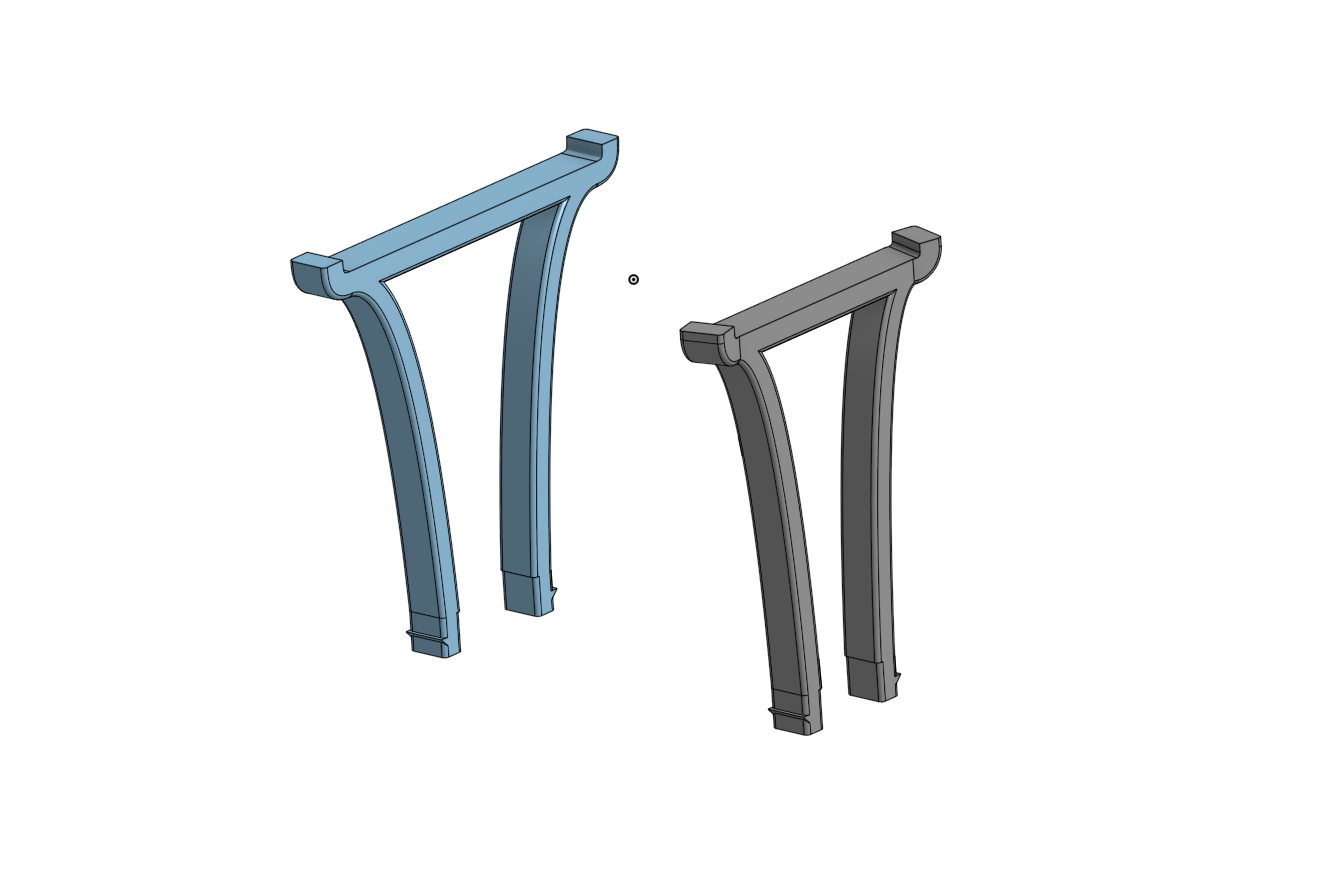

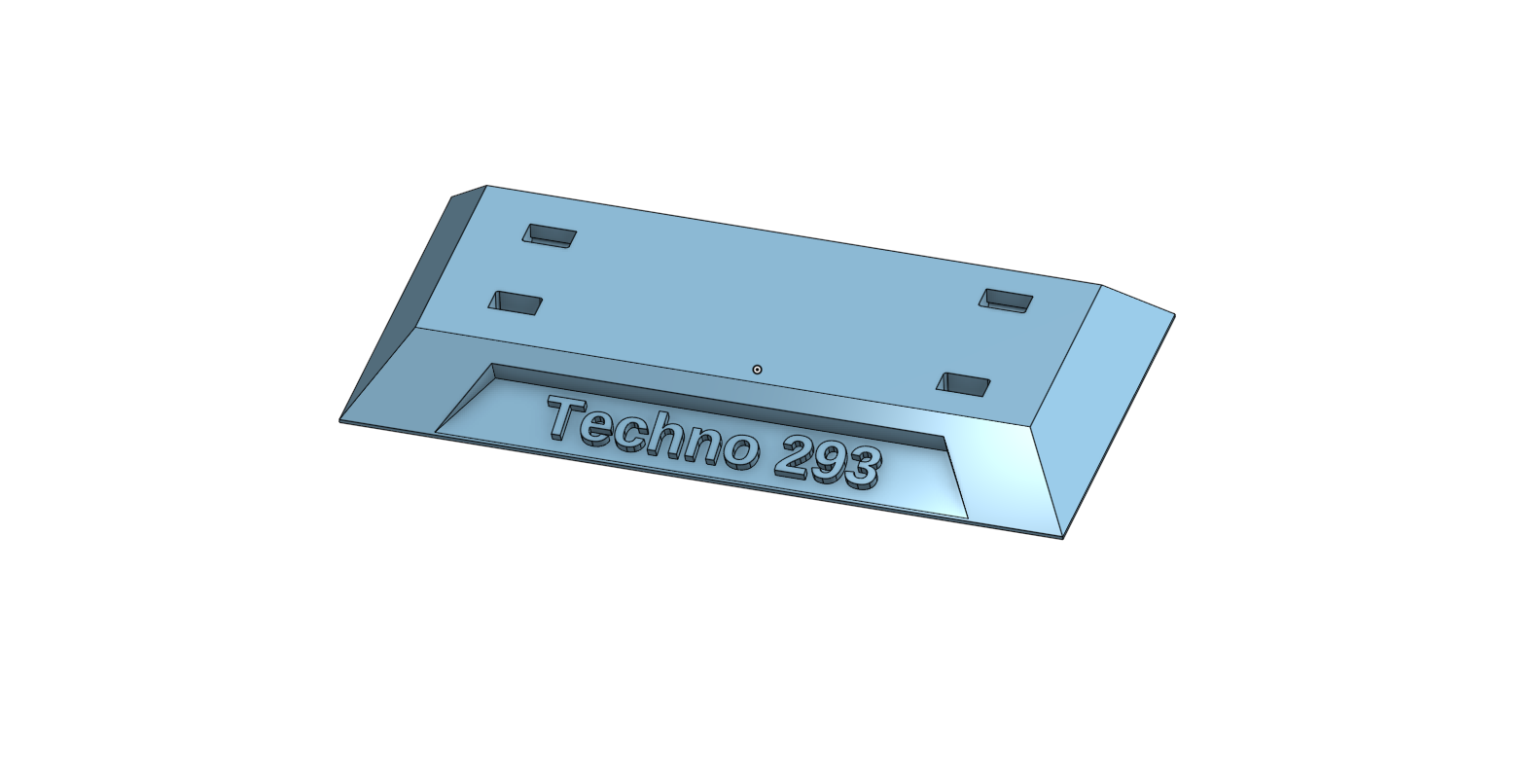

The stand and its legs snap together and should also be glued using super glue.

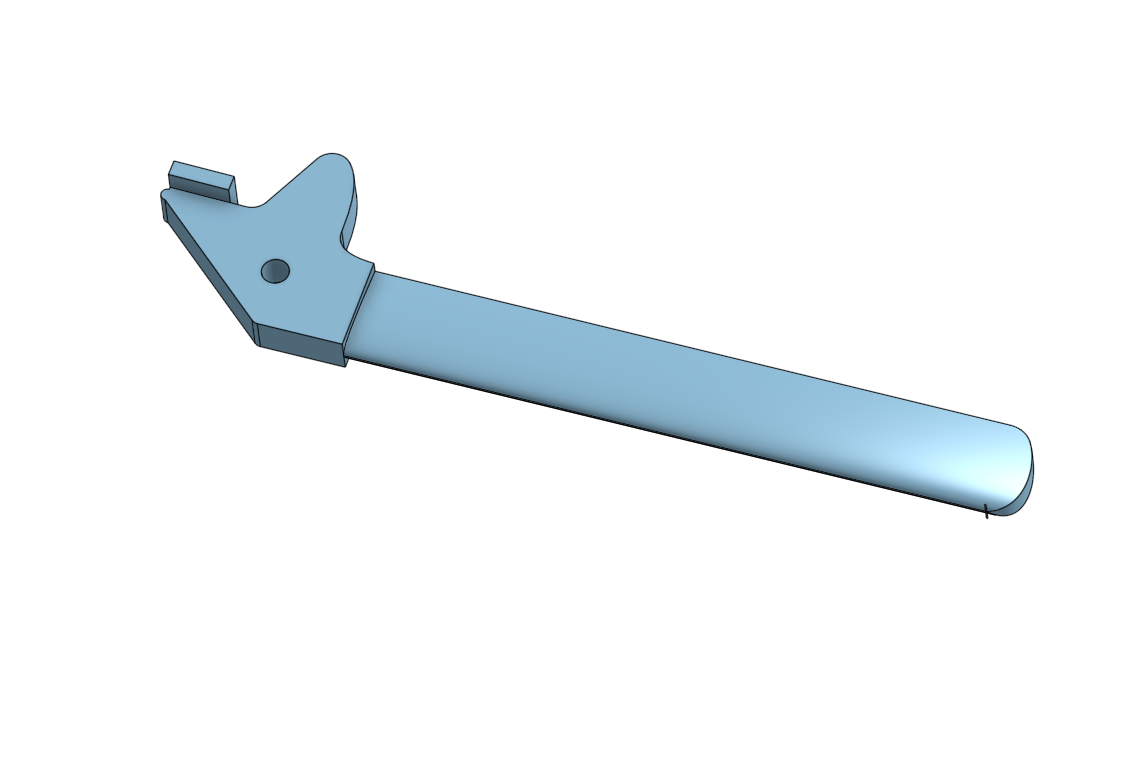

To mount the daggerboard, a 2 mm wire is required and should be glued in place.

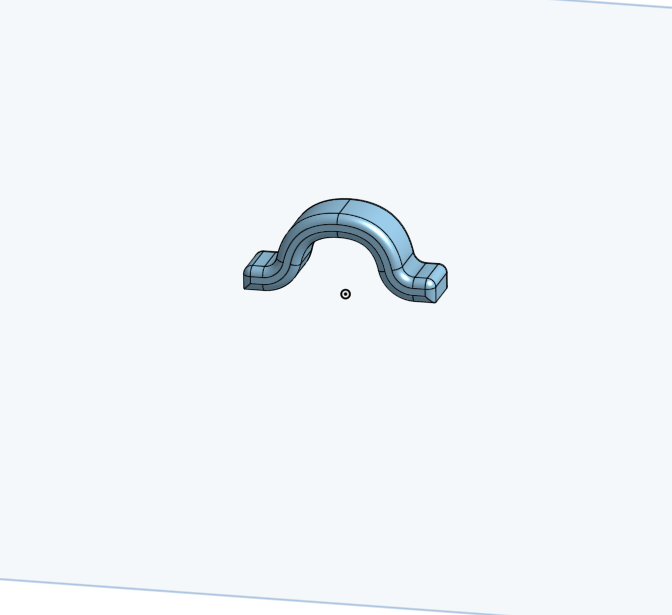

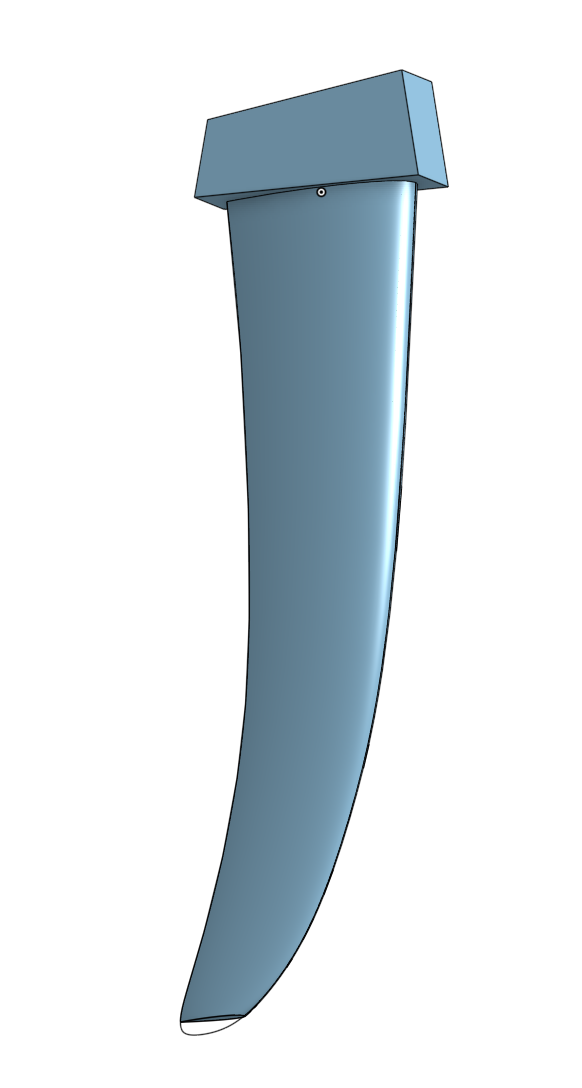

The fin and footstraps should also be attached using super glue.

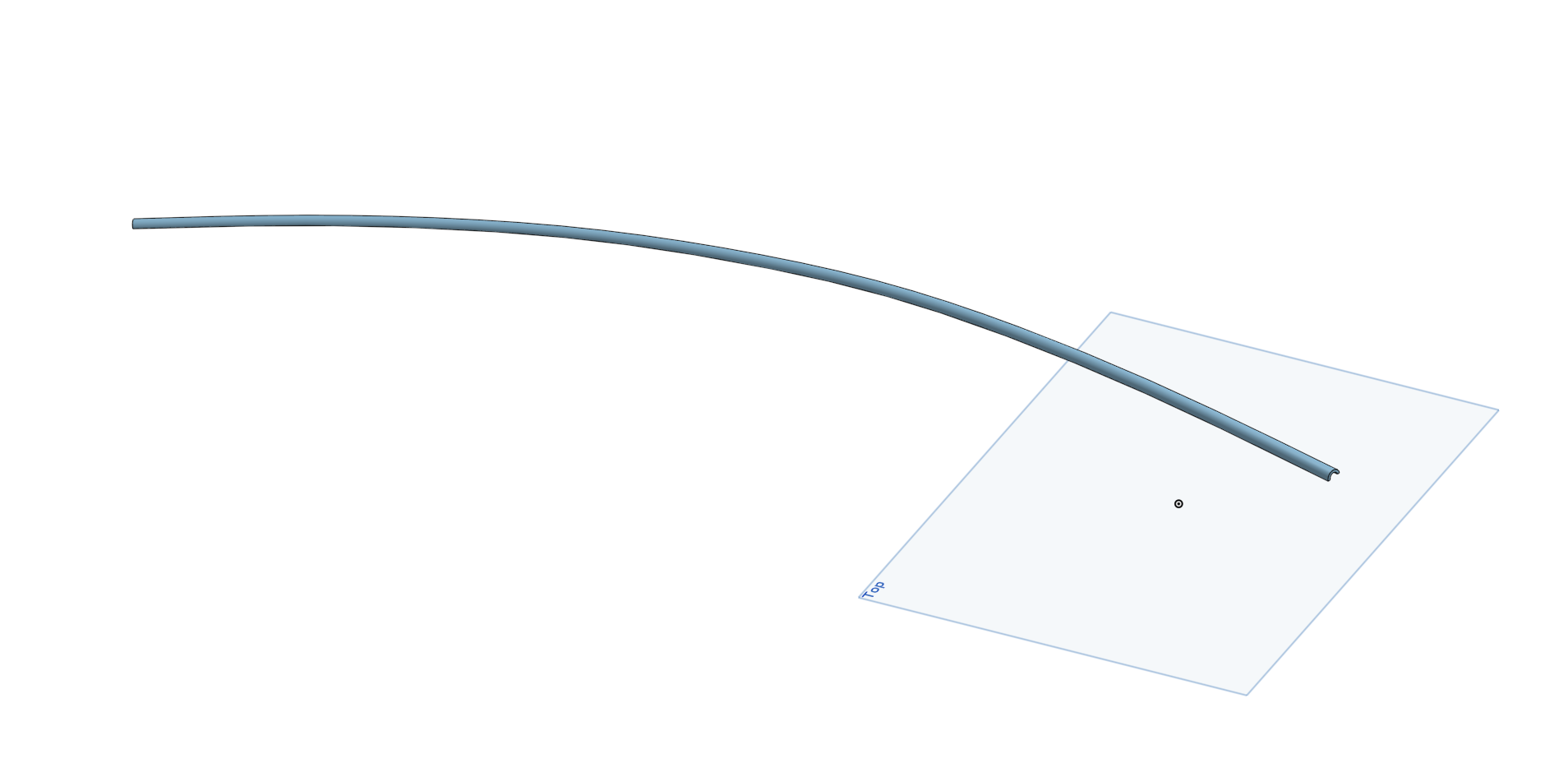

The mast needs to be duplicated and mirrored in the slicer!
A 2 mm wire was used to connect the mast parts, and they were glued together using contact adhesive (Chemopren).

The mast-to-board connection is secured with a 3 mm wire, which needs to be lightly sanded so it fits properly.

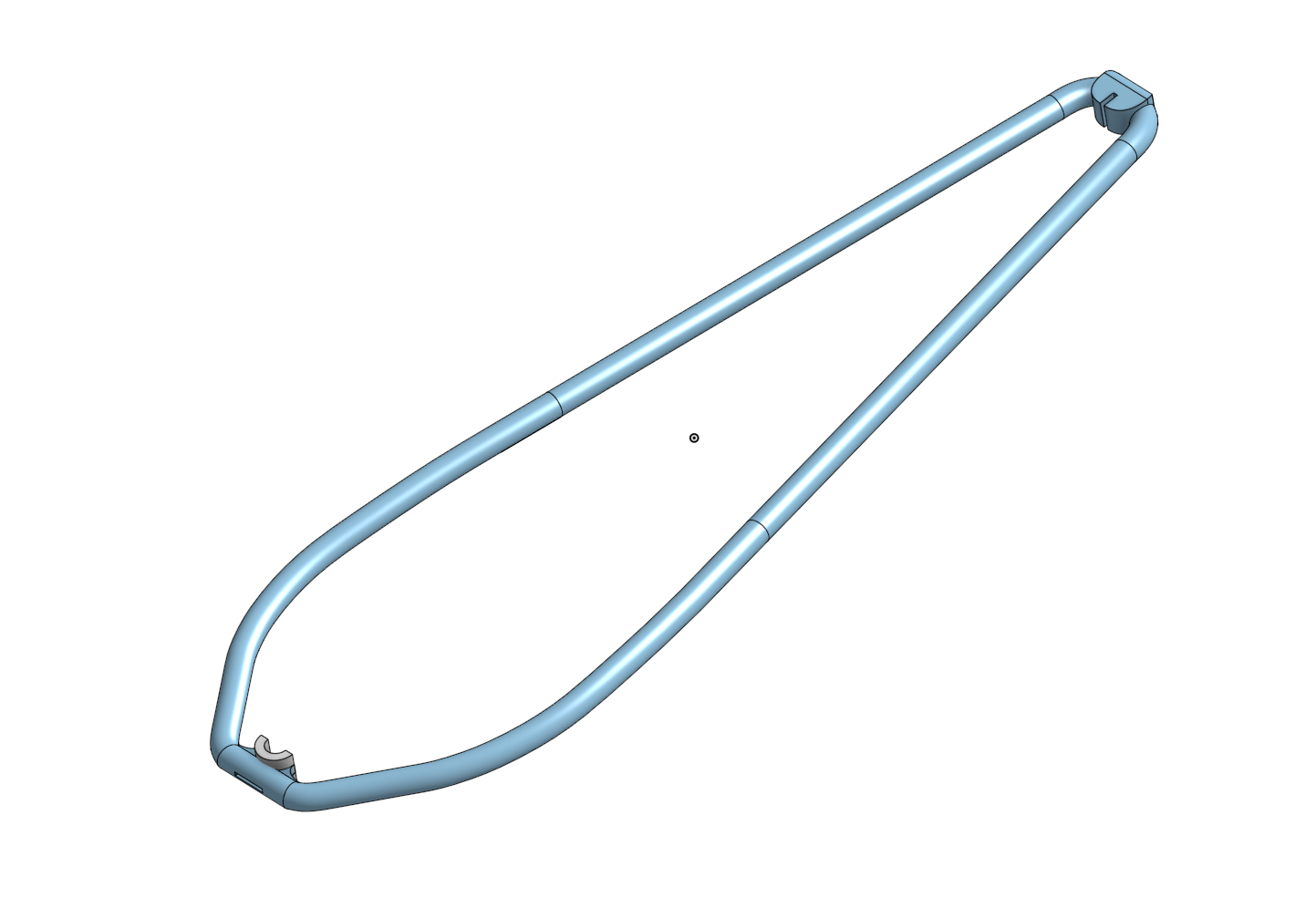

The boom-to-mast connection is made using very thin wire (max. 1 mm) plus super glue.

The sail is not included with the model and must be made separately from monofilm and fabric. Chemopren contact adhesive was used to glue the monofilm and fabric together.

Everything was printed with a 0.2 mm layer height, and small parts were printed with a brim. For the fins, I recommend adding a small cube next to the part so the layers have enough time to cool down.

It is necessary to manually paint supports for overhangs!
