Ford Ignition Switch Bezel Tool
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Automotive
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

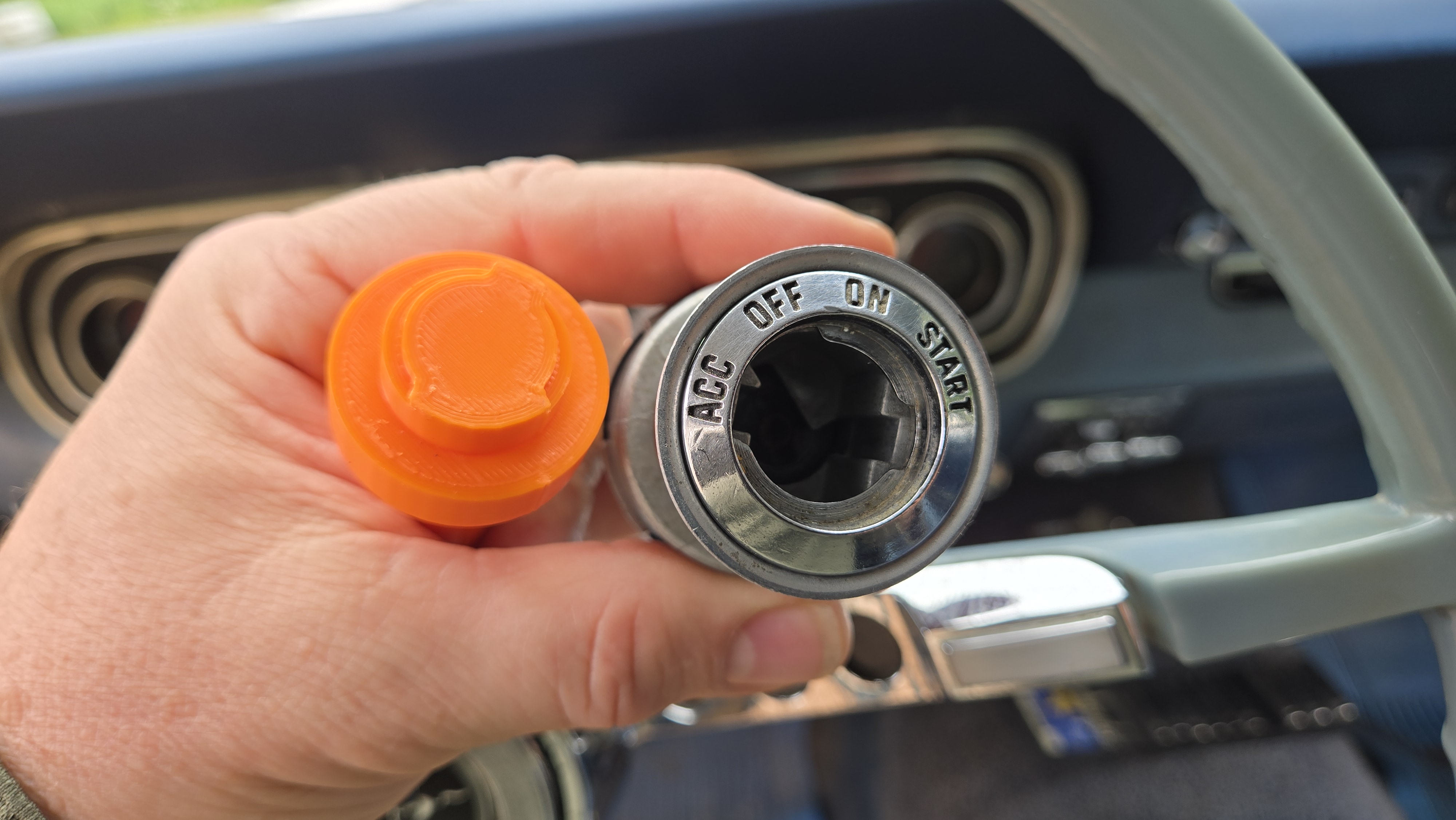

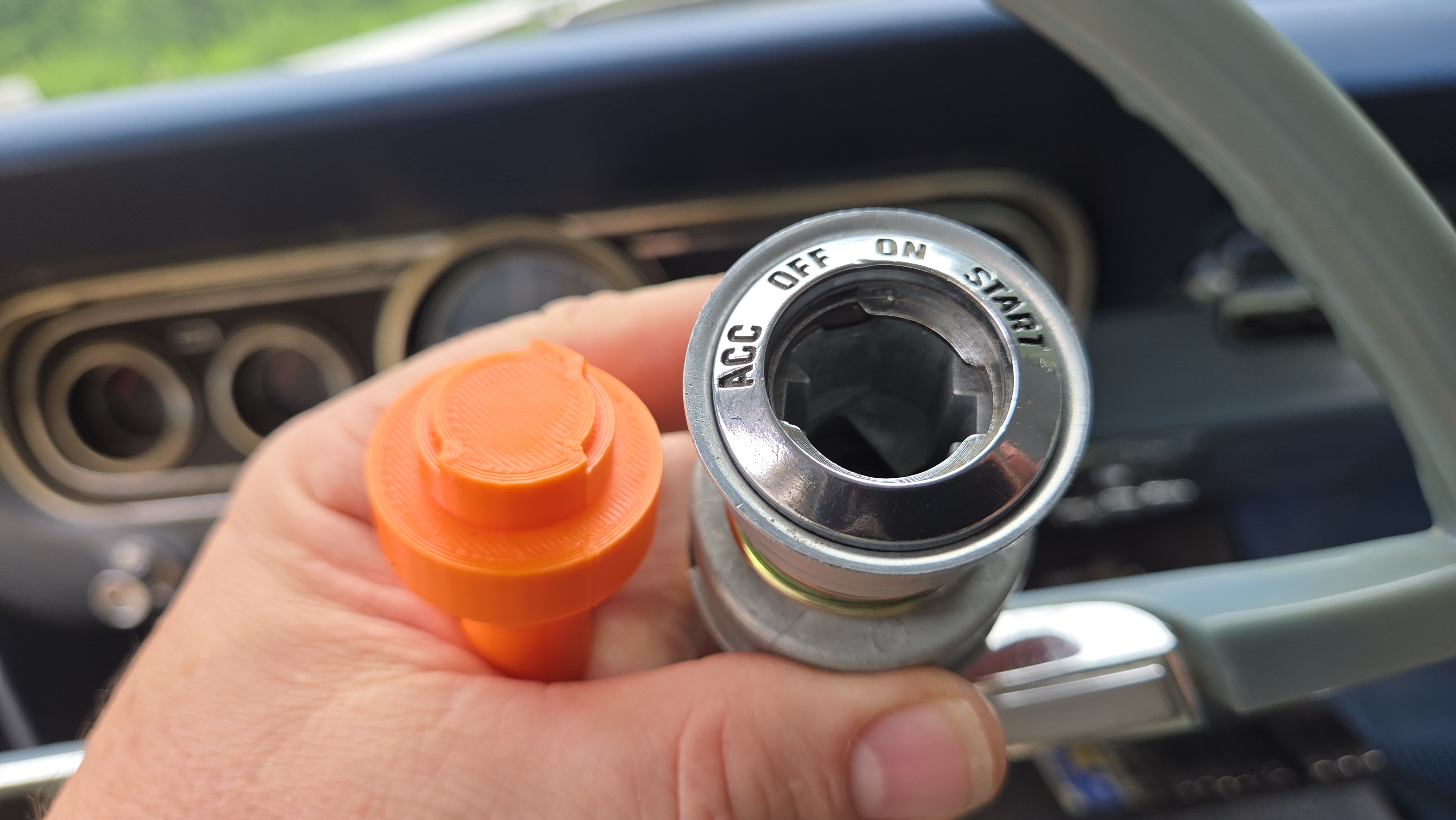

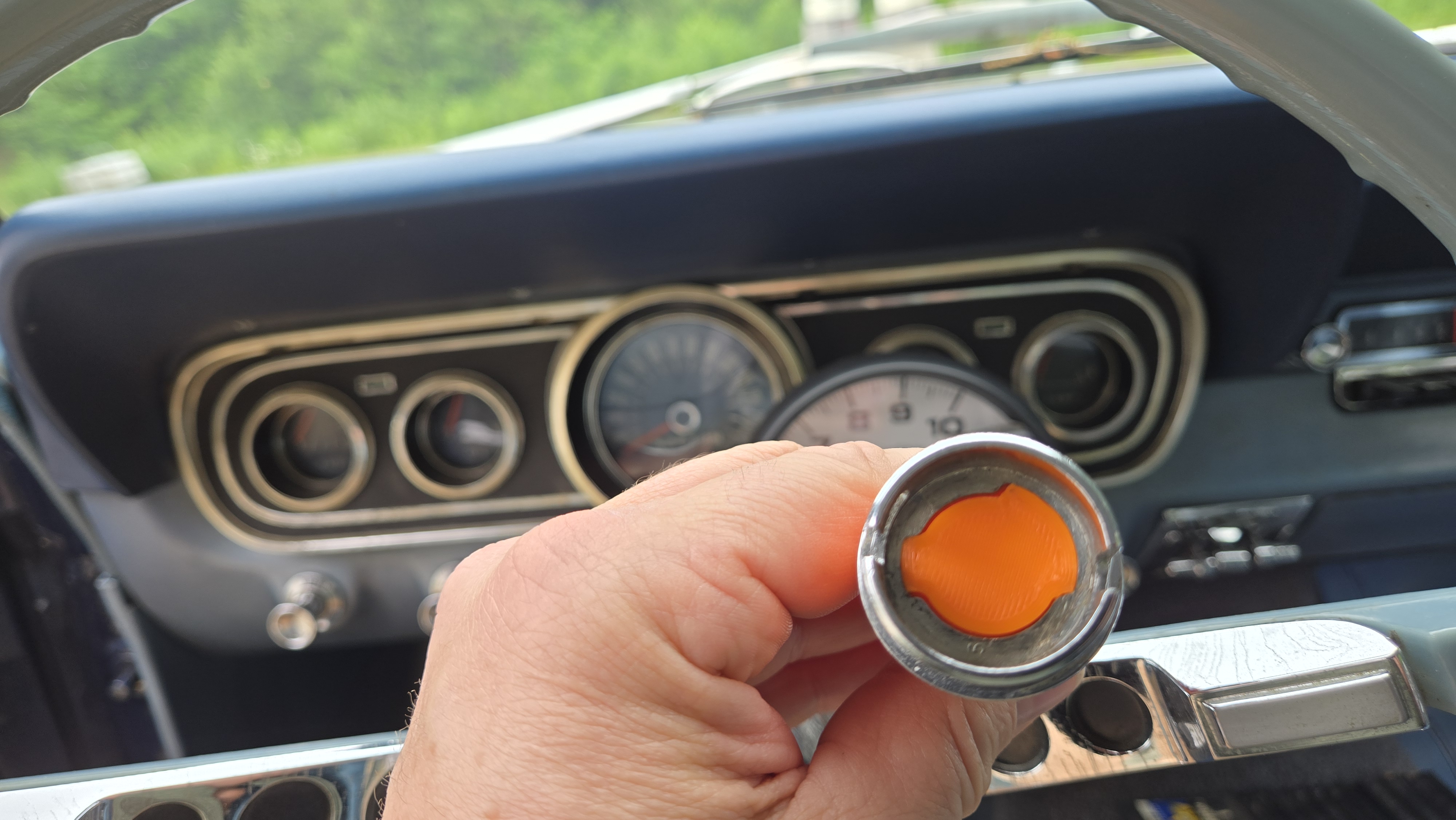

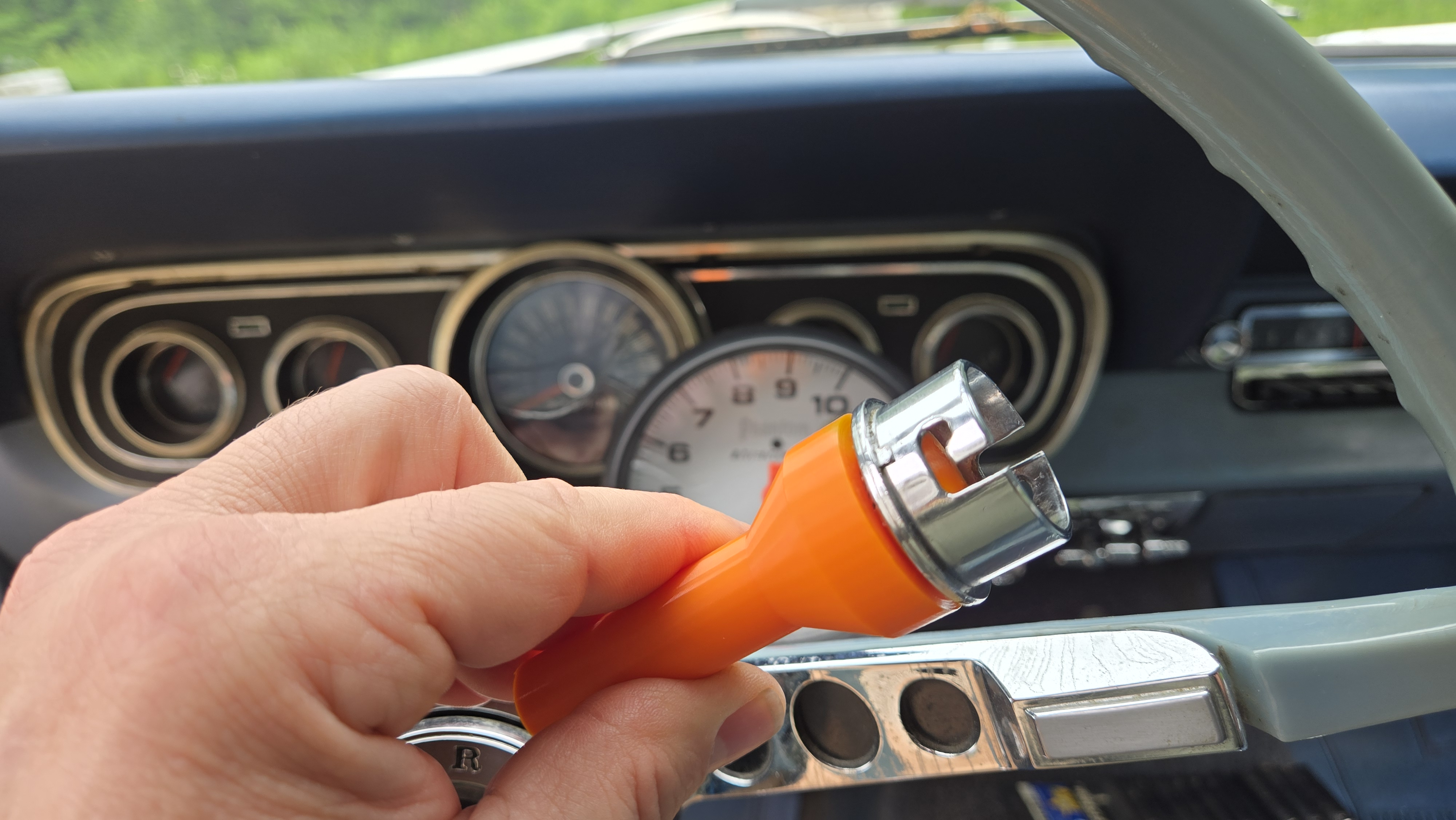

It can be a real PITA to remove and install the switch bezel on a classic Ford.

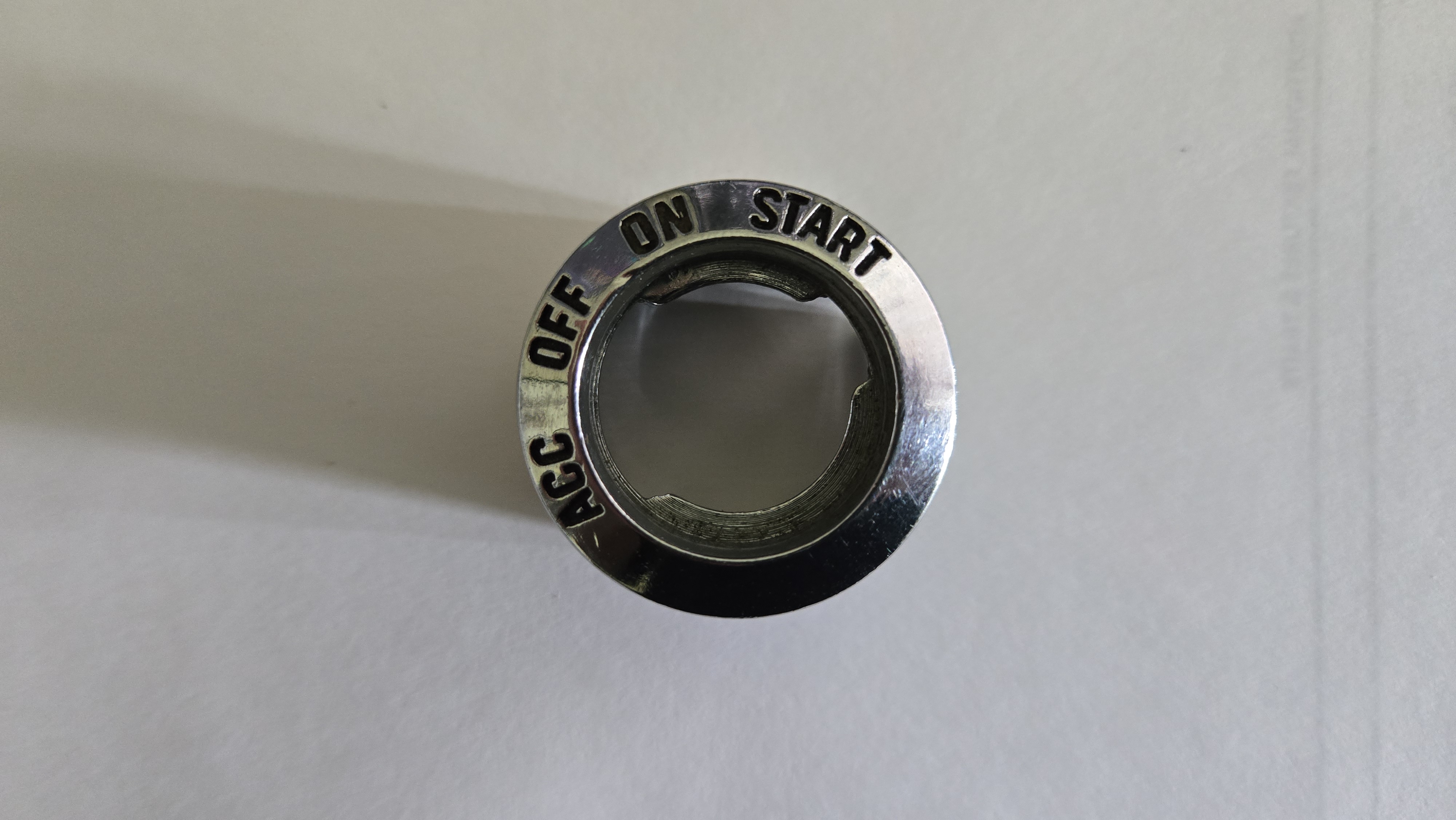

My original switch came unconnected were the metal front meets the plastic back. I was able to remove it and order a new one but I knew when taking it out that there had to be a better way.
For a 65-66 Mustang I recommend removing the instrument panel screws and attack this from the instrument hole in the dash.
Use FreeCAD and imported the image of the Bezel to scale up to size and trace.
I printed this with
Filament PETG
Layers .25 (I wanted it fast, worked fine)
Walls 4
Brim 5mm
infill 15%
