Fully Modular Removable Drawer System
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Quick, Simple, Easy, Efficient, and most importantly Support Free
- Ocena
- 0 / 5
- Polubienia
- 105
- Pobrania
- 175
- Wydruki
- 0
- Wyświetlenia
- 1258
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Office
- Licencja
- Creative Commons — Attribution — Share Alike
Tired of cluttered workbenches, messy desks, or lost screws? This is the ultimate storage solution for makers, crafters, and hobbyists.
It is designed to be incredibly easy to print (no supports needed) and extremely material-efficient—using only 25 grams of filament for a complete drawer/sleeve unit.
Design Features
Grid-Based Modularity: Mount the backing grid to your wall, then slide in the individual drawer sleeves wherever you want them. Customize your layout or expand it over time!

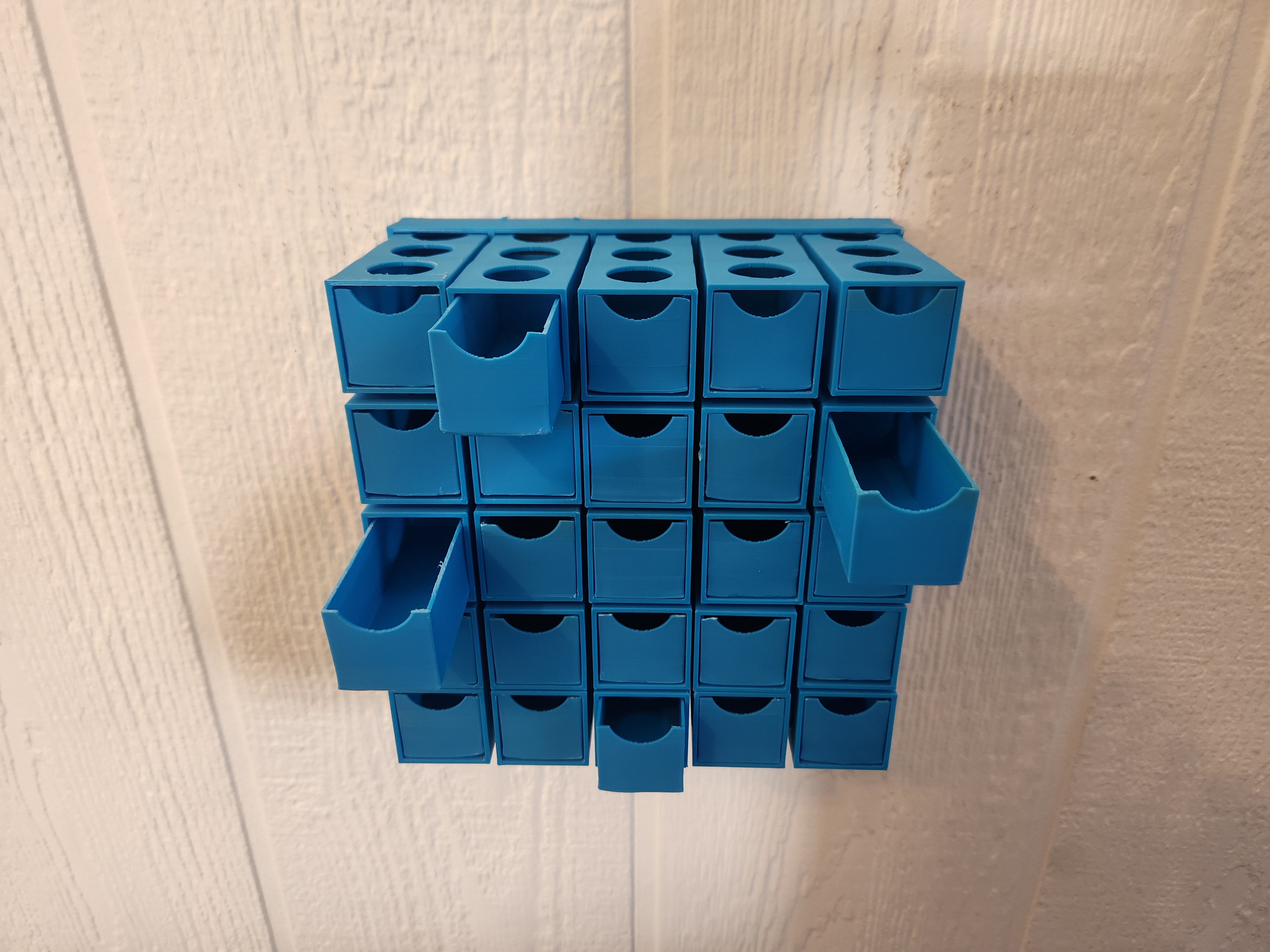

Removable Drawers: Each drawer slides completely out of its sleeve so you can bring your parts, screws, or components directly to your workspace.
Filament-Saving Cutouts: The sleeves feature circular cutouts on the top, bottom, and sides. This reduces print time and keeps material usage down to just 25g per unit without sacrificing strength.
Wall Mountable: The backing grid features pre-designed screw holes in the corners for clean, flush mounting.
No Supports Required: Designed with clean angles so everything prints beautifully without a single gram of wasted support material.
Recommended Print Settings
To get the smoothest slide and best fit, these slicer settings are recommended:
Setting | Recommended Value |
Material | Theoretically any material would work but I have only tested PLA |
Layer Height | 0.2mm |
Walls/Perimeters | 2 |
Infill | 0% (there isn't much hollow space anyways) |
Supports | None (support-free design) |
Brim | None (unless you struggle with bed adhesion) |
XY Compensation | 0 (tight fit) -0.5 (loose fit) or anywhere in between |
Elephant's Foot Compensation | At least 0.2 (the elephants foot is a major pain to deal with) |
Customization Ideas

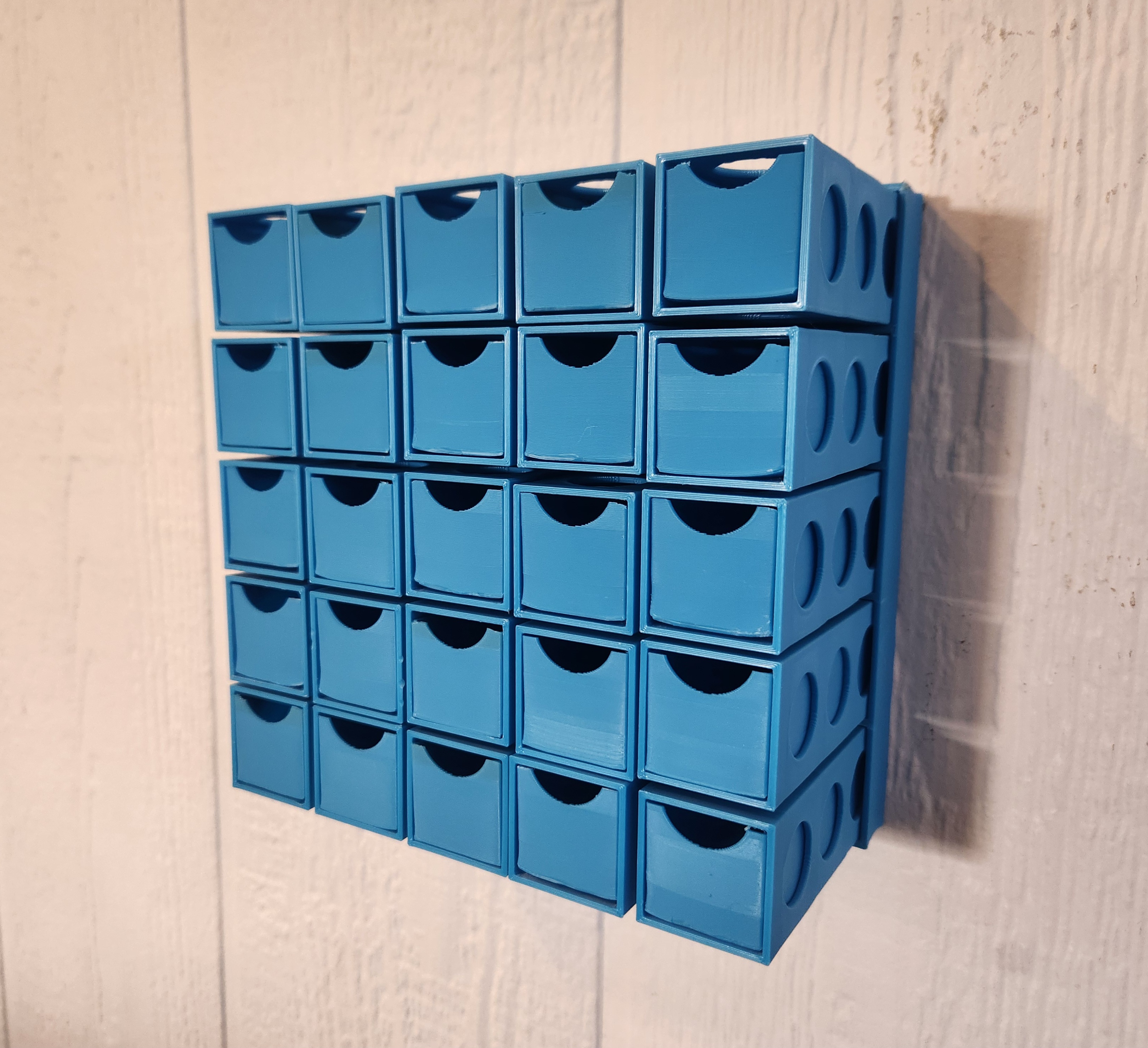

Two-Tone Colorway: Print the sleeves in a dark color (like black or dark grey) and the drawers in a bright accent color (like the blue shown in the photos) to make your organizer pop!
Labeling: The smooth front face of the drawers is perfect for applying adhesive labels or writing with a sharpie.
If you like this design, please leave a ⭐⭐⭐⭐⭐ review and post your makes! I'd love to see how you customize yours.
