Logitech C920 camera stand

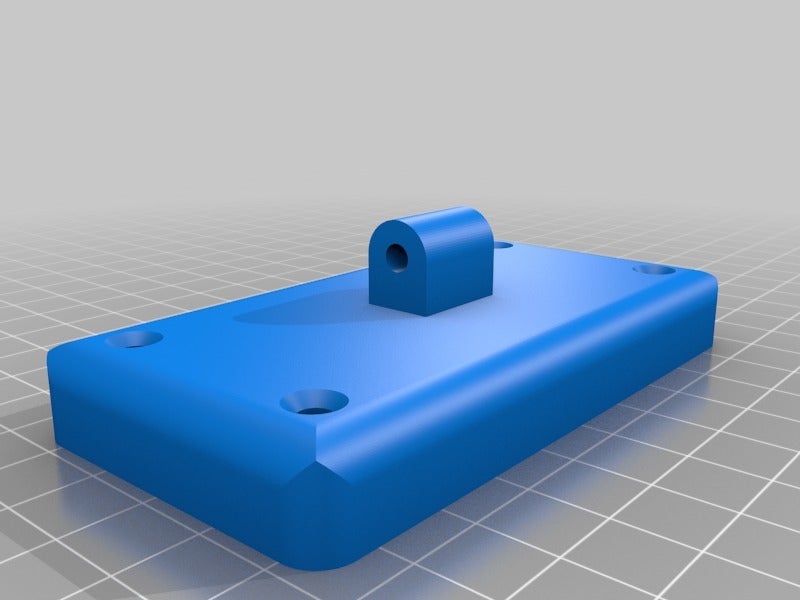

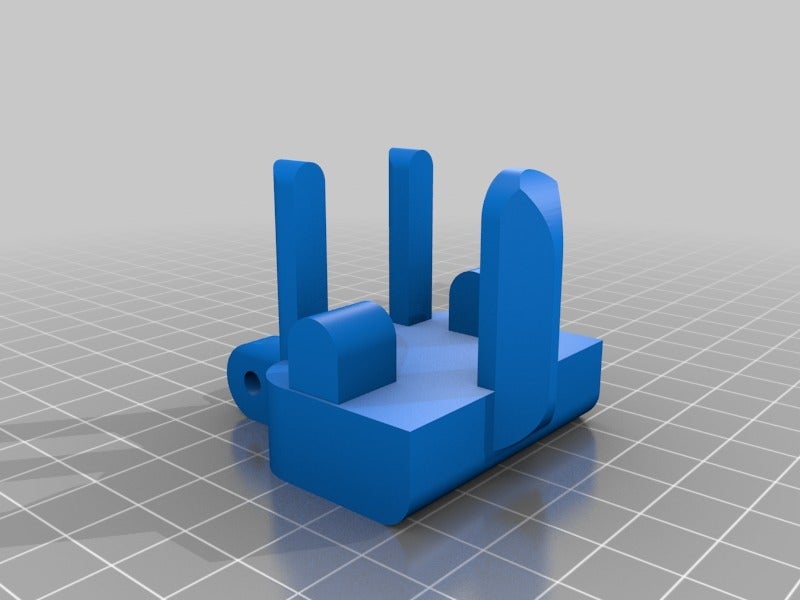

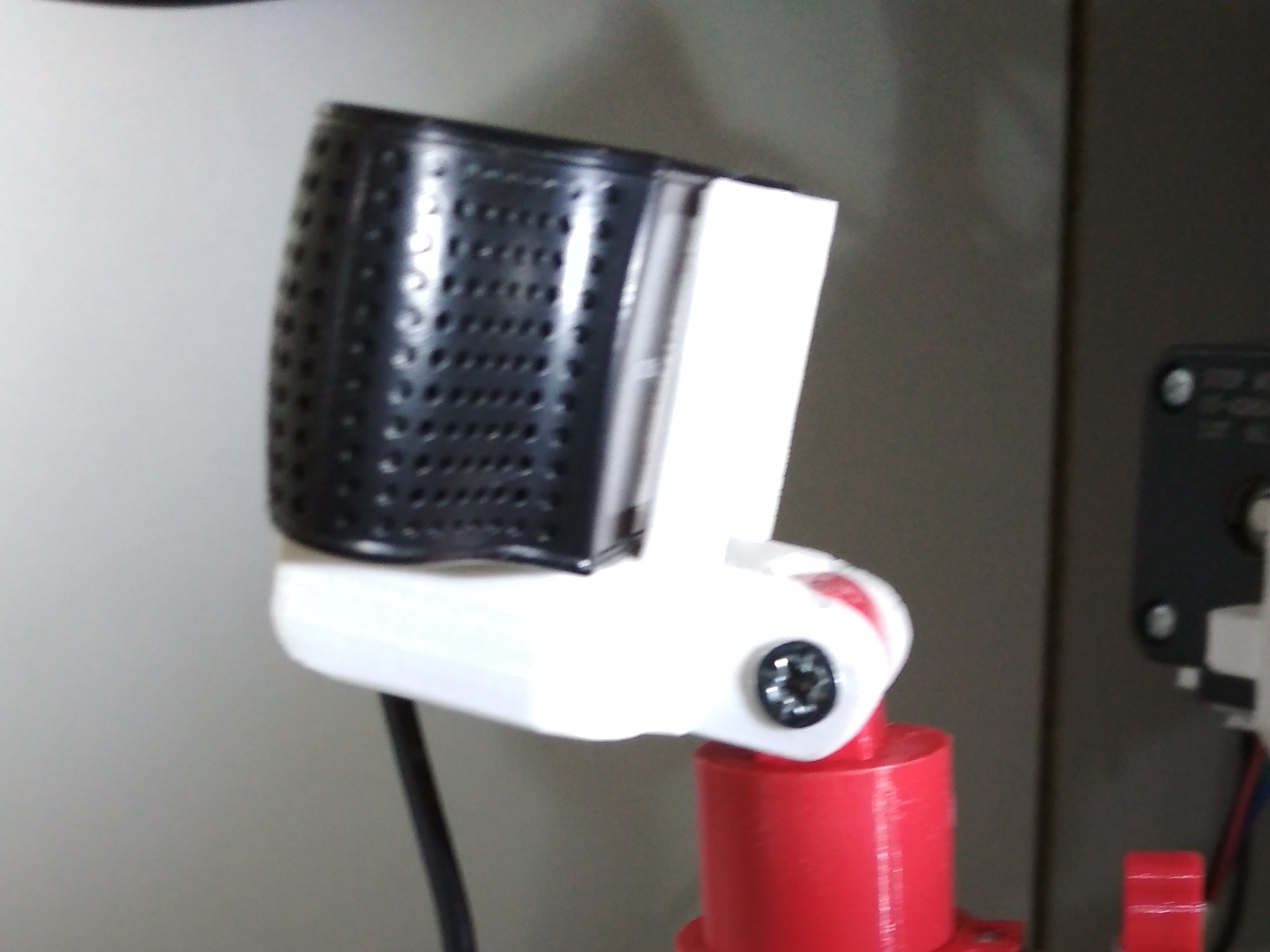

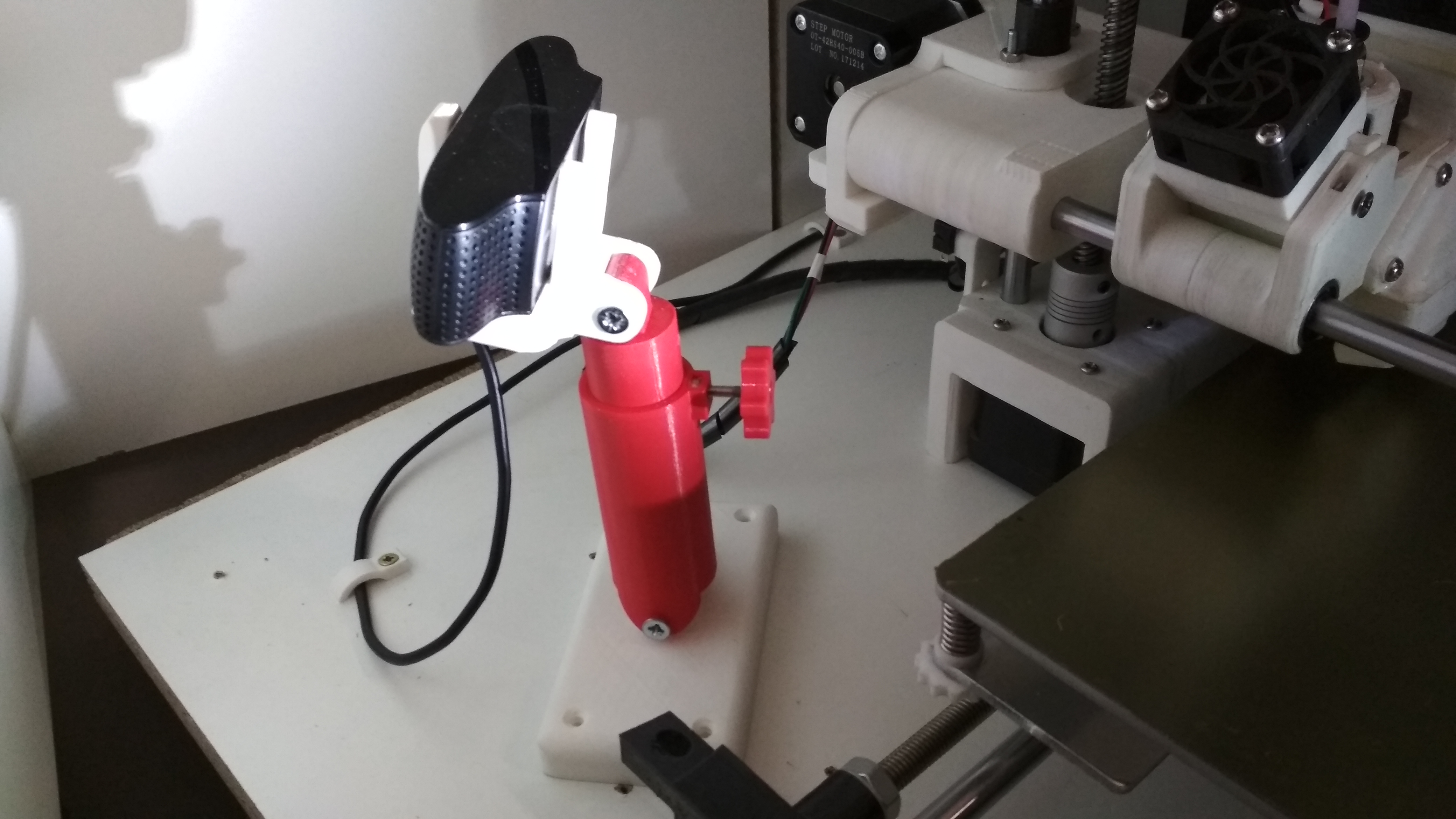

This is a simple Logitech C920 camera mount. You need to remove original holder from your camera, so you will lose the warranty. Base can be glued or screwed to your table so it can be placed really firmly to the ground. Camera is press fitted to the cam holder.

BOM:
1x M3 screw and nut
2x M4 screws and nuts
Optionally washers.

For easier customization I've attached rsdoc file so you can use DesignSparkMechanical.

Print instructions

Category: Camera Print Settings

Printer: Anet A6 modded

Rafts: No

Supports: No

Resolution: 0,2

Infill: 30%

Filament: Fiberlogy Easy PLA Red
Notes:

Material and your printer settings aren't that important. Use whatever you are comfortable with.

Post-Printing

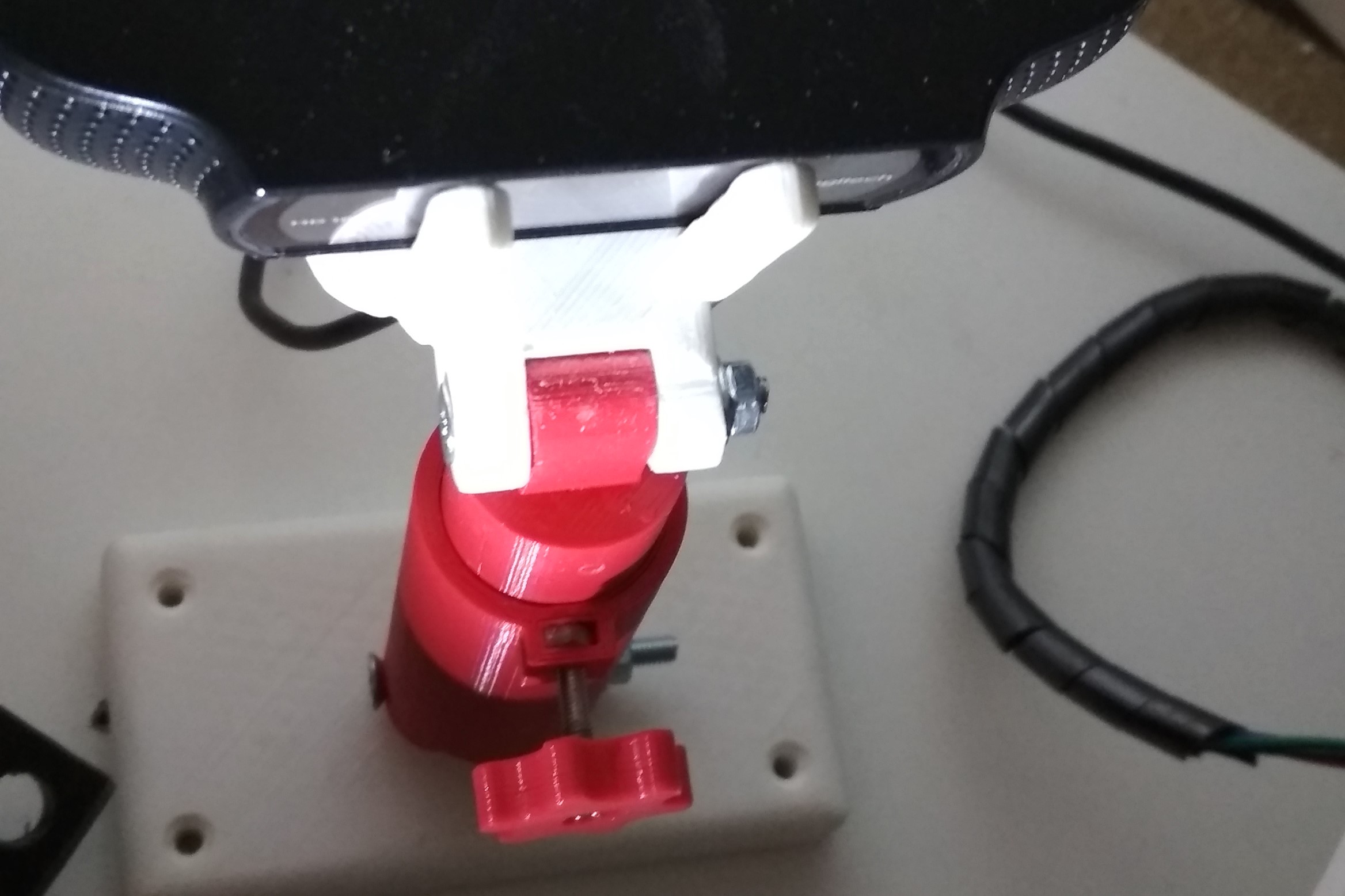

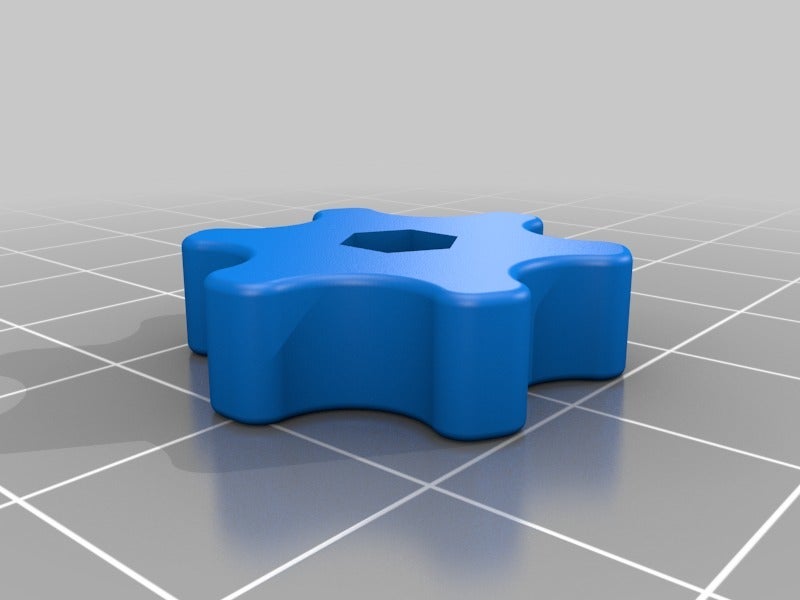

Screw everything together and press fit your camera. To better secure M3 screw to the knob use some super glue.
