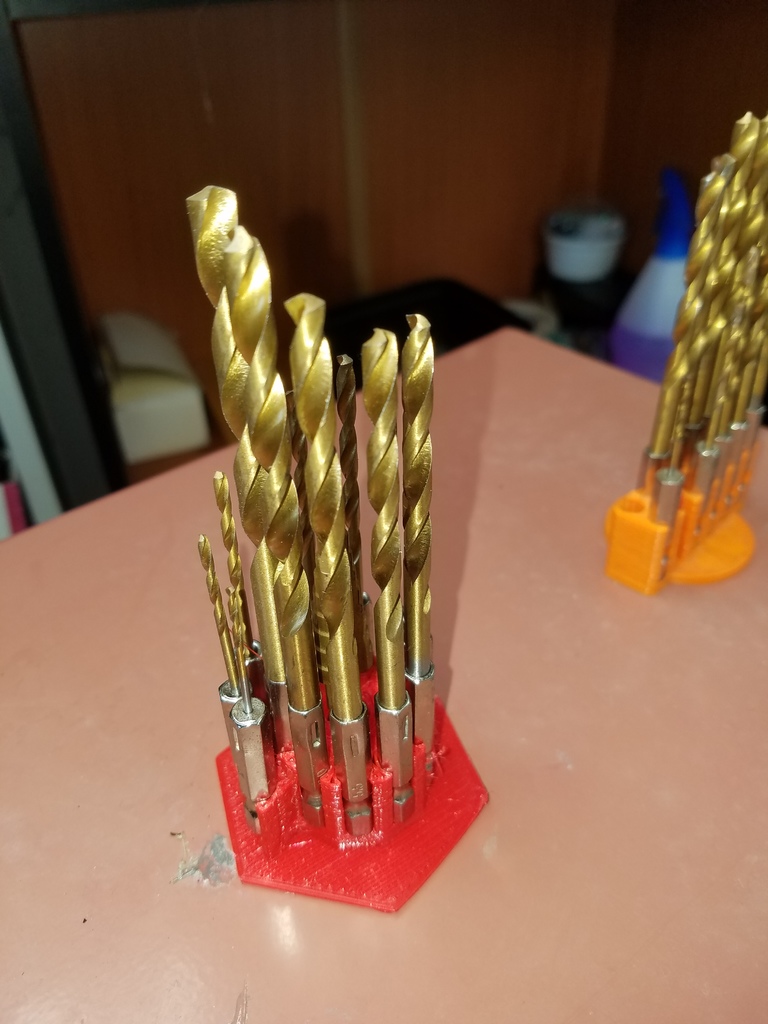

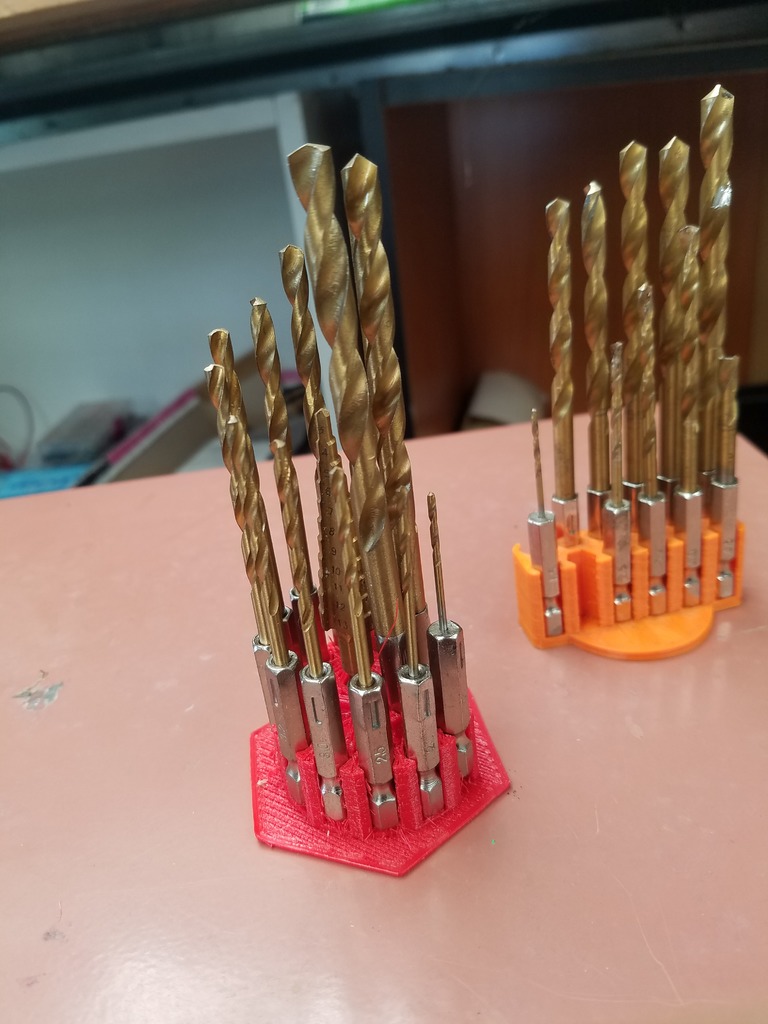

Spiral bitholder

A stand for hex shanked drill bits

This is a remix of hex bit holder by Fitzterra (https://www.thingiverse.com/thing:1686330). However, this remix evolved until it is now almost completely, but not entirely, unlike the original, and has the following features:

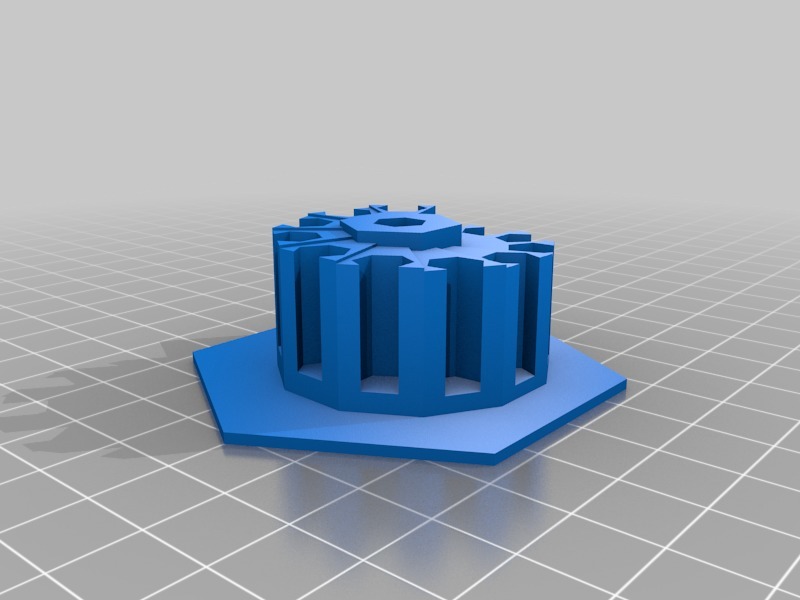

• Stepped spiral layout of bits
• Mostly parameterised
• A central hole with a larger clearance for a stepped drill
• Cutouts showing bit size are an artefact of the spiral drawing technique, and go all the way down to the bottom of the bit.
• Hex or round holes
• Extended base for added stability
• Just for fun, the base and centre platform are hexagonal

To do (but probably won't ever get done. Remix it!)):

• Make the outer surface a smooth curve, (and a circular base to match)
• Make the top surface smooth instead of a staircase
• Allow users to optionally add outer sides to the holes
• Parameterize base size
• Fillet corners

Print Settings

Printer:

Zonestar D810

Rafts:

Supports:

No

Resolution:

Infill:

15%, but could probably be zero

Filament:

Chinese cheapo PLA, but any material should be OK

Red

Notes:

Category: Tool Holders & Boxes
