Featherboard for Festool TKS80 (replaceable)

Heyho

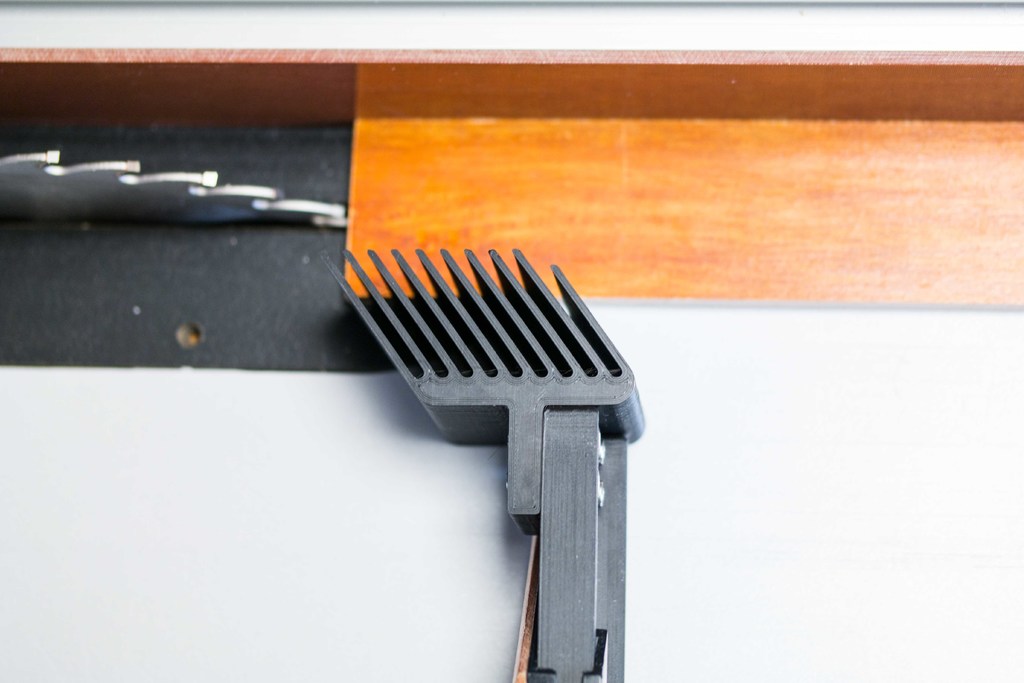

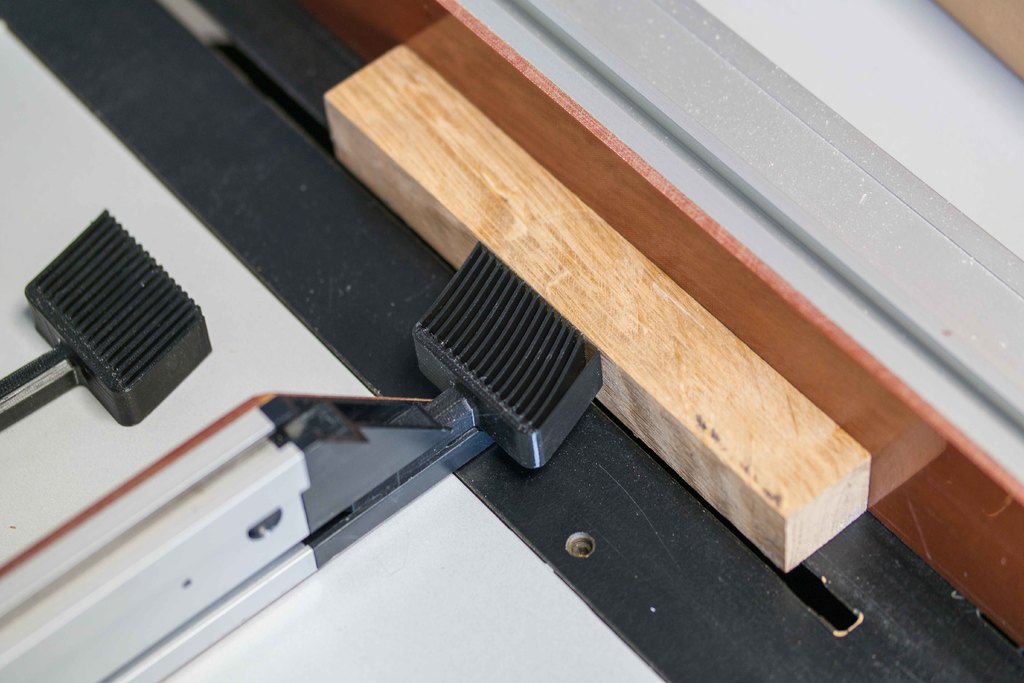

here I have a featherboard for your Festool TKS80. It will slide into the existing profile of the angle guide.

There are different options:

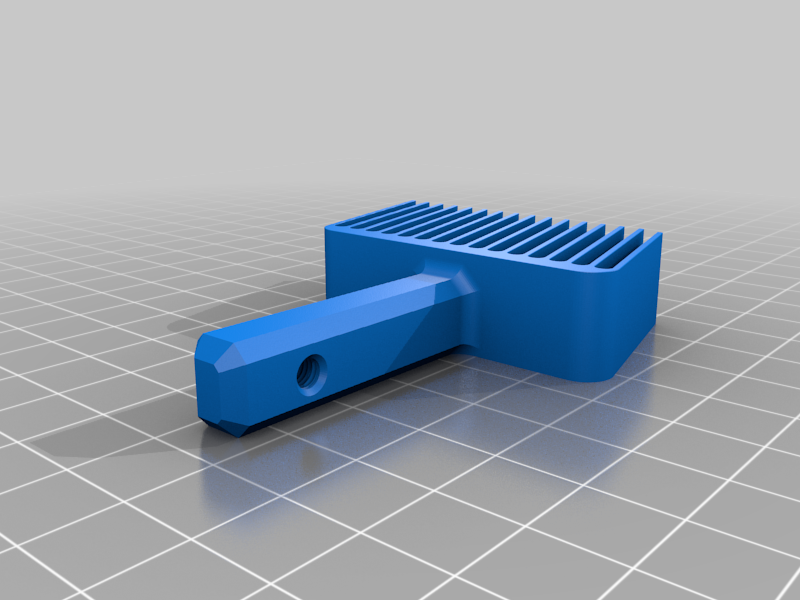

small_thin = small featherboard with 2 perimeter feathers

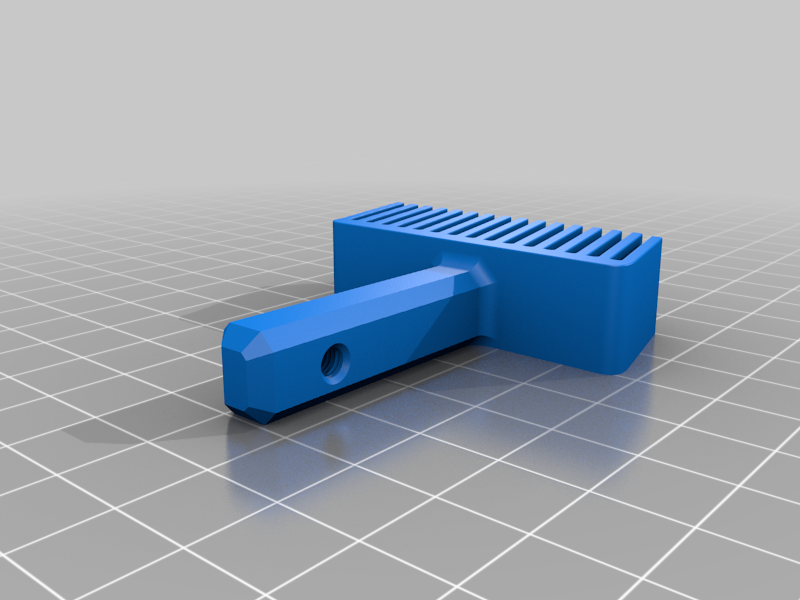

small_big = small featherboard with 4 perimeter feathers

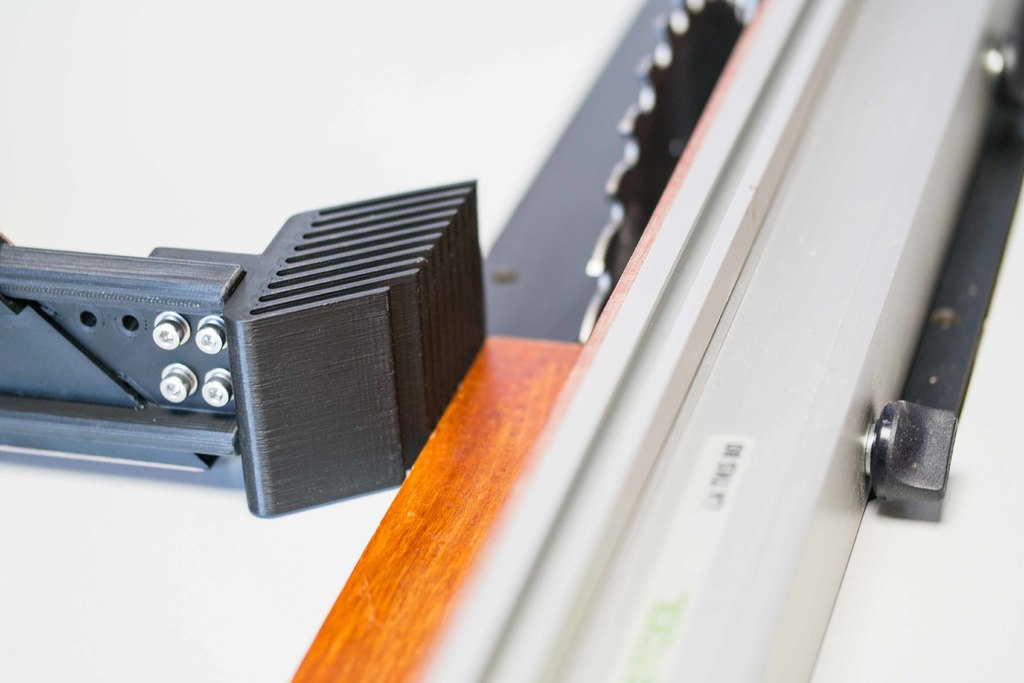

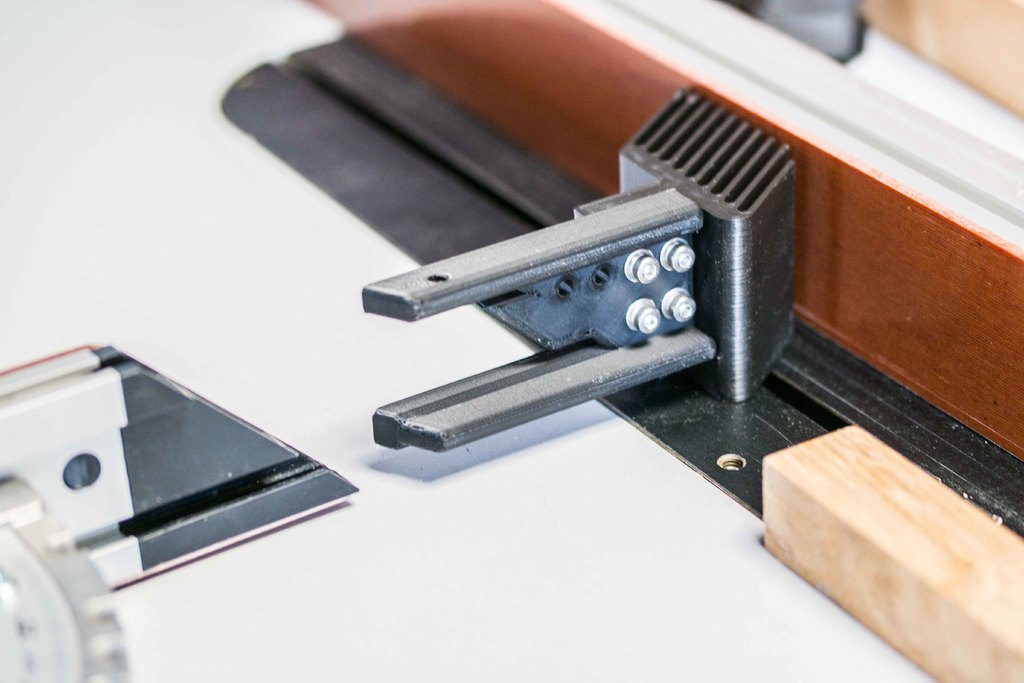

big_base = needed to screw the big featherbord to the aluminium profile (4 x M4 Bolt + Screws needed)

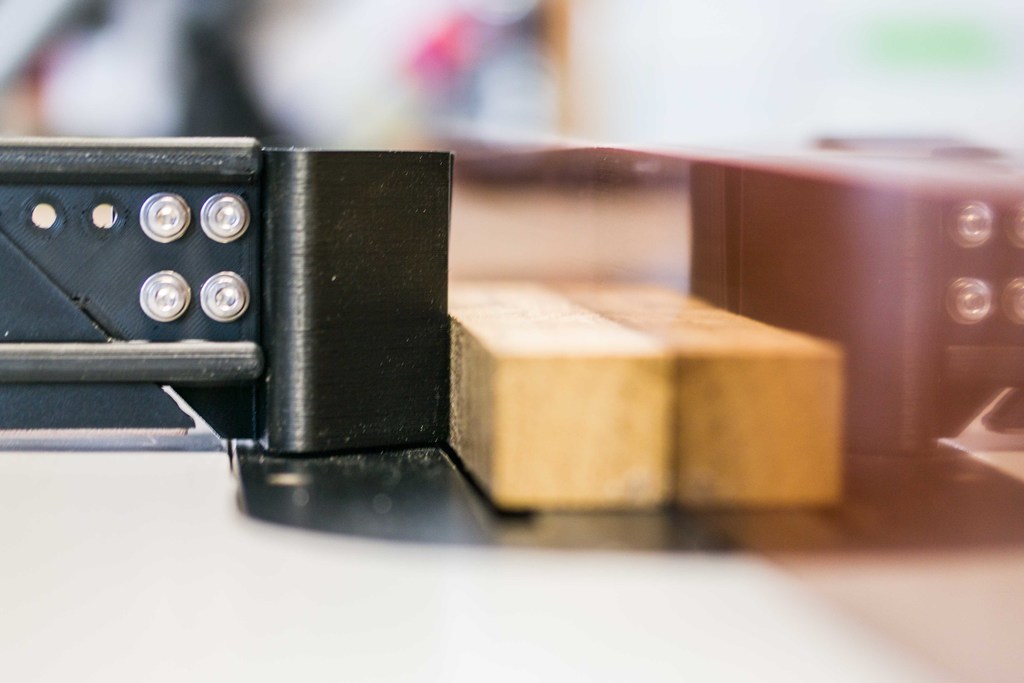

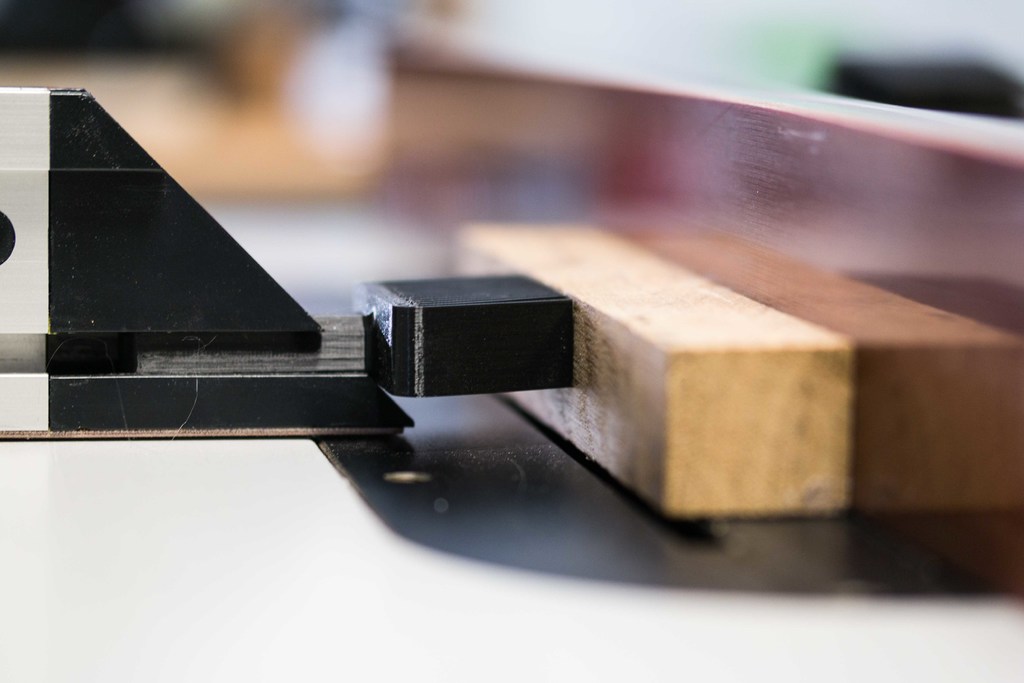

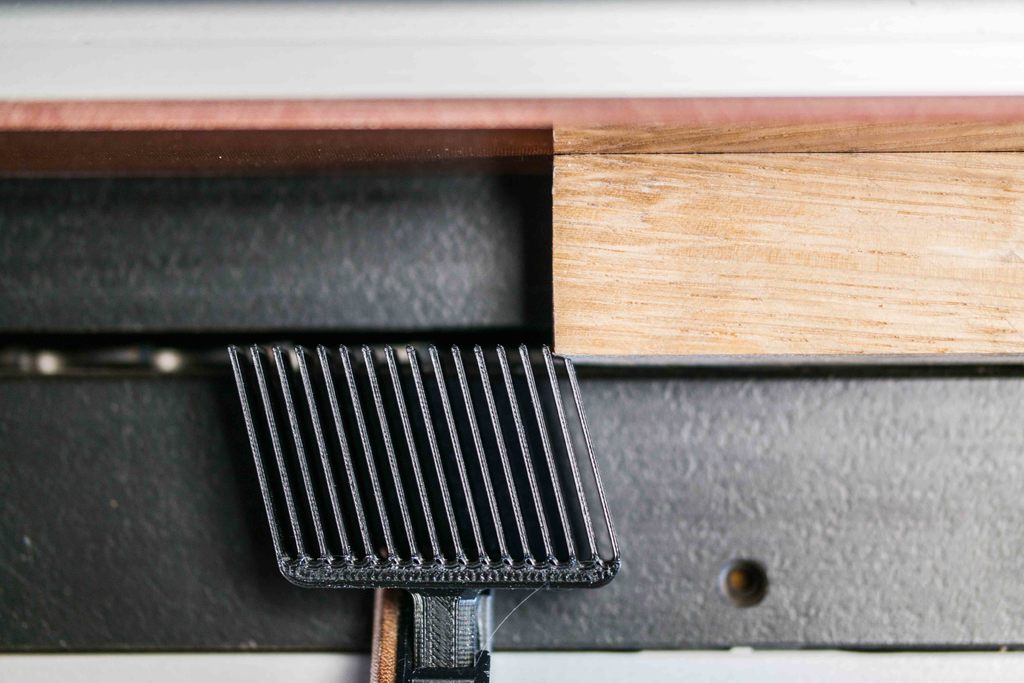

Note: Only the big versions will reach very close to the surface and therefore are usable to cut thin pieces.

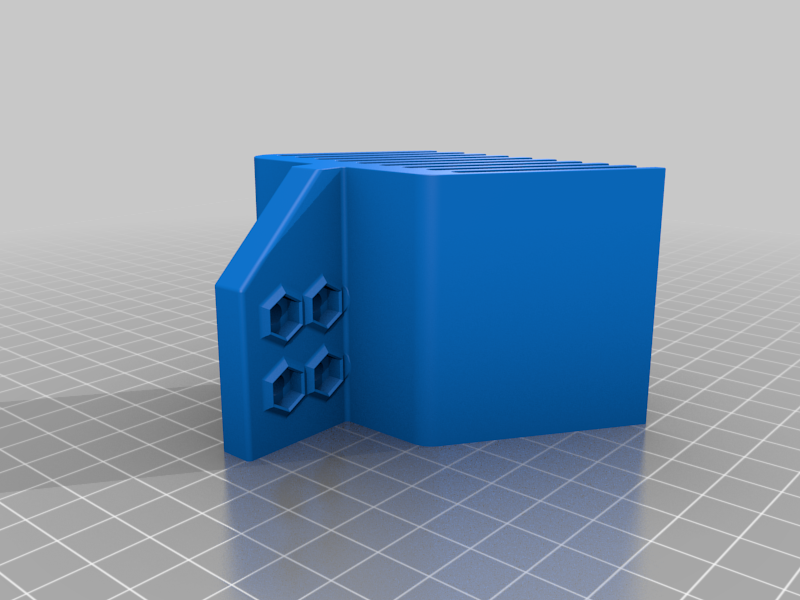

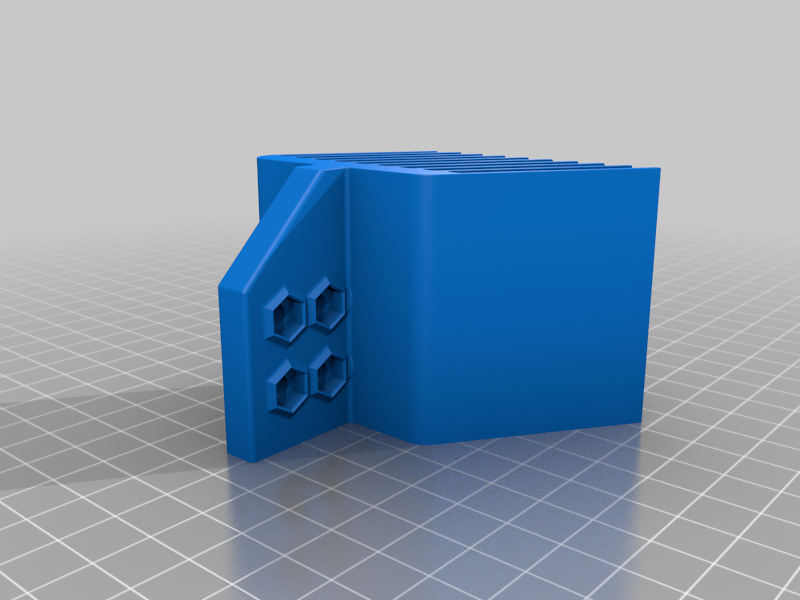

big_thin & big_big = same difference as with the small version.

If you use stiff material you can choose the thin variations. Keep in mind that your material is tough enough to avoid breaking.

I tried PLA, PETG and TPU (hard). Until now I prefer PETG as material.

Maybe I´ll design a top version to hold the workpieces down too.

Have fun and keep printin!

PS: Print as massive as you want. 100% infill and 4 perimeters will be the safe way to go ,-)

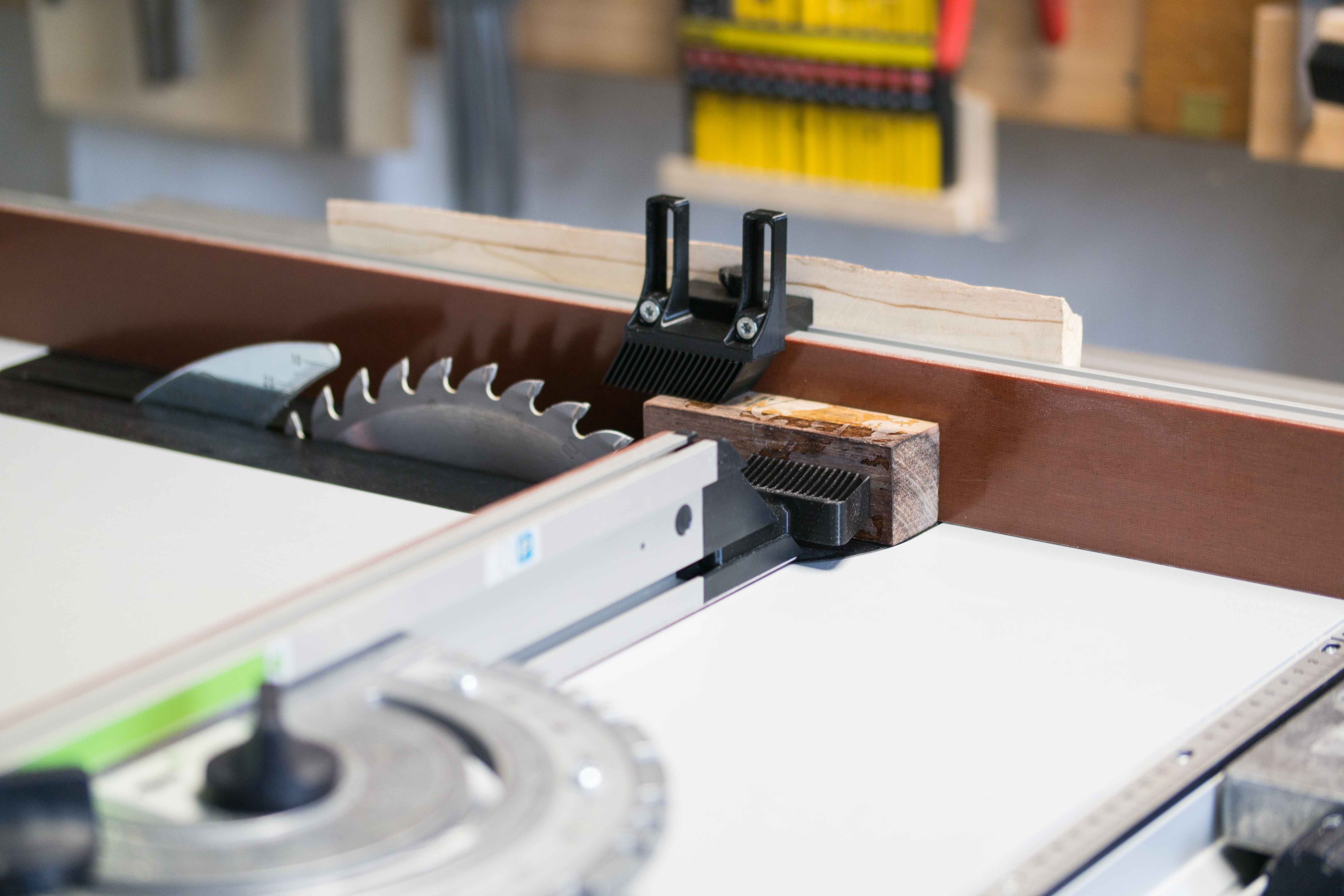

Update: Added the Version TKS80_Top_Feather as a guide for smaller parts from the side guide.
